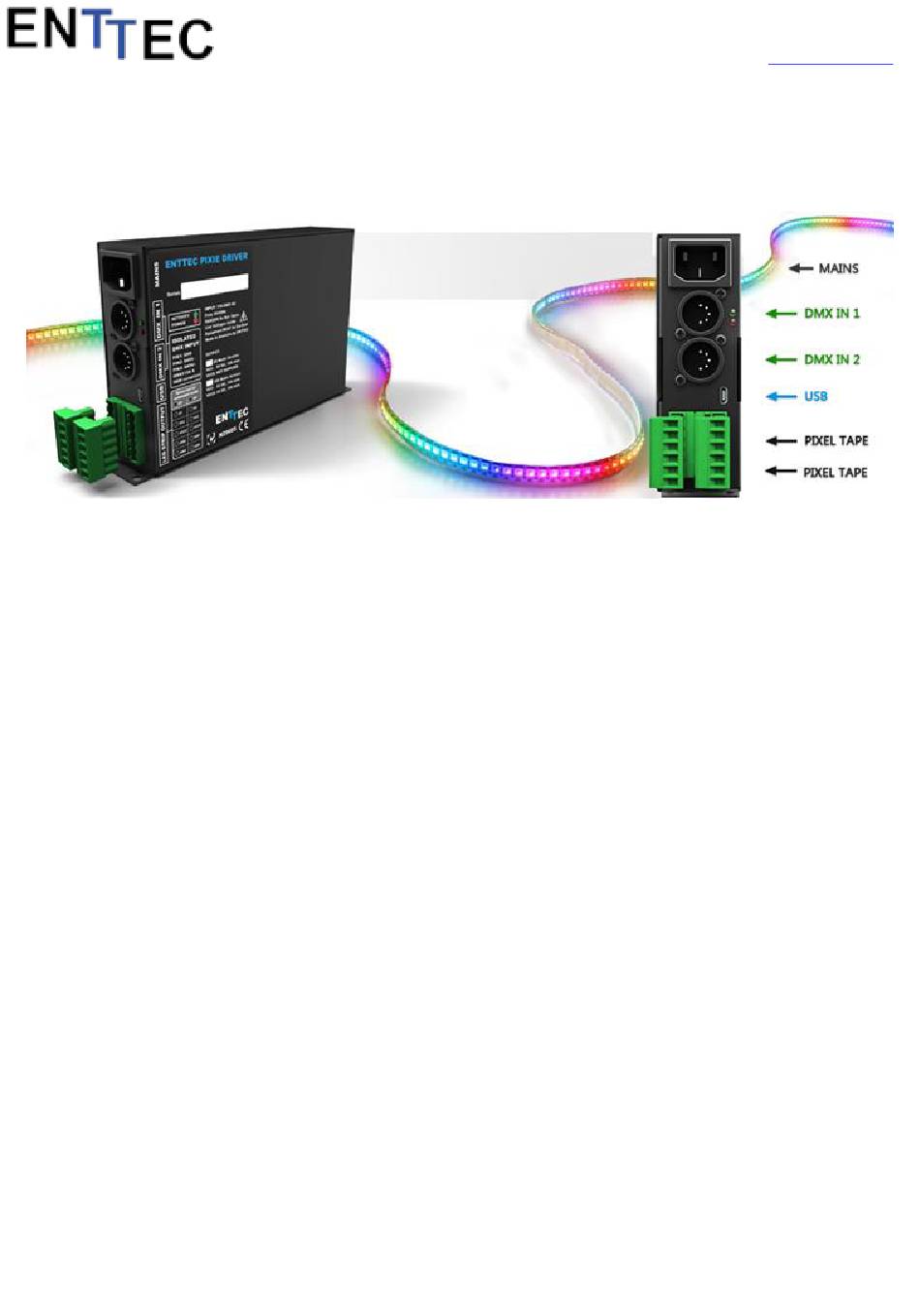

Enttec PIXIE DRIVER 5V User Manual

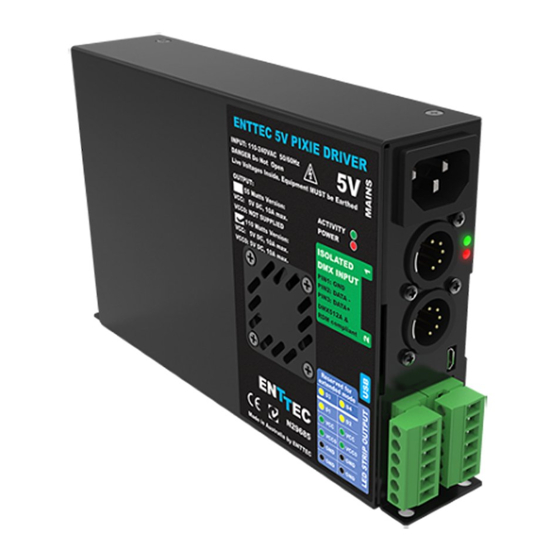

ENTTEC PIXIE DRIVER
Features
Drives 2 DMX universes worth of 5 Volt Pixel Tape

or 12/24V Pixel Dots (model dependent).
In-Built 5V DC power supply with 55 and 110

watts output power units available (pn: 73540 and
73451)
In-Built 12V DC power supply with 65 and 130

watts output power units available (pn: 73542 and
73453)
In-Built 24V DC power supply with 65 and 130

watts output power units available (pn: 73547 and
73548)
Enhanced data outputs with surge protections

D3 is a duplicated output of D1 for backup

D4 is a duplicated output of D2 for backup

55W and 65W drivers can individually control and

power up to 300 RGB pixel LEDs
110W and 130W drivers can individually control

and power up to 600 RGB pixel LEDs
Smart thermal management

DMX512 Controllable and USB configurable

Supports RGB and RGBW pixel tape and pixel

dots based on WS2811, WS2812 & WS2812B.
Quick 2 steps test installation: connect your pixel

strips to the screw terminal output and plug
mains cable to a wall outlet. It is that easy!
1
Standalone test output sequences (no external data

required)
Show record and playback (Art-Net to USB using

PRO-Manager App)
Power and output status LED indicators

High quality powder coated metal box

Scalable design for large projects

Up to 8 units stackable using standard 19" modular

rack accessory (sold separately)
Standard IEC mains and 5Pin-XLR DMX input con-

nectors
Plug-unplug screw terminal output connector

Automatic multi voltage mains input (110-250V AC)

Safety
This unit is intended for indoor use only

Do not expose the PIXIE DRIVER to rain or moisture,

doing this will void the warranty
Make all the connections before you plug in the

mains power
Do not remove the cover, there are no serviceable

parts inside
Never plug this unit in to a dimmer pack

Always be sure to mount this unit in an area that will

allow proper ventilation. Allow about 6" (20 cm) be-
tween this device and a wall
Pixie User Manual
50478 (H)
www.enttec.com/pixie
ID: 24
