- Page 1 CABINET PARTS REFRIGERATOR For Model: KSSS36MAX04 Part No. 4379206 11−93 Litho In U.S.A.
-

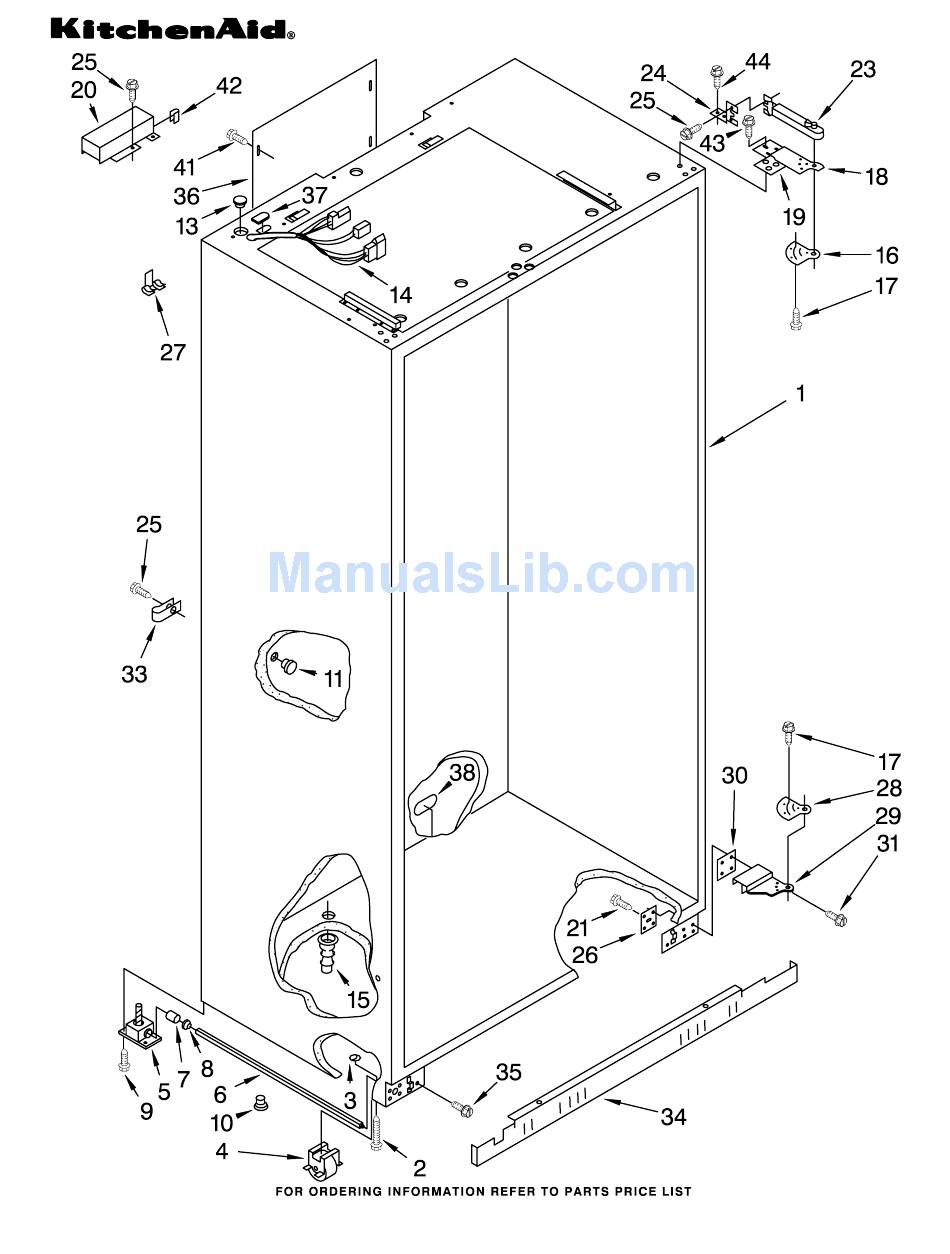

Page 2: Cabinet Parts
Wiring Harness, Cabinet 15 1112848 Drain Fitting Gap, Cover Assembly (Top) 2000305 Left Side 2000304 Right Side CABINET PARTS For Model: KSSS36MAX04 Illus. Part DESCRIPTION 17 2001295 Shoulder Screw Hinge (Top) 2000306 Left Side 2000307 Right Side 19 2000770 Shim, Hinge... - Page 3 CABINET TRIMS AND BREAKER TRIM PARTS For Model: KSSS36MAX04 4379206...
- Page 4 5 1112682 Magnet, Side (4) 6 1112683 Magnet, Freezer (2) 7 1112679 Magnet, Refrigerator (2) TOP GRILLE AND UNIT COVER PARTS For Model: KSSS36MAX04 Illus. Part DESCRIPTION 2000321 Cabinet, Trim R.S 10 2000322 Cabinet, Trim L.S 11 2001297 Screw 12 1112800...
-
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSS36MAX04 4379206... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSS36MAX04 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 2 1112591 Spacer, Control Panel (3) 5 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw, 8 x 1−1/4 (8) 486194 Screw, 8 x 1/2...
-
Page 7: Freezer Liner Parts
FREEZER LINER PARTS 4379206 For Model: KSSS36MAX04 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2 1113649 Bracket, Light 3 1113650 Lens 4 1112613 Light, Socket 547225 Light, Bulb 538533 Support Clip, Icemaker (2) 7 2000193 Grommet, Screw (2) 488552 Screw, 10−12 x 3/8 (2) - Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSS36MAX04 Illus. Part DESCRIPTION 1 1113625 Control Panel 2 1113963 Inlay, Control Panel 3 1113466 Barrier Assembly 488974 Screw (2) 5 1108112 Switch, Rocker Arm 6 1113132 Seal, Control Panel 489260 Screw (3) 9 2000153...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSS36MAX04 4379206... -
Page 10: Freezer Shelf Parts
5 1125913 Rack, Wine 7 1113550 Frame, Assembly Meat Pan 9 1113893 Cover, Crisper 10 2000154 Glass, Crisper FREEZER SHELF PARTS For Model: KSSS36MAX04 Illus. Part DESCRIPTION 11 2000742 Meat Pan, Connector 14 2000887 Crisper Pan 15 1113870 Roller (Includes Relay) -
Page 11: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSS36MAX04 4379206... - Page 12 REFRIGERATOR DOOR PARTS For Model: KSSS36MAX04 Illus. Part DESCRIPTION 1 2000693 Door Panel, Refrigerator (Also Order Item 29) 939101 Screw Anchor (8) 3 2000696 Hinge Assembly, 4 2000303 Spacer 489282 Screw 6 2000698 Hinge Assembly, Bottom 7 1112533 Gasket Retainer,...
-
Page 13: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSS36MAX04 4379206... - Page 14 FREEZER DOOR PARTS For Model: KSSS36MAX04 Illus. Part DESCRIPTION 1 2000714 Exterior Door Panel, Freezer (Also Order Item 4) 876029 Kit, Foam Slab (Required When Replacing Exterior Door Panel) 6 2000720 Hinge, Bottom 489282 Screw 2000721 Hinge, Top 9 2000303...
- Page 15 UPPER UNIT PARTS For Model: KSSS36MAX04 4379206...
- Page 16 Screw, 8 x 3/8 16 1113015 Condenser Production Compressor Requires Production Electrical Components. Service Compressor Requires Service Electrical Components. For Further Information, Refer to Filmcard 19.1. UPPER UNIT PARTS For Model: KSSS36MAX04 Illus. Part DESCRIPTION 943447 Grommet (4) 18 1113019 Clamp (4)
- Page 17 LOWER UNIT AND TUBE PARTS For Model: KSSS36MAX04 4379206...
- Page 18 LOWER UNIT AND TUBE PARTS For Model: KSSS36MAX04 Illus. Part DESCRIPTION 1 2000528 Defrost Bi−Metal 2 1113043 Clamp, Bi−Metal 486194 Screw, 8 x 1/2 4 1113293 Tube, Connect (Suction) 5 1113209 Tube, Connect (Discharge) 6 1113296 Tube, Flow Divider (2)
- Page 19 AIR FLOW AND RESERVOIR PARTS For Model: KSSS36MAX04 4379206...
- Page 20 AIR FLOW AND RESERVOIR PARTS For Model: KSSS36MAX04 Illus. Part DESCRIPTION 1 2001086 Fan Motor 3 2154800 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw, 8 x 1/2 8 2000618 Motor, Wiring 488500 Screw, Ground 488366...
-
Page 21: Icemaker Parts
ICEMAKER PARTS For Model: KSSS36MAX04 4379206... - Page 22 13 2000837 Water Valve, Harness 14 2001353 Copper, Water Line 489348 Clamp, Nylon Valve PARTS NOT ILLUSTRATED ICEMAKER PARTS For Model: KSSS36MAX04 Illus. Part DESCRIPTION 16 1113066 Clamp Tube 487857 18 1113703 Cover 628228 Mold & Heater (Also Order 542638 Silicone...
- Page 23 REFRIGERATOR CONTROL PANEL PARTS 4379206 For Model: KSSS36MAX04 Illus. Part DESCRIPTION 1 1112640 Control Panel 2 2000974 Inlay, Control Panel 3 2000789 Circuit Board 4 1116853 Control Knob 837444 Retainer, Knob 6 1108112 Switch, Rocker Arm 7 1113133 Seal, Control...
