CABINET PARTS
36" BUILT IN
REFRIGERATOR
For Model: KSSS36MDX02
1
10−95 Litho In U.S.A. (RCG)
Part No. 4394087

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS36MDX02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSS36MDX02

Summary of Contents for KitchenAid KSSS36MDX02

  • Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Model: KSSS36MDX02 10−95 Litho In U.S.A. (RCG) Part No. 4394087...

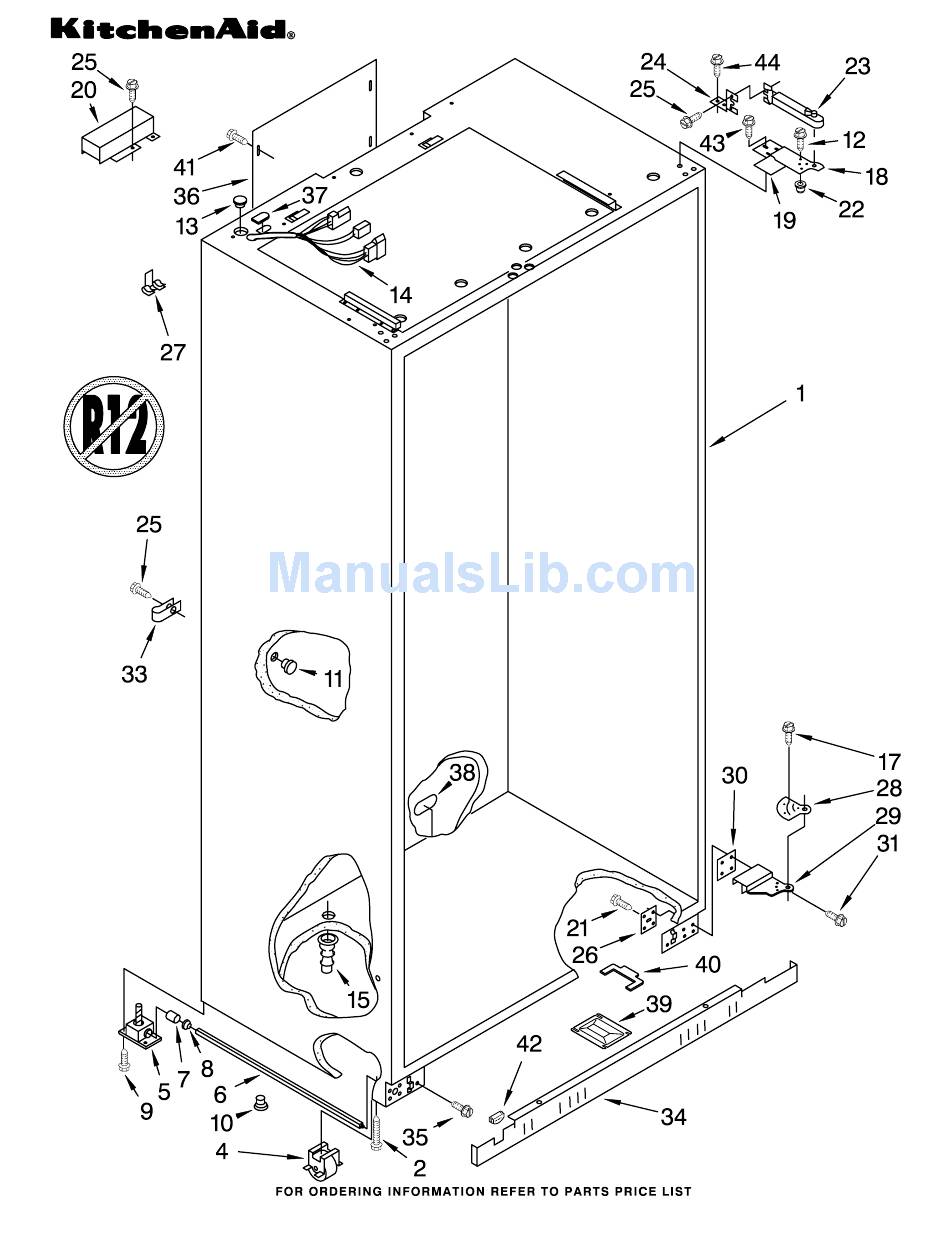

  • Page 2: Cabinet Parts

    489359 Screw 1112939 Hole Plug, Leveler 1112849 Cap, Grommet 2002902 Stop Screw 1113122 Grommet, Wiring 2002803 Wiring Harness, Cabinet CABINET PARTS For Model: KSSS36MDX02 Illus. Part DESCRIPTION 1112848 Drain Fitting 2001295 Shoulder Screw Hinge (Top) 2001976 Left Side 2001975 Right Side...
  • Page 3 4394087 CABINET TRIM PARTS For Model: KSSS36MDX02 Illus. Part DESCRIPTION 2002194 Cabinet, Trim (2) 486194 Screw 2001297 Screw 1112800 Cabinet, Trim (Bottom) 488649 Screw 2002228 Cabinet, Trim Top...

  • Page 4: Freezer Liner Parts

    FREEZER LINER PARTS For Model: KSSS36MDX02 Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 1113649 Bracket, Light 1113650 Lens 1112613 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSS36MDX02 4394087...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSS36MDX02 Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2000740 Meat Pan, Air Duct Cover...
  • Page 7 REFRIGERATOR CONTROL PANEL PARTS 4394087 For Model: KSSS36MDX02 Illus. Part DESCRIPTION 1112640 Control Panel 2003301 Inlay, Control Panel 2000789 Circuit Board 2001738 Control Knob 837444 Retainer, Knob 1118894 Switch, Rocker Arm 1113133 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3)
  • Page 8 FREEZER CONTROL PANEL PARTS For Model: KSSS36MDX02 Illus. Part DESCRIPTION 1113625 Control Panel 2003307 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113132 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3)

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSS36MDX02 4394087...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS36MDX02 Illus. Part DESCRIPTION 2174402 Frame, Shelf 2003375 Glass, Shelf 1113546 Reflector, Shelf 1113790 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2003325 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113893 Cover, Crisper 2003378 Glass, Crisper...

  • Page 11: Freezer Shelf Parts

    4394087 FREEZER SHELF PARTS For Model: KSSS36MDX02 Illus. Part DESCRIPTION 2003142 Solid Shelf 2003133 Front, Ice Compartment 1113564 Shelf, Fixed (2) 1113636 Shelf, Fixed−Deep 2001551 Basket (2) 2002725 Ice Container 2003043 Front Cover Slide, Container 2002720 Right Side 2002721 Left Side...
  • Page 12 TOP GRILLE AND UNIT COVER PARTS For Model: KSSS36MDX02 Illus. Part 2002582 Top Grille 2003267 Cover, Unit 486194 Screw 2002484 Grille, Bracket 2001415 Screw 2002954 Decortive Panel 2003480 Guard, Compressor 2003481 Guard, Water DESCRIPTION Assembly Assembly Wiring Valve Wiring 4394087...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSS36MDX02 4394087...
  • Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS36MDX02 Illus. Part DESCRIPTION 2003870 Refrigerator Door Panel (Includes Insulation) 939101 Screw Anchor (8) 2001983 Hinge Assembly, 489282 Screw 2002073 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2000878 Door Gasket,...

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSS36MDX02 4394087...
  • Page 16 FREEZER DOOR PARTS For Model: KSSS36MDX02 Illus. Part DESCRIPTION 2003876 Freezer Door Panel (Includes Insulation) 2002074 Hinge, Bottom 489282 Screw 2001984 Hinge, Top 1112533 Gasket Retainer, Side (2) 1112538 Gasket Retainer, Top & Bottom 2000877 Door Gasket, Magnetic 486194 Screw (34)
  • Page 17 UPPER UNIT PARTS For Model: KSSS36MDX02 4394087...
  • Page 18 2169137 Capacitor 486899 Screw 487869 Screw 2003392 Condenser 943447 Grommet (4) 1113019 Clamp (4) 487522 Screw UPPER UNIT PARTS For Model: KSSS36MDX02 Illus. Part DESCRIPTION 851095 Wire Tie (2) 2164492 Drier 2169135 Motor, Fan 1108179 Blade, Fan 2003169 Orifice, Fan...
  • Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS36MDX02 4394087...
  • Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSS36MDX02 Illus. Part DESCRIPTION 2000528 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003015 Tube, Connect (Drier) 2002992 Heater, Drain Pan 1113062 Hanger, Heater 1113105 Bracket, Heater...
  • Page 21 AIR FLOW AND RESERVOIR PARTS For Model: KSSS36MDX02 4394087...
  • Page 22 AIR FLOW AND RESERVOIR PARTS For Model: KSSS36MDX02 Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2000618 Motor, Wiring 488500 Screw, Ground 488366 Clamp, Tube 489348 Clamp, Nylon...

  • Page 23: Icemaker Parts

    ICEMAKER PARTS For Model: KSSS36MDX02 4394087...
  • Page 24 2181729 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire 2003477 Water Valve, Harness 2001353 Copper, Water Line PARTS NOT ILLUSTRATED ICEMAKER PARTS For Model: KSSS36MDX02 Illus. Part DESCRIPTION 489348 Clamp, Nylon Valve 2001087 Clamp Tube 487857 Nut 628355 Cover 628228 Mold & Heater...
