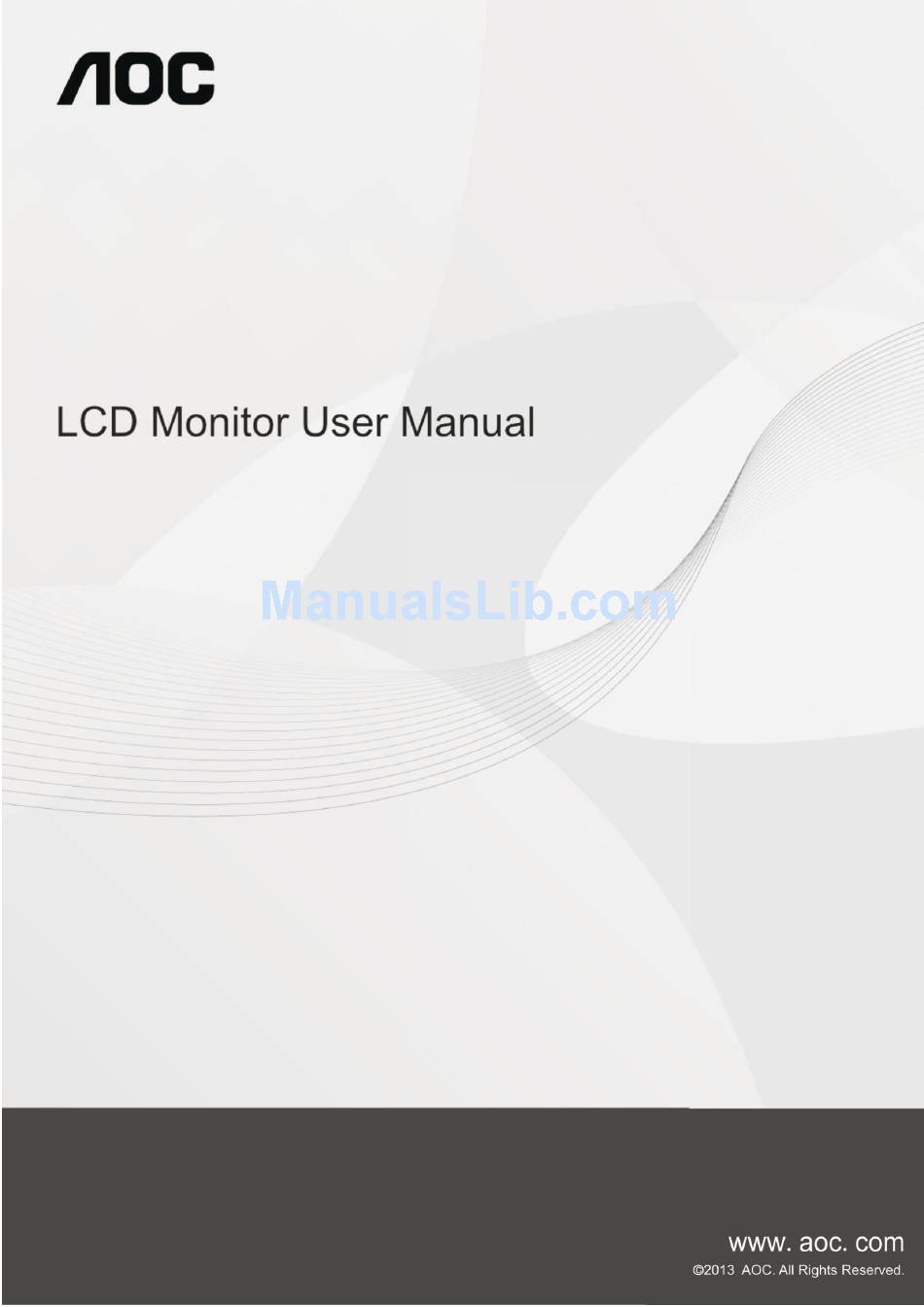

  • Page 1 E2770S /E2770S /E2770P Q2770P M2770V/ M2870V/M2870V /M2870V I2770V/I2770V (LED Backlight)

  • Page 2: Table Of Contents

    Safety ..................................4 National Conventions ............................4 Power ................................5 Installation................................6 Cleaning................................7 Other .................................. 8 Setup ..................................9 Content of the Box ............................. 9 Setup Stand ..............................10 Adjusting Viewing Angle ........................... 11 Connecting the Monitor ............................ 12 Wall Mounting ..............................
  • Page 3 TCO DOCUMENT ............................65 Warranty Statement for Europe ........................66 Warranty Statement for Middle East and Africa (MEA) ..................68 AOC Pixel Policy ISO 9241-307 Class 1 ......................70 Warranty Statement for North & South America (excluding Brazil) ..............71...

  • Page 4: Safety

    Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system.

  • Page 5: Power

    Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature.

  • Page 6: Installation

    Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product.

  • Page 7: Cleaning

    Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.

  • Page 8: Other

    Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation.

  • Page 9: Setup

    Analog Cable HDMI Cable USB Cable Audio Cable DP Cable Not all signal cables (Analog , Audio, DVI, USB, DP, MHLand HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

  • Page 10: Setup Stand

    Setup Stand Please setup or remove the Stand following the steps as below. 70S/70V Setup Remove: Setup: Remove:...

  • Page 11: Adjusting Viewing Angle

    Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor's angle from -5°...

  • Page 12: Connecting The Monitor

    Connecting the Monitor Cable Connections In Back of Monitor and Computer: E2770SD/M2770V/M2870V/I2770V E2770SHE...
  • Page 13 3 .E2770PQU 4 .Q2770PQU 5. M2870VHE / I2770VHE 6. M2870VQ Power Analog (D-Sub 15-Pin VGA cable) HDMI Audio in Earphone out Display port HDMI/MHL USB input 10. USB 2.0x2 11. USB 3.0 12. USB 3.0+ fast charging 13. AC power switch To protect equipment, always turn off the PC and LCD monitor before connecting.
  • Page 14 (Optional –Requires a video card with DVI port)Connect one end of the DVI cable to the back of the monitor and connect the other end to the computer’s DVI port. (Optional – Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer’s HDMI port.

  • Page 15: Wall Mounting

    Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC.

  • Page 16: Adjusting

    Adjusting Setting Optimal Resolution Windows Vista For Windows Vista: 1 Click START. 2 Click CONTROL PANEL. 3 Click Appearance and Personalization. 4 Click Personalization...
  • Page 17 5 Click Display Settings. 6 Set the resolution SLIDE-BAR to Optimal preset resolution...

  • Page 18: Windows Xp

    Windows XP For Windows XP: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Click Appearance and Themes. 5 Double click DISPLAY.

  • Page 19: Windows Me/2000

    6 Click SETTINGS. 7 Set the resolution SLIDE-BAR to Optimal preset resolution Windows ME/2000 For Windows ME/2000: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Double click DISPLAY. 5 Click SETTINGS. 6 Set the resolution SLIDE-BAR to Optimal preset resolution...

  • Page 20: Windows 8

    Windows 8 For Windows 8: Right click and click All apps at the bottom-right of the screen. Set the “View by” to “Category”. Click Appearance and Personalization.
  • Page 21 Click DISPLAY. Set the resolution SLIDE-BAR to Optimal preset resolution.

  • Page 22: Hotkeys

    Hotkeys E2770SD/M2770V/M2870V/I2770V Source/Auto/Exit Clear Vision/- 4:3 or Wide/+ Menu/Enter Power E2770SHE/ E2770PQU/Q2770PQU/M2870VQ/M2870VHE/I2770VHE Source/Auto/Exit Clear Vision/- Volume/+ Menu/Enter Power Power Press the Power button to turn on/off the monitor. Auto / Exit When there is no OSD, press Auto/Source button continuously about 3 second to do auto configure .

  • Page 23: Clear Vision

    Clear Vision When there is no OSD, Press the “-” button to activate Clear Vision. Use the “-” or “+” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. Press and hold “-” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on”...

  • Page 24: Using "Mhl(Mobile High-Definition Link)"（Optional

    Using "MHL(Mobile High-Definition Link)"（Optional） 1."MHL" (Mobile High-Definition Link) This feature allows you to enjoy videos and photos (imported from a connected mobile device that supports MHL) on the screenof the product.  To use the MHL function, you need an MHL-certified mobile device. You can check if your mobile device is MHL certified on the device manufacturer's website.

  • Page 25: Osd Setting

    OSD Setting Basic and simple instruction on the control keys. Press the MENU-button to activate the OSD window. Press - or + to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate. Press - or + to navigate through the sub-menu. Once the desired function is highlighted, press MENU-button to activate.

  • Page 26: Luminance

    Luminance 1 Press (Menu) to display menu. 2 Press - or + to select (Luminance), and press to enter. 3 Press - or + to select submenu, and press to enter. 4 Press - or + to adjust. 5 Press to exit Brightness 0-100...

  • Page 27: Image Setup

    Image Setup 1 Press (Menu) to display menu. 2 Press - or + to select (Image Setup), and press to enter. 3 Press - or + to select submenu, and press to enter. 4 Press - or + to adjust. 5 Press to exit Clock...

  • Page 28: Color Setup

    Color Setup 1 Press (Menu) to display menu. 2 Press - or + to select (Color Setup), and press to enter. 3 Press - or + to select submenu, and press to enter. 4 Press - or + to adjust. 5 Press to exit Warm...

  • Page 29: Picture Boost

    Picture Boost 1 Press (Menu) to display menu. 2 Press - or + to select (Picture Boost), and press to enter. 3 Press - or + to select submenu, and press to enter. 4 Press - or + to adjust. 5 Press to exit Frame Size...

  • Page 30: Osd Setup

    OSD Setup 1 Press (Menu) to display menu. 2 Press - or + to select (OSD Setup), and press to enter. 3 Press - or + to select submenu, and press to enter. 4 Press - or + to adjust. 5 Press to exit H.

  • Page 31: Extra

    Auto / Analog / DVI/HDMI Select input signal source.(I2770VHE/M2870VHE) Select input signal source. Input Select Auto / Analog / DVI (E2770SD/M2770V/M2870V/I2770V) Select input signal source. (Q2770PQU/M2870VQ) Input Select Auto / Analog / DVI / HDMI /DP Auto Config yes or no Auto adjust the picture to default.

  • Page 32: Exit

    Exit 1 Press (Menu) to display menu. 2 Press - or + to select (Exit), and press to enter. 3 Press to exit Exit Exit the main OSD.

  • Page 33: Led Indicator

    LED Indicator Status LED Color Full Power Mode Green or Blue Active-off Mode Orange or red...

  • Page 34: Driver

    Driver Monitor Driver Windows 2000 1. Start Windows® 2000 2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. 3. Double click on the 'Display' Icon. 4. Select the 'Settings' tab then click on 'Advanced...'. 5.

  • Page 35: Windows Xp

    Windows XP 1. Start Windows® XP 2. Click on the 'Start' button and then click on 'Control Panel'. 3. Select and click on the category ‘Appearance and Themes’ 4. Click on the 'Display' Item.
  • Page 36 5. Select the 'Settings' tab then click on the 'Advanced' button. 6. Select 'Monitor' tab - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active, click on 'Properties' button. Please follow the steps below.
  • Page 37 8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button. 9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button. 10.

  • Page 38: Windows Vista

    Windows Vista 1. Click "Start " and "Control Panel". Then, double-click on "Appearance and Personalization". 2. Click "Personalization" and then "Display Settings". 3. Click "Advanced Settings...".
  • Page 39 4. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue". 5.

  • Page 40: Windows 7

    Windows 7 1.Start Windows® 7 2.Click on the 'Start' button and then click on 'Control Panel'. 3. Click on the 'Display' icon.
  • Page 41 4.Ckick on the “Change display settings” button. “ Advanced Settings” button. Click the Click the “Monitor” tab and then click the “Properties” button.
  • Page 42 7.Click the “Driver” tab. 8. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “and then click the "Browse my computer for driver software" button. 9. Select "Let me pick from a list of device drivers on my computer".
  • Page 43 10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 12.

  • Page 44: Windows 8

    Windows 8 Start Windows® 8 Right click and click All apps at the bottom-right of the screen. Click on the “Control panel” icon Set the “View by” to “Large icons” or “Small icons”. Click on the “Display” icon.
  • Page 45 Click on the “Change display settings” button. “ Advanced Settings” button. Click the Click the “Monitor” tab and then click the “Properties” button...
  • Page 46 Click the “Driver” tab. 10. Open the “Update Driver Software-Generic PnP Monitor” window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button. 11. Select "Let me pick from a list of device drivers on my computer".
  • Page 47 12. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 13. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 14.

  • Page 48: I-Menu

    Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide.

  • Page 49: E-Saver

    Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below).

  • Page 50: Screen

    Screen+ Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the...

  • Page 51: Troubleshoot

    Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust.
  • Page 52 Use Windows 95/98/2000/ME/XP shut-down mode Adjust CLOCK and Horizontal vertical FOCUS. disturbances on the screen Press to auto-adjust. Use I-menu software from CD(or download from AOC official website), select “reset” option to adjust. Display not on whole screen in default resolution ration...

  • Page 53: Specification

    50 Hz - 76 Hz Vertical scan Size(Maximum) 336.31mm Optimal preset resolution 1920x 1080 @60 Hz Plug & Play VESA DDC2B/CI E2770SD/M2770V/I2770V:D-Sub 15pin; DVI 24pin Input Connector E2770SHE:D-Sub 15pin;;HDMI Resolution I2770VHE: D-Sub 15pin; DVI 24pin; HDMI; Input Video Signal Analog: 0.7Vp-p(standard), 75 OHM, TMDS...
  • Page 54 Product name E2770PQU Driving system TFT Color LCD Viewable Image Size 68.6cm diagonal Pixel pitch 0.3114mm(H)X0.3114mm(V) Panel Video R, G, B Analog lnterface & Digital Interface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 148.5MHz Horizontal scan range 30 kHz - 83 kHz Horizontal scan Size(Maximum) 597.89mm...
  • Page 55 Panel Model name Q2770PQU Driving system TFT Color LCD Viewable Image Size 68.6cm diagonal Pixel pitch 0.233mm(H)X0.233mm(V) Video R, G, B Analog lnterface & Digital Interface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 241.5MHz Resolution Horizontal scan range 30 kHz - 83 kHz for D-Sub Horizontal scan range 30 kHz - 99 kHz for DVI (dual link) ;...
  • Page 56 Panel Model name M2870V/ M2870VQ/M2870VHE Driving system TFT Color LCD Viewable Image Size 71.1cm diagonal Pixel pitch 0.32mm(H)X0.32mm(V) Video R, G, B Analog lnterface & Digital Interface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 148.5MHz Resolution Horizontal scan range 30 kHz - 83 kHz Horizontal scan Size(Maximum) 620.9mm...

  • Page 57: Preset Display Modes

    Preset Display Modes E2770SD/E2770SHE/E2770PQU/M2770V/M2870V/ I2770V/I2770VHE/M2870VHE/M2870VQ Standard Resolution H. Frequency (kHz) V. Frequency (Hz) 640 X 480@60Hz 31.469 59.94 640 X 480@67Hz 66.667 MODE 640 X 480@72Hz 37.861 72.809 640 X 480@75Hz 37.5 720 X 400@70Hz 31.469 70.087 MODE 800 X 600@56Hz 35.156...
  • Page 58 Q2770PQU Standard Resolution H. Frequency (kHz) V. Frequency (Hz) 640 X 480@60Hz 31.469 59.94 MAC MODE 640 X 480@67Hz 66.667 640 X 480@72Hz 37.861 72.809 640 X 480@75Hz 37.5 IBM MODE 720 X 400@70Hz 31.469 70.087 800 X 600@56Hz 35.156 56.25 800 X 600@60Hz 37.879...

  • Page 59: Pin Assignments

    Pin Assignments 15-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Video-Red Video-Green Ground Video-Blue N.C. N.C. DDC-Serial data Detect Cable H-sync GND-R V-sync GND-G DDC-Serial clock GND-B 24-Pin Color Display Signal Cable 24-Pin Color Display Signal 24-Pin Color Display Signal Pin Number Pin Number...
  • Page 60 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Signal Name TMDS Data 2+ TMDS Data 0 DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2 TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock TMDS Data 1Shield...

  • Page 61: Plug And Play

    Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

  • Page 62: Regulation

    Regulation FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 63: Weee Declaration（Optional

    EPA Energy Star（Optional） ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

  • Page 64: Epeat Declaration（Optional

    AOC believes in protecting the environment. With a key concern for the conservation of natural resources, as well as landfill protection, AOC announces the launch of AOC monitor’s packaging recycling program. This program is designed to help you discard of your monitor carton and filler materials properly.

  • Page 65: Tco Document

    TCO DOCUMENT (FOR TCO CERTIFIED MODELS)

  • Page 66: Warranty Statement For Europe

    The freight cost for the warranty is pre-paid by AOC for the delivery and return. Please ensure you provide a dated proof of purchase along with the product and deliver to the AOC Certified or Authorized Service Center under the following condition: ...
  • Page 67 (if any) and applicable taxes. AOC Certified or Authorized Service Center will provide you with an estimate of service costs before receiving your authorization to perform service. ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT (INCLUDING THE WARRANTIES OF...

  • Page 68: Warranty Statement For Middle East And Africa (Mea)

    During this period, AOC International (Europe) B.V. offers a Carry-In (return to Service Center) Warranty Support at an AOC’s Authorized Service Center or Dealer and at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. As a Standard Policy,...
  • Page 69  Repair, modification, or installation of options or parts by anyone other than an AOC Certified or Authorized Service Center  Improper environments like humidity, water damage and dusts  Damaged by violence, earthquakes and terrorist attacks  Excessive or inadequate heating or air conditioning or electrical powers failures, surges, or other...

  • Page 70: Aoc Pixel Policy Iso 9241-307 Class 1

    AOC Pixel Policy ISO 9241-307 Class 1...

  • Page 71: Warranty Statement For North & South America (Excluding Brazil)

    In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty. * This limited warranty does not cover any losses or damages that occur as a result of:...
  • Page 72 ARGENTINA: http://ar.aoc.com/support/warranty BOLIVIA: http://bo.aoc.com/support/warranty CHILE: http://cl.aoc.com/support/warranty COLOMBIA: http://co.aoc.com/warranty COSTA RICA: http://cr.aoc.com/support/warranty DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty ECUADOR: http://ec.aoc.com/support/warranty EL SALVADOR: http://sv.aoc.com/support/warranty GUATEMALA: http://gt.aoc.com/support/warranty HONDURAS: http://hn.aoc.com/support/warranty NICARAGUA: http://ni.aoc.com/support/warranty PANAMA: http://pa.aoc.com/support/warranty PARAGUAY: http://py.aoc.com/support/warranty PERU: http://pe.aoc.com/support/warranty URUGUAY: http://pe.aoc.com/warranty VENEZUELA: http://ve.aoc.com/support/warranty IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty...
