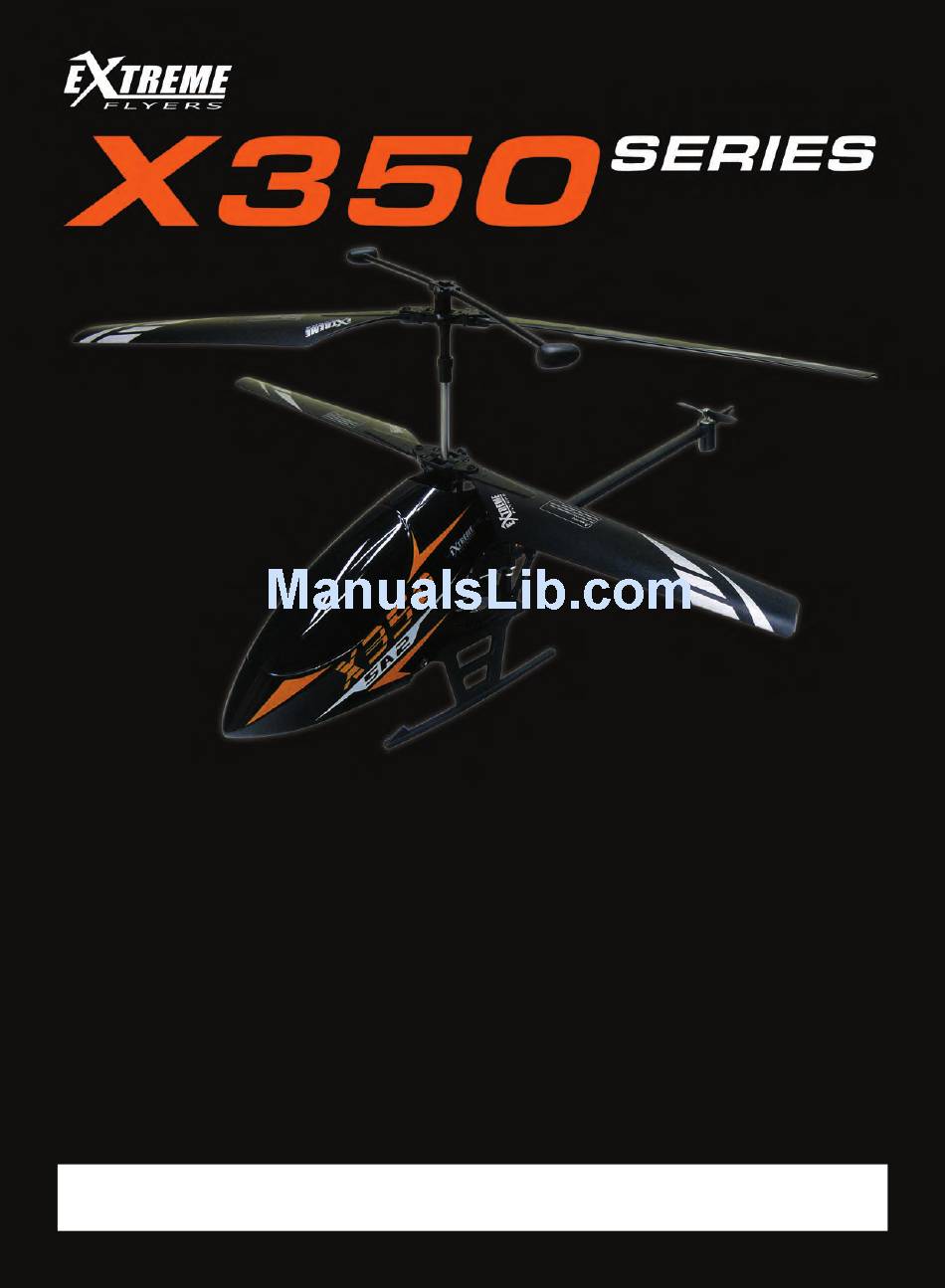

X350 SERIES QUICK-START AND FLYING GUIDE
QUICK-START
and FLYING GUIDE
If you should have trouble with your X350 Series helicopter, or if you have any questions or require replacement
parts, please contact Customer Service at the address below:
Global Services provides customer service for X350 Series helicopters purchased in North America only. If you
did not purchase your product in North America, please contact the Extreme-Flyers distributor in your region.
This R/C helicopter is not a toy! If misused, it can cause serious bodily harm and/or injury. This product is
not intended for those under 14 years of age! Please read and understand the safety warnings included prior
to operation.

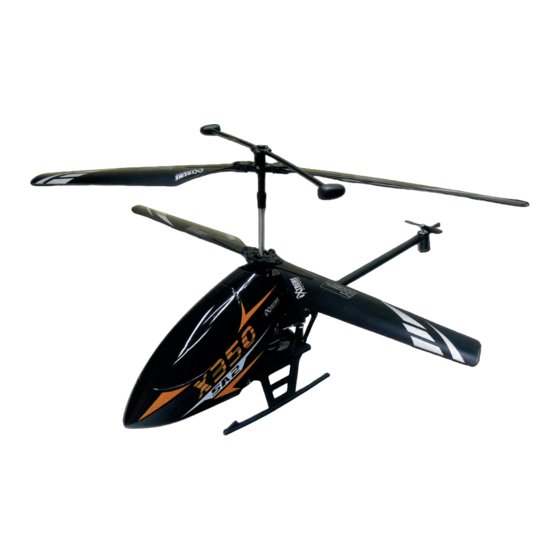

5-Channel 2.4GHz High-Performance Coaxial Helicopter
Global Services
18480 Bandilier Circle
Fountain Valley, CA 92708
Phone: (714) 963-0329
Fax: (714) 964-6236
Email: service@globalhobby.net
1
Advertisement
Table of Contents
Related Manuals for Global Services Extreme-Flyers X350 Series
Summary of Contents for Global Services Extreme-Flyers X350 Series
- Page 1 Fax: (714) 964-6236 Email: service@globalhobby.net Global Services provides customer service for X350 Series helicopters purchased in North America only. If you did not purchase your product in North America, please contact the Extreme-Flyers distributor in your region. This R/C helicopter is not a toy! If misused, it can cause serious bodily harm and/or injury. This product is not intended for those under 14 years of age! Please read and understand the safety warnings included prior to operation.
-
Page 2: Kit Contents
X350 SERIES QUICK-START AND FLYING GUIDE The Extreme-Flyers X350 Series is a high-performance 5-channel 2.4GHz coaxial helicopter than can be flown in a large indoor area or outdoors in winds of up to 8mph, using Extreme-Flyer’s patented Anti-Wind Tail Control System. The X350 Series helicopter is the perfect choice for both beginner and experienced pilots. Its... -
Page 3: Charging The Li-Po Battery
X350 SERIES QUICK-START AND FLYING GUIDE LI-PO BATTERY SAFETY PRECAUTIONS Your X350 Series helicopter is powered by a Li-Po (Lithium Polymer) battery. Li-Po batteries are significantly more volatile than Alkaline or Ni-Cd/Ni-MH batteries used in past R/C applications. When using Li-Po batteries to power your model, all instructions and warnings must be followed closely. -
Page 4: Transmitter Overview
X350 SERIES QUICK-START AND FLYING GUIDE CHARGING THE LI-PO BATTERY 1) Plug the round connector from the AC adapter cord into the Li-Po charger, then plug the AC adapter into a 110v AC wall socket or power strip. The red Power LED on the charger should illuminate, indicating the charger is receiving power. -
Page 5: Installing The Transmitter Batteries
X350 SERIES QUICK-START AND FLYING GUIDE TRANSMITTER OVERVIEW Antenna - Transmits the signal from the transmitter to the receiver in the helicopter. The antenna should be pivoted into the vertical position during use. When not in use, the antenna should be collapsed into the horizontal position to prevent damage during handling or storage. - Page 6 X350 SERIES QUICK-START AND FLYING GUIDE PREPARING TO FLY YOUR X350 SERIES HELICOPTER Turning the Transmitter 'ON' and Plugging in the Li-Po Battery 1) Prior to turning the transmitter 'ON', verify that the four Servo Reversing switches are in the 'NOR' (Normal) position, the Tail Control Switch is in the 'OFF' position and the throttle control stick is pulled all the way down.
-
Page 7: Control Operation
X350 SERIES QUICK-START AND FLYING GUIDE PREPARING TO FLY YOUR X350 SERIES HELICOPTER Arming the ESC (Electronic Speed Control) 1) After plugging the Li-Po battery into the helicopter, push the throttle control stick all the way forward, then pull the throttle control stick all the way back. The transmitter will emit 3 audible tones, indicating the ESC is armed and your helicopter is ready to fly. - Page 8 X350 SERIES QUICK-START AND FLYING GUIDE FLYING YOUR X350 SERIES HELICOPTER Quick Startup / Shutdown Procedure In the future, follow these quick startup and shutdown procedures to setup and fly your helicopter. 1) Fully charge the Li-Po battery, move the throttle control stick to idle, then turn the transmitter 'ON'. 2) Remove the canopy, then install Li-Po battery and plug it into the helicopter.
- Page 9 X350 SERIES QUICK-START AND FLYING GUIDE FLYING YOUR X350 SERIES HELICOPTER The Basics 1) Place the helicopter on the ground in the middle of your flying area. Stand approximately 6 feet away from the helicopter, behind the tail. 2) To take off, push the throttle control stick up slowly until the helicopter begins to get 'light', then advance the throttle control stick a little more until the helicopter lifts off.
- Page 10 X350 SERIES QUICK-START AND FLYING GUIDE FLYING YOUR X350 SERIES HELICOPTER The Box Pattern Use the Box Pattern technique to learn how to move the helicopter in different orientations around you. This will help you become proficient at using all the controls at the same time to move the helicopter around. With the nose of the helicopter pointing away from you, fly the helicopter in a box pattern.
- Page 11 X350 SERIES QUICK-START AND FLYING GUIDE FLIGHT TRIMMING YOUR X350 SERIES HELICOPTER To determine the amount of trim necessary, place the helicopter in a stable hover, about 2 feet off the ground, then release the control sticks for a couple of seconds. Carefully watch how the helicopter reacts, then trim the helicopter as described below.
- Page 12 X350 SERIES QUICK-START AND FLYING GUIDE Extreme-Flyers Hobby Tel: +86 769 82202588 Fax: +86 769 82206609 http://www.extreme-flyers.com 2/ C, Changping Chamber of Commerce Bldg, Changping Avenue Changping Town, Dongguan City, Guangdong Province, China 523560 Revision 1 - 10.17.2011...
