Addonics Technologies MMTPRO User Manual

Multi-media tower pro mmtpro

T E C H N O L O G I E S

User Guide

Multi-Media Tower Pro

(MMTPRO)

www.addonics.com

Technical Support

If you need any assistance to get your unit functioning properly, please have your

product information ready and contact Addonics Technical Support at:

Hours: 8:30 am - 6:00 pm PST

Phone: 408-453-6212

Email: http://www.addonics.com/support/query/

Table of Contents

Do you have a question about the MMTPRO and is the answer not in the manual?

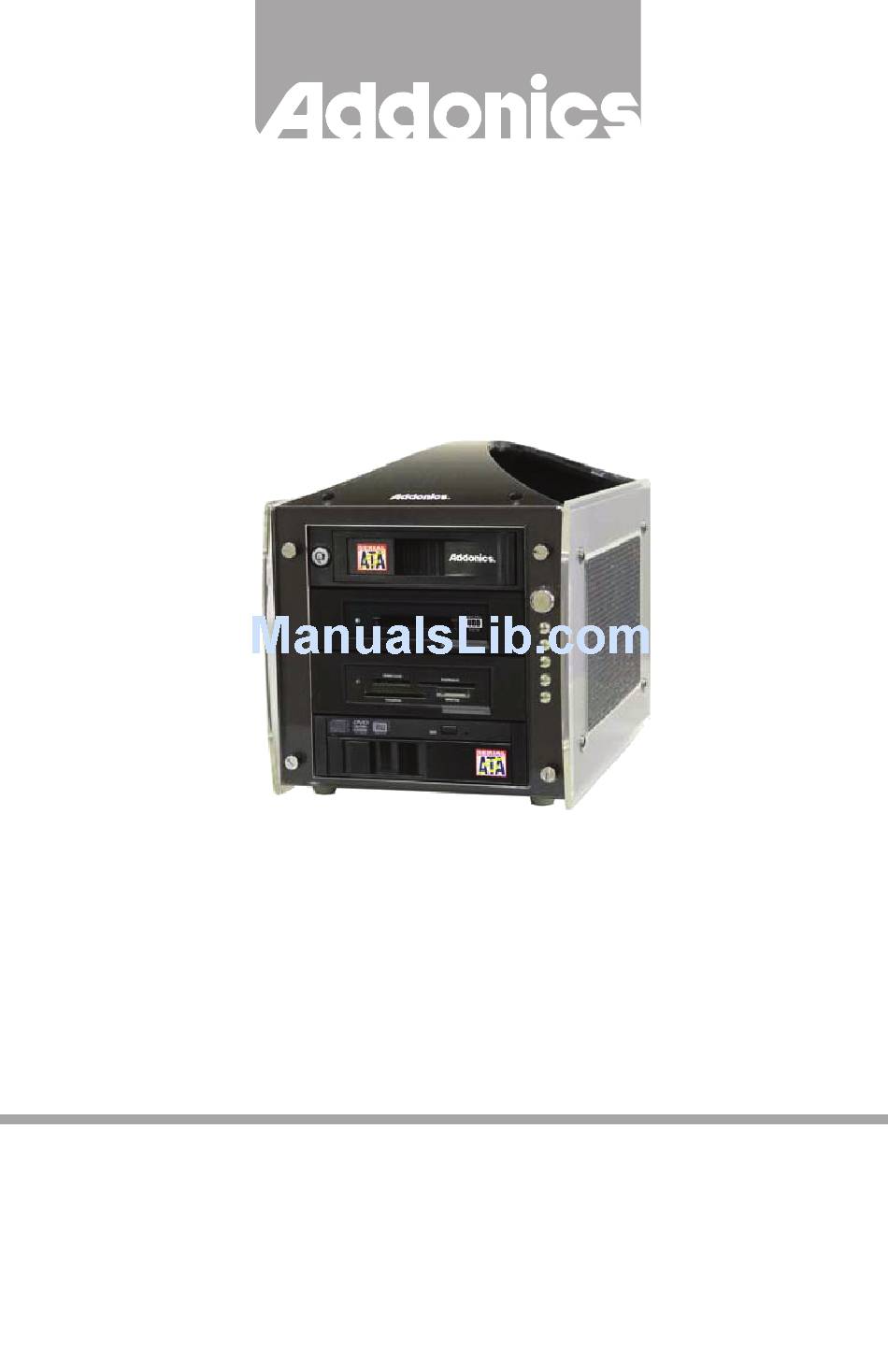

Page 1: User Guide
T E C H N O L O G I E S User Guide Multi-Media Tower Pro (MMTPRO) www.addonics.com Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at:...
Page 2 Unpacking and Overview 1. Power Button 2. Power LED 3. Bay 1 HDD 4. Bay 2 HDD Bay 1 5. Bay 3 flash media LED 6. Bay 4 HDD drive Bay 2 Bay 3 Bay 4 Power Switch Power Supply Voltage Switch AC Input eSATA connector...
Page 3 Connecting the Multi-Media Tower Pro WARNING: Please remember to set the power supply to your local outlet voltage prior to plugging in the power cord. Failure to do so may damage the power supply. 1. Set the power supply voltage switch to the correct main input voltage, then connect the power cord to an AC outlet.
Page 4 Media Installation: Bay 3 (Internal SATA/USB DigiDrive) The SATA Digi Drive will recognize only one media device at a time. If more than one media device is inserted, the device found earlier on this list of slots will be used: CompactFlash, SmartMedia/xD, SD/MMC/miniSD, MS/MS Duo. The CompactFlash slot accepts CompactFlash media including CF Micro- drives.
