Addonics Technologies ADS3GX4R5-MLM Instructions

Multilane 4x pci-x controller for mac

ADDONICS TECHNOLOGIES

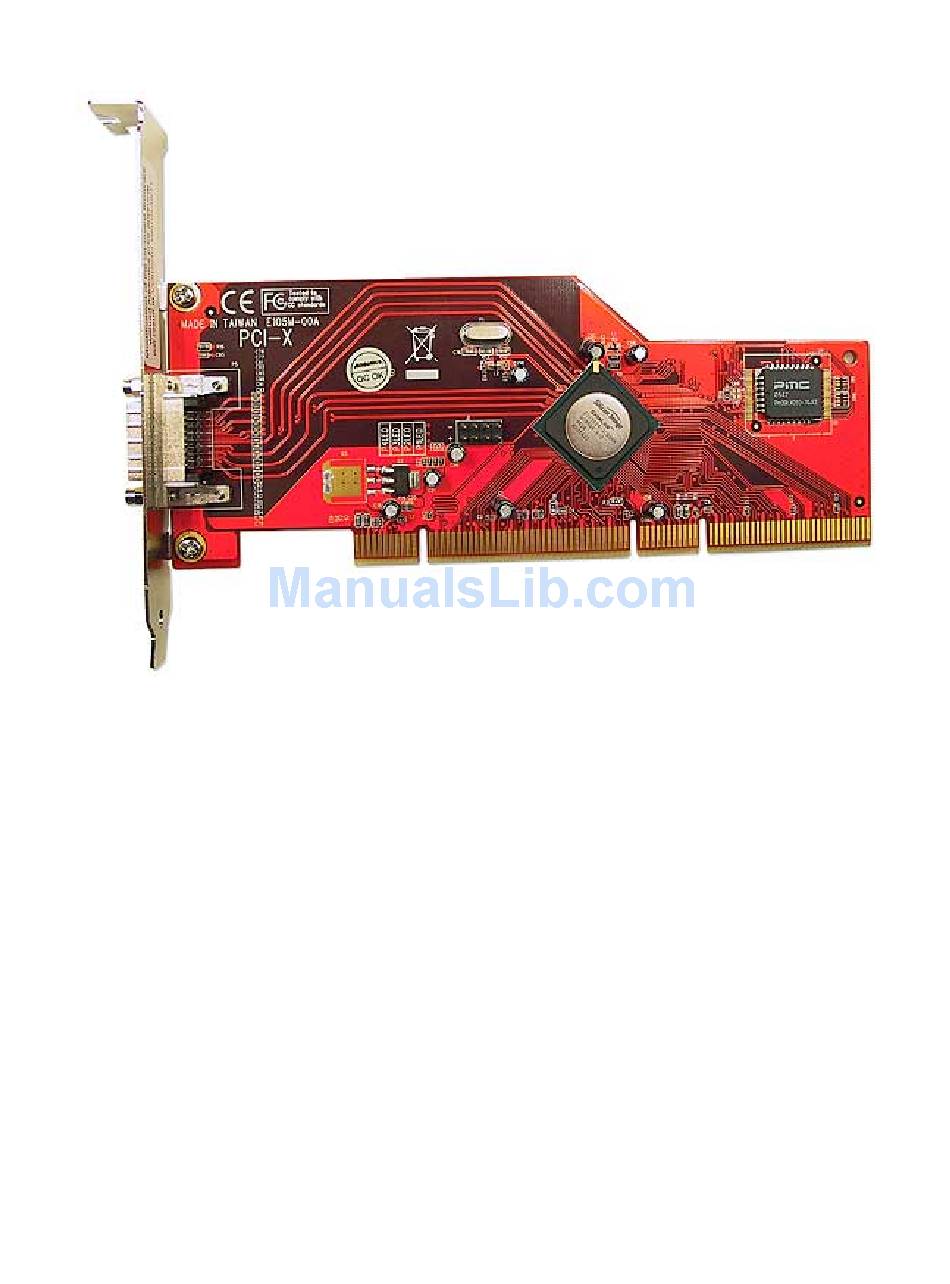

ADS3GX4R5-MLM (Multilane 4X PCI-X Controller For Mac)

Addonics ADS3GX4R5-MLM Macintosh Instructions

The ADS3GX4R5-MLM has been tested on a PowerMac G5 Dual 2.0

GHz model with PCI-X slots and on a PowerMac G4 with PCI slots.

Mac OS X 10.4.x or later is required for the driver to work properly.

Hardware Install:

1. Turn the PowerMac G4 or G5 off and disconnect all cables.

2. Make sure that you are grounded to avoid static electricity.

3. Open the PowerMac G4 or G5.

4. Install the ADS3GX4R5-MLM in an open PCI or PCI-X slot.

5. Secure the bracket with a screw.

6. Close the PowerMac G4 or G5 and reconnect the cables.

7. Turn on the computer.

1. Copy the SiI3124_2.0.3_Sil_Pkg from the CD to your hard drive.

2. Decompress the zip file by double clicking on it.

3. Launch the SiI3124_2.0.3_Sil_Pkg.

Table of Contents

Do you have a question about the ADS3GX4R5-MLM and is the answer not in the manual?

Page 1 ADS3GX4R5-MLM (Multilane 4X PCI-X Controller For Mac) Addonics ADS3GX4R5-MLM Macintosh Instructions The ADS3GX4R5-MLM has been tested on a PowerMac G5 Dual 2.0 GHz model with PCI-X slots and on a PowerMac G4 with PCI slots. Mac OS X 10.4.x or later is required for the driver to work properly.
Page 2 Apple PowerMac G4 or G5 running Mac OS X 10.4.x. There are several multilane enclosures that will work with the ADS3GX4R5-MLM host adapter using the SiI3124_2.0.3_Sil_Pkg Macintosh driver. Addonics sells a Storage Tower model ST4SAML configured with a multilane connector. It can be found here: http://www.addonics.com/products/raid_system/ast4.asp...
Page 3 Setup When you first purchase and install a new hard that is attached to the ADS3GX4R5-MLM host adapter, you will need to format the hard drive using the erase tab in Disk Utility. Disk Utility can be found in the Mac OS X “Utility” folder. Once you have erased the new hard drive it will mount on the desktop and be ready for use.
