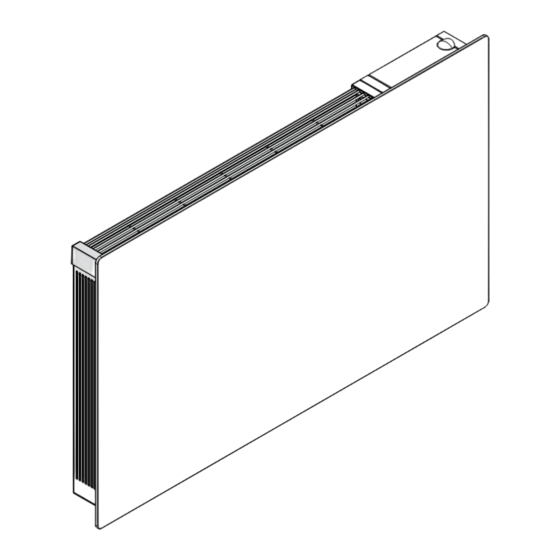

Dimplex Girona GFP050 W Operating Instructions Manual
Glass panel heater
Hide thumbs
Also See for Girona GFP050 W:
- Instructions for installation and use manual (16 pages) ,
- Installation and operating instructions (5 pages) ,
- Installation and operating instructions (4 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Dimplex Girona GFP050 W
Summary of Contents for Dimplex Girona GFP050 W
-

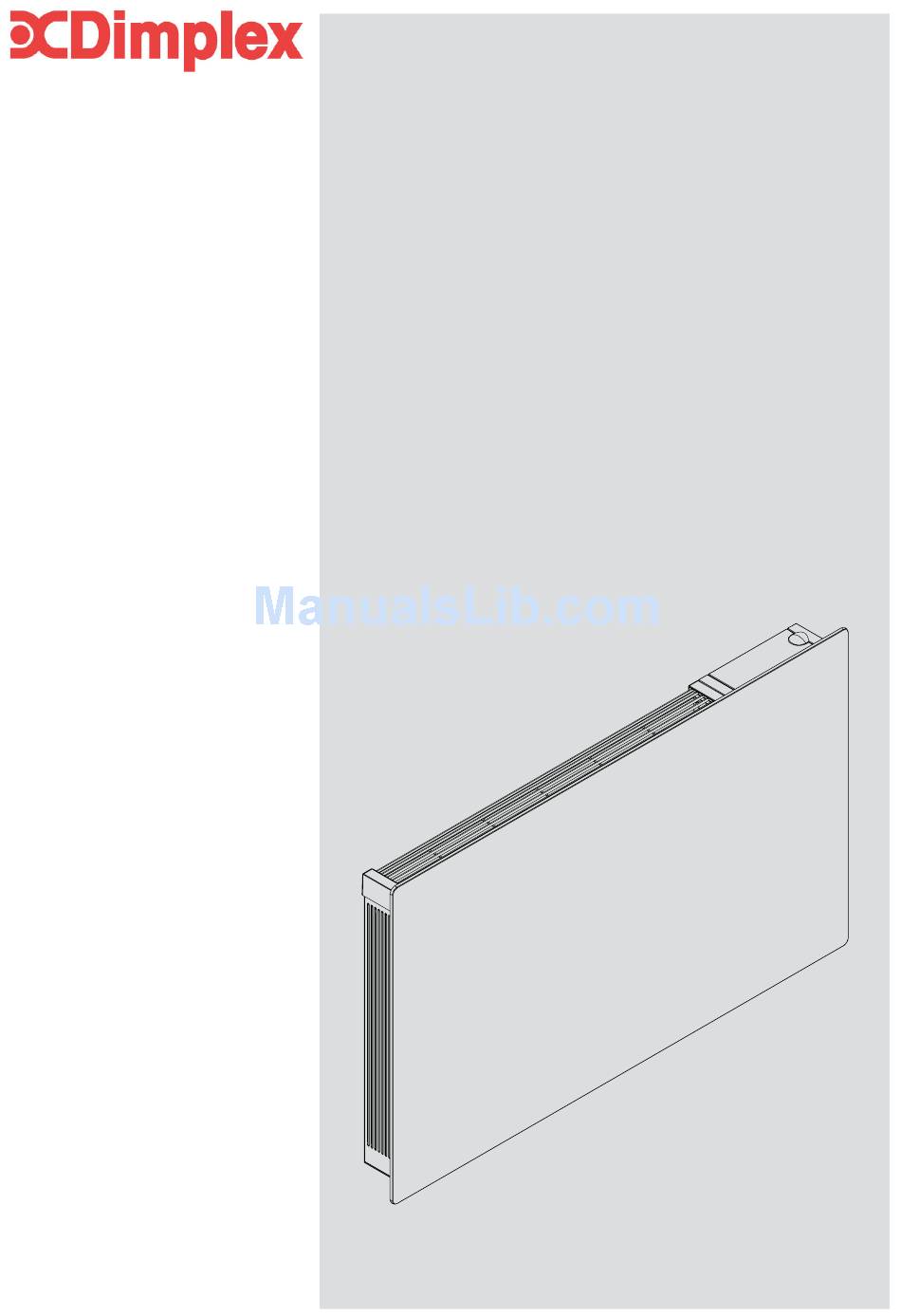

Page 1: Operating Instructions
Operating Instructions A world of expertise These instructions should be read carefully and retained for future use. Note also the information presented on the appliance. Girona Glass Panel Heaters Models: GFP050 W/B GFP075 W/B GFP100 W/B GFP150 W/B GFP200 W/B INDGUKP7RG ISSUE 3... -
Page 2: Important Safety Advice
IMPORTANT SAFETY ADVICE When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons, including the following: IMPORTANT – The wall bracket supplied with the appliance must be used. WARNING - DO NOT USE THIS HEATER IN THE IMMEDIATE SURROUNDINGS OF A BATH, A SHOWER OR A SWIMMING IMPORTANT... -
Page 3: Warning! This Appliance Must Be Earthed
Pilot Wire Connection The BLACK control wire is designed to carry a signal from slot in or wall mounted Dimplex programmers. If, however a programmer is not being used, the pilot wire should be isolated in accordance with the current IEE Wiring Regulations. -
Page 4: Wall Mounting
General Min. The heater is designed for wall mounting on the wall bracket supplied. It should only be operated when in the upright position as shown - see Fig.1 and Fig.2. All models are splashproof to IPX4 standard and may be used in bathrooms, however not in the immediate vicinity of baths, showers, water 150 Min. -
Page 5: Operation
Operation Switching On the Heater (see Fig. 4) The controls are located on the right hand side on top of the appliance, lift flap to access the controls - see Fig. 4. The button marked ‘ ’ controls the electricity supply to the product. -
Page 6: Notes To The Installer
Notes to the Installer Test Mode When the heater is connected via a pilot wire system, the test mode allows the installer to check whether the heater is responding correctly to the incoming pilot wire signal. Before switching the heater on at the mains, place the thermostat slider in the ‘MAX’... -
Page 7: Energy Saving Tips
Energy Saving Tips The energy we use to heat, light and power our homes contributes over a quarter of the UK’s carbon emissions, the principle contributor to climate change. Around half the energy used in the home is for heating and hot water, so using your heating system efficiently will not only help the environment, but also save you money. -
Page 8: After Sales Service
Your product is guaranteed for two years from the date of purchase. Within this period we undertake to repair or exchange this product free of charge provided it has been installed and operated in accordance with these instructions. Should you require assistance with this product please go to www.dimplex.co.uk and click on “Customer Support” or e-mail us at aftersales@dimplex.co.uk.
