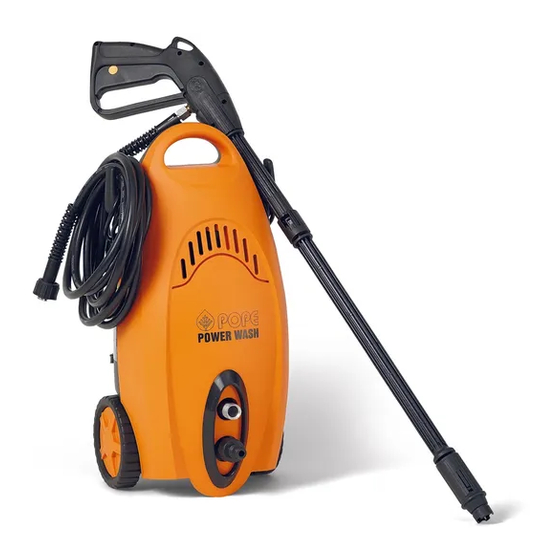

Pope POWER WASH 101HPW1500 Operator's Manual

High pressure cleaner 1500w
Hide thumbs
Table of Contents

Advertisement

Quick Links

POWER WASH
High Pressure Cleaner 1500W
Model No. 101HPW1500
Operator's Manual
WARNING
To reduce the risk of injury, the user must read and understand the
Operator's Manual. Save this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWER WASH 101HPW1500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pope POWER WASH 101HPW1500

Summary of Contents for Pope POWER WASH 101HPW1500

  • Page 1 POWER WASH High Pressure Cleaner 1500W Model No. 101HPW1500 Operator’s Manual WARNING To reduce the risk of injury, the user must read and understand the Operator’s Manual. Save this manual.
  • Page 2 We would like you to be completely satisfied with your new product, so feel free to contact Pope for help with any information you require. Pope's Customer Service centre number is 1300 134 880. Please read this manual carefully to learn how to operate and maintain your product correctly.

  • Page 3: Safety Rules

    SAFETY RULES WARNING Read and understand all instructions. Failure to follow all instructions may result in serious personal injury as well as damage to the product. • Physical Condition of the Operator. Do not operate this product when tired, ill or under the influence of alcohol, drugs or medication.
  • Page 4 SAFETY RULES – continued • Responsibility. The user is responsible for any accidents or hazards suffered by third parties or their property. • Use only hoses, fittings and couplings recommended by the manufacturer. • Do not jam the trigger in the operational position. •...

  • Page 5: Packing List

    Only clean vehicle engines or other items containing oil, grease etc. in areas where suitable oil traps are installed. The Pope POWER WASH is designed to be used in domestic applications and should only be operated within its design limitations. Tools of this category which are designed for home and garden use should only be operated in such settings.

  • Page 6: Specifications

    3. Water inlet 8. Safety trigger lock 4. Water outlet 9. Wheels 5. On / off switch 10. Adjustable spray lance SPECIFICATIONS Name Pope POWER WASH Model Number 101HPW1500 Rated Power 1500W AC motor 220-240V~50Hz Operating Pressure 1015 Psi (7 Mpa) Maximum Pressure 1450 Psi (10.5 Mpa)
  • Page 7 ASSEMBLY – continued Assembling the Spray Lance and Hose to the High Pressure Washer See Fig 2, Fig 3 and Fig 4 Follow these steps to attach the Spray Lance. 1. Fit the spray lance into the trigger gun by rotating it until the two parts are aligned with each other.

  • Page 8: Operation

    OPERATION Starting the Pressure Washer Follow these steps to operate the High Pressure Washer. 1. Connect garden hose from the tap to the pressure washer. Ensure all connections are secure. 2. Turn the water on at the tap. Water pressure should not exceed 500kPa (5 bar). Ensure that the unit is receiving water correctly.
  • Page 9 OPERATION – continued Working with the Pressure Washer 1. Always ensure the unit is standing upright and that ventilation grills are not obstructed during use. 2. Do not move the pressure washer by pulling on the electrical cord or the high pressure hose. Use the handle provided.

  • Page 10: Using Detergent

    OPERATION – continued Using Detergent See Fig 6 Note: Use only liquid detergent recommended for the purpose. The use of other cleaning agents or chemicals may adversely affect the safety of the appliance. Use sparingly to help conserve the environment. CAUTION Liquid detergent must always be sprayed at low pressure.

  • Page 11: Storage And Maintenance

    STORAGE AND MAINTENANCE Storage When cleaning is finished: • Switch off the High Pressure Washer at the on/off switch on the unit. • Turn off the water supply at the tap. • Discharge residual pressure by pressing the trigger until no more water comes out of the nozzle.

  • Page 12: Troubleshooting

    TROUBLE SHOOTING – continued TROUBLESHOOTING The pump does not operate at the prescribed pressure Sudden changes in pump pressure The motor buzzes but fails to start Motor does not start PROBLEM Water leakages Excess noise Oil leaks Power cable damaged √...

  • Page 13: Warranty

    You must keep your receipt as proof of purchase for return of the product under the terms of this warranty. Your Pope product is guaranteed to be free from defects in materials or workmanship for a period of 24 months from the date of purchase provided the product has been used in accordance with the manufacturer's recommendations.
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 Pope is a Registered Trademark of Toro Australia Pty Ltd ® 53 Howards Rd Beverley South Australia 5009 Made in China to Pope's Specifications...
