SABINE SW70-T Quick Setup Manual

SW70-T Beltpack Transmitter Quick Setup Guide

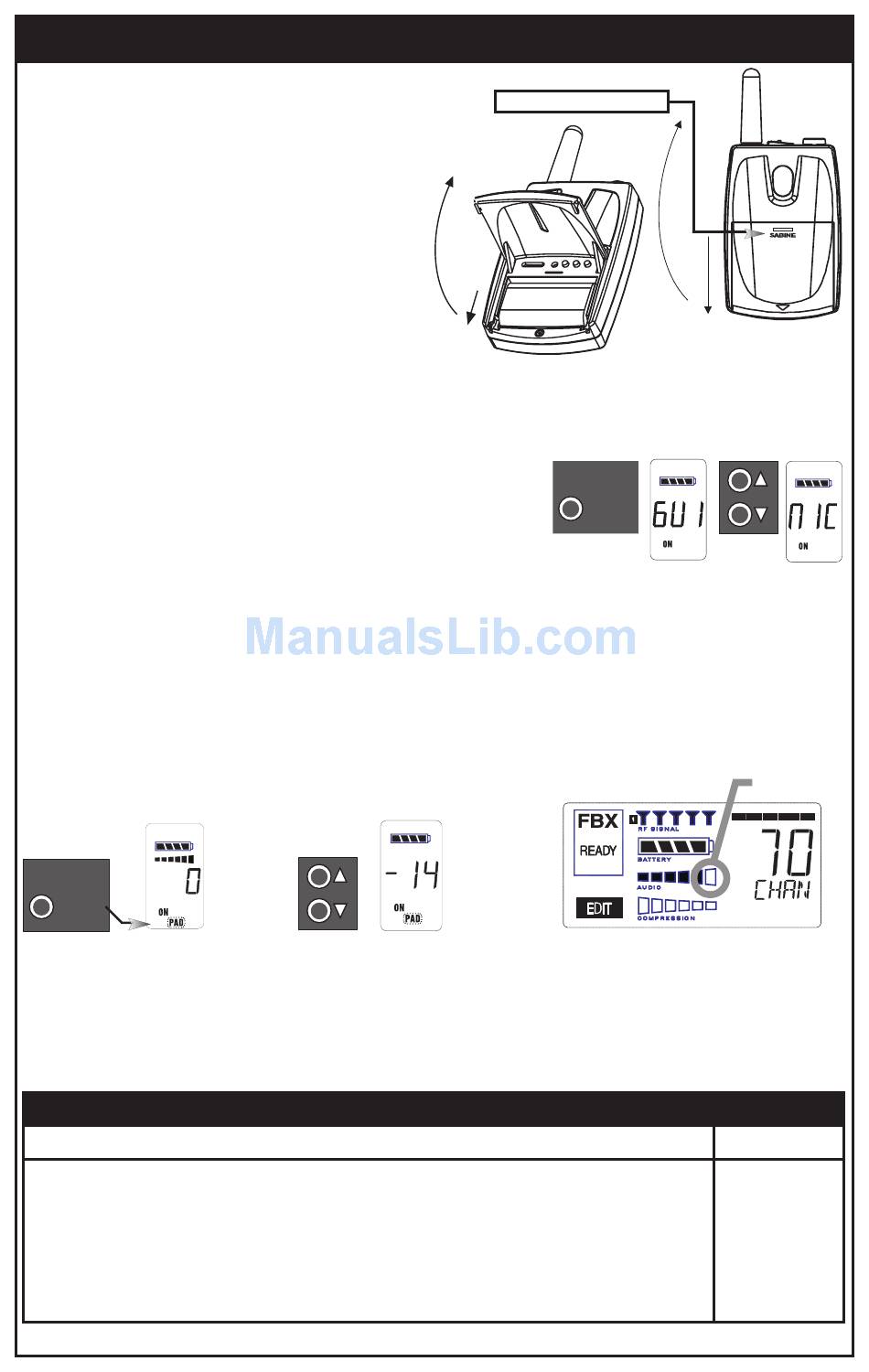

Opening Access Compartment
1
Press down firmly with both thumbs
on battery door handle (above Sabine
logo) and slide away from LCD.
2
Lift bottom edge of door slightly and
continue pulling door down away from
LCD until the door opens fully (90-de-
gree angle from transmitter body).
Closing Access Compartment
1
Swing door down, flush with transmit-
ter body.
2
With both thumbs pressing firmly on door handle (above Sabine logo), slide door up toward
LCD until door lip catches under main body of transmitter, and bottom of door is flush with
bottom of transmitter body.
Input Settings
Select either "MIC" or GUI" for microphone or instrument.
See Section 4.2.3 for details.
PAD Settings
The SW70-T beltpack transmitter has a broad range of PAD settings, which allow you to use it with almost
any microphone or instrument. As in all audio equipment, the setting of the input level is crucial to achiev-
ing the best sound quality. Setting minimal PAD levels (-3, -6, or -10 dB) may produce a distorted sound if
you are using a high output microphone or instrument. Conversely, setting a more extreme PAD level (-40,
-37, or -34 dB) may require you to raise your system gain unnecessarily, resulting in a noisier output.
Watch the input meter on either the transmitter or the receiver (see illustrations) and set your level so there
are at least three indicators illuminated for normal program level, with an occasional move to the fourth
indicator. The fifth and biggest indicator denotes clipping – watch out! If you see clipping, choose a lower
pad setting (for example, from -10 to -14 dB).
Changing PAD Settings
SELECT
1
Select PAD function: Use
the Transmitter Select but-
ton to scroll through func-
tions until PAD flashes in
the Transmitter LCD.
Venue
Low output microphones
Standard mics & acoustic instruments with low-gain pickups (default setting)
Electric guitars with low-gain pickups & mics with higher gain
Most standard electric guitars
Instruments with high-gain pre-amps
Please carefully read the operating guide for complete instructions.
2
Select PAD setting:
Use the Up or Down but-
tons to select the desired
setting. Selection is
stored after 3 seconds of
inactivity.
Suggested PAD Settings
Battery door handle
I
NSTRUMENT
SELECT
3
Check for Clipping: Check
to see if the receiver's Audio
Level Meter stays out of the
Clipping Zone.
M
ICROPHONE
Clipping Zone
PAD
-10 dB
-14 dB
-20 dB
-26 or -30
-34 dB
