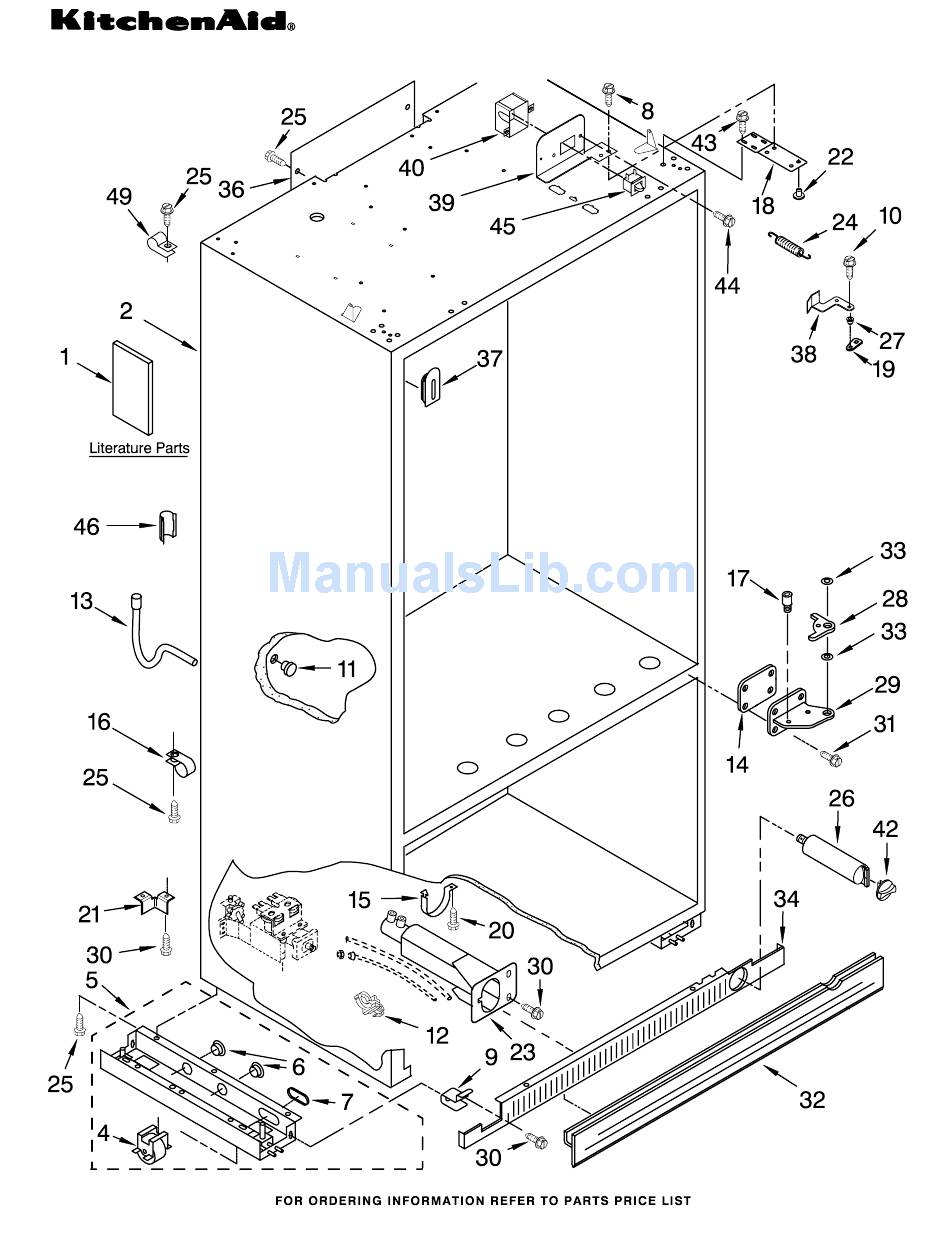

- Page 1 CABINET PARTS 36" BOTTOM MOUNT BUILT IN REFRIGERATOR For Models: KBRC36FMS00 (Stainless Steel) 9−05 Litho In U.S.A. (kdj) Part No. 8198469...
-
Page 2: Cabinet Parts
Rear (4) Support, Leveler Assembly 2004506 Refrigerator Side 2004505 Freezer Side 2005006 Grommet, Wiring 2005007 Grommet, Flexible 489399 Screw CABINET PARTS For Models: KBRC36FMS00 (Stainless Steel) Illus. Part DESCRIPTION 2006442 Mounting Bracket, Grill 2005921 Screw 1112849 Cap, Grommet 2004514 Clamp... - Page 3 CABINET AND BREAKER TRIM PARTS 8198469 For Models: KBRC36FMS00 (Stainless Steel) Illus. Part DESCRIPTION Cabinet Trim, Right Side 2222552S Stainless Steel 1163283 Screw 2254724 Cabinet, Trim (Bottom) 486194 Screw 2257366 Cabinet Trim, Top Breaker Trim (Not Serviced) 2005782 Cover, Hinge 2005925 Seal−Trim,Side...
- Page 4 TOP GRILLE AND UNIT COVER PARTS Illus. Part DESCRIPTION Top Grille Assembly 2257410S Stainless Steel 2259320 Cover, Unit 2256466 Back Panel For Models: KBRC36FMS00 (Stainless Steel) Illus. Part DESCRIPTION 2259095 Front, Unit Cover 487415 Screw 2187423 Wire Assembly 489348 Clamp Illus.
- Page 5 LINER PARTS For Models: KBRC36FMS00 (Stainless Steel) 8198469...
- Page 6 2208968 Motor, Grommet 2006148 Wiring Channel, Freezer Rear 2215844 Foam, Fan Shroud 2215910 Grommet, Flexible 2215606 Shroud, Evaporator 2169142 Blade, Fan 2259385 Motor, Fan LINER PARTS For Models: KBRC36FMS00 (Stainless Steel) Illus. Part DESCRIPTION 2155590 Retainer, Fan Motor 2221296 Air Baffle Assembly...
-
Page 7: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Models: KBRC36FMS00 (Stainless Steel) 8198469... - Page 8 2256442 Left Side 2179404 Rack, Wine 2221071 Egg Bin Bracket, Freezer Basket 2257327 Right Side 2257326 Left Side 2257562 Trim−Glass, Side For Models: KBRC36FMS00 (Stainless Steel) Illus. Part DESCRIPTION 2256474 Divider, Crisper Pan 8533929 Screw Slide, Crisper 2256440 Left Side...
- Page 9 FREEZER DOOR AND BASKET PARTS For Models: KBRC36FMS00 (Stainless Steel) 8198469...
- Page 10 FREEZER DOOR AND BASKET PARTS For Models: KBRC36FMS00 (Stainless Steel) Illus. Part DESCRIPTION 2300085 Freezer Door Panel (Includes Item 9) 2204525 Divider, Basket 2207429 Clamp, Divider 2207415 Nut, Crimp 3190699 Screw 2005400 Filler, Foam 2300025 Spacer, Door Edge − Side 2300027 Spacer, Door Edge Top &...
-
Page 11: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: KBRC36FMS00 (Stainless Steel) 8198469... - Page 12 REFRIGERATOR DOOR PARTS For Models: KBRC36FMS00 (Stainless Steel) Illus. Part DESCRIPTION 2300083 Refrigerator Door (Includes Item 9) Skin, Door 2300040 Stainless Steel 2266912 Hinge Assembly, 2256381 Spacer−Hinge, 489282 Screw, 10−32 x 3/4 2257605 Hinge Assembly, Bottom 2005397 Filler, Foam 2300026 Spacer, Door Edge −...
- Page 13 UPPER UNIT PARTS For Models: KBRC36FMS00 (Stainless Steel) 8198469...
- Page 14 2259369 Shroud, Condenser (Left) 2252097 Control Board 2203075 Spacer (5) 2256328 Bracket, Inverter 486899 Screw 1157158 Screw 2259307 Condenser UPPER UNIT PARTS For Models: KBRC36FMS00 (Stainless Steel) Illus. Part DESCRIPTION 943447 Grommet (4) 2187679 Wire, Jumper 488208 Screw 857547 Wire Tie (2)
- Page 15 LOWER UNIT AND TUBE PARTS For Models: KBRC36FMS00 (Stainless Steel) 8198469...
- Page 16 LOWER UNIT AND TUBE PARTS For Models: KBRC36FMS00 (Stainless Steel) Illus. Part DESCRIPTION 2259472 Tube, Transition (Condenser) 2259304 Tube, Transition (Drier/Restrictor) 486194 Screw 2216113 Thermistor 2257639 Clip 2259303 Suction Tube 2207486 Heater, Defrost (Rear) 2259329 Heater, Drain Pan 2209450 Hanger, Heater...
-
Page 17: Icemaker Parts
ICEMAKER PARTS For Models: KBRC36FMS00 (Stainless Steel) 8198469... - Page 18 ICEMAKER PARTS For Models: KBRC36FMS00 (Stainless Steel) Illus. Part DESCRIPTION 2204597 Tube, Valve 2221240 Heater, Fill Tube 489115 Fastener, Snap−In 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2221140 Water Inlet Tube Assembly 1106508 Seal Gasket 2254800 Tube, Filter Outlet 2254709 Valve, Solenoid...
