  • Page 2 - Music and videos in the accompaniment can be added, changed or deleted without notice for the quality improvement or by the request of copyright holder. - The secondary copyright in music and videos in the accompaniment belonging to TJ media cannot be assigned, copied or distributed to the third party.
  • Page 3 SD visuals and the HD specific graphics and subtitles display clearly on screen. Equipped with the best musical selection and sound system developed by TJ media Enhanced sound quality of music using new and improved MIDI synthesizer with MP3 audio sound.

  • Page 4: Table Of Contents

    Instruction for grounding Connection Parts and separate sold items check Name of each part (front) Name of each part (rear) Function of remote controller (TKR-304P R) 10-11 Function of customer's remote controller (Optional Items) 12-13 Function of manager's remote controller (Optional Items) Connection to amp/speaker and external device Proper setting of 4.1 channel...
  • Page 5 Instruction for safety USER MANUAL Instruction for safety divides into "Warning" and "Caution". Warning and Caution have following meanings. This sign calls attention to dangerous matters and operations. Warning : It may cause serious damage and death, if violated. Caution : It may cause light damage if violated. Danger for electric shock.
  • Page 6 Instruction for safety USER MANUAL Caution Pull off plug to clean the unit for safety. It may cause accident or electronic shock. Do not pull off forcefully, but pull off while gripping code. If line is cut, it may cause fire or electronic shock. Connect power plug in a socket with grounding.
  • Page 7 Instruction for grounding USER MANUAL What is grounding? Connect ground wire to ground terminal. If it is improperly installed, it may cause electronic shock or malfunction of device. It is highly dangerous of electronic shock by other devices (monitor, accompaniment and microphone) It is basic safety device for electronic goods.

  • Page 8: Check Accessories And Optional Items

    Connection USER MANUAL Check accessories and Optional Items Accessories TKR-304P R TKR-304P R TKR-304P R TKR-304P R User's MANUAL INDEX 2 Batteries (For Remote control) remote controller 2 sound cable 1 video cable 1 grounding cable 1 power supply code...

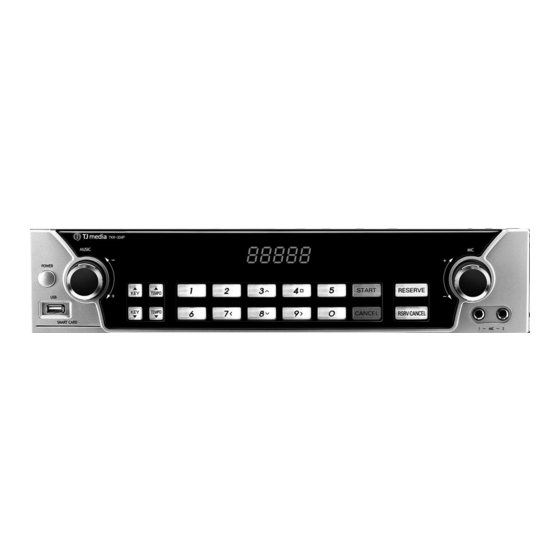

  • Page 9: Name Of Each Part (Front)

    Connection USER MANUAL Name of each part (front) Power System power ON/OFF control. For Customers : Save recorded songs to USB and play saved MP3 files. For Installation : Input new songs via USB. Slot to insert smart card used for authenticating the machine. Smart card Music volume Control the volume of the music.

  • Page 10: Name Of Each Part (Rear)

    Connection USER MANUAL Name of each part (rear) Ext.remote External remote controller sensor terminal. Connect to temporal light device, midi dimmer, light equipment. Light controller A/S terminal. LAN (100Mbps) Connected to a Audio INPUT terminal of an amplifier. Audio output Digital visual output terminal for HD Visuals.
  • Page 11 Connection USER MANUAL Function of remote controller(TKR-304P R) TKR-304P R TKR-304P R...
  • Page 12 Connection USER MANUAL Clear Delete the previous letter. Select the Song Search button (for TITLE, SINGER, LYRICS,COUNTRY) on the Song search remote control and the search results will be displayed on the screen. Number Press number buttons to input song numbers. Cancel Press to stop the song.

  • Page 13: Function Of Customer's Remote Controller (Optional Items)

    Connection USER MANUAL Function of customer's remote controller (Optional Items) Key : Micro control by single key step from a male or female standard key . Key, Tempo, Melody Tempo(speed) : Control speed of playing songs. Melody : Select volume of melody playing. Control volume of accompaniment, microphone and echo.
  • Page 14 Connection USER MANUAL NEW SONG : Display a list of the lastest songs. MULTIPLEX : Display multiplex song list. MTV : Display MTV song list. Convenient extra VOCAL : Set Vocals Assist-Vocals ON-Vocals OFF. function MALE / FEMALE : Male, female key selection. RHYTHM : Change a playing rhythm into disco, techno, jitterbug, cha-cha-cha rhythm.
  • Page 15 Connection USER MANUAL Manager's remote controller function (Optional Items) Input time by 30min, 60min and 120min Coin, Input coin by 10, 20, 30 and 40. Time/Coin TKR-304CR Enter configuration menu. Setting Enter a score control menu of configuration menu. Score control Input password, time and coin.

  • Page 16: Connection To Amp/Speaker And External Device

    Connection USER MANUAL Connection to amp/speaker and external device AMPLIFIER Video AC power OUTPUT INPUT equipment Coin 100~240V Grounding R-FRONT-L R-REAR-L equipment External remote controller sensor terminal. Monitor MIDI dimmer or Simple light equipment. Monitor(SD) HDMI(HD) MIC 1, MIC 2 Proper setting of 4.1 channel To listen lively sound of an accompaniment similar to speaker...

  • Page 17: Setup Of Configuration

    Configuration USER MANUAL Setup of Configuration : Either press the button on the Manager's remote controller or press the machine button simultaneously. [The start up password for the product is 1111] If you change configuration condition, you may enter configuration by entering password again. If you forget password, you may have to send a unit to customer center.

  • Page 18: Sound Settings

    Configuration USER MANUAL STEP 1 STEP 2 Description Delete the recorded song automatically after running out of Auto Delete coin/time or system reboot. Recorded Song Setup Maintain the recorded song even after running out of coin/time or Manual Delete system reboot. User can select the recorded song to delete. 2.
  • Page 19 Configuration USER MANUAL 2. Sound settings Standard STEP 1 STEP 2 Description Setting Choose to use the digital Mic mixer installed inside the MIC Mixer machine. Choose the setting of the mic compressor. OFF : Apply only the chosen settings for mic effects to the voice.

  • Page 20: Video Settings

    Configuration USER MANUAL 3. Video settings Standard STEP 1 Description Setting HD(HDMI) : Set when using HDMI output. Video SD(composite) : Set when using SD composite output. Mode Video Set monitor sleep mode in 5 minute units Sleep starting from 1 minute to 30 minute. Mode 4.

  • Page 21: User Functions

    Configuration USER MANUAL 5. User functions Standard STEP 1 STEP 2 Description Setting Greetings from the Business/Owner : Greetings Use the keyboard to insert the greetings to be displayed on the screen during Setup stand-by time/song. Insert photos, videos, MP3, Video files from USB into the machine to use as background visuals when singing.

  • Page 22: Contents Update

    Configuration USER MANUAL 6. Contents update STEP 1 STEP 2 Description Check Data Check the data of updated songs online. Restore Restore songs and data from the server that were Check Missing Songs missing from downloading online. Contents Check sales when using coin operated connection. Sales Check Contents Menu for displaying contents of new songs using a USB when Off-line.
  • Page 23 Others USER MANUAL Trouble check and trouble shooting Treat the product referring following cases if considered there are problems in the product. Check other products because users can be inexperienced or other products connected can have problems. After treating as following items and same problems are happened, please, do not open a product for yourself and give a call to an agency to buy or a service center of our company.
  • Page 24 Others USER MANUAL Trouble check and trouble shooting This case Do this Check whether a power switch on a microphone is on or off and switch on mic power. Check volume of amplifier mic set as minimum, and control the volume. Microphone sound is not coming.
  • Page 25 3. If a trouble is caused by chemicals like thinner, benzene, alcohol or wax. 4. If a trouble is caused by using parts or consumables other than TJ media authentic product. 5. If a trouble is caused by the different voltage use.
  • Page 26 Memo USER MANUAL...
  • Page 27 Memo USER MANUAL...
  • Page 28 COMPUTER MUSIC PLAYER TKR-304P...
