- Page 2 - Music and videos in the accompaniment can be added, changed or deleted without notice for the quality improvement or by the request of copyright holder. - The secondary copyright in music and videos in the accompaniment belonging to TJ media cannot be assigned, copied or distributed to the third party.
- Page 3 Ready to Enjoy? Acoustic Real-Sound Brand New Premium HDD Karaoke. Equipped with the best musical selection and sound system developed by TJ media Enhanced sound quality of music using new and improved MIDI synthesizer with MP3 audio sound. Includes Microphone Compressor Function This newest function converts low voice volume into higher and clearer sound as well as converts overly loud voice volume into lower volumes.
-
Page 4: Table Of Contents
Index USER MANUAL Characteristics Index Safety Instruction for safety Instruction for grounding Connection Check accessories and Optional Items Name of each part (front) Name of each part (rear) Function of remote control (TR-355P) 10-11 Function of Karaoke Keypad [TPR-300P] 12-13 Connection to amp/speaker and external device Configuration Setup of Configuration... - Page 5 Safety USER MANUAL Instruction for safety divides into "Warning" and "Caution". Warning and Caution have following meanings. This sign calls attention to dangerous matters and operations. Warning : It may cause serious damage and death, if violated. Caution : It may cause light damage if violated. Danger for electric shock.
- Page 6 Safety USER MANUAL Caution Pull off plug to clean the unit for safety. It may cause accident or electronic shock. Do not pull off forcefully, but pull off while gripping code. If line is cut, it may cause fire or electronic shock. Connect power plug in a socket with grounding.
- Page 7 Safety USER MANUAL What is grounding? Connect ground wire to ground terminal. If it is improperly installed, it may cause electronic shock or malfunction of device. It is highly dangerous of electronic shock by other devices (monitor, accompaniment and microphone) It is basic safety device for electronic goods.
-
Page 8: Check Accessories And Optional Items
Connection USER MANUAL Check accessories and Optional Items Accessories TKR-304P R TKR-304P R TKR-304P R TKR-304P R Manual Songbook 2 Batteries User's remote control (For Remote control) 3V cable 12V cable Video and Audio cable 2Pin to PCB 3Pin to PCB (RCA to RCA) [RED+BLACK) [YELLOW+BLACK) -
Page 9: Name Of Each Part (Front)

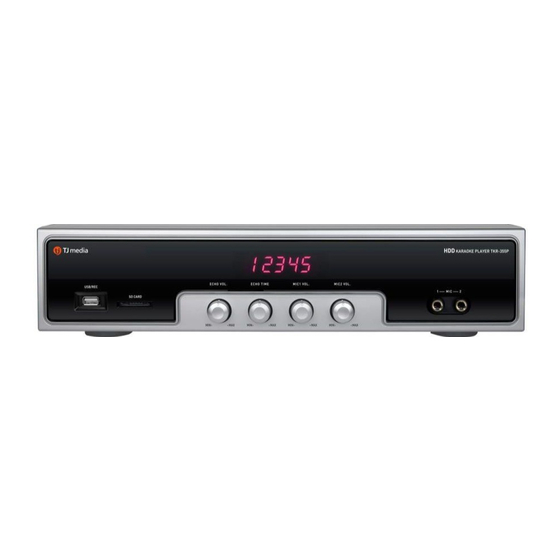

Connection USER MANUAL Name of each part (front) 1. Register and play user contents. 2. Download recorded song. 3. Renew the authentication. (by connecting Smartcard Reader) USB/REC 4. Connect the karaoke keypad. 5. Update new songs monthly. 6. Save the setting of configuration. POWER AC INPUT VIDEO... -
Page 10: Name Of Each Part (Rear)
Connection USER MANUAL Name of each part (rear) POWER AC INPUT VIDEO COIN AC100V-240V~ 50/60Hz INPUT LIGHT CONTROLLER EXT.MIC INPUT(SCORE) MIC INPUT EXT. Serial NO. REMOTE OUTPUT OUTPUT INPUT GAIN MIC 1 MIC 2 DC 3V/0.3A DC 12V/0.5A SIGNAL OUTPUT VIDEO AUDIO MIDI DIMMER... - Page 11 Connection USER MANUAL Function of remote control(TR-355P)
- Page 12 Connection USER MANUAL Enter configuration menu. (initial password : 1111) SETUP Select the Song Search button (for TITLE, ARTIST, LYRICS,COUNTRY) on the SONG SEARCH remote control and the search results will be displayed on the screen. NUMBER Press number buttons to input song numbers. CANCEL Press to stop the song.
- Page 13 Connection USER MANUAL Function of Karaoke Keypad (Optional Items) This product is well supported to all TJ media's products. 1. Register and play user contents. 2. Download recorded song. 3. Renew the authentication. (by connecting Smartcard Reader) 4. Update new songs monthly.
- Page 14 Connection USER MANUAL DIRECTION MOVE, DIRECTION MOVE, SELECTION - Move up, down, left, right in the list or display function. SELECTION, PAGE UP/DOWN - Move a page in list function. PAGE UP/DOWN VOCAL ON/OFF - Set vocals assist-Vocals ON-Vocals OFF. VOCAL ON/OFF, LIGHTING - Set lighting effect ON-OFF.
-
Page 15: Connection To Amp/Speaker And External Device
USER MANUAL Connection Connection to amp/speaker and external device Video Terminal for AC power OUTPUT Coin PCB power of electric INPUT equipment power terminal Coin coin module. 100~240V equipment AMPLIFIER Monitor(SD) MIC 1, MIC 2 External remote control sensor terminal. L-FRONT-R MIDI dimmer or Simple light equipment. -
Page 16: Karaoke Operation Status
Configuration USER MANUAL 2. Karaoke Operation Status Standard STEP 1 STEP 2 Description Setting Choose to either display or hide the list of new New Song songs from the screen at waiting status. Remaining Choose to either display or hide the remaining time from the screen. -
Page 17: Sound Settings
Configuration USER MANUAL 3. Sound Settings Standard STEP 1 STEP 2 Description Setting BGM Type Select BGM with voice without voice, or none. Voice Setup BGM Start Set the BGM to start playing after 5 mins later Time 1min/3min/5min of standby/ idle time. (Choose the background music... -
Page 18: Video Settings
Configuration USER MANUAL 4. Video Settings Standard STEP 1 Description Setting TV Setup Set the status of TV display setup as NTSC or PAL. NTSC 5. External Device Settings Standard STEP 1 STEP 2 Description Setting Managing Select machine’s manage type. None Type Set the number of coins per song... -
Page 19: User Functions
Video - Video File Format : MPEG4 - Audio File Format : MP3(48kHz recommended) [3] Converting program. TJ media encoder is the PC program to convert video or photo file into the opti- mized format for TKR-355P. User Contents Setup 1. - Page 20 ▶ 5.Ready to Install 6.Setup Finished 2-1. Converting moving pictures (1) Double click the TJ Media Encoder icon to start the program. User (2) Click [Video]. Contents (3) Click [File Add] to load a file that you want to convert.
- Page 21 USER MANUAL Configuration 6. User Functions STEP 1 Description 2-3. Converting Image files (1) Start TJ Media_Encoder and click [Image]. (2) Click [File Add] to load an image file that you want to convert. ▶ User Contents Setup (3) Click [Option] to save as an another file name and or in different location. You can also spin the direction of the image.
- Page 22 USER MANUAL Configuration 6. User Functions STEP 1 STEP2 Description User Information for each user contents saved in the user HDD space. Storage Information Change the configuration password. Configuration *initial password : 1111 Change Password Change the password used to update contents. (additional songs) Contents *initial password : 0000 Upload...
-
Page 23: Contents Update
USER MANUAL Configuration 7. Contents Update STEP 1 STEP 2 Description Check Data Check the data of updated songs. Check Contents Check sales when using coin operated connection. Sales Check Contents Menu for displaying contents of new songs using a SD card or USB. Update Adding Menu for extending the machine authentication period using the smart card. -
Page 24: The First Authentication
USER MANUAL Configuration 9. The First Authentication STEP 1 Description When entering menu, machine will display date of new song and authentication. The First When pressing start button, date of authentication and additional authentica- Authenti tion for 2 months are renewed. -cation After first authentication is done, the menu will be disappeared. - Page 25 Others USER MANUAL Trouble check and trouble shooting Treat the product referring following cases if considered there are problems in the product. Check other products because users can be inexperienced or other products connected can have problems. After treating as following items and same problems are happened, please, do not open a product for yourself and give a call to an agency to buy or a service center of our company.
- Page 26 Others USER MANUAL Trouble check and trouble shooting This case Do this Check whether a power switch on a microphone is on or off and switch on mic power. Check volume of amplifier mic set as minimum, and control the volume. Microphone sound is not coming.
- Page 27 3. If a trouble is caused by chemicals like thinner, benzene, alcohol or wax. 4. If a trouble is caused by using parts or consumables other than TJ media authentic product. 5. If a trouble is caused by the different voltage use.
- Page 28 COMPUTER MUSIC PLAYER TKR-355P...
