SIRIUS Indoor/Outdoor
Home Antenna
Installation Guide
ite
Placed Outdoors – Facing South Satell

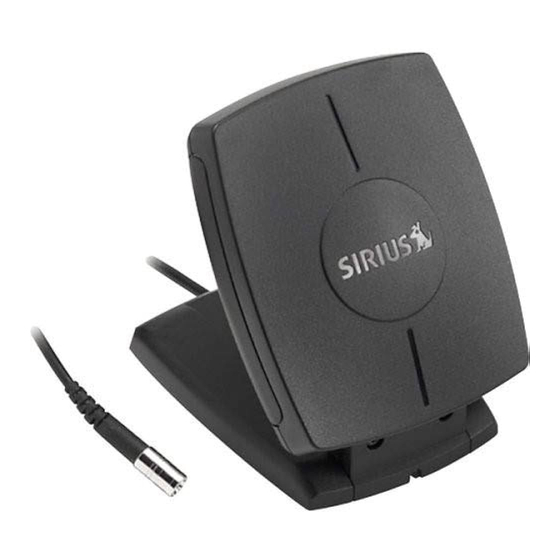

Indoor/Outdoor Home Antenna
At SiriusXM, our customers' satisfaction with the performance of their
Radios is extremely important to us. In this guide, we have prepared
a series of instructions and tips for you to show you the best methods
for selecting a location for your antenna, how to install it, and how to
connect it to your SiriusXM Radio.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sirius XM RAdio Indoor/Outdoor Home Antenna
Summary of Contents for Sirius XM RAdio Indoor/Outdoor Home Antenna
- Page 1 Home Antenna Installation Guide Placed Outdoors – Facing South Satell Indoor/Outdoor Home Antenna At SiriusXM, our customers’ satisfaction with the performance of their Radios is extremely important to us. In this guide, we have prepared a series of instructions and tips for you to show you the best methods for selecting a location for your antenna, how to install it, and how to connect it to your SiriusXM Radio.
- Page 2 SIRIUS Indoor/Outdoor Home Antenna Installation Instructions: Placed Outdoors – Facing South Satellite Step 1: Place the Antenna Place the Indoor/Outdoor Home Antenna outdoors on a window ledge, porch, table, or patio, where it has a clear, unobstructed view of the south sky (A, in illustration below).
- Page 3 SIRIUS Indoor/Outdoor Home Antenna Installation Instructions: Placed Outdoors – Facing South Satellite If you placed the antenna outdoors on a flat surface, keep the clamshell closed and orient the body of the antenna to face south. Continue with Step 2.
- Page 4 SIRIUS Indoor/Outdoor Home Antenna Installation Instructions: Placed Outdoors – Facing South Satellite If you have mounted the antenna on a soffit with a straight up view of the sky, skip to Step 3 that describes how to connect the antenna to your Radio or Home Dock.
- Page 5 SIRIUS Indoor/Outdoor Home Antenna Installation Instructions: Placed Outdoors – Facing South Satellite Step 2: Aim the Antenna Open the antenna clamshell so that it is halfway between the horizontal and vertical positions as shown. Orient the antenna so that the shaded surface shown is facing south, in the direction of...
- Page 6 SIRIUS Indoor/Outdoor Home Antenna Installation Instructions: Placed Outdoors – Facing South Satellite Step 3: Connect the Antenna to Your SiriusXM Radio or Home Dock Connect the antenna cable to the ANT connection on the Radio or Home Dock. AUDIO POWER...
- Page 7 SIRIUS Indoor/Outdoor Home Antenna Installation Instructions: Placed Outdoors – Facing South Satellite Step 4: Verify Signal Reception Turn your SiriusXM Radio ON and access the Signal Indicator (or Antenna Aiming) screen. (Consult your Radio’s User Guide for instructions on accessing the screen.)
- Page 8 SIRIUS Indoor/Outdoor Home Antenna Installation Instructions: Placed Outdoors – Facing South Satellite Signal Distribution Accessories For You to Consider 50 ft. Antenna Extension Cable: If the cable attached to the antenna is not long enough, you can use a 50’ long antenna extension cable (sold separately) to extend the antenna cable.
