SiriusXM NGVA1 - Vehicle Antenna Installation Guide

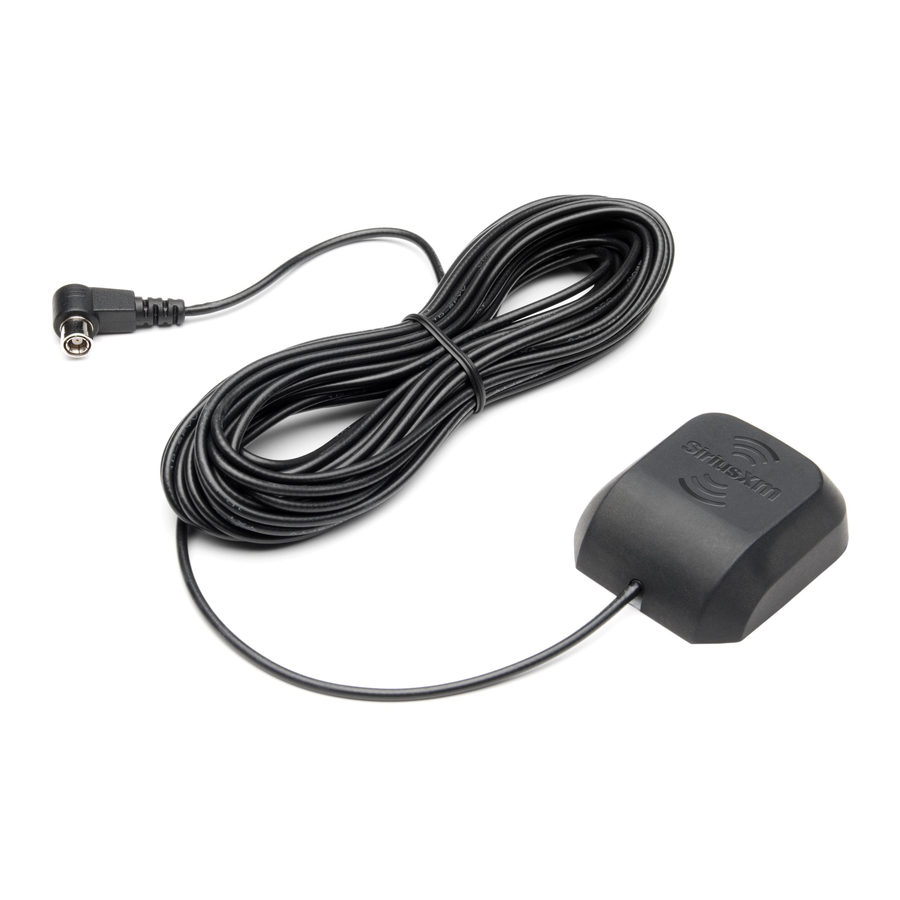

Install the Magnetic Mount Antenna

Proper placement of the Magnetic Mount Antenna is very important. Consult a professional installer if you are uncomfortable with installing the antenna yourself. More detailed installation instructions and illustrations can be found at
www.siriusxm.com/installation.

• Place the Magnetic Mount Antenna on the outside of your vehicle on a horizontal surface that always faces the sky.

• Avoid placing the antenna near obstacles that could block a clear view of the sky (such as roof racks, other antennas like AM/FM, cellular, and GPS), preventing the satellite signal from reaching the antenna.

Select the Best Location for the Magnetic Mount Antenna

For most vehicles the best location is on the roof, centered above the rear window or front windshield. Consult a professional installer to find an alternate antenna mounting location if your vehicle roof is made from a non-magnetic material such as aluminum, fiberglass, or carbon fibre.

• Sedan or Coupe:Recommended mounting location is above the rear window or front windshield.

• Pickup or SUV:Recommended mounting location is above the front windshield.

• Convertible: Recommended mounting location is above the front windshield, or alternately on the trunk lid, on the front hood, or on top of the front fender.


Route the Antenna Cable

Use care when routing the antenna cable into and through the vehicle interior, avoiding sharp objects that can damage the cable. Keep the antenna cable away from moving parts such as gas and brake pedals, trunk and door hinges, and sliding seat brackets.

Hide the antenna wire inside the vehicle cabin by routing the cable under the carpet and behind plastic trim, toward the radio location. Coil and secure any excess cable in a hidden location, such as under the carpet, using wire ties (not included).

Do not kink or sharply fold the antenna cable.

1. Feed cable under rubber moulding around window.
2. Route cable out of window moulding and into weatherstripping around trunk opening.
3. Route cable along trunk wall and into cabin.
4. Route cable from trunk under interior trim, into cabin and towards front of vehicle.
5. Bring cable out from trim and route under carpet and behind the dash to the Radio. Coil and secure excess cable under carpet or behind dash.

Plug the antenna into the ANT connector on SiriusXM Connect Vehicle Tuner or Vehicle Dock.

Specifications

Antenna
Type Magnetic Mount
Connector SMB
Cable Length 23 ft (7 m)
Compatibility SiriusXM, Sirius, and XM Radios incorporating an SMB connector

Environmental Information

Follow local guidelines for waste disposal when discarding packaging and electronic appliances. This product is packaged with cardboard, polyethylene, etc., and does not contain any unnecessary materials.

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Copyrights and Trademarks

©2014 Sirius XM Radio Inc. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. All other marks and logos are the property of their respective owners. All rights reserved.

Important Legal Notice About Installation

Installation instructions are provided for your convenience. You must determine if you have the knowledge, skills, and ability required to properly perform installation. Professional installation is recommended. SiriusXM shall have no liability for damage/injury resulting from the installation/use of any SiriusXM or other products.
You must ensure that all products are installed in adherence with local laws and regulations and in such a manner as to allow a vehicle to be operated safely and without distraction. SiriusXM product warranties do not cover the installation, removal, or reinstallation of any product.

Limited Warranty

What This Warranty Covers

This warranty covers defects in material and workmanship for 12 months from the date of purchase by the original retail purchaser only. Sirius XM Radio Inc., at its sole option, will repair or replace the product with a new or reconditioned product without charge for parts and labor. Replacement products are warranted to be free from defects for 30 days or the remainder of the original warranty, whichever is longer.

How to Obtain Warranty Service

To obtain warranty service, please call SiriusXM Listener Care at 1-866-635-7191. You will be required to provide proof of purchase and a description of the defect. You must prepay the cost of shipping the product to an approved service center.

Sirius XM Radio Inc.
1221 Avenue of the Americas
New York, NY 10020
siriusxm.com

© 2014 Sirius XM Radio Inc.
