Hohner Hoodoo Hand Owner's Manual

Harmonica wireless system.
Hide thumbs

By
Ó 2007 Hohner, Inc.
1000 Technology Park Drive
Glen Allen, VA 23059
www.hohnerusa.com
www.hoodoobyhohner.com

Advertising

   Summary of Contents for Hohner Hoodoo Hand

  • Page 1: Owners Manual

    OWNERS MANUAL Ó 2007 Hohner, Inc. 1000 Technology Park Drive Glen Allen, VA 23059 www.hohnerusa.com www.hoodoobyhohner.com...

  • Page 2

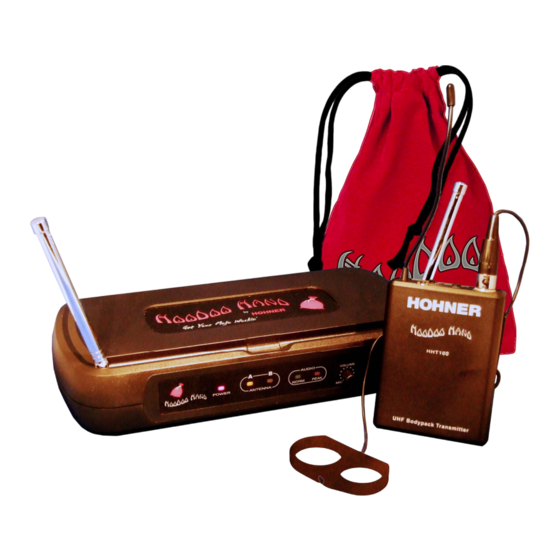

    System Components All Hoodoo Hand systems include: · HH1R UHF Dual-Diversity Wireless Receiver · HHT100 W ireless Belt-pack Transmitter · HHD135-400 Class 2 Power Transformer (may vary by country) · LAVHH1 Mini-Lavalier Microphone designed for Harmonica Use (T3 Connector) ·...

  • Page 3

    - This control is typically pre-adjusted from the factory; if you experience any interference, adjust clockwise until NORM audio level light goes out; back off slightly. ¼ Unbalanced Output for connection to FOH PA or Amplifier (recommended use connect to the Hohner Hoodoo Box Class A Tube amp, designed specifically for harmonica!).

  • Page 4

    HHT100 Transmitter Antenna Power Switch (ON/OFF/STANDBY) Sensitivity Switch (Mic Level, 0dB, -10dB) Input T3 connector (for use with included LAVHH1 microphone Low Battery Indicator Light Wearing the HHT100 Transmitter Clip the transmitter to belt (1), or slide guitar/harp belt strap through the transmitter clip (2) as shown. For Best results, slide the transmitter until belt is pressed against the top of the clip.

  • Page 5

    Changing the Batteries Expected life for two Alkaline batteries is approximately 8 hours. When the transmitter Battery indicator light glows red, the batteries should be changed immediately, as shown to the left. TIPS FOR OPTIMUM PERFORMANCE · Maintain a line of sight between transmitter and antenna ·...

  • Page 6

    TROUBLESHOOTING ISSUE Indicator Status Solution No Sound or faint sound Transmitter ON Indicator Turn On Transmitter Stop flashing Verify that the +/- indicator on the battery match transmitter terminals Power Indicator Off Verify AC adapter is securely plugged into W all outlet and connector is plugged into DC input on rear panel Receiver NORM indicator glows...

  • Page 7

    SPECIFICATIONS: LAVHH1 Mini Lavelier Microphone HH1R Receiver · Audio Output Maximum (1 kHz): · Element: Condenser XLR: 200 ohm · ¼ Kohm Polar Pattern: Omni-Directional · XLR Out: · Sensitivity:-55 to +3 dB · Pin 1 Ground Output Impedance: 1.5KOhm +/- 30% ·...

  • Page 8

    Manufactured in China exclusively for Hohner Inc. This Product is certified by the manufacturer to be RoHS compliant. Due to ongoing product development, product specifications are subject to change without prior notice. PN #HH1L1107.1US...
