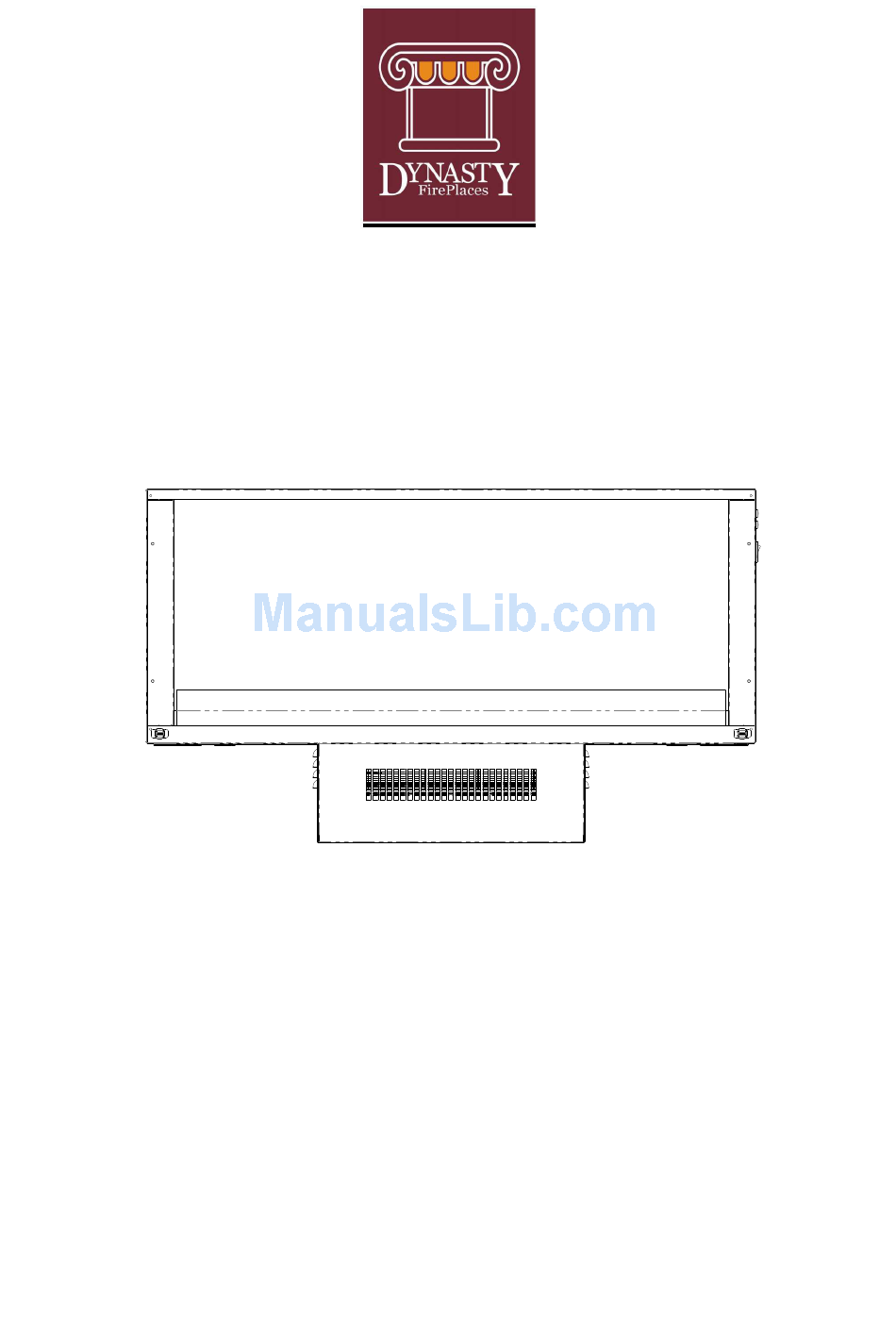

Wall Mounted Electric Fireplace
Homeowner's
Installation Instructions &
Operating Manual
Model: EF68-72 Series
Used With Listed Front Facia Only: MT68-72
FOR YOUR SAFETY
SERVICE MUST BE PERFORMED BY A QUALIFIED SERVICE AGENCY.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE.
INSTALLER: DO NOT DISCARD THIS MANUAL -- LEAVE FOR HOME OWNER
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Advertisement
Table of Contents
Related Manuals for Dynasty EF68-72 Series
Summary of Contents for Dynasty EF68-72 Series
-
Page 1: Installation Instructions
Wall Mounted Electric Fireplace Homeowner’s Installation Instructions & Operating Manual Model: EF68-72 Series Used With Listed Front Facia Only: MT68-72 FOR YOUR SAFETY SERVICE MUST BE PERFORMED BY A QUALIFIED SERVICE AGENCY. DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. -
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons including the following: 1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. - Page 3 INSTALATION INSTRUCTION PACKAGE CONTENTS Remark Part Description Picture Wall Mounting Bracket Fireplace Engine Fireplace Front Remote Control Battery Instruction Manual 6pcs for EF68/69 Plastic Wall Plug 8pcs for EF70/71 10pcs for EF72 6pcs for EF68/69 Screw ST5×40 8pcs for EF70/71 10pcs for EF72 Bolt M4×8 Bolt M5×10...
- Page 4 TOOL REQUIRED Magnetic Phillips Screw Driver Rotary Hammer UNPACKING THE ELECTRIC FIREPLACE WARNING! Do NOT use this Electric Fireplace if any part has been under water. Immediately call a qualified service technician to inspect and to replace any part of the electrical system if necessary. Keep plastic wrapping away from children.
- Page 5 INSTALL YOUR FIREPLACE Install your fireplace： ： ： ： Open the box and take out the wall mounting bracket. Choose a solid and plain wall and then put the bracket on the position where you want to install the fireplace. Mark the 6/8/10 holes by a pen from the holes on the bracket.
-
Page 6: Electrical Connection
Fig. 6 Fig. 5 ELECTRICAL CONNECTION A 15 AMP, 120 Volt, 60 Hz circuit with a properly grounded outlet is required. The unit comes standard with 6 feet (1.8 m) three wire cord, exiting from the rear of the fireplace. Plan the installation to avoid the use of an extension cord. Preferably, the fireplace will be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation. - Page 7 OPERATING INSTRUCTION-CONTROL FUNCTIONS This appliance can be operated by both remote control and manual button. Once the unit has been properly connected to an earthed electrical outlet, turn on the main power switch located on the left hand side of the appliance. A beep sho- uld be heard when the power is first applied.
-
Page 8: Warranty
WARRANTY In the unlikely event of a problem occurring due to a manufacturing fault within 24 months from the date of purchase of the appliance it will be repaired or replaced free of charge. This warranty does not cover consumable items such as the bulbs and fuses which have a limited lifespan. If a problem should occur, the nature of the problem together with the date of a purchase should be immediately reported to the retailer that the appliance was purchased from.
