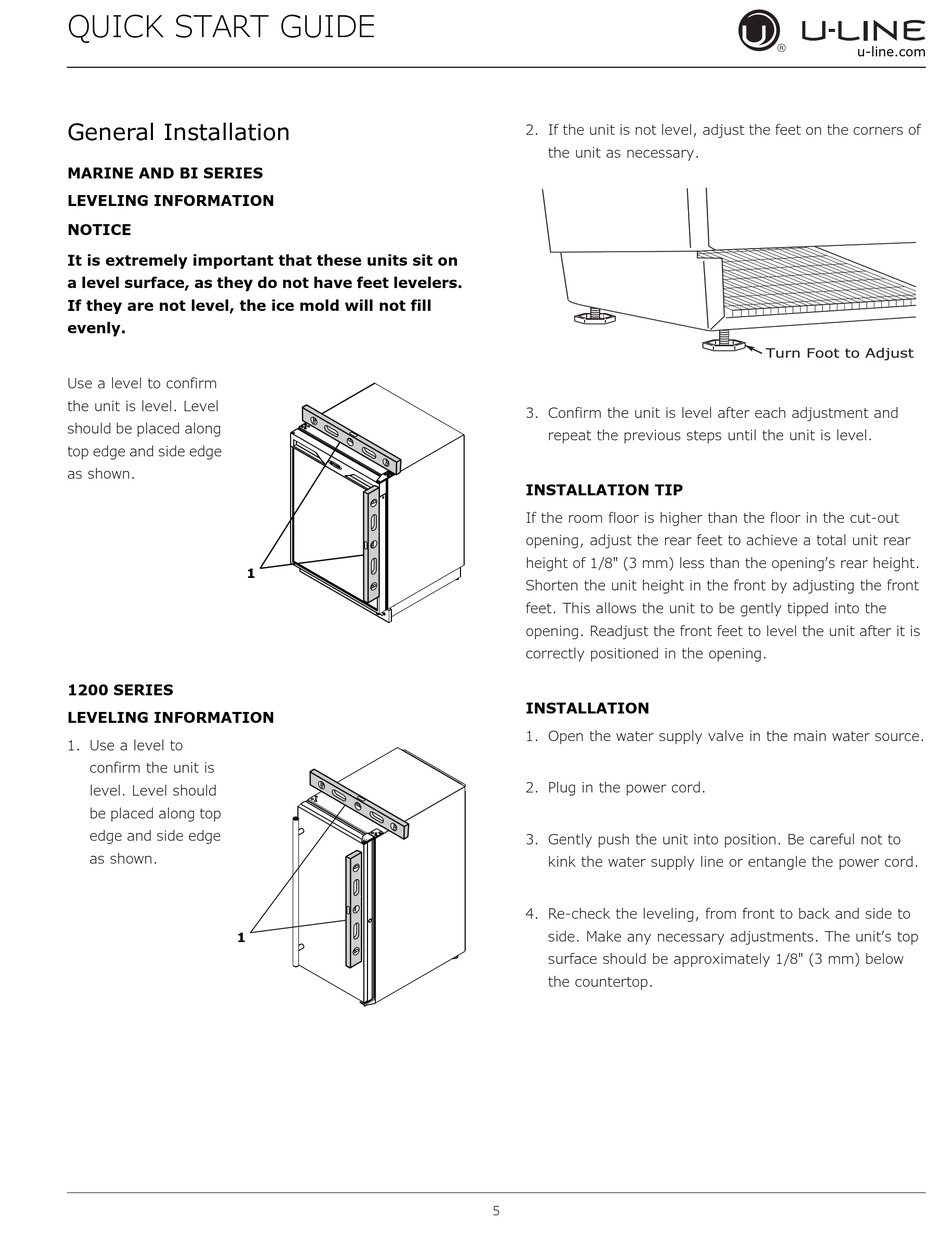

QUICK START GUIDE

General Installation

MARINE AND BI SERIES
LEVELING INFORMATION
NOTICE
It is extremely important that these units sit on
a level surface, as they do not have feet levelers.
If they are not level, the ice mold will not fill
evenly.
Use a level to confirm
the unit is level. Level
should be placed along
top edge and side edge
as shown.
1
1200 SERIES
LEVELING INFORMATION
1. Use a level to
confirm the unit is
level. Level should
be placed along top
edge and side edge
as shown.
1
2. If the unit is not level, adjust the feet on the corners of
the unit as necessary.
3. Confirm the unit is level after each adjustment and
repeat the previous steps until the unit is level.
INSTALLATION TIP
If the room floor is higher than the floor in the cut-out
opening, adjust the rear feet to achieve a total unit rear
height of 1/8" (3 mm) less than the opening's rear height.
Shorten the unit height in the front by adjusting the front
feet. This allows the unit to be gently tipped into the
opening. Readjust the front feet to level the unit after it is
correctly positioned in the opening.
INSTALLATION
1. Open the water supply valve in the main water source.
2. Plug in the power cord.
3. Gently push the unit into position. Be careful not to
kink the water supply line or entangle the power cord.
4. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit's top
surface should be approximately 1/8" (3 mm) below
the countertop.
5
u-line.com
Turn Foot to Adjust
