Page 1 ® Blood Glucose Monitoring System Meter and Electronic Logbook In One Owner’s Booklet...
Page 3 ® UltraSmart Blood Glucose Monitoring System Owner’s Booklet...
Page 5 ® ® to test or to serve as a complete storehouse of information regarding your diabetes treatment plan. A warranty registration card is included with your OneTouch ® UltraSmart System. Please complete it and mail it to us; if you ®...
Page 6 ® body (for in vitro diagnostic use) by people with diabetes at home and healthcare professionals in a clinical setting as an aid to monitor the effectiveness of diabetes control. The OneTouch ® UltraSmart System should not be used for the diagnosis of ®...
Page 7 Important Information • Dehydration: Severe dehydration and excessive water loss may cause false low results. If you believe you are suffering from dehydration, consult a healthcare professional immediately. • Low glucose results: If your test result is lower than 3.9 mmol/L or is shown as “LOW GLUCOSE”, it may mean hypoglycemia (low blood glucose).
Page 8: Table Of Contents
Checking the Display ..........9 Setting the Meter ........... 9 Coding the Meter ..........10 Checking the System with Control Solution ..12 TESTING YOUR BLOOD ..........19 Preparing the OneTouch UltraSoft ® ® Adjustable Blood Sampler ........20 Lancing and Sampling from Your Fingertip ..23 Lancing and Sampling from an Alternate Site ..
Page 9 Batteries .............. 43 DISPLAY MESSAGES ..........46 WARNINGS AND ERROR MESSAGES ......51 PROBLEMS AND POSSIBLE CAUSES ......56 METER SET-UP ............58 Entering Basic Set-up Mode ........ 58 Selecting Display Language ........ 59 Setting Date and Time ......... 60 CUSTOM METER SET-UP SEQUENCE ......62 Set-up Menu ............
Page 10 Eye Exam ...........93 Foot Exam ..........93 Weight/Height ...........94 Doctor Visit ..........94 Medication Logbook Entries......95 Food Logbook Entries........101 Adding, Changing, or Deleting Logbook Information ..........103 OneTouch UltraSmart FastFacts FEATURE ..108 ® ® ® FastFacts Menu ..........109 ® Logbook Memory .......... 110 Glucose by Meals ..........
Page 11 Hypoglycemia Information ......120 Food Averages ..........121 Health Checks ..........121 Data Downloading ..........122 SPECIFICATIONS ............125 PRODUCT SAFETY INFORMATION ......126 EXPLANATION OF SYMBOLS ON THE METER ... 127 GUARANTEE ............. 127 INDEX ............... 128...
Page 13: System
This makes it easier for you and your diabetes-care team to compare your meter results with laboratory tests. The OneTouch UltraSmart Blood Glucose Monitoring System ® ® consists of three main products: the OneTouch UltraSmart Meter, ® ® OneTouch Ultra Test Strips (Sold Separately), and OneTouch ®...

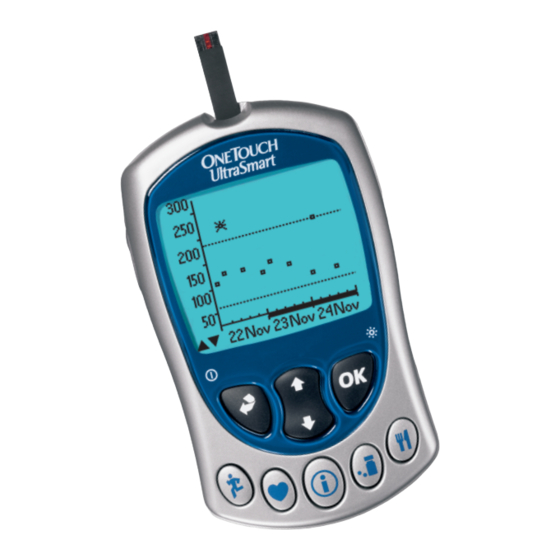

Page 14: Onetouch Ultrasmart Meter
Meter ® ® OneTouch Ultra Test Strip ® ® Test Port The meter turns on when you insert the OneTouch ® Ultra Test Strip here. ® Data Port Used to download logbook memory to a computer. Display with Backlight Test results, messages, symbols, and other data appear here.
Page 15: Navigation Buttons
Navigation Buttons Note: Press and release buttons. Do Not hold buttons down for an extended period of time. Back Button (Off Button) Go back to previous display on certain screens. Press and hold for two seconds to turn off the meter. Arrow Button Scroll through menus, code numbers, and logbook.
Page 16: Smartbuttons
SmartButtons ® The SmartButtons are your keys to getting the most ® out of your OneTouch UltraSmart Meter. They ® ® allow you to enter information about your diabetes management plan into the large logbook memory. There are SmartButtons for exercise, health, ®...
Page 17 Exercise SmartButton Food SmartButton ® ® Enter meal and snack Enter exercise amount and information. level. Health SmartButton Medication ® Enter information on SmartButton ® health. Enter insulin and diabetes pill information. FastFacts SmartButton ® ® Review test results and logbook memory. Note: For complete information on using the Exercise, Health, Medication, and Food SmartButtons , please see pages 82–107.
Page 18: Display Symbols
Display Symbols These symbols guide you while using your meter: Symbol Meaning Scroll (move) up only. ▲ Scroll down only. ▼ Scroll up or down. ▲▼ ▲ Scroll up or down. ▼ – – – No entry. Shows where you are on the HIGHLIGHT display.
Page 19: Onetouch ® Ultra ® Test Strips
The OneTouch UltraSmart System measures the ® ® amount of glucose in whole blood. Blood is applied to the Top Edge of the OneTouch Ultra Test Strip and ® ® is automatically drawn into the reaction cell where the reaction takes place.
Page 20 Test Strips are for single use only. Never ® ® reuse a test strip that has had either blood or control solution applied to it. • Apply only OneTouch Ultra Control Solution or a blood ® ® sample to the test strip. • Refer to additional information in the OneTouch Ultra Test ® ® Strip package.
Page 21: Before Testing
Each time you turn the meter on, the display background will quickly change from dark to light and form the words “OneTouch UltraSmart”. This tells you that the system is performing several UltraSmart self-checks to confirm that the meter is working properly.
Page 22: Coding The Meter
Coding the Meter Code numbers are used to calibrate the OneTouch ® UltraSmart Meter with the OneTouch Ultra Test ® ® ® Strips for accurate results. You must code the meter before using it for the first time and then every time you change to another vial of test strips.
Page 23 STEP 2 See the Code Number. The code number will appear on the display. (After every 25 tests the meter will display the code number and will prompt “Check Code Press OK”. Press the OK button if the code number is still correct.) (Example) STEP 3 Match the Code Numbers.
Page 24: Checking The System With Control Solution
“Apply Blood”. (Example) Checking the System with Control Solution Why you should do a control solution test: • OneTouch Ultra Control Solution ® ® is used to check that the meter and the test strips are working together as a system and that you are performing the test correctly.
Page 25 Before you begin: • Use only OneTouch Ultra Control Solution. ® ® • Check the expiration date on the control solution vial. Record the discard date (date opened plus three months) on the vial label. Do Not use after expiration or discard date, whichever comes first.
Page 26 • Whenever you suspect that the meter or test strips are not working properly. • If you have had repeated unexpected blood glucose results (as described on page v). • After dropping the meter. Note: Refer to additional information in the OneTouch Ultra Control Solution package. ® ®...
Page 27 To turn on the meter, insert a test strip, contact bars end first and facing up, into the test port. Push it all the way in until it will go no further. “OneTouch UltraSmart” will appear briefly (Example) on the display. Then “Code 9 (Example), Check Code”...
Page 28 Note: You must select “Control Solution” to distinguish control solution tests from blood glucose tests. Marked control solution tests will not be included in your averages. Do Not use Control Solution mode for testing blood. STEP 3 Apply Control Solution to the Test Strip. To ensure an accurate control solution test, shake the vial, discard the first drop and wipe the dispenser tip before you begin.
Page 29 CONFIRMATION WINDOW WARNING: If mmol/L does not appear ➧ with the Control Solution result, call the OneTouch ® Customer Care Line at 1 800 663-5521. The control solution will be drawn into the narrow (Example) channel. When the confirmation window is The control solution full, the meter will count test result will appear down from 5 to 1.
Page 30 Solution mode. CAUTION: If you continue to get control solution test results that fall outside of the range printed on the test strip vial, the system may not be working properly. Do Not use the meter. Call the OneTouch Customer Care Line at 1 800 663-5521. ®...
Page 31: Testing Your Blood
LifeScan recommends that you develop good technique by practicing with control solution prior to using the OneTouch UltraSmart Meter for the first time.
Page 32: Preparing The Onetouch ® Ultrasoft
Meter and Sampler clean. ® ® • Make sure to wash the puncture site with soap and water before testing. Note: If you Do Not have a OneTouch UltraSoft Adjustable ® ® Blood Sampler, please refer to the instructions that came with...
Page 33 Choosing the right sampling site at the right time: The OneTouch UltraSmart Meter allows you to ® ® sample blood from your fingertip, forearm or palm. At times, results obtained at the forearm or palm may be different from a fingertip measurement. Talk to your healthcare professional before you begin using your forearm or palm for sampling.
Page 34 CAUTION: Do Not test on your forearm or palm when: • You think your blood glucose is rapidly falling, such as within two hours of exercise or a rapid-acting insulin injection or insulin pump bolus. Testing with a fingertip sample may identify hypoglycemia or an insulin reaction sooner than testing with a forearm or palm sample.
Page 35: Lancing And Sampling From Your Fingertip
Before you test your blood glucose, wash your hands and forearm (if applicable) your hands and forearm (if applicable) thoroughly with warm, soapy water. Rinse thoroughly with warm, soapy water. Rinse and dry thoroughly. and dry thoroughly. Lancing and Sampling from Your Fingertip STEP 1 Remove the OneTouch ® UltraSoft Cap by Twisting it Off. ®...
Page 36 Sampler. Insert the lancet into the holder and push in firmly. Twist the protective disk until it separates from the lancet and save the disk for later use. Do Not twist the lancet. STEP 3 Replace the OneTouch ® UltraSoft Cap by Twisting it ®...
Page 37 STEP 6 Puncture Your Finger. Hold the Sampler firmly against the side of your finger. Press the release button. Remove the Sampler from your finger. Note: Do Not use the OneTouch UltraClear Cap on your finger. ® ®...
Page 38 STEP 7 Get a Round Drop of Blood. Gently squeeze and/or massage your fingertip until a round drop of blood at least 1µL ( actual size) forms on your fingertip. Do Not squeeze excessively on the puncture site. If the blood smears or runs, Do Not use that sample. Dry the area and gently squeeze another drop of blood or puncture a new site.
Page 39: Lancing And Sampling From An Alternate Site
Lancing and Sampling From an Alternate Site Sampling from your forearm or palm allows you to use your fingertips less often. You may find that obtaining a blood sample from an alternate site is less painful than using a fingertip. Getting a blood sample from your forearm or palm is different than getting a sample from your fingertips.
Page 40 OneTouch UltraClear ® ® is used for forearm and palm sampling only. Replace the blue OneTouch UltraSoft ® ® Cap with the OneTouch ® UltraClear Cap. ® Blue cap for fingertip sampling only STEP 1 Remove the OneTouch ® UltraSoft Cap by Twisting it Off.
Page 41 STEP 3 Twist On the OneTouch ® UltraClear Cap Until it is Snug. ® STEP 4 Adjust the Depth Setting. You may have to adjust the Sampler to a deeper setting to get a large enough drop of blood from your forearm or palm. Twist the depth adjustment knob toward the larger dots to increase the depth.
Page 42 Puncture Your Forearm or Palm. Press and hold the Sampler against your forearm or palm for a few seconds, then press the release button. Keep holding the Sampler and OneTouch UltraClear Cap against your ® ® skin until a round drop of blood forms under the cap.
Page 43: Step-By-Step Test Procedure
Push it all the way in until it will go no further. The meter will turn on automatically. “OneTouch UltraSmart” Insert This End will appear briefly on the display. Then the code number will appear. Be sure the meter and test strip codes match.
Page 44 STEP 2 Select Test Mode. Note: There are three choices in test mode. For blood testing, use the Arrow button to select: • “Apply Blood” for fingertip blood sample • “Alternate Site” for forearm and palm blood samples Do Not use Control Solution mode when testing blood. • “Control Solution” is for checking the system “Apply Blood”...
Page 45 STEP 3 Prepare to Apply Sample. The drop of blood should be next to the top edge of the test strip. Blood should not be applied to the flat surface of the test strip. When applying a drop of blood from your forearm or palm, keep your forearm or palm steady and bring the top edge of the test strip to the drop of blood with your other hand.
Page 46 STEP 4 Apply Sample. Obtain a round drop of blood using the Sampler. The blood sample must be at least 1µL in volume ( actual size) to fill the confirmation window. Touch and hold the drop of blood to the narrow channel in the top edge of the test strip. • Do Not apply sample to the front or back of the test strip. • Do Not push your finger against the test strip. •...
Page 47 If the confirmation window does not fill completely before the meter begins to count down, Do Not add more blood to the test strip; discard the test strip and retest. If you have trouble filling the test strip, call the OneTouch Customer Care Line at ® Sample Good 1 800 663-5521 for assistance.
Page 48 WARNING: If mmol/L does not appear with the test result, call the OneTouch Customer Care Line at 1 800 663-5521. ® CAUTION: If you test at the low end of the operating range (6°C/43°F) and your glucose is high (over 10.0 mmol/L), the reading on your meter may be lower than your actual glucose. In this situation, repeat the test in a warmer environment with a new test strip as soon as possible.
Page 49: Discarding Used Test Strips And Lancets
Be sure to follow your local regulations for proper disposal. STEP 1 Remove the OneTouch ® UltraSoft Cap from the Sampler. ® Twist the OneTouch UltraSoft ® ® counterclockwise. (Optional: Replace the protective disk on the used lancet by placing it on a hard surface and pushing the lancet tip into the disk.) STEP 2 Eject the Lancet.
Page 50: Special Messages
Special Messages The OneTouch UltraSmart Meter displays ® ® results between 1.1 mmol/L and 33.3 mmol/L. If your test result is lower than 1.1 mmol/L, “LOW GLUCOSE” will appear on the WARNING meter display. This may mean severe hypoglycemia (low blood glucose) that requires immediate treatment according to your healthcare professional’s Below 1.1 mmol/L recommendations. Although this message...
Page 51 When your blood glucose test result is outside the before meal-range of 4.0-7.0 mmol/L or after-meal range of 5.0-11.0 mmol/L, or the personal glucose range you set in Custom Meter Set-up Sequence, the meter will prompt you to (Example) add a comment. When your blood glucose test result is in the range of 13.3 mmol/L to 33.3 mmol/L, “Check Ketones”...
Page 52: Comparing Meter And Laboratory Results
® ® should agree with a laboratory measurement within ±20% most of the time under normal conditions. A result within that range is considered accurate when testing with the OneTouch ® UltraSmart Meter. However, results can differ by more than ®...
Page 53 While at the lab: • Make sure that the meter test and the lab test are performed within 15 minutes of each other. • Wash your hands before obtaining a blood sample. • Use only fresh capillary blood. You may still have a variation between the results because blood glucose levels can change significantly over short periods, especially if you have recently eaten, exercised, taken medication, or experienced stress.
Page 54: Caring For Your System
Please handle it with care. Do Not use alcohol or any other solvent to clean your meter. Cleaning the OneTouch UltraSoft Adjustable ® ® Blood Sampler Clean the Sampler and OneTouch UltraSoft ® ® OneTouch UltraClear Caps with soap and water. ® ®...
Page 55: Batteries
Batteries Your OneTouch UltraSmart Meter comes with two ® ® AAA alkaline batteries already installed. The batteries will provide you with enough power to perform up to 540 tests, depending on backlight use. When replacing the batteries, use only two AAA alkaline batteries.
Page 56 To replace the batteries, first turn off the meter. Turn the meter over and locate the battery compartment. 1. Open the battery compartment by pressing the tab to the left and lifting the battery compartment cover to remove it. 2. Remove the old batteries by pulling the black ribbon upward.
Page 57 Note: • Replacing the batteries does not affect the electronic logbook. However, the date and time settings may need to be updated. • The first time you turn on the meter after replacing the batteries, the meter will go into the Set-up mode (see pages 58–61). At this time, you may update the date and time settings.
Page 58: Display Messages
WHAT IT MEANS ACTION Initial display that If, at any time during appears whenever the life of the meter, the meter is turned these graphics UltraSmart on. It indicates appear to be that the system different, call has performed the OneTouch ®...
Page 59 MESSAGE WHAT IT MEANS ACTION This is the code Make sure that Code number stored in this code number the meter. matches the code number on the vial of the test strips Check Code you are using. (Example) CAUTION: Matching the code on the meter and the code on the test strip vial is essential to obtain accurate results.
Page 60 MESSAGE WHAT IT MEANS ACTION You may now apply The system is ready Apply Blood the fingertip blood to accept a blood sample. sample from the fingertip. You may now apply The system is ready Alternate Site the forearm or palm to accept a blood blood sample.
Page 61 A test result in None required. mmol/L. (Example) WARNING: If mmol/L does not appear with the test result, call the OneTouch Customer Care Line at 1 800 663-5521. ® A test result outside If you wish to add of your target range a comment, press with a message...
Page 62 MESSAGE WHAT IT MEANS ACTION A blood glucose test Follow the result in the range instructions of of 13.3 mmol/L to your healthcare 33.3 mmol/L with a professional suggestion to check regarding ketone your ketone levels. testing. (Example) When your blood Follow the glucose result is from instructions of 1.1 mmol/L through...
Page 63: Warnings And Error Messages
Improper use may cause an inaccurate result without producing a warning or an error message. In the event of a problem, refer to the information under ACTION. Assistance is available from the OneTouch ®...
Page 64 If you continue to get an Error 1 message, Do Not use the meter. Call the OneTouch ® Customer Care Line at 1 800 663-5521 for a replacement meter. Error message that Repeat the test...
Page 65 MESSAGE WHAT IT MEANS ACTION Repeat the test Error message that WARNING with a new test indicates that the Error 3 strip. Apply the blood or control Meter not ready blood or control solution sample Please repeat test solution sample was applied before See Owner's Booklet only after “Apply “Apply Blood”,...
Page 66 3) If the error 3) There may be a message appears problem with the test again, call strip. For example, the OneTouch it may have been ® Customer Care Line damaged or moved at 1 800 663-5521. during testing.
Page 67 MESSAGE ACTION WHAT IT MEANS Test results will The battery sign appears WARNING still be accurate, on the display. The Low Batteries ! but replace the power of the batteries is batteries as soon getting low. The backlight You should replace as possible. the batteries soon will be disabled when the See Owner’s Booklet...
Page 68: Problems And Possible Causes
Test strip inserted incorrectly. Insert the test strip correctly (For example, upside down, with the contact bars end first backward, or incompletely.) and facing up. Push it in until it will go no further. Call the OneTouch Customer Defective meter or test strip. ® Care Line at 1 800 663-5521.
Page 69 Sample applied after automatic Repeat the test with a new test shutoff (three minutes after strip; apply sample only after inserting a test strip). “Apply Blood”, “Alternate Site”, or “Control Solution” appears on the display. Defective meter. Call the OneTouch Customer ® Care Line at 1 800 663-5521.
Page 70: Meter Set-Up
• You do not need to change any of the meter settings in order to begin testing. Simply insert a test strip to turn on the meter and proceed with the test (see pages 19–39). The OneTouch UltraSmart Meter was pre-set at the factory with ®...
Page 71: Selecting Display Language
This message will appear briefly. The language menu will follow immediately. The meter is now in Set-up mode. The UltraSmart SmartButtons cannot be used while you ® are in Set-up mode. (You may still test at any time simply by inserting a test strip.) Selecting Display Language...
Page 72: Setting Date And Time
Setting Date and Time After the language has been set, the meter will display the factory-set time and date. If the date and/or time are incorrect, follow these steps in Set-up mode (see page 58, Entering Basic Set-up Mode). You can ONLY change “am” and “pm” when you pass 12:00. If you use the 12-hour format, make sure “am”...
Page 73 Then select the correct year and press the OK button . Repeat these steps to select the month and day. Note: It is important to select the correct date and time or your logbook may not show the most recent result first. The meter will ask you if you wish to customize it.
Page 74: Custom Meter Set-Up Sequence
CUSTOM METER SET-UP SEQUENCE The OneTouch UltraSmart Meter has a number of ® ® optional features that you may use to track all your diabetes information. The Set-up Menu allows you to customize the meter with your personal diabetes management plan including the type and amount of medication you take, your target glucose range, your usual meal times, and much more information.
Page 75 You should have your OneTouch ® UltraSmart Owner’s Booklet available ® to refer to while customizing the meter. “Set-up Menu” will appear on the display with a list of options. “Settings” will be highlighted.
Page 76 Begin of Week Sunday Monday Cholesterol Units mmol/L mg/dL Beep Diabetes Pill Set-Up: Pill A Pill A to E Pill B or Customize with OneTouch Diabetes ® Management Software Insulin Set-Up: InsulinA Rapid, Regular, InsulinB Lente, NPH, Ultralen (Ultralente), Premixed, Other,...
Page 77 Meter Settings (continued) OPTION FACTORY SETTINGS CUSTOM SETTINGS Insulin Pump: Advanced Features: Averages 14 days 7, 30, 60, 90 days Schedule Pre-set (see pages Personal 74–75) Glucose Range Before Meal 4.0–7.0 mmol/L Personal After Meal – Personal 11.0 mmol/L Hypo Level 3.9 mmol/L Personal...
Page 78: Settings
Settings “Settings” include: • Time format • Date format • Beginning of the week • Cholesterol unit of measure • Beep on or off To change any of these settings, press the OK button with “Settings” highlighted on the Set-up Menu. Each setting has a pop-up menu of available choices.
Page 79 For record-keeping purposes you may begin your week on Sunday or Monday. Use the Arrow button to highlight your choice and press the OK button The cholesterol unit of measure may be either mmol/L (used in Canada and many other countries) or mg/dL (used in the U.S.
Page 80: Diabetes Pill Set-Up
The names of the medications may be chosen from a menu (Pills A through E) or the brand or generic names entered using a personal computer and OneTouch Diabetes Management ® Software. If you do not customize your pill names, the factory settings of Pill A and Pill B will appear on your pill entry display.
Page 81 Use Pills A–E to label up to five pills. For example, if you take glipizide pills you could label them as “Pill A” . You can enter the actual pill names using OneTouch Diabetes Management ® Software. Using the Arrow button...
Page 82: Insulin Set-Up
Insulin types may be chosen from a menu of ten choices. Eleven other insulin types (up to eight characters in length) may be entered using a personal computer loaded with OneTouch Diabetes ® Management Software. If you do not customize your insulin names, the factory settings of InsulinA and InsulinB will appear on your medication entry display.
Page 83 To enter your first insulin type, review the menu choices: Rapid Premixed Regular Other Lente InsulinA InsulinB Ultralen (Ultralente) InsulinC Use the Arrow button to scroll through the menu. Press the OK button on your selection. Repeat these steps until all of your insulin types have been selected.
Page 84: Insulin Pump Set-Up
Insulin Pump Set-up If you are using an insulin pump, the OneTouch UltraSmart Meter allows you to store ® ® current information about your pump. The factory setting will be set as if you do not use a pump. Select “Insulin Pump” on the Set-up Menu and press the OK button Select “Yes”...
Page 85 CUSTOM SETTINGS ADVANCED FEATURES FACTORY SETTINGS Averages 14 days 7, 30, 60, 90 days Schedule Pre-set Personal (see pages 74–75) Glucose Range 4.0–7.0 mmol/L Personal Before Meal After Meal 5.0–11.0 mmol/L Personal Hypo Level 3.9 mmol/L Personal Select “Advanced Features” as follows: Select “Advanced Features” and press the OK button The first advanced feature is averages.
Page 86 Next, the meter will prompt you to select time periods for your usual meal schedule. When you set this feature all of your test results will be tagged with the mealtime. To view a pre-set meal schedule select “Pre-set” and press the OK button The pre-set schedule will appear on the display.
Page 87 You will only be able to set beginning or start times for each mealtime. End times will change to match the start time of the next time period. For example, if your lunch is usually at 12:00 noon, “Bef Lunch” could be 10:00am to 12:00pm. After changing the times, press the OK button to save your personal...
Page 88 Next, the meter will prompt you to set a before-meal blood glucose range. The meter is pre-set to 4.0–7.0 mmol/L. To use this range, press the OK button twice. You may change this range to one recommended by your healthcare professional. To change the lower and upper ends of the range in 0.1–mmol/L steps, scroll to the correct numbers and press the OK button...
Page 89: Your Electronic Logbook
YOUR ELECTRONIC LOGBOOK The OneTouch UltraSmart electronic logbook is ® ® the meter memory. It stores over 3,000 records. The SmartButtons allow you to enter information about ® your diabetes management plan, including exercise, health, medication, and food. Comments Information that you store in your electronic logbook along with a test result is called a “comment.”...
Page 90: Rules For Adding Comments
Rules for Adding Comments Following are rules for adding comments in your logbook. • If you wish to add a comment to a test result, press the OK button while viewing the test result. • Use the Arrow button to scroll up and down through the various menus and choices.
Page 91 The meter will automatically prompt you to add a comment when you have a test result outside of your glucose target range. You can, however, add a comment to a test result whether or not “Comment? Press OK” appears. In this example, we will comment on a test result with food, exercise, and health information.
Page 92 Once you select your mealtime, “Health” is automatically highlighted. If you are through commenting, scroll to “Save” and press the OK button . If you do not press the OK button , your entries will not be saved. HEALTH COMMENTS You can comment on the result with notes about your overall health at the time of the test.
Page 93 When you have completed making comments, scroll to “Save” and press the OK button . If you do not press the OK button , your entries will not be saved. EXERCISE COMMENTS You can comment on a test result as occurring before, during, or after exercise. After you add the exercise comment, “Save” will automatically be highlighted. If you press the OK button , all of the comments you have entered will appear...
Page 94: Logbook Entries
Logbook Entries “Logbook entries” are activities concerning exercise, health, medication, and food that are not associated with a test. You do not have to perform a blood glucose test in order to add valuable diabetes information to your electronic logbook. Using the SmartButtons ® The SmartButtons allow you to enter information ® about your diabetes management plan. There are SmartButtons for exercise, health, medication, and ®...
Page 95 Following is a list of logbook entries you can make. LOGBOOK ENTRIES SmartButton ® Exercise Mild Duration (enter Moderate length of time) Hard Health Health Notes: Stress Menses Feel Hypo (menstruation) Illness Vacation Other Health Checks: Ketones Eye Exam HbA1c Foot Exam Microalbumin Weight/Height Cholesterol Dr.
Page 96: Rules For Logbook Entries
Rules for Logbook Entries • If you wish to add a logbook entry, press a SmartButton to turn on the meter. The icon ® for the category you are choosing will appear in the upper-left-hand corner of the display and the title of the category will appear at the top of the display.
Page 97: Entering The Date And Time
Entering the Date and Time If the logbook entry is for the current date and time, press the OK button If the entry is for a previous date and time, select “Other Time” and press the OK button A calendar will appear on the display. Scroll to the correct month and day and press the OK button Record the time in hours and minutes...
Page 98: Exercise Logbook Entries
EXERCISE LOGBOOK ENTRIES With the meter turned off, press the Exercise SmartButton. These choices will ® appear on the display. Select the current date and time to add an exercise logbook entry at this time. Select “Other Time” if the logbook entry is for some time in the past and press the OK button Note: Check that the date and time are correct for your entry.
Page 99: Health Logbook Entries
The exercise logbook entry you recorded will be saved this way in your electronic logbook. You may also scroll through the logbook to view previous entries. Press the OK button while you are in the logbook to edit or delete the highlighted entry (see pages 105–107).
Page 100 The logbook entry with your Health Note will be saved this way in the electronic logbook. “Health Checks” are another type of health logbook entry that you can record. Health Checks include home and laboratory tests as well as doctors’ examinations.
Page 101: Ketones
Many Health Checks allow you to input numeric values. In order to adjust the number, use the Arrow button to scroll up and down. Press the OK button to save your selection and return to the Health Checks menu. Following are sample entries possible under “Health Checks”.
Page 102 You will return to the Health Checks menu with “Exit Health Checks” highlighted. If you are finished with your entries, press the OK button with “Exit Health Checks” highlighted. If you wish to enter other Health Checks, use the Arrow button to scroll to the additional menu choice and press the OK button Your entry will be saved this way in the...
Page 103: Hba1C
HbA1c Tests for hemoglobin A1c, also known as HbA1c or A1c, can be recorded from 4% to 15% in 0.1% steps. When entering data, the value will start at the value you last saved. Scroll to your selection and press the OK button Microalbumin You can enter your test results for microalbumin as “Normal”, “Positive”, a...
Page 104: Cholesterol
Cholesterol You may enter cholesterol test results in 0.1-mmol/L steps for: • Total (up to > 25.9 mmol/L) • LDL (up to > 13.0 mmol/L) • HDL (up to > 13.0 mmol/L) • Triglycerides (Trig) (up to >33.9 mmol/L) To advance to the next cholesterol entry, press the OK button .
Page 105: Eye Exam
Eye Exam To record an eye examination, select “Enter Eye Exam” and press the OK button Foot Exam To record a foot examination, select “Enter Foot Exam” and press the OK button...
Page 106: Weight/Height
Weight/Height Enter your weight in 0.5-pound steps and your height in 0.5-inch steps. When entering data, the value will start at the value you last saved. Doctor Visit To record the date of your last visit to the doctor, select “Enter Dr. Visit”.
Page 107: Medication Logbook Entries
MEDICATION LOGBOOK ENTRIES Press the Medication SmartButton ® access the menu. You may track your diabetes pills, insulin types and dosages, and insulin pump information. Select the current date and time or “Other Time” (see page 85). If you entered “ 0 ” pills, “ 0 ” insulin, and “No”...
Page 108 Diabetes Pills To enter your diabetes pills, select the pill you have taken and press the OK button Enter the number of pills you have taken (in 0.5 or one-half pill steps) and press the OK button . When entering data, the value will start at the value you last saved.
Page 109 Insulin Dosages Enter an insulin dosage by highlighting an insulin type and press the OK button Then record the units of insulin. The meter was set at the factory to record units in 0.1 increments. When entering data, the value will start at the value you last saved.
Page 110 Insulin Pump You can enter insulin pump information as bolus entries or as a daily total. If you are entering bolus information, select “Pump Bolus” and press the OK button Then enter the units in 0.1 steps and press the OK button .
Page 111 If you have completed your medication logbook entry, select “Exit Meds Entry”. The dosage will be saved this way in your electronic logbook. To enter your pump total for the day, scroll to “Pump Daily Total” and press the OK button...
Page 112 Use the Arrow button to scroll to the number of units you have taken over the past 24 hours and press the OK button When entering data, the value will start at the value you last saved. When you have completed your medication logbook entries, select “Exit Meds Entry”.
Page 113: Food Logbook Entries
FOOD LOGBOOK ENTRIES Food and blood glucose levels are closely linked. Logbook entries allow you to keep track of important nutritional information for each meal or snack by type of nutrient. Press the Food SmartButton ® select either the current date and time or “Other Time”.
Page 114 You may enter carbohydrates (carbs), fats, and proteins in the range of 0 to 250 in 1-unit steps. Carbohydrates may be entered as units or grams, whichever you prefer. Calories may be entered in 5-unit steps in the range of 0 to 2550. Use the Arrow button to change the units for each item.
Page 115: Adding, Changing, Or Deleting Logbook Information
Adding, Changing, or Deleting Logbook Information Step 1. Press the FastFacts SmartButton ® ® to enter the FastFacts menu. ® Step 2. Select “Logbook” from the FastFacts menu and press the OK ® button . The most recent entry in your electronic logbook will appear on the display.
Page 116 To change the mealtime, select “Food” and press the OK button Scroll to the desired mealtime and press the OK button again. You may edit other comments at this time. To delete a comment, scroll to “- - -” and press the OK button .
Page 117 Your edited comment will appear this way in your electronic logbook. EDITING OR DELETING ELECTRONIC LOGBOOK ENTRY (Example) All electronic logbook entries are edited or deleted in the same way. Use the Arrow button to highlight the electronic logbook entry you wish to change and press the OK button Press the OK button to edit.
Page 118 Make sure the icon, date and time, and description are correct. (If you make an error, press the Back button to return to the menu.) Press the OK button on the selected mealtime. If you wish to change the entry to another mealtime, scroll to the mealtime and press the OK button To keep the entry as it is, press the...
Page 119 The edited entry will appear this way in your electronic logbook. To delete an entry, highlight the entry and press the OK button Use the Arrow button to select “Delete” and press the OK button Your entry will be deleted from the electronic logbook.
Page 120: Onetouch Ultrasmart Fastfacts Feature
OneTouch UltraSmart FastFacts ® ® ® FEATURE FastFacts Menu ® Enter FastFacts by pressing the ® FastFacts SmartButton. This will ® ® put you in the meter memory. The FastFacts feature allows you to view ® charts and graphs of your test results and other logbook information you have entered.
Page 121: Fastfacts ® Menu
FastFacts Menu ® Logbook Glucose test results with comments and logbook ■ (Meter Memory) entries by date and time Glucose by Meals Glucose test results by date before and after meals ■ Glucose Analysis Graph of All Results. Interactive graph of all ■...
Page 122: Logbook Memory
LOGBOOK MEMORY To review the details of each glucose test, comments, and logbook entries, select “Logbook”. The logbook is the meter memory. You may review all entries in your electronic logbook, by date and time, by . In addition to reviewing pressing the Arrow button records, you may also edit the records (see pages 103-107).
Page 123: Glucose Analysis
GLUCOSE ANALYSIS When you select “Glucose Analysis” on the FastFacts ® menu, an additional menu of choices appears. Use the Arrow button to move to the desired menu and press the OK button Interactive Graph of All Results The interactive graph displays three days of test results at a time with the most recent test result flashing.
Page 124: Graph By Time Of Day
You may scroll backward or forward in time using the Arrow button to move from one point to another. Individual test results will flash as you scroll. To view the details of a test, press the OK button while that test result is flashing. Press the Back button to return to the graph.
Page 125: Average Of All Results
Results by time period are shown day by day, one week at a time. Each time you reach the end of the graph, it will move by one day. Weekends are noted by a bold bar above the dates. Average of All Results FF32 Test result averages are available for the last 7, 14, 30, 60, and 90 days.
Page 126: Average By Time Of Day
Average by Time of Day Test averages by time of day are available for the last 7, 14, 30, 60, and 90 days. The number of tests that make up each average is shown on the left in parentheses. Average by Exercise Test result averages before, during, and after exercise are available for the last 7, 14, 30, 60, and 90 days.
Page 127: Glucose Range Info
Glucose Range Info If you entered your before- and after-meal glucose ranges in the Set-up mode, you may review the percentage of your test results that are above, below, and within your target ranges. The number of tests that make up each percentage is shown on the left in parentheses.
Page 128: Insulin Intake
INSULIN INTAKE Choose “Insulin Intake” from the FastFacts Menu. ® The individual insulins, in this example Regular and NPH, are based on insulins selected in the Set-up mode (see pages 70–71). Use the Arrow button to move to your selection and press the OK button Choose the number of days you would like to review in your average by using the Arrow button...
Page 129 Syringe Totals To view the total of all individual insulins taken by syringe or insulin pen that you have previously stored in the logbook, select “Syringe Totals” and press the OK button You may view the daily average of your insulin intake over the last 7, 14, 30, 60, and 90 days (example 14 days).
Page 130 To view your total syringe insulin intake for each day, scroll to “Daily Totals” and press the OK button If you did not record a syringe insulin intake for a particular day, “- - -” will appear in both columns. Insulin Pump Select “Pump”...
Page 131 “Bolus” will display your average bolus intake for each mealtime (Breakfast, Lunch, Dinner, Night) based on your schedule (see pages 73–76). This example shows the average bolus intake in units by time. The number of logbook entries appears in parentheses. “Daily Average”...
Page 132: Hypoglycemia Information
Insulin Intake Pump Daily Totals “Pump Daily Totals” gives the pump totals you have entered for each day. If you did not enter a pump total for a day, “- - -” will appear. HYPOGLYCEMIA INFORMATION If you select “Hypo Info” from the FastFacts menu, ®...
Page 133: Food Averages
FOOD AVERAGES Select “Food Averages” to view average daily intake of carbohydrates, fats, calories, and proteins over the last 7, 14, 30, 60, and 90 days. The number of tests that make up each average is shown on the left in parentheses. HEALTH CHECKS To view results and dates of various check-ups, select “Health Checks”.
Page 134: Data Downloading
OneTouch Interface Cable. OneTouch Diabetes ® ® Manage ment Software and a OneTouch Interface ® Cable are not included with your OneTouch ® UltraSmart System. For order information and to ® learn more about OneTouch Diabetes Management ® Software, visit www.OneTouch.ca or call the OneTouch Customer Care Line at 1 800 663-5521.
Page 135 STEP 1 Install OneTouch Diabetes ® Management Software. Install OneTouch Diabetes Management ® Software on your computer following the instructions provided in the OneTouch ® Diabetes Management Software User Manual. STEP 2 Connect the OneTouch ® Interface Cable. Connect the OneTouch Interface Cable ®...
Page 136 STEP 3 Transfer Data. Follow the instructions in the OneTouch ® Diabetes Management Software User Manual to initiate the data transfer command. “PC” will appear on the display once the first command is received, indicating that the meter is in the communication mode.
Page 137: Specifications
SPECIFICATIONS Result Range: 1.1 to 33.3 mmol/L Calibration: Plasma-equivalent Sample: Fresh capillary whole blood Sample Size: Minimum 1 microlitre (µL) Test Time: 5 seconds Assay Method: Glucose oxidase biosensor Power Source: Two AAA alkaline batteries Battery Life: About six months at three tests per day (one test using backlight) Glucose Units:...
Page 138: Product Safety Information
PRODUCT SAFETY INFORMATION The OneTouch UltraSmart System complies with ® ® the following standards: CAN/CSA (Canadian Standards Association) CAN/CSA 22.2 No. 601.1-94; CAN/CSA 22.2 No. 601.1.2-94 • Internally powered equipment. Battery operated with two 1.5 volt AAA alkaline batteries. • This unit is not suitable for use in the presence of flammable anesthetic mixture with air, oxygen or nitrous oxide.
Page 139: Explanation Of Symbols On The Meter
This indicates electrical safety certification by the Canadian Standards Association (CSA) in accordance with UL 60601-1, CAN/CSA 22.2 No. 601.1-94 and CAN/CSA 22.2 No. 601.1.2-94. GUARANTEE The makers guarantee that the OneTouch UltraSmart ® ® Meter shall be free of defects in materials and workmanship for a period of three years.
Page 140: Index
INDEX Advanced Features ......72–76 Alternate Site Testing ..15, 21–23, 27–30, 32 Arrow Button .
Page 141 Control Solution, Before you begin ....13 Control Solution, Checking the System with ..12 Control Solution, OneTouch Ultra ..1, 12-18 ®...
Page 142 Exercise SmartButton ..4–5, 77, 82–83, 86 ® FastFacts ......108–122 ®...
Page 143 Intended Use ....... . . iv Interface Cable, OneTouch ....122–124 ®...
Page 144 Test Strips ....1, 7–8 ® ® OneTouch UltraSmart Meter ....1–3 ® ®...
Page 145 Product Safety Information ....126 Quick Reference Guide ......1 Reduce Chance of Infection .
Page 148 OneTouch Customer Care Line: ® Canada 1 800 663-5521 1 800 227-8862 U.S.A. Monday-Friday 9am-8pm Eastern Time 6am-5pm Pacific Time www.OneTouch.ca Distributed by: LifeScan Canada Ltd. Burnaby, B.C. V5C 6C6 Manufactured by: LifeScan Europe Division of Cilag GmbH International 6300 Zug, Switzerland © 2006 LifeScan, Inc.

OneTouch UltraSmart Owner's Booklet

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OneTouch UltraSmart

Summary of Contents for OneTouch UltraSmart

Table of Contents
