Richardson Electronics VA 1212 Manual

Tft-lcd-monitor with vga & dvi 12” – 15” – 17” – 19”
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VA 1212 - VA 1503 - VA 1704 - VA 1904
TFT-LCD-Monitor with VGA & DVI
12" – 15" – 17" – 19"
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VA 1212 and is the answer not in the manual?

Questions and answers

Related Manuals for Richardson Electronics VA 1212

Summary of Contents for Richardson Electronics VA 1212

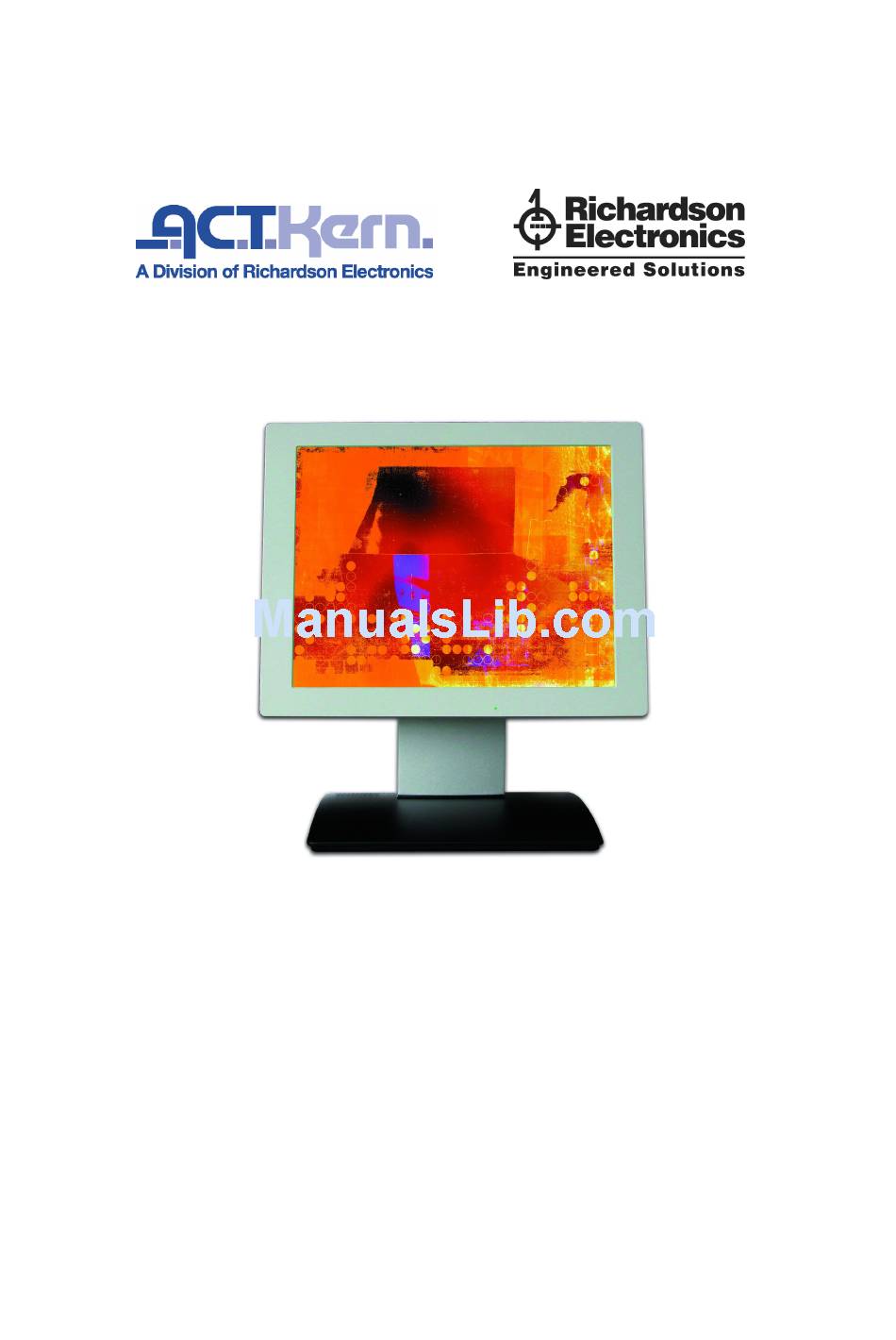

  • Page 1 VA 1212 - VA 1503 - VA 1704 - VA 1904 TFT-LCD-Monitor with VGA & DVI 12” – 15” – 17” – 19” MANUAL...

  • Page 2: Table Of Contents

    ENGLISH CONTENTS A. FCC Statement……………………………………….….. Page 2 B. Important Safeguards………………………….………. Page 2 1. Installing the Monitor……………...………….……..…. Page 3 2. Control Functions……..…………...…………………..Page 4 Function Selection……………………………………..Page 4 Function Adjustment……..………………………….…… Page 4 3. Controller Features…………………………….……….. Page 7 4. Display Modes Memory……...…………………..…….. Page 7 5.

  • Page 3: Fcc Statement

    ENGLISH A. Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 4: Installing The Monitor

    ENGLISH 12. For added protection for this monitor, when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the monitor due to power-line surges. 13. DO NOT overload wall outlets and extension cords as this can result into fire or electric shock. 14.

  • Page 5: Control Functions

    ENGLISH 2. Control Functions The monitor digital control functions are located on the front panel. They are shown in the figure below and described in the following paragraphs. 1. Indicator LED 2. Power Switch 3. Function Keys Function Selection ▲ ▼...
  • Page 6 ENGLISH 3. Audio Volume - Adjust the volume of speakers. Exit - Exit the Audio OSD menu. 4. Color Color Temperature User - Adjust the R.G.B. gain level. 6500K - Select color temperature to 6500° K. 9300K - Select color temperature to 9300° K. Exit - Close the Color Temperature OSD menu.
  • Page 7 ENGLISH V. Position - Adjust the vertical position of the image. Exit - Close the Image OSD menu. 6. Language - Sets the language of the OSD windows. 7. Tools OSD Control OSD Timer - Setting the OSD menu display time. OSD H.

  • Page 8: Controller Features

    ENGLISH 3. Controller Features The controller automatically detects the graphics card installed in your system. When you turn on the monitor, the controller first checks the display mode memory stored in the user setting area of the graphics card, and then the factory presetting area. It then adjusts to the proper display mode. 4.

  • Page 9: Signal Connector Pin-Outs

    ENGLISH 5. Signal Connector Pin-outs To connect VGA, 8514A or IBM-compatible graphics adapters, use a 15 pin mini D-type male connector. 15-pin Mini D-type Male Connector Pin Assignment 1 Red Video Red Ground 11 Ground 2 Green Video Green Ground 12 Serial Data/I/O 3 Blue Video Blue Ground...

  • Page 10: Product Specifications

    ENGLISH 7a. Specifications: 12inch Model 1212 LCD Panel Size 12” Maximum viewable size 12 inch(30.5cm) Video Input Analog:15-pin, D-sub connector Digital:DVI connector Display area 246mmx184mm Power supply (Universal) Input voltage 12V DC/2.5A Consumption 30watts maximum External controls Power-switch, VGA, Brightness, Contrast, Volume, Color temperature (User,6500°K, 9300°...
  • Page 11 ENGLISH 7b. Specifications: 15inch Model 1503 LCD Panel Size 15” Maximum viewable size 15 inch(38.1cm) Video Input Analog:15-pin, D-sub connector Digital:DVI connector Display area 304mmx228mm Power supply (Universal) Input voltage 12V DC/2A Consumption 25watts maximum External controls Power-switch, VGA, Brightness, Contrast, Volume, Color temperature (User,6500°K, 9300°...
  • Page 12 ENGLISH 7c. Specifications: 17inch Model 1704 LCD Panel Size 17” Maximum viewable size 17 inch (43.2cm) Video Input Analog:15-pin, D-sub connector Digital:DVI connector Display area 338mmx270mm(H×V) Power supply (Universal) Input voltage 12V DC / 3 A Consumption 36watts maximum External controls Power-switch, VGA, Brightness, Contrast, Volume, Color temperature (User,6500°K, 9300°...

  • Page 13: Vendor

    Humidity Operating 20%-80% Storage 10%-90% *Specifications are subject to change without notice. C. Vendor Richardson Electronics GmbH Division A.C.T. Kern Raiffeisenstraße 5 D-78166 Donaueschingen Internet: www.actkern.info Tel.: +49 (0) 771 83 00 – 0 Fax.: +49 (0) 771 83 00 – 80...
