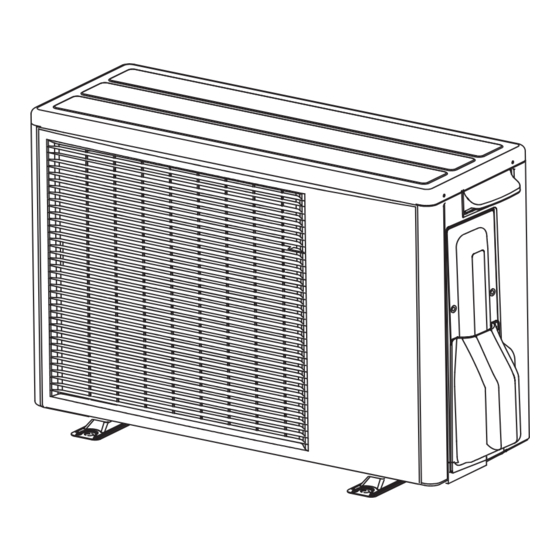

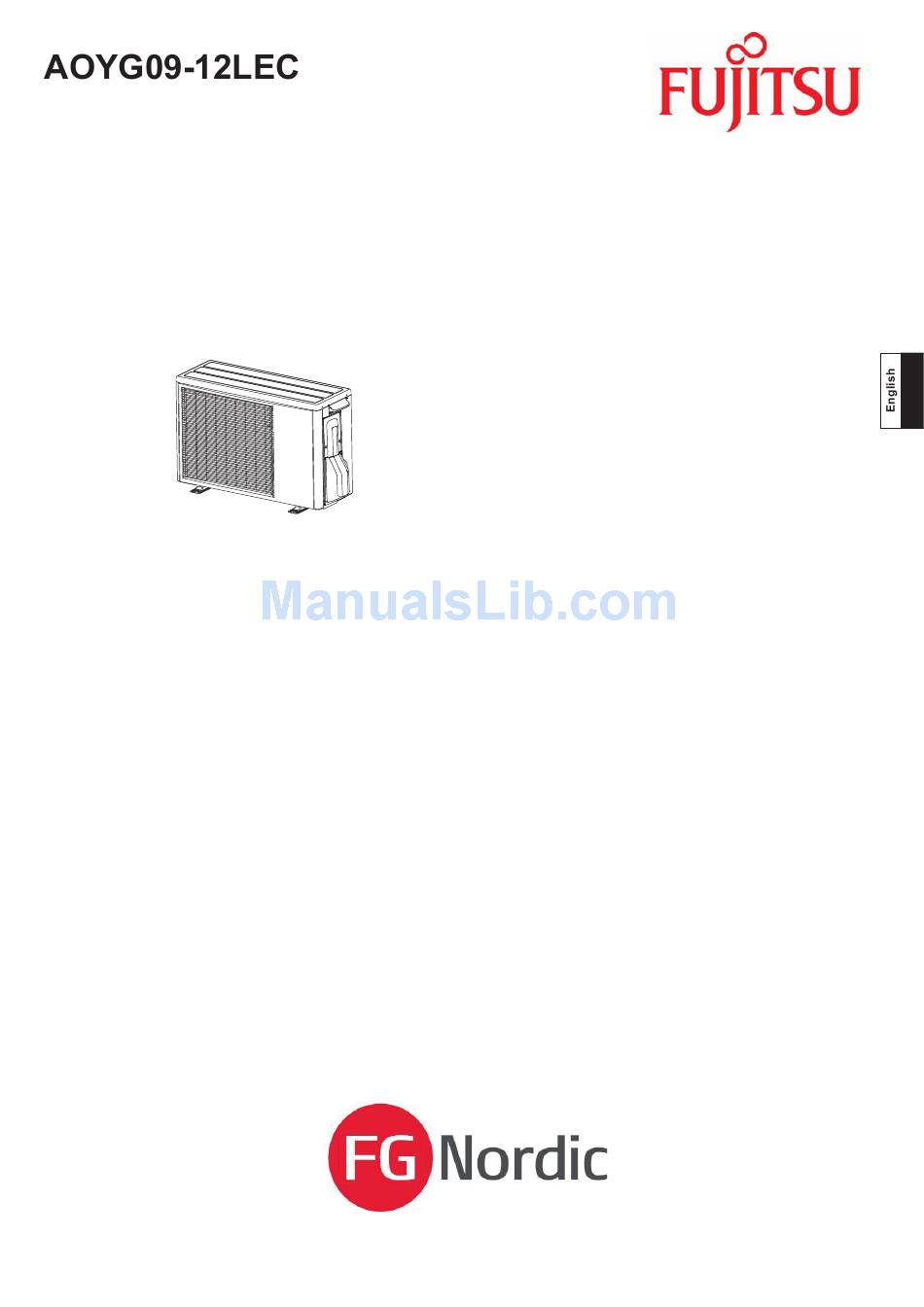

Page 1: Installation Manual
OUTDOOR UNIT INSTALLATION MANUAL INSTALLATION MANUAL For authorized service personnel only. PART NO. 9319205007... - Page 2 AIR CONDITIONER Be more careful that foreign matter (oil, water, etc.) does not enter the piping than with OUTDOOR UNIT refrigerant (R22) models. Also, when storing the piping ,securely seal the opening by pinching, taping, etc. When charging the refrigerant, take into account the slight change in the composition of INSTALLATION MANUAL the gas and liquid phases.
- Page 3 2.4. Electric requirement 4. INSTALLATION DIAGRAM • Electric wire size and fuse capacity: INDOOR UNIT MODEL 7,000 ~ 12,000 BTU class Power supply cord (mm Connection Cord Connection cord (mm 1.5 or 1 Conform to Type245 IEC57 Fuse capacity (A) [OUTDOOR UNIT] 10 cm or over •...
- Page 4 (2) Connect the outdoor unit and indoor unit pip- Check if [L] is ared uniformly and 5.2. Outdoor unit wiring is not cracked or scratched. ing. (3) After matching the center of the are surface (1) Remove the outdoor unit Switch cover A, B. and tightening the nut hand tight, tighten the (2) Remove the outdoor unit Cord clamp and Nylon clamp.
- Page 5 (If the stem of the 3-way valve is opened fully before the charge hose is disconnect- ed, it may be dif cult to disconnect the charge hose.) (10) Fully open the valve stems of the 2-way valve and 3-way valve using a hexagon wrench.
