Bematech LC8710 User Manual

Retail hardened computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LC8710 RETAIL HARDENED COMPUTER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC8710 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bematech LC8710

Summary of Contents for Bematech LC8710

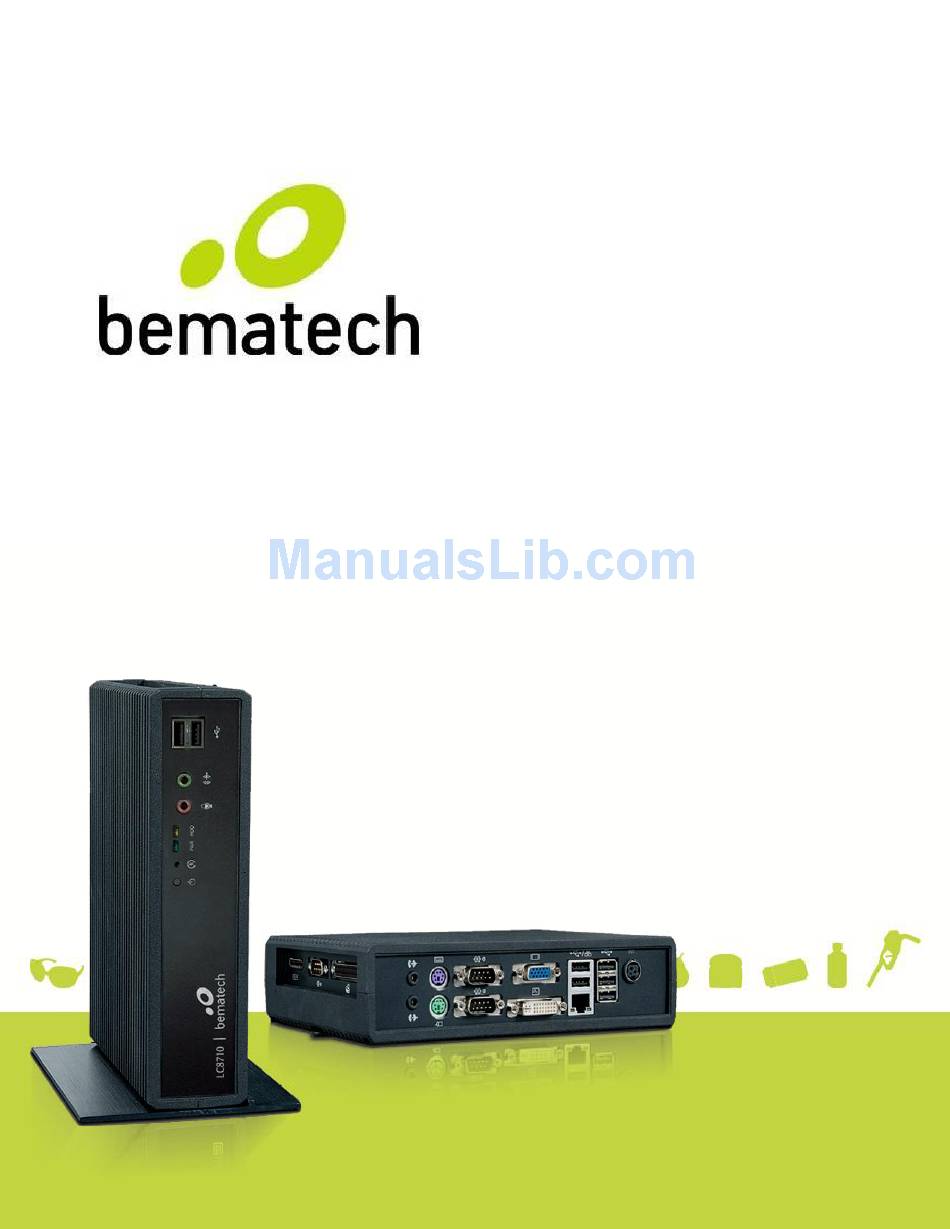

  • Page 1 LC8710 RETAIL HARDENED COMPUTER USER MANUAL...
  • Page 2 LC8710 User Manual V1.0 NOTICE The manufacturer of the Industrial Computer makes no representations or warranties, either expressed or implied, by or with respect to anything in this manual, and shall not be liable for any implied warranties of fitness for a particular purpose or for any indirect, special or consequential damages.

  • Page 3: Table Of Contents

    LC8710 User Manual V1.0 TABLE OF CONTENTS OVERVIEW ..............................1 CARE AND HANDLING ..........................2 PRODUCT FEATURES ..........................3 INSTALLATION INSTRUCTIONS ........................4 SAFETY TIPS ..............................4 COMPONENT PLACEMENT ..........................6 MOUNTING INSTRUCTIONS .......................... 6 TOOLS/MATERIALS REQUIRED ......................6 PARTS ..............................6 DEVICE LOCATION ..........................

  • Page 4: Overview

    In addition, all components and connectors reside on one PC board, thus no internal cables (sources of common loose connections) are required. The computer is housed in a rugged die cast case for extra protection. The LC8710 has a very compact form factor - only 2”H x 8”W x 6”L.

  • Page 5: Care And Handling

    Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not use thinner or benzene, abrasive cleaners or compressed air.  To clean the LC8710 unit cabinet, use a cloth lightly dampened with a mild detergent. Do not immerse unit in water. ...

  • Page 6: Product Features

    LC8710 User Manual V1.0 PRODUCT FEATURES Fanless and ventless operation Intel Baytrail-I E3825 1.33GHz dual core processor, 1MB L2 Cache Mass storage: SATA/mSATA SSD (no moving parts) or/and SATA hard disk drive Enclosed in rugged die cast case up to 4GB DDR3L SODIMM RAM...

  • Page 7: Installation Instructions

    LC8710 User Manual V1.0 INSTALLATION INSTRUCTIONS SAFETY TIPS Read these instructions carefully. Save these instructions for future reference.  Install this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer  Installation measures must be taken to prevent physical damage to the power supply...
  • Page 8 LC8710 User Manual V1.0  As a safety measure, it is advised the use of a voltage stabilizer or UPS between the equipment and the line socket.  This product should be operated from the type of power indicated on the power adaptor.

  • Page 9: Component Placement

    2. The beeps from the speakers can be heard. 3. The LED indicator on the front panel can be seen.  Place the LC8710 above grill/counter level, out of the way of possible spills.  Leave enough spaces around the unit for ventilation.

  • Page 10: Device Location

    LC8710 User Manual V1.0 Picture 1 3. DEVICE LOCATION The location of installation should meet the following conditions:  Have enough space for its operation and preventive and corrective maintenance.  Advisably, the floor should not be wooden, in order to avoid electrostatic shocks on the equipment.

  • Page 11: Electrical & Installation Requirements

    Wall anchors with specified weight capacity are available commercially. The power outlet socket is located near to the desired mounting location for the LC8710. MOUNTING THE DEVICE Mount the LC8710 vertically on with provided stand Allow at least 3 inches of space from the top of the unit and 6 inches from the sides to allow proper ventilation.
  • Page 12 LC8710 User Manual V1.0 Picture 2 1. Drill the mounting stand on the counter top. This step is OPTIONAL, only for those who want the unit to be vertically fixed on a horizontal surface. The stand is designed to provide stable balance to the unit.
  • Page 13 LC8710 User Manual V1.0 2. remove one mounting bracket from the LC8710 Picture 4 3. tighten the screws to mount the LC8710 on the vertical mounting stand Picture 5...
  • Page 14 LC8710 User Manual V1.0 Mount the LC8710 horizontally with the mounting brackets Allow at least 6 inches of space from the top of the unit and 3 inches from the sides to allow proper ventilation. See the picture below: Picture 6 1.
  • Page 15 LC8710 User Manual V1.0 Picture 8 2. mount the LC8710 on the counter top with screws Picture 9...
  • Page 16 Use concrete wall anchors (2 pieces - 1/16" x 3/8") if it is a concrete wall. The LC8710 is a fanless and ventless unit. Heat is dissipated through the metal case. So, allow at least 6 inches of space from the top of the unit and 3 inches from the sides for proper ventilation.
  • Page 17 Connect power cord to the power adapter and plug the power cord into AC power outlet. (The power adapter must be connected to the LC8710 f i r s t before it is connected to AC power outlet. Do not connect AC power before connecting to LC8710).

  • Page 18: Bios Setting

    LC8710 User Manual V1.0 BIOS SETTING Each time the LC8710 is powered on, it will run a self diagnostic and continue booting from storage media. BIOS settings are stored in a CMOS memory. To enter BIOS setup, as soon as you hear the system beep, just before LCI logo splash screen appears, quickly press the [Delete] key on the keyboard.
  • Page 19 LC8710 User Manual V1.0 Boot Device Priority Sequence To specify the boot sequence from available devices, enter the [Boot] menu. Then setup [Boot Option Priorities] to choose the priority desired for the booting process from the list of available boot devices.

  • Page 20: Troubleshooting

    AC outlet. 5. If the LC8710 is connected to a power supply but the power LED is off, press the power button to turn on the unit. If it does not turn on, try replacing the power supply.
  • Page 21 If the test passes, replace the serial device. If the test fails, go to step 5. 5. Attach a wrap plug to the RS232 port of the LC8710 and rerun the RS232 loop test. If the test passes, replace the RS232 cable. If the test fails, replace the LC8710.

  • Page 22: Specifications

    LC8710 User Manual V1.0 SPECIFICATIONS I/O PORTS SYSTEM Video 1920x1080 pixels max Intel Baytrail-I E3825 1.33GHz VGA, DVI-I and DisplayPort Dual Core processor with 1MB L2 Cache Network Interface 10/100/1000 Mbits Ethernet, Network boot capable System Memory Up to 4GB, DDR3L SODIMM x1...
