EYEsurv ESC-Z30 30X Optical Zoom Camera w/ auto
Focus - 3.0 - 90.0mm Zoom Lens
Wiring and Configuration Guide
Advertisement
Table of Contents
Related Manuals for EYEsurv ESC-Z30
Summary of Contents for EYEsurv ESC-Z30

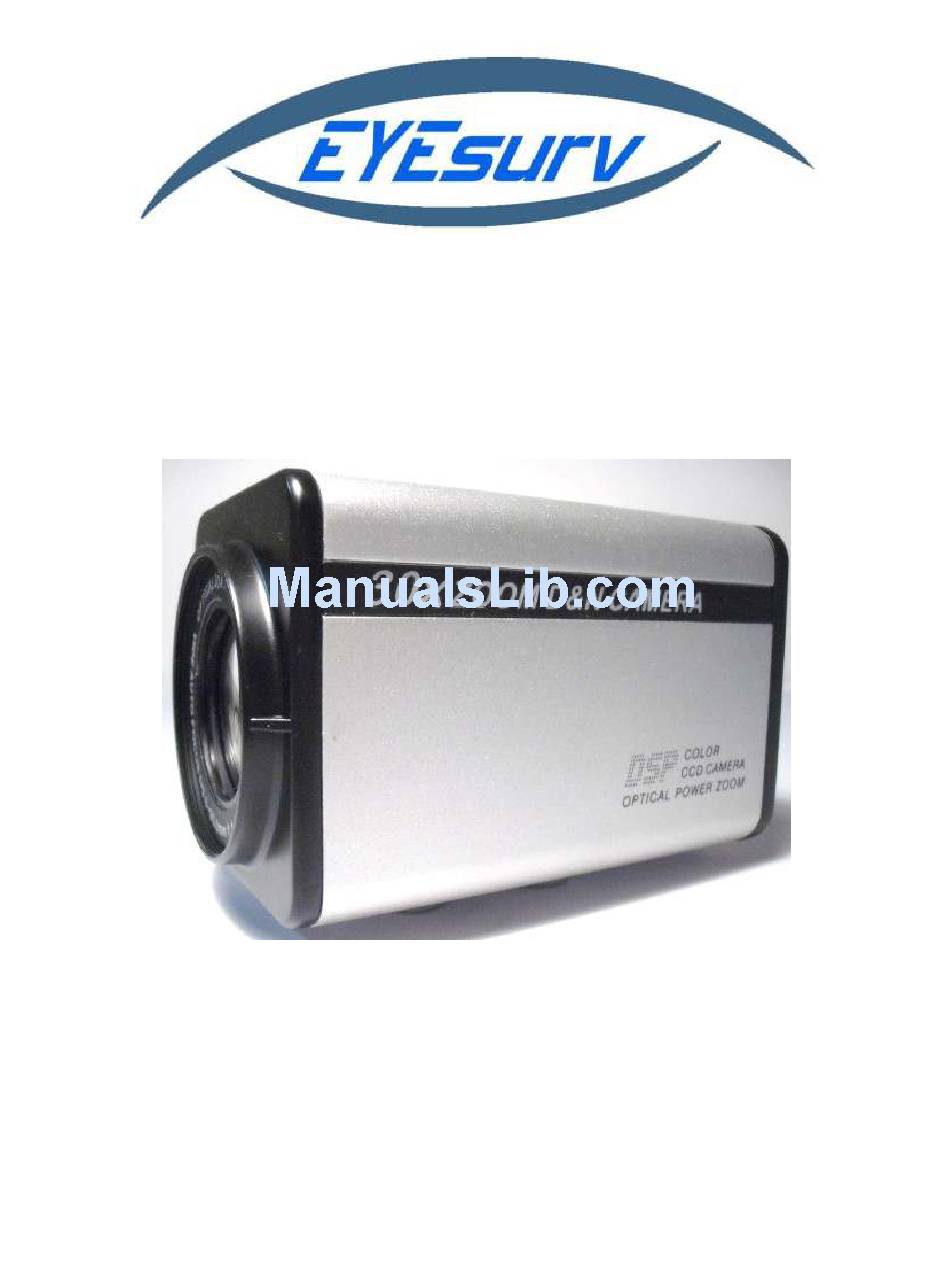

- Page 1 EYEsurv ESC-Z30 30X Optical Zoom Camera w/ auto focus - 3.0 - 90.0mm Zoom Lens Wiring and Configuration Guide...
- Page 2 Introduction: Thank you for purchasing our EYEsurv ESC-Z30 Zoom Camera. This is a great surveillance camera that can be used in many different scenarios where a zoom camera is needed. It has excellent zoom ability and great video quality. Also, the camera not only lets you zoom from the buttons on the back of the camera, but also with a PTZ controller or a DVR with PTZ controls.
- Page 3 Step 2. Next, connect the red positive power wire the DC (+) port on your camera as shown below: Step 3: Next, please insert the black negative power wire into the 12V ( - ) connection. Step 4: Next, you will need to connect the communication wires: Please insert the red cable into the "A"...
- Page 4 (Your camera connections should look just like this ^) Step 5 : Next, connect the end of the BNC connection to the back of your EYEsurv Zoom camera. -Once you have completed these steps the back of your camera should...
- Page 5 Step 6: Now take the other end of your communication cables and connect them to the back of your DVR or to your PTZ controller. Once again, the red wire goes in the "A" slot" and the black wire goes in the "B" slot. Keep in mind that your DVR or PTZ controller may have different "labels"...
- Page 6 Step 7: On to the BNC cable, you will need to run one end of your BNC cable into the back of your DVR, monitor, or whatever you are using to capture video. Most people will be using a DVR. *In our example below we hooked it up to Channel 1 on our DVR.*...
- Page 7 12VDC power supply. Once again, polarity does matter so please follow this step accordingly to wire it correctly. Configuring your DVR/PTZ Controller and EYEsurv ESC-Z30 Introduction: This tutorial will explain how to get your DVR/PTZ Controller and your Z30 camera communicating with each other by matching up three things: Camera ID, Protocol, Baud Rate.
- Page 8 Controlling the camera from your DVR or PTZ Controller: All DVR's and PTZ controllers are different. Some DVR's do not have PTZ controls on them. Before attempting to set up your DVR to "talk" to your camera, make sure the DVR has PTZ controls. To configure your DVR or PTZ controller please make sure it has the following settings: Pelco D Protocol: Pelco D is generally one of the protocols that PTZ controllers and DVR's on the market today can support.
- Page 9 Baud Rate: The baud rate is the communication language speed that the DVR/Controller uses to communicate with the camera. In our camera example we used 2400. This camera also supports 4800 and 9600 baud rate as well. Whatever Baud rate you choose on the camera, be sure that it is exactly matched on your DVR or PTZ controller.
- Page 10 "Near" to go up in value and "Far" to go back in value. Press the Menu button again to exit. Zoom: Tele = Zoom In Wide = Zoom Out Focus: Far = Far Focus Near = Near Focus ©EYEsurv 2012...
