AVR’s AC cord is unplugged from the AVR and the AC outlet. Making connections with the AVR plugged in and turned on could damage the speakers. For more detailed speaker placement information, download the complete AVR 700/ AVR 70/AVR 70C Owner’s Manual from www.harmankardon.com.

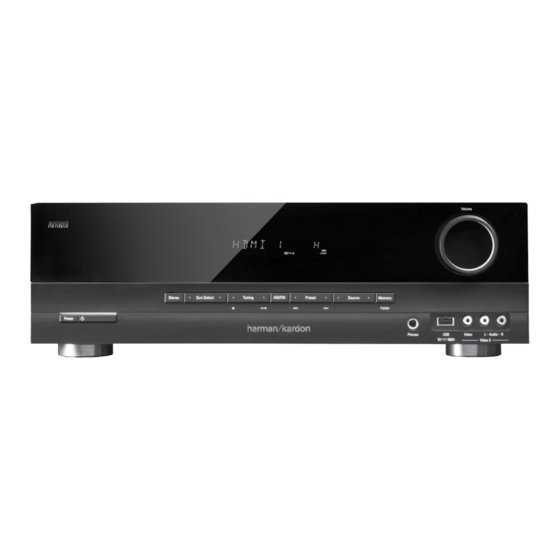

AVR 700, AVR 70, AVR 70C Connections Connect Your Speakers Connect Your Subwoofer How to use the AVR’s speaker terminals: Use a single RCA audio cable to connect the AVR’s Subwoofer Pre-Out connector to your subwoofer. Consult your subwoofer’s user manual for specific information about making connections to it.
If you have a TV equipped with the HDMI Audio Return Channel function, its sound is fed to the AVR via the HDMI Monitor Out connection’s Audio Return Channel, and it will not require additional audio connections to the AVR. Refer to the complete AVR 700/AVR 70/ AVR 70C, downloadable at www.harmankardon.com, for details.
Page 5
AVR 700, AVR 70, AVR 70C Connections Optical Digital Audio Devices Analog Audio Devices If your source devices have optical digital outputs, connect them to the AVR’s optical Make analog audio connections from your source devices that do not have HDMI or digital audio connectors.
AVR 700, AVR 70, AVR 70C Connections and Setup Install the Batteries in the Remote Control Video Recorders Connect an analog video recorder’s video input connector to the AVR’s Video 1 Out Remove the remote control’s battery cover, insert the three supplied AAA batteries as composite video connector and its audio input connectors to the AVR’s Video 1 Out...
When you’re finished, press the remote control’s BACK button to return to the Speaker Setting menu. 6. For now you can skip the “Crossover” setting. For complete details about making this setting, please download the AVR 700, AVR 70, AVR 70C Owner’s Manual from www.harmankardon.com. Back Button Back Button 7.
