Land Solonet User Manual

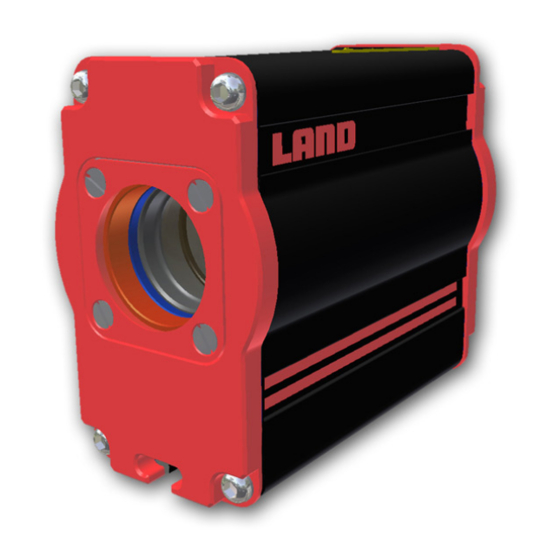

Digital infrared thermometer

Hide thumbs Also See for Solonet:

User manual (66 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the Solonet and is the answer not in the manual?

Questions and answers

Summary of Contents for Land Solonet

Page 1 Newtown, PA 18940-1804, U.S.A. Telephone: (01246) 417691 Telephone: (215) 504-8000 Facsimile: (01246) 410585 Facsimile: (215) 504-0879 Email: infrared.sales@landinst.com Email: irsales@landinstruments.net Internet: www.landinst.com Internet: www.landinst.com Part N . 801350 Publication N . PP307 - Issue: P 07/05 © Land Instruments International, 2005...
Page 3 User Guide abcdefg The Quality Management System of Land Instruments International Limited is approved to BS EN ISO9001:2000 for the design and manufacture, stockholding, in-house repair and site servicing of non contact temperature measuring instrumentation. Associated software designed and developed in accordance with TickIT.
Page 4 User Guide SAFETY INFORMATION SYMBOL PUBLICATION DESCRIPTION Direct IEC 417, No.5031 Current Alternating IEC 417, No.5032 Current Both direct and IEC 417, No.5033 alternating current Three-phase alternating IEC 617-2, No.02-02-06 Current Earth IEC 417, No.5017 (ground) terminal Protective conductor IEC 417, No.5019 terminal Frame or chassis IEC 417, No.5020...
Page 5: Safety Information
User Guide SAFETY INFORMATION (Continued) SYMBOL PUBLICATION DESCRIPTION WARNING ISO 3864, No. B.3.6 Risk of electric shock ISO 3864, No. B.3.1 Caution Observe precautions for handling electrostatic BS EN 100015 discharge sensitive devices WARNING BS EN 60825-1 Laser Radiation Refer to the operating instructions Note D o n o t d i s p o s e o f t h i s...
Page 6 User Guide Blank PP307...
Page 7 User Guide PP307 Blank...
Page 8 User Guide TECHNICAL SUPPORT Technical support for the LAND SOLOnet Digital Infrared Thermometer can be obtained by either contacting the address / telephone number on the cover of this User Guide or by e-mail at the following address: solonet.support@landinst.com Technical Support...
Page 9 This 24 months warranty, as a part of an on-going program of continuous improvement, is just one way in which Land strive to maintain our position as the temperature measurement partner of choice.
Page 10 User Guide CONTENTS QUALITY ASSURANCE SAFETY INFORMATION TECHNICAL SUPPORT PRODUCT WARRANTY CONTENTS INTRODUCTION General Introduction About SOLOnet Digital Thermometers Nomenclature SPECIFICATIONS SOLOnet Thermometers SN-W/E Interface Unit HARDWARE CONFIGURATION REQUIREMENTS General Introduction Introduction to Configuration INSTRUMENT SETUP AND CONFIGURATION Web Browser Configuration...
Page 11 Removal from a DIN Rail MAINTENANCE, SERVICING & CALIBRATION Maintenance Servicing Calibration APPENDICES APPENDIX A Install ‘Java’ Runtime Environment APPENDIX B ‘Peer to Peer’ Connection APPENDIX C RS485 - Land Protocol RS485 - ‘Read Data’ RS485 - ‘Set Data’ PP307 Contents...
Page 12 User Guide Blank PP307...
Page 13 General Introduction This publication provides the necessary information required to safely operate the Land SOLOnet digital thermometer. This manual should be used in conjunction with the other publications of the Land SOLOnet series (Thermometer Quick-Start Guide - PP305 / Thermometer Installation Guide - PP308 / Mountings and Accessories Installation Guide - PP310).
Page 14 User Guide Nomenclature The Instrument detail label is positioned at the top of the rear face of the SOLOnet casing, adjacent to the ‘Power/Comms’ LED. The instrument ‘Type’ specifies the thermometer variant and variant options. The instrument ‘Serial Number’ is a unique number incorporating the manufacture date code (see Fig.
Page 15 User Guide SPECIFICATIONS SOLOnet Thermometers PP307 Page 3...
Page 16: Specifications
User Guide SN-W/E Interface Unit Specifications Mounting: DIN Rail Power Requirements: 24V d.c. nominal Ambient Operating range: 0 to 70°C/32 to 158°F Sealing: To IP20/NEMA1 EMC: EN 61326:1999 Wiring Details (Customer and Thermometer connections) Pin No. Function Power In (+) Power In (-) mA Out (+) mA Out (-)
Page 17 SOLOnet can be configured to suit the specific requirement. General Introduction At the heart of a Land SOLOnet thermometer is a powerful digital core, capable of handling internal signal conversions, controlling and monitoring I/O and performing various temperature time functions. Built around this core are high quality optical and mechanical parts, accessories and robust interface electronics, which ensure trouble-free installation and reliable operation.
Page 18 Laptop/PC with ‘Java Runtime’ Installed, ‘Proxy’ Disabled and ‘Peer to Peer’ Enabled 307004 Fig. 4 - SOLOnet Thermometer in Web Browser Configuration - Via Direct Connection This scheme (‘Peer to Peer’) may be used where a network is not available.
Page 19 307005 Fig. 5 - SOLOnet Thermometer Configuration by Direct RS485 using WCS This scheme allows the user to connect a laptop or PC direct to a SOLOnet thermometer. An RS232 to 4-wire RS485 converter is required and the laptop/PC requires Land Windows Configurator Software (SN-WCS) installed to allow thermometer configuration.
Page 20 Fig. 7 - SOLOnet Thermometer Configuration Via Windows XP Hyperterminal This scheme is for advanced users only and allows the user to connect a laptop or PC by RS485, to configure a SOLOnet thermometer. An RS232 to 4-wire RS485 converter is required and the laptop/PC requires Windows 98/ 2000/XP operating system, with the ‘Hyperterminal’...
Page 21 Enter the IP address into the address bar, eg. ‘http://10.1.10.200’. • When the SOLOnet index page opens, click ‘SOLOnet PC’ (If the ‘SOLOnet PC’ screen is not in view, click the maximise screen button). • The ‘Home’ page for that particular instrument opens (see Fig. 8).
Page 22 • Mouse-over ‘Parameters’ to reveal the ‘User Thermometer Settings’ option. • Click to reveal the ‘Sign In’ screen (see Fig. 9). • Enter SOLONET in the ‘User Name’ box. • Enter SOLONET in the ‘Password’ box. • Press ‘Continue’. •...
Page 23 User Guide SOLONET SOLONET 307009 Fig. 9 - SOLOnet web interface ‘Sign In’ screen (User Thermometer Settings). 307010 Fig. 10 - SOLOnet web interface ‘User Thermometer Settings’ screen PP307 Page 11...
Page 24 User Guide Item Description User Settable Function Temperature Dynamic temperature display User Cal For advanced users wishing to make a single-point adjustment to match the thermometer reading with a local temperature reference measurement WARNING - Changing this figure from the default (1000), temporarily changes the calibration of the instrument’s temperature output, indicated by red LED Thermometer...
Page 25 During access to this screen, thermometer setup is carried out off-line. • Click to reveal the ‘Sign In’ screen (see Fig. 11). • Enter Land in the ‘User Name’ box. • Enter offline in the ‘Password’ box. • Press ‘Continue’.
Page 26 User Guide Land offline 307011 Fig. 11 - SOLOnet web interface ‘Sign In’ screen (Off-line Commissioning). 307012 Fig. 12 - SOLOnet web interface ‘Off-line Commissioning (Restricted)’ screen Page 14 PP307...
Page 27 Item Description Function About Link to information on thermometer software version Contact Us Link to ‘Contact Us’ page on www.landinst.com (internet access required) Land Instruments Links to the ‘Home’ page of www.landinst.com International Website (Internet access required) PP307 Page 15...
Page 28 User Guide This section intentionally left blank Page 16 PP307...
Page 29 User Guide Intentionally left blank PP307 Page 17...
Page 30 User Guide EXAMPLE INSTALLATION SCHEMES A key design feature of the SOLOnet system is the flexibility of data access and the ease of instrument installation. Although there are many schemes to match many applications, these schemes can be roughly catagorised into two main groups: •...
Page 31 User Guide Typical Current and Contact-closure (Non-Ethernet) Installation In it’s simplest form, SOLOnet consists of a thermometer and cable, providing the user with process control and monitoring via traditional current and contact- closure I/O. To Remote Laser Switch SOLOnet SOLOnet Cable...
Page 32 Thermometer Configuration SOLOnet RS485 Thermometer This application can accommodate single or multiple SOLOnet Thermometers 307016 Fig. 16 - Schematic Diagram for a Typical RS485 (Non-Ethernet) Installation The Current and Contact-closure I/O and RS485 schemes may be combined and used simultaneously if required.
Page 33 User Guide Typical Ethernet Installation 308017 SOLOnet Thermometers SOLOnet Cables SOLOnet SN-W/E Interface Units Ethernet Links Ethernet Network Switch Laptop (Temporary connection) PC (Permanent connection) Fig. 17 - Typical Ethernet Installation PLANT SOLOnet SYSTEM SOLOnet SN-W/E Thermometer Interface Unit Laptop/PC/...
Page 34 User Guide TIME FUNCTIONS Averager Fast averager response speed Slow averager response speed Time 307019 Fig. 19 - Graphical Representation of the Averager Time Function The Averager time function can be used to ‘smooth’ the temperature output signal in relation to the temperature input. The averager response can be adjusted to suit the application.
Page 35 User Guide Peak Picker The Peak Picker function can be used to monitor the highest temperature measured by the thermometer. This feature is useful especially for moving targets and/or where the target is obscured partially by moving machinery. The Peak Picker time function utilises the following features: Mode - In ‘Reset’...
Page 36 User Guide Track and Hold The Track and Hold time function is useful especially for measuring intermittent processes e.g. items on a conveyor belt. The presence of a ’hot’ object can be used to activate the ‘Track’ function, which causes the output to display the temperature of the object.
Page 37 User Guide Customer Connections Pin 9 Remote switch Pin 8 Peak Picker Track & Hold Track Switch open Peak Pick Switch closed Reset Hold Note: Input connections must be isolated from all other connections to the thermometer, including earth/chassis Remote switch can be replicated by voltage Vin. Where: >+3.0V = Switch open <+1.5V = Switch closed 307022...
Page 38 EMISSIVITY In order to obtain accurate temperature measurements, the emissivity value of the target surface must be known. This section of the SOLOnet User Guide contains typical emissivity values of the most commonly measured materials for each thermometer variant. Where no emissivity value is quoted, this means that either the thermometer is not suitable for the measurement application or the temperature of the target is outside the thermometer's measurement span.
Page 39 User Guide Alloys ALLOYS SOLOnet Variant Material SN21 SN11 Brass 0.20 0.18 Oxidised 0.70 0.70 Chromel & Alumel 0.30 0.30 Oxidised 0.80 0.80 Constantin & Manganin 0.25 0.22 Oxidised 0.65 0.60 Inconel 0.30 0.30 Oxidised 0.85 0.85 Monel 0.25 0.22 Oxidised 0.70...
Page 40 User Guide Metals METALS SOLOnet Variant Material SN11 SN21 Aluminium 0.13 0.09 Oxidised 0.40 0.40 Chromium 0.43 0.34 Oxidised 0.75 0.80 Cobalt 0.32 0.28 Oxidised 0.70 0.65 Copper 0.06 0.05 Oxidised 0.85 0.85 Gold 0.05 0.02 Iron & Steel 0.35 0.30...
Page 41 User Guide Miscellaneous MISCELLANEOUS SOLOnet Variant Material SN51 SN11 SN21 Asbestos (board / paper / cloth) 0.90 0.90 Asphalt 0.85 0.85 graphite 0.85 0.85 Carbon 0.95 0.95 soot Cement & Concrete 0.65 0.70 Cloth (all types - close weave) 0.75 0.80...
Page 42 User Guide SN-W/E INSTALLATION TO DIN RAIL The Land SOLOnet SN-W/E Interface Unit is designed to be DIN rail mounted. The following instructions detail the correct method for the mounting and removal of a unit to a standard DIN rail.
Page 43 User Guide Removal from a DIN Rail Use Screwdriver to Unclip the Sliding Spring Catch Screwdriver 307029 Fig. 29 - Removing a SN-W/E Interface Unit from a Standard DIN Rail • Insert a flatblade screwdriver into the sliding spring catch, via the slot on the underside of the unit (see Fig.
Page 44 User Guide MAINTENANCE, SERVICING & CALIBRATION SOLOnet thermometers do not have any user serviceable parts and therefore they require only minimal maintenance to ensure trouble-free operation. The following information should be used in conjunction with that found in the SOLOnet Mountings and Accessories Installation Guide (PP310).
Page 45 User Guide APPENDIX A Install ‘Java Runtime’ Environment To allow interaction between the web interface program and any laptop or PC connected to it, a ‘Java Runtime’ Environment must first be installed, via a free download from the ‘Java’ website or from the supplied CD. •...
Page 46 • Select ‘Use the following IP address’. • Enter the IP address given with the SOLOnet SN-WE interface unit and add 1 to the last number of the IP address, 10.1.30.178 (SOLOnet IP address) 10.1.30.179 (IP address to be entered).
Page 47 If the network operates MAC Address filtering, the MAC Address must first be added to the network configuration. The MAC Address for the SOLOnet SN-WE is located on the instrument serial No. label. Contact your local Network Manager for further information.
Page 48 APPENDIX C RS485 - Land Protocol This is a multi-drop, 4-wire, RS485 serial protocol. It requires the SOLOnet address to be set from 1 to 254. Addresses 0 and 255 always get a response, therefore in multi-drop applications these must not be used.
Page 49 User Guide e.g. With EKO set to 1 (message sent from user to set emissivity to 0.999) {STX} 0x01 address ‘S’ ‘A’ ‘E’ ‘M’ ‘S’ ‘9’ ‘9’ ‘9’ {ETX} The reply from the unit is: {STX} 0x01 address ‘E’ ‘M’ ‘S’...
Page 50 User Guide RS485 - ‘Read Data’ ADDR Parameter value being requested (ASCII) ADDR Value of requested parameter (ASCII) 307030 Fig. 30 - RS485 ‘Read Data’ Protocol Page 38 PP307...
Page 51 User Guide RS485 - ‘Set Data’ ADDR Parameter value being modified (ASCII) SPACE New parameter value (ASCII) 307031 Fig. 31 - RS485 ‘Write Data’ Protocol PP307 Page 39...
Page 52 User Guide User Accessible Commands Changing parameters causes the processor to set the new parameter value on its next task cycle. The new value is held in volatile system RAM and will be lost if the processor is powered off. A command is provided to commit configuration parameter changes to system non volatile memory.
Page 53 11 Emiss Alarm Active OK 12 Sensor CRC Inactive OK 13 Output CRC Inactive OK 14 Calib. CRC Inactive OK 15 Config. CRC Inactive OK PSW Password SOLONET N/A alphanumeric - Units 0000 SAIRU 1 0 =ºC 1 = ºF...
Page 54 RAIFO 1 Current thermometer Details report - formatted strings NN : SN x r y or SNzt xxxx ⊗ NN = index 00-10 SN = SoloNet x = wavelength = space r = 0 - 9 y = laser or ZTxxxx Specials No.
Page 55 Range found using IFO1 command. NOTE: SET will reset all processor configurable parameters to default values. Processor label Solonet xxSALBL Solonet alphanumeric- “Solonet X” Max 15 characters MEM# Memory 0000 SAMEM 1101 0000-9999 0000 Rd resp 0000 RAM=EEPROM 0001 RAM≠EEPROM Flag is set when user has changed a config.
Page 56 User Guide User Accessible Commands (continued) CMD Function Read Range Resolution Default Comments Response Example Ppick Off Delay 0010 SAPOF 20 0-100 100 steps of 0.1secs Ppick On Delay 0000 SAPON 10 0-100 100 steps of 0.1 secs Ppick Decay Rate 0012 SAPPD 1 0-15 0012...
Page 57 User Guide User Accessible Commands (continued) CMD Function Read Range Resolution Default Comments Response Example High level cal date SAHCD 51 year, quarter - e.g. 51 is 2005 quarter 1 Reply enable flag 0001 SAEKO 1 Change message reply enable PP307 Page 45...
Page 58 User Guide Page 46 PP307...
