Link L2150 Quick Start Manual

L2150 Quick Start Guide
Please Note:
- Do not apply power/phantom power to the audio outputs as they will be
damaged. This is an unacceptable way to operate the unit.
- Maintain the level of -20dB max on the inputs. High gain signals can cause
problems.

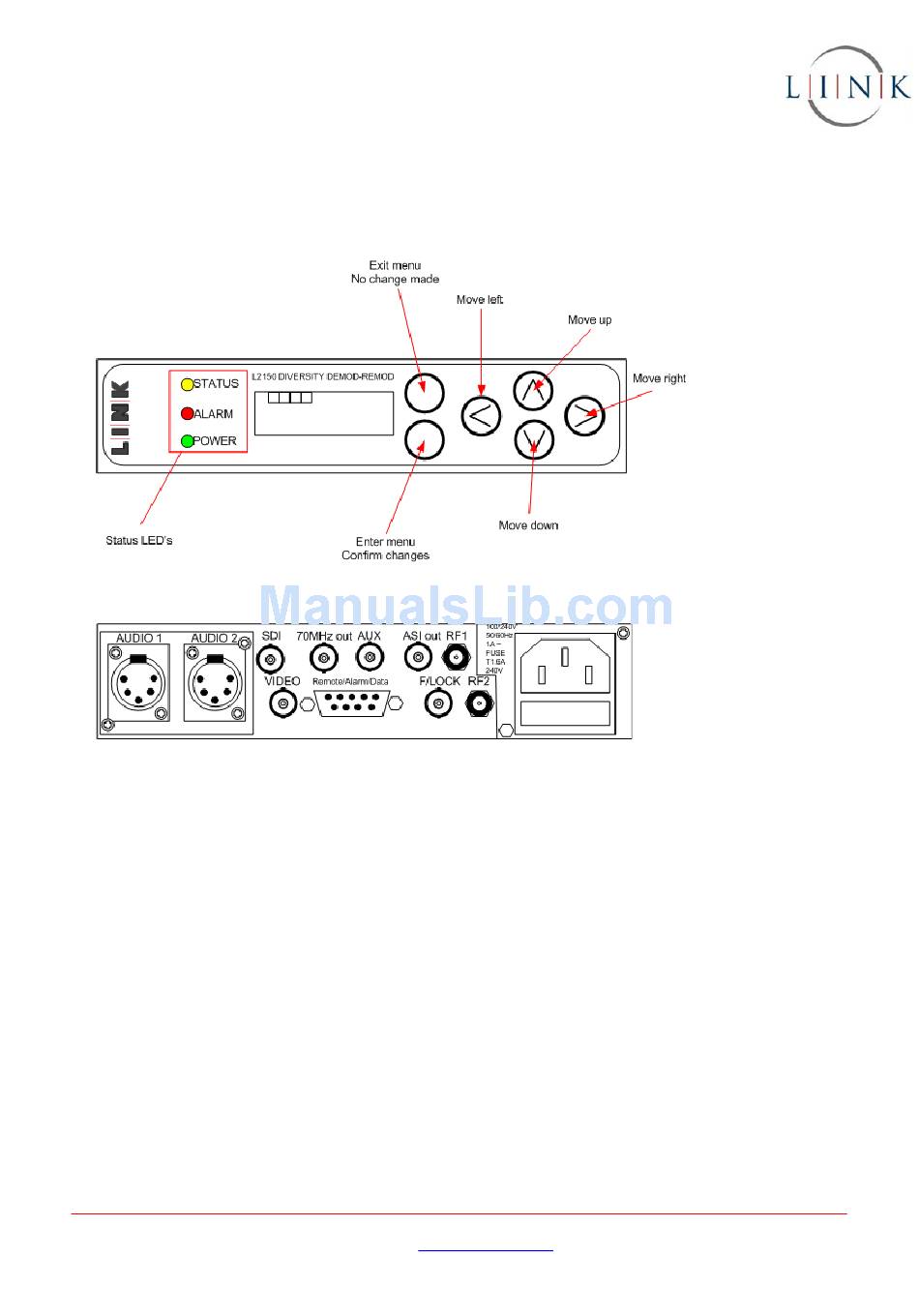

1. Front panel layout

2. Rear panel layout

Can also be configured with a DC input on a 4 pin XLR socket.

3. Uses for the L2150

The L2150 is used in 4 ways:
•
As a stand alone receiver
•
As an ASI multiplexer
•
As a 70MHz input decoder
•
As a driver for a Triax system

4. To use as a stand alone receiver

Connect:
•
Two antenna inputs from the down convertors to RF1 and RF2.
•
Black and burst (or other local reference) to F/LOCK
•
Audio connectors to AUDIO 1 and AUDIO 2
•
Output connector to SDI or ASI as required
•
Local monitoring to VIDEO
Images are for illustration only and may differ from components supplied
Link Research Ltd Watford UK
Quick Start Guide L2150
www.linkres.co.uk
Support + (44) 1923 474099
Note 1 ~ early units may
have the audio output
connected via a tag
strip.
Note 2 ~ AUX is the ASI
input for multiplexing
CL140023 Issue 03
