  • Page 1 ORPHEUS ONE SE MK2 U S E R M A N U A L...

  • Page 2: Table Of Contents

    One SE package, as listed below : local dealer.  Orpheus One SE digital audio interface  When planning not to use the unit for a long  CD manual period of time, it is advisable to disconnect the power plug from the wall outlet.

  • Page 3: Front Panel Description

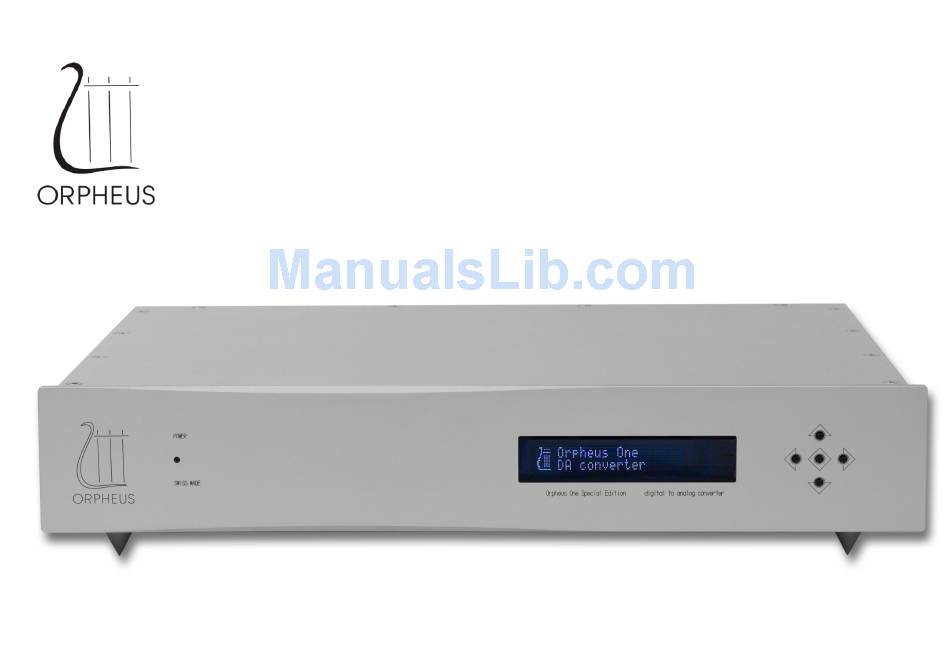

    Receives signals from the remote control Used for entering set up menu structure and ac- LEFT RIGHT transmitter. Placed in the right hend corner of cessing menu options as well as confirming the display. Not visible. choices and settings. DOWN SELECT ORPHEUS ONE SE...

  • Page 4: Rear Panel Description

    RCA connectors (S/PDIF 1 and 2) for S/ PDIF format. right and left channel outputs on RCA con- nectors. 3. INPUTS BNC FORMAT Digital data stream inputs using two indepen- dent connectors (BNC 1 and 2) for BNC for- mat. ORPHEUS ONE SE...

  • Page 5: Connections

    B: BNC T: TOSLINK If you wish to wire the balanced output to an unba- lanced input (with RCA connector), connect pin 1 to ground and pin 2 to signal, and make sure pin 3 is not used. ORPHEUS ONE SE...

  • Page 6: Operations

    The USB expansion allows the user to connect a the incoming digital data stream. If the system is PC/MAC to the Orpheus One SE and use it as 3.6 V @ 4.2 Vrms balanced unable to lock onto the incoming digital data sound card.

  • Page 7: Menu Structure

    D I S P L A Y A N D M E N U S T R U C T U R E ORPHEUS ONE SE DA CONVERTER AES/EBU 44,1 -> 192 SPDIF 1 NO LOCK Options: AES/EBU SPDIF 1 or 2...

  • Page 8: Set Up Operations

    S E T U P A N D O P E R A T I O N S QUICK GUIDE ORPHEUS ONE SE POWER ON 44,1 -> 192 DA CONVERTER Flip the main power switch on the right hand side of rear panel.
  • Page 9 Press  to confirm the choice and save the new Select the input that should be renamed by pres- are available. sing < or > until the chosen input is displayed. input name. Press  to confirm.. V W X ORPHEUS ONE SE...
  • Page 10 To set night mode press < or > until the chosen MEDIUM (0,4 seconds)  FAST (0,2 seconds) mode is displayed. Press  to confirm. To set repeat rate pres < or > until the chosen rate is displayed. Pres  to confirm. ORPHEUS ONE SE...

  • Page 11: Specifications

    Media Sàrl. Power : 10 W IMPORTANT NOTICE Orpheus Media Sàrl reserve the right to make changes to their products or discontinue any pro- duct or service without notice. Adequate operating safeguards must be used to minimize hazards. Reproduction of user manual information is per-...
