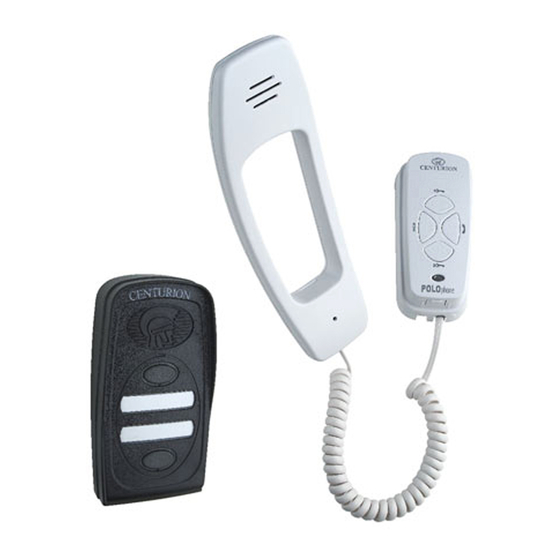

Centurion POLOphone Installation Manual
Audio intercom systems
Hide thumbs
Also See for POLOphone:
- Installation manual (16 pages) ,
- Installation manual (17 pages) ,
- Commissioning procedure (4 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Centurion POLOphone
Summary of Contents for Centurion POLOphone
- Page 1 POLOphone installation manual AUDIO INTERCOM SYSTEMS...
- Page 2 Powering the system The POLOphone system operates off a DC supply and can therefore be powered from either a 14V DC mains adaptor or directly from the battery supply of a 12V gate motor system. The power source can be connected to any component in the system.
- Page 3 Closes the auxiliary Button “B” Entry Panel 2 POL phone contacts on the rings group “B” terminal block handset(s) in a on the underside two-button of the Handset configuration or all handsets in a 1-button configuration POLOphone Intercom - Page 3...
-
Page 4: Specifications
* NB: If 12V DC gate motor supply dips when motor starts up and the intercom is being used at the same time, the speech quality might be affected. The POLOphone system is supplied as separate components: Component 1-Entry panel (with two call buttons) consisting of:... -
Page 5: System Components
Baseplate 3C V3.0 POLOswitch This dual-function relay card connects to the POLOphone two -wire bus. Depending on the switch setting on the relay card, the POLOswitch functions either to make up an external ring extender for a particular group of handsets or it acts as a secure gate trigger for a particular entry panel. -
Page 6: Power Supply & Wiring
Power supply & wiring Power Supply The POLOphone system operates off a 14V DC supply. The system is designed so that power can be connected to any one of the components in the system. If the system is being installed with a gate operator that can provide at least a 12V DC 150mA supply, the entry panel can be connected directly to this unit. - Page 7 POLOswitch signal to operate gate to take battery power to the entry panel Option 2: (Cheaper solution) POLOphone’s two-Wire bus Additional two wires required Power to system Gate release using auxiliary pushbutton on each handset POLOphone Intercom - Page 7...
- Page 8 ‘sit’ on the Mark the location of the mounting (B) Ensure that sealing washer is wall without rocking holes. fitted and closes off the mounting hole to prevent water ingress. Page 8 - POLOphone Intercom...
- Page 9 Refer to the wiring diagram (See page 12). Secure the cover using the fixing Clip outer cover back into position. screw provided in kit. NB: It will be necessary when commissioning the unit to have POLOphone Intercom - Page 9...
- Page 10 ‘sit’ on the wall the cradle base. Mark the location of the mounting without rocking. (Centurion Systems (PTY) Ltd takes no holes. responsibility for injury, death etc. Using a 6mm masonry bit, drill holes into the wall for the rawlplugs provided in the kit.
-
Page 11: Handset Installation
( ). terminals. and similarly into the handpiece. Insert the wire from the COM/- Replace the handpiece onto the from the gate motor into the cradle. terminal marked with a ( ). POLOphone Intercom - Page 11... -
Page 12: Wiring Diagram
Wiring diagram Page 12 - POLOphone Intercom... - Page 13 Two-wire bus with secure signal to operate gate. Connect power to the POLOphone via the POLOswitch. There is no need to take battery power to the entry panel. An alternative solution is to wire TRG and COM to the Aux terminals on the handset PCB.
- Page 14 Adjust the speech volume at the handset to approximately 75% by adjusting the control knob (D). Clockwise rotation increases the volume. Check Functions Press the gate/door release pushbutton on each handset and check that the gate/door adjacent to each entry panel operates. Figure 7 Entry Panel Selector Switch Page 14 - POLOphone Intercom...
-
Page 15: Fault Finding Guide
Check that correct group (A or B) is selected on Handset. Increase volume on Handset. No speech when handset lifted Check coil cord connection to cradle. Check hook switch is free to move. POLOphone Intercom - Page 15... - Page 16 Sharecall 0860-CENTURION (0860 236 887) Head Office: +27 11 699 2400 Sharecall Technical Support 0861 003 123 or +27 11 699 2481 from 07h00 to 18h00 (GMT+2) (Sharecall numbers applicable when dialed from within South Africa only) 0.07.A.0045_22072013 www.centsys.com...
