Horizon Hobby Blade 350 QX3 Quadcopter Instruction Manual

Hide thumbs Also See for Blade 350 QX3 Quadcopter:
Table of Contents

Advertisement

Quick Links

I N S T R U C T I O N M A N U A L
®

Advertisement

Table of Contents
loading

Related Manuals for Horizon Hobby Blade 350 QX3 Quadcopter

Summary of Contents for Horizon Hobby Blade 350 QX3 Quadcopter

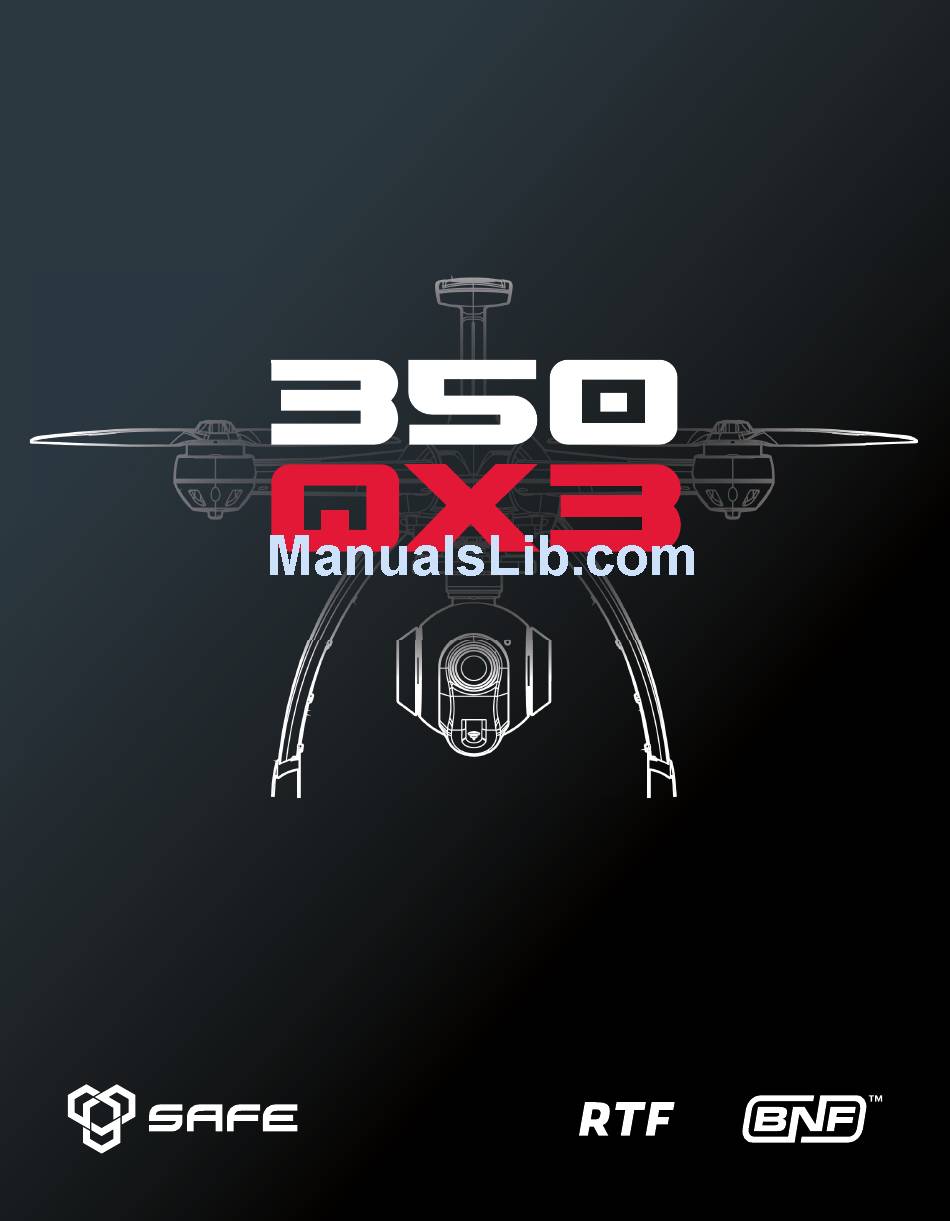

  • Page 1 I N S T R U C T I O N M A N U A L ®...
  • Page 2 Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC.

  • Page 3: Table Of Contents

    I N S T R U C T I O N M A N U A L Table of Contents Box Contents ......................4 Flight Mode Switch (RTF, AP Combo) ..............9 Charging Warnings....................4 Flight Modes Explained ..................9 Low Voltage Cutoff (LVC) ..................4 LED Codes ......................10 Charging the Flight Battery .................5 GPS Functionality ....................10...

  • Page 4: Box Contents

    • Never attempt to dismantle the charger or use a damaged charger. • Always charge in a well-ventilated area. • Never drop charger or batteries. • Always terminate all processes and contact Horizon Hobby if the product • Always use only rechargeable Li-Po batteries designed for use with this type malfunctions.

  • Page 5: Charging The Flight Battery

    Charging the Flight Battery Charger Specifi cations • Input Voltage: 10.5–15V DC • Charge Current: 3.5A The Battery Charging Process 1. Connect the AC power supply to the charger. 2. Connect the AC power supply to an AC power source. The green LED blinks.

  • Page 6: Transmitter Control Layout (Rtf, Ap Combo)

    Transmitter Control Layout (RTF, AP Combo) Mode Switch 0 - Smart Mode Gimbal 1 - AP Mode control 2 - Return Home switch Motor Stop/Bind Button Rudder/Yaw Aileron/Roll Throttle/Altitude Elevator/Pitch Power Switch Extend the GPS Mast Install the Flight Battery...

  • Page 7: Transmitter Setup And Binding (Bnf)

    Transmitter Setup (BNF) Transmitter Model Switch Select Reversing Throttle Cut Model Setup Switch Position Type Travel Adj: Flap ↑ 120 ↓ 100 acro gear - R Smart Mode = F Mode ( POS. 0) All others - N Throttle Subtrim: ↑ 10 Return Home = F Mode (POS.

  • Page 8: Binding

    Binding The RTF/AP combo transmitter is bound to the model Entering Bind Mode at the factory. If for any reason the model needs to be re-bound, follow the directions below. Binding the 350 QX3 To Your Transmitter Bind button 1. With the transmitter and quadcopter powered OFF, connect the battery to the 350 QX3.

  • Page 9: Flight Mode Switch (Rtf, Ap Combo)

    Flight Mode Switch (RTF, AP Combo) Smart Mode (Solid Green LED on the 350 QX3) AP Mode (Solid Purple LED on the 350 QX3) Return Home (Red fl ashing LED on the 350 QX3) Flight Modes Explained Smart Mode Smart Mode Stick Relativity Control Inputs This fl...

  • Page 10: Led Codes

    LED Codes Startup Codes CAUTION: If you see the LED signal for low battery (10.6V), immediately land your aircraft Radio off or not bound to the quad ........No LED and recharge the battery. Initialization failed ..............CAUTION: Do not attempt to use Return Home IMU initialization ..............

  • Page 11: Flight Guidelines And Warnings

    Flight Guidelines and Warnings • Always inspect the model before fl ight. • Always remove batteries before disassembly. • Always keep aircraft in sight and under control. • Always keep moving parts clean. • Always keep people and pets at least 35 feet (10 meters) away when the •...
  • Page 12 Landing Activating Return Home To land the 350 QX2 AP there are two options: • Guide the aircraft to where you wish to land. Slowly reduce the throttle below half to descend and land. When the quadcopter has landed, lower the throttle completely and press the bind button to stop the motors.

  • Page 13: Calibration Procedures

    Calibration Procedures Compass calibration procedure: NOTICE: The following procedure has to be completed within 30 seconds after entering compass calibration mode. 1. Power the transmitter. 2. Power on the 350 QX3 and face the quadcopter pointing North. 3. Cycle the top left transmitter switch completely 4 times as shown at the left.

  • Page 14: Graphic User Interface

    Graphic User Interface If you need to update the fi rmware in your quadcopter, download the PC user GPS Screen interface* at http://www.bladehelis.com/ProdInfo/Files/350_QX_PC_Interface.zip • See number of available satellites and signal strength • Verify latitude, longitude and altitude indications Follow the on-screen instructions for installation and operation. •...

  • Page 15: Parts Of The 350 Qx3

    Parts of the 350 QX3 Front GPS Antenna Mast Camera LED CGO2 Camera/Gimbal (AP Combo) Camera Lens Wi-Fi Antenna Back Flight Battery Door LED Indicator Power Switch Bottom LED Indicator Power Switch...
  • Page 16 Blade, SAFE Circle, the SAFE logo, the BNF logo, E-fl ite, Celectra, DSM, DSMX, EC3 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
