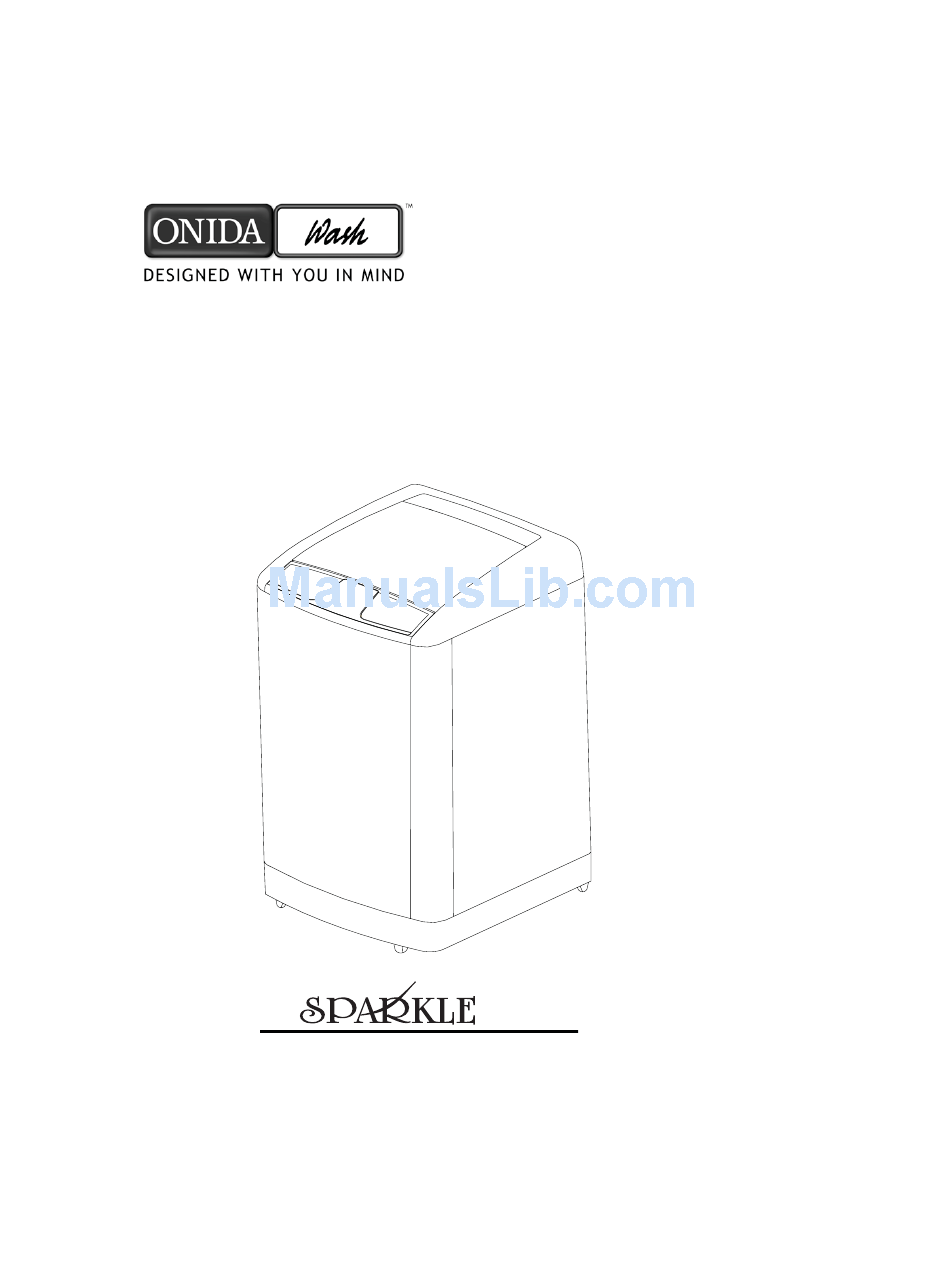

USER'S MANUAL
Fully Automatic

WASHING MACHINE

65X
Before operating the Washing Machine, Please read
this Guide thoroughly, and retain for future reference.

Advertisement

Table of Contents
loading

Summary of Contents for Onida Sparkle 65X

  • Page 1: Washing Machine

    USER'S MANUAL Fully Automatic WASHING MACHINE Before operating the Washing Machine, Please read this Guide thoroughly, and retain for future reference.
  • Page 2: Table Of Contents

    Congratulations! You are now a proud owner of Onida SPARKLE 65X Fully automatic Washing Machine. We would particularly advise you to study the User's manual carefully to get the best out of your Onida Machine and please take the precautions mentioned on the following pages.
  • Page 3: Safety Precaution

    Safety Precautions Safety Precautions Please note that the following precautions for safety intend to prevent unpredictable danger and damage by helping the Proper use in safety. Make sure that the washing machine is plugged to a 5A electrical outlet and earth terminal is provided on the outlet. Unplug the power supply cord when you do not use it.
  • Page 4: Features

    Features Features Features Features Moving Digital Display Keeps you updated with the various wash cycle timings and stages. Also easily allows you to program your machine with times and cycle repetitions according to your convenience and requirements. Brush With an actual Brush fitted on the inside of your drum, your clothes are treated gently with a cleaning system which is very much like a real person giving it a “hand wash”...
  • Page 5 Features Features Features Features Customized Wash Program epending on your laundry, create personalized cycles with your own preference of wash, rinse and spin combinations as well as choose the desired water levels to be in total control of your machine! Active Soak The Active Soak function is there for those stubborn stains that cannot be removed with regular washing.
  • Page 6: Familiarisation With Control Panel

    Familiarisation with Control Panel Familiarisation with Control Panel Start/Pause Start/Pause Display Unit Programs Selector Delay Selector Display Unit Programs Selector Delay Selector This button is used to start, The unit will indicate As you press this button To set the delay time pause the operation.
  • Page 7 Familiarisation with Control Panel Familiarisation with Control Panel MOVING DISPLAY MOVING DISPLAY TUB : ERROR SIGNALS: Tub display will be ON When the Power is ON Error signal s will be ON if any error occurs. (No Drain, No water, till the completion of programe.
  • Page 8: Parts Location And Identification

    Parts Location And Identification Parts Location And Identification TEMPERED CURVED GLASS LID. DETERGENT DRAWER EJECTOR CONTROL PANEL POWER PLUG DRAIN HOSE PLASTIC BASE SOUND ABSORPTION PLATE LEVEL ADJUSTMENT LEG BRUSH MAGIC LINT FILTER...
  • Page 9: Installation & Preparation

    Installation & Preparation Installation & Preparation See if the level on the washing Keep the Install the washing machine machine is correct. machine on a leveled and firm space. more than 20 cm away from the walls to prevent noise. Adjust washing machine level by loosening or Insert sound...
  • Page 10: Connecting The Drain Hose

    Connecting the Drain Hose Connecting the Drain Hose Connect the drain hose to the outlet of the washing machine. Less than 3m Additional hose is connected. Less than 2m Fix the drain hose with the clip, and then push Less than the clip toward the body of the washing machine 6 cm.
  • Page 11: Preparation Before Wash

    Preparation before Wash Preparation before Wash Be sure to remove things Wash oily or dyed laundry Check if laundry is such as keys, pins and separately. washable in water. coins from the laundry. Wash laundry with loose lint Shake loose dirt off Wash delicate clothes, by turning it inside out.
  • Page 12: Washing Procedure

    Washing Procedure Washing Procedure Press EJECT to release the Connect the inlet hose to Put laundry in the tub. glass lid from the catch and the tap. Plug in the power open it. Reverse the operation cord. Lower the drain hose. to close the lid.
  • Page 13 Washing Procedure Washing Procedure Select the water level depending on the cloth load (default "60 Ltr” Level) FUZZY PROGRAM Put the detergent in the "Detergent Drawer”. Controller automatically displays the Detergent Level & Press the START/PAUSE button. selects Water Level. Soak, Wash, Rinse &...
  • Page 14: Selectable Washing Methods

    Selectable Washing Methods Selectable Washing Methods WASH ONLY Press the POWER button to "ON". Select your desired washing time by pressing WASH button. START/ POWER CUSTOM WASH PAUSE Press the START/PAUSE button once. Washing goes on as per PROGRAMS selection. Close the lid.
  • Page 15: Maintenance

    1. Bristle distortion might be there in the brush a fter completion of wash cycle . This will be resumed before next wash. 2. If bristles are coming out of brush call Onida service person & replace with the new brush. -13-...
  • Page 16: Trouble Shooting

    Trouble-Shooting Trouble-Shooting PROBLEMS CHECK-POINTS No water supply. If the water is not supplied within 30 minutes, a buzzer will Check if the Check for sound and remaining time indicator will show tap is a open. water supply. No drain. Is the drain hose Is the drain hose twisted? If the water does not drain within 5 minutes, a buzzer will kept down?
  • Page 17: Guidelines For Safety And Durability

    Guidelines for Safety and Durability Guidelines for Safety and Durability Observe the following guidelines for the durability of the washing machine and safety problems. Do not expose the washing Do not install the washing Do not sprinkle water over machine to direct sun light machine around a damp place.
  • Page 18: Specifications

    Specifications Specifications DESCRIPTION SPARKLE 65X CAPACITY (Kg) TYPE Fully Automatic Machine POWER SOURCE 230 V AC, 50 Hz WATER PRESSURE RANGE (Kg/cm ) 0.3 to 8.0 WASHING SYSTEM Pulgitator BRUSH WATER INLET 2 Nos. (Hot & Cold) INNER TUB Stainless Steel - Hexo Drum...
  • Page 19: Onida Service Centres

    nos. State Service Number Andhra Pradesh 040-39889000 Delhi 011-39889000 022-39889000 Gujarat 079-39889000 Haryana 0172-3988900 Karnataka 080-39889000 Kerala 0484-3988900 Madhya Pradesh 0731-3988900 Maharashtra 022-39889000 Punjab 0172-3988900 Rajesthan 0141-3988900 Tamilnadu 044-39889000 Uttar Pradesh 0522-3988900 W Bengal 033-39889000 Bihar 1800 30099000 Chattisgarh 1800 30099000 Himachal Pradesh 1800 30099000 Jharkhand...
  • Page 21 MANUFACTURED & MARKETED BY : MIRC ELECTRONICS LIMITED ONIDA HOUSE, G-1, MIDC, MAHAKALI CAVES ROAD, ANDHERI (EAST), MUMBAI 400 093 MADE IN INDIA www.onida.com...
