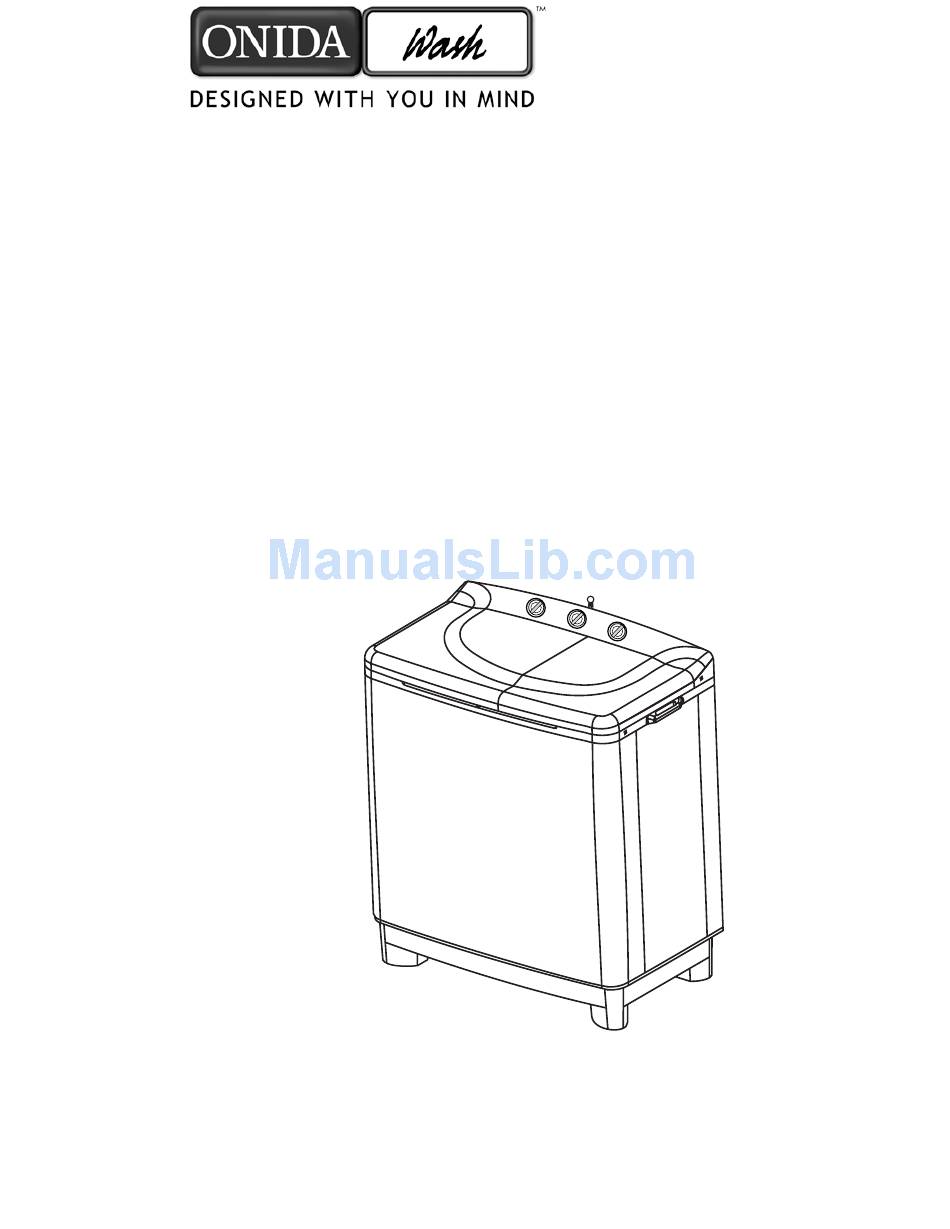

Page 1: Washing Machines

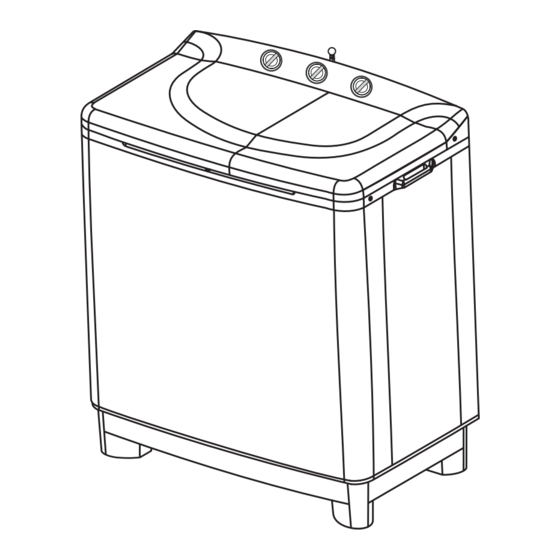

User’s Manual HYDROFALL SERIES... WASHING MACHINES MODEL : HYDROFALL 70BS Before operating the Washing Machine, Please read this Guide thoroughly, and retain this manual for future reference. -
Page 3: Table Of Contents
HYDROFALL 70BS Washing Machine. We would particularly advise you to study the User's manual carefully to get the best out of your Onida Machine and please take the precautions mentioned on the following pages. Once again, Welcome to the happy ONIDA family. -
Page 4: Parts Identification
PARTS IDENTIFICATION Wash-Drain Wash Timer Knob Selector Knob Spin Timer Knob Magic Lint Filter Brush ACCESSORIES Inlet hose Spin cap - 1 -... -
Page 5: Installation
INSTALLATION INSTALL ON A STABLE LEVEL SURFACE Install washing machine on a stable level surface. Keep the washing machine more than 25cm from the wall to prevent a noisy sound while spinning. A carpet must not obstruct the ventilation openings. CONNECT THE DRAIN HOSE Extension Drain Hose Never let the end of the drain... -
Page 6: Safety Precaution
SAFETY PRECAUTIONS Do not expose the washing Do not install Do not sprinkle water over machine to direct sun light the washing machine switches. or rain. near a damp place. Let water drain away from When plugging out the power Keep children cord, do not away from the... -
Page 7: Preparation Before Wash
PREPARATION BEFORE WASH Be sure to remove things such as keys, Wash oily or dyed laundry separately. pins and coins from the laundry. Wash fuzzy laundry by turning it inside Wash delicate clothes, wrapping them in a nylon net. out. Insert the power plug into the power socket. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS WASH Step A Put the appropriate amount of detergent in the detergent drawer depending on the amount of laundry. Put the laundry in the tub and add water upto the desired water level depending on the laundry to be washed. Select the wash program NORMAL or HEAVY according to the kind and quality of laundry. - Page 9 OPERATING INSTRUCTIONS INTERMEDIATE SPIN Step B Transfer the laundry to the spin tub, arrange it evenly and place the spin cap on top of the laundry tightly and horizontally. Distribute laundry evenly in tub Put the Spin Cap in place Spin Tub Ensure Spin Cap is pressed on top of clothes.
-
Page 11: Maintenance
CAUTION : It is advisable never to run the machine without Magic lint Filter Assembly as foreign lint may damage the machine. NOTE : In case of Magic Lint Filter damage, please replace with new unit available at your ONIDA Service Cenre near to you. -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL Hydrofall 70BS Type Semi Automatic Twin Tub Capacity 7.0 kg Power supply 230V, 50Hz, AC Power input Wash 400W max, Spin 160 W max water supply less than 1kgf/cm2 / less than 10m water head Wash program... -
Page 13: Onida Service Centres
nos. State Service Number Andhra Pradesh 040-39889000 Delhi 011-39889000 022-39889000 Gujarat 079-39889000 Haryana 0172-3988900 Karnataka 080-39889000 Kerala 0484-3988900 Madhya Pradesh 0731-3988900 Maharashtra 022-39889000 Punjab 0172-3988900 Rajesthan 0141-3988900 Tamilnadu 044-39889000 Uttar Pradesh 0522-3988900 W Bengal 033-39889000 Bihar 1800 30099000 Chattisgarh 1800 30099000 Himachal Pradesh 1800 30099000 Jharkhand... - Page 16 MANUFACTURED & MARKETED BY : MIRC ELECTRONICS LIMITED ONIDA HOUSE, G-1, MIDC, MAHAKALI CAVES ROAD, ANDHERI (EAST), MUMBAI 400 093 MADE IN INDIA DESIGNED WITH YOU IN MIND www.onida.com...
