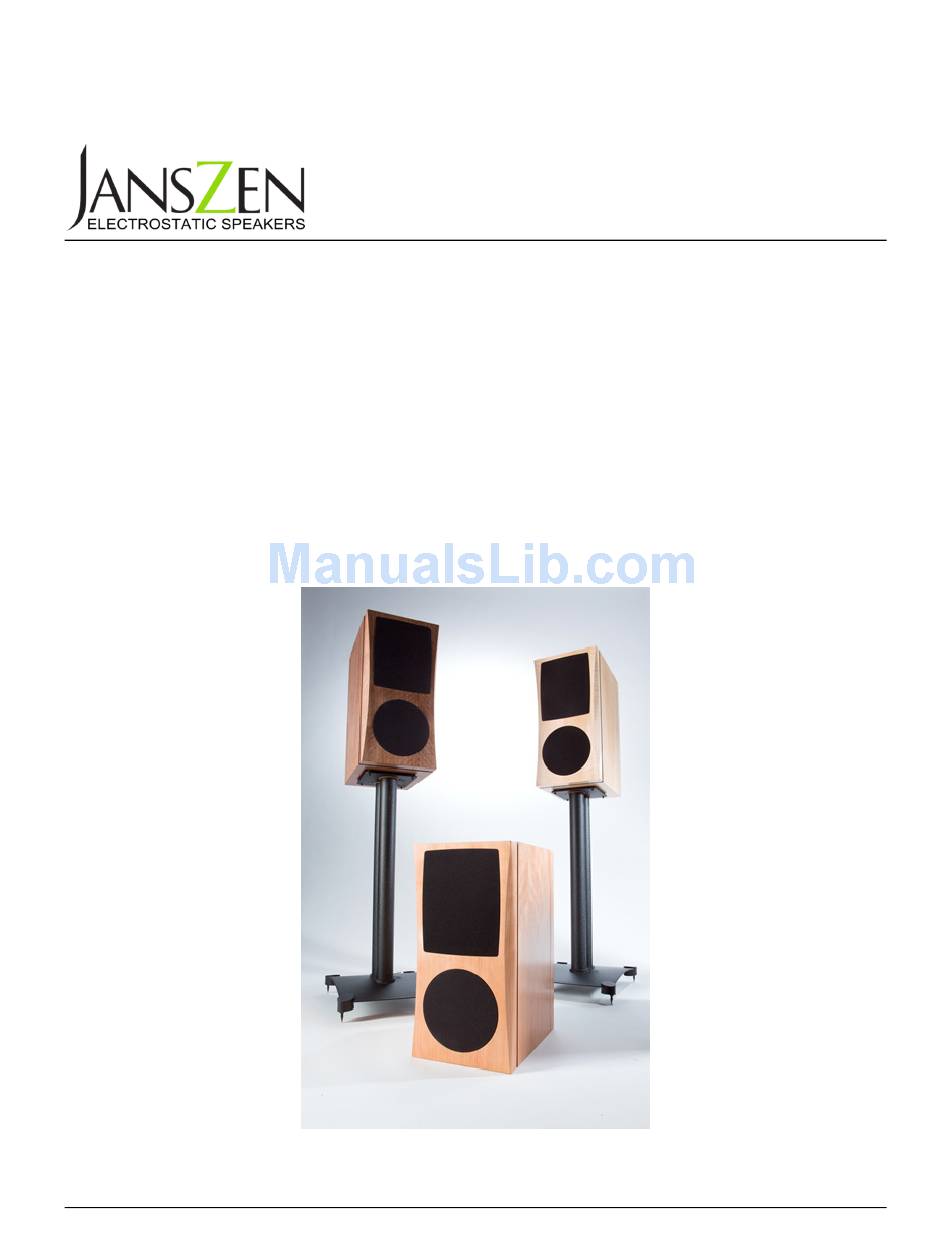

- Page 1 Model zA1.1 Electrostatic Hybrid Loudspeaker Passive Version ’ WNER ANUAL 1/28/2015...
- Page 2 Owner’s Manual 2014, 2015 Janszen Loudspeaker, Ltd. 480 Trade Road Columbus, Ohio 43204 USA Phone +1 614-448-1811 email support@janszenloudspeaker.com This Owner’s Guide is published only in PDF form in order to save trees and not burden people with even more paper than they are already barraged with.
-
Page 3: Table Of Contents
T able of Contents Safety Information ..............1 Welcome ..................5 Unpacking ................... 6 Carton contents ................6 Unpacking ..................6 Grills ....................7 Cleaning ..................8 Wooden baffles ................8 Painted and metal surfaces ............. 8 Grill cloth ..................8 Warnings .................. -
Page 4: Safety Information
INVALIDATE REGULATORY COMPLIANCE AND THUS RENDER THE SPEAKERS UNSUITABLE FOR HOME USE. THIS INCLUDES KEEPING THE GRILLS INTACT. WARNING: JANSZEN SHALL NOT BE RESPONSIBLE FOR ANY PHYSICAL DAMAGES OR INJURY THAT OCCURS AS A RESULT OF MISUSE, DISASSEMBLY, OR UNAUTHORIZED CHANGES OR MODIFICATIONS MADE TO THESE SPEAKERS. - Page 5 S A F E T Y I N F O R M A T I O N 3. Heed the warnings – All warnings about these speakers should be followed. 4. Follow the instructions – All operating and use instructions about these speakers should be followed.
- Page 6 A pair of zA1.1 speakers can produce a peak SPL of over 105 dB, even in a fairly large room, 111dB in a small room, and with some kinds of music, a steady level over 100 dB is possible.
- Page 7 You can measure loudness with a simple sound level meter. If you wish to check your exposure, JansZen can supply a good quality sound level meter such as we use ourselves at modest cost. Radio Shack also offers one. There...
-
Page 8: Welcome
Welcome ou have chosen JansZen loudspeakers! The zA1.1 will bring you the utmost in music listening enjoyment through its exceptional purity and naturalness in sound reproduction. While these speakers include esoteric technology, you can rest assured that they are designed and built with the best of advanced materials and techniques, and are ready to bring you consistent, unwavering performance for decades to come. -
Page 9: Unpacking
U N P A C K I N G Unpacking o not allow the delivery person to leave until you are satisfied that there has been no shipping damage. If there is damage, please refuse the shipment, and it will automatically come back to us for repair/replacement. -
Page 10: Grills
U N P A C K I N G Stands If you have ordered stands from JansZen, they will be packed separately and include their own instructions. Grills The speakers are designed to offer optimal sound reproduction with the grills in place, and they also help protect the electrostatic elements, both from mechanical damage and from collecting particulates from the air. -
Page 11: Cleaning
C L E A N I N G Cleaning Wooden baffles The final wood finish coat is wax, which will be removed by most cleaners. Wipe only with a soft, damp cloth. Painted and metal surfaces These surfaces can withstand strong cleaners as well as alcohol, but do not spray anything directly onto the speakers. -
Page 12: Quick Start
S T A R T Quick Start t mid and high frequencies, the zA1.1’s directivity keeps the stereo image from being affected much by room placement in all but the most reflective rooms. As with any non-dipole speakers, though, the bass is practically omnidirectional, so nearby walls will reinforce it. -
Page 13: Tips
Q U I C K S T A R T • Positioned a different distance from the side walls as from the front wall, to prevent overlap of the reinforcement spectra. For smoothest bass, the side wall distances should be asymmetrical, with the pair shifted a foot or so to one side, and for best imaging, they should be symmetrical. - Page 14 Q U I C K S T A R T o Add absorption or diffusion at the side wall first reflection points. o Make the side to side position symmetrical • Upper treble response can be rolled off to taste by reducing toe-in. •...
-
Page 15: Connecting And Powering
C O N N E C T I N G A N D P O W E R I N G Connecting and Powering Binding Posts The standard binding posts accept spades or bare wire, but not banana plugs, although they can be clamped into the posts in a pinch, so to speak. We have nothing against banana plugs, but came to appreciate the design of the Cardas Patented post assembly, with its handy, single knob clamping mechanism, solid copper posts, and rhodium plating. -
Page 16: Powering
C O N N E C T I N G A N D P O W E R I N G There is consequently no benefit to using a special power cord. The bias supply will work correctly with any mains voltage, and if the speakers are moved internationally, suitable power cords for any wall socket arrangement can be obtained worldwide and used without concern for converting/adapting the voltage. - Page 17 A I R L A Y E R airLayer Option As of this writing, this option is not yet available on the zA1.1, but will be eventually. It is available on the zA2.1. The zA1.1 speakers are very directive in the vertical, and rather directive in the horizontal.
-
Page 18: Setup Details
Setup Details Height The zA1.1 speakers are very directive in the vertical. There is thus about a 22 cm [9”] range of ear height that will experience full spectrum sound. It is thus important to ensure that your speakers are placed so that the center of the rectangular electrostatic element within an inch or two of your ear height when you are seated. -
Page 19: Room Compensation
S E T U P D E T A I L S already relatively well damped, then diffusion is preferable, which will control the direct reflections without decreasing “air”. Room Compensation To start, in a moderately lively, fairly large room, you will probably get the best sound when the speakers are toed in so that they face each of your shoulders or toward a position a couple of feet behind you. - Page 20 S E T U P D E T A I L S You can make some headway against these effects with no additional hardware by decreasing the setup symmetry. This is done by placing each speaker a different distance from each side wall or rotating your entire listening triangle 10 or 15 degrees relative to the walls or both.
-
Page 21: Features And Specifications
F E A T U R E S A N D S P E C I F I C A T I O N S Features and Specifications Frequency response -- 30 Hz - 40 kHz +/- 3 dB on axis (in room) •... - Page 22 F E A T U R E S A N D S P E C I F I C A T I O N S Bookshelf removes some energy in the 50 Hz band to counteract excessive wall reinforcement when placed very close to the front wall. Tweeter/midrange level setting from normal to -6 dB •...
- Page 23 F E A T U R E S A N D S P E C I F I C A T I O N S Rhodium plated, solid copper Cardas Patented binding posts for spades or bare wire with a convenient, single clamping knob 5-way post option available Diaphragm polarization supply •...
-
Page 24: Warranty
Shipping damage will not result in cash costs to the buyer. 1. Obvious damage. i. If such damage is discovered, delivery should be refused, so that JansZen may most credibly negotiate with the shipping company. ii. JansZen shall be notified of the event ASAP. - Page 25 IV. Satisfaction warranty. If the buyer wishes to return the speakers within 30 days of acceptance for any reason, they may be shipped to JansZen at the buyer's cost in its original condition and packing materials. If there is no damage traceable to the owner, the refund will be in full.
