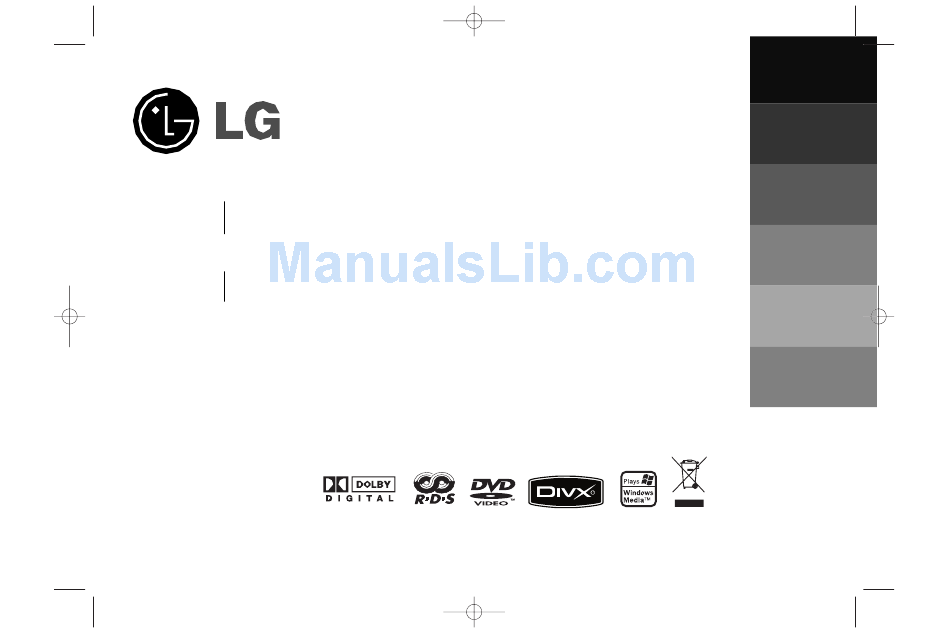

  • Page 1 FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 1 FBD203_103-D0U_ENG_DG_MFL42956216 ENGLISH DEUTSCH Model: FBD203 Français FBD203-A/D/X0U FBS203V FBD103 NEDERLANDS FBD103-A/D/X0U FBS103V SLOVENŠČINA TÜRKÇE...
  • Page 2: Safety Precaution

    This product is manufactured to comply with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. European representative : LG Electronics Service Europe B.V. Veluwezoom 15, 1327 AE Almere, The Netherlands (Tel : +31-036-547-8940) DVD Mini Hi-Fi System ] USER GUIDE...
  • Page 3: Types Of Playable Discs

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 3 Types of Playable Discs About the Symbol Display “ ” may appear on your TV display during operation and indicates that the Logo Type function explained in this owner’s manual is not available on that specific DVD DVD-VIDEO: Discs such as movies that can video disc.
  • Page 4: Table Of Contents

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 4 Welcome to your new DVD Mini Hi-Fi System Contents Connecting your portable USB player ..18 Safety Precaution ....2 Types of Playable Discs .
  • Page 5: Setting Up

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 5 Setting up Attaching the speakers to the unit Connect the wires to the unit. Match each wire’s coloured band to the same coloured connection terminal on the reverse of the unit. To connect the cable to the unit, press each plastic finger pad to open the connection terminal.
  • Page 6: Main Unit

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 6 Main unit • 1 1 (STANDBY/ON) MIC VOL. • (OPTIONAL) Adjust Turn on or off microphone volume by pressing MIC VOL. +/ -. MIC1/MIC2 • (OPTIONAL) Connect the microphone. ( 6.3 mm) PORT. IN •...
  • Page 7: Hooking Up The Unit -I

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 7 Hooking up the unit - I MONITOR OUT / OUT PUT(COMPONENT VIDEO /PROGRESSIVE SCAN) connections MONITOR jack connection Connect the VIDEO jack on the unit to the corresponding input jacks on your TV using a Video cable. OUT PUT (COMPO- NENT VIDEO) jacks connection...
  • Page 8: Hooking Up The Unit -Ii (Optional)

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 8 Hooking up the unit -II (Optional) SCART connection- Optional Connect one end of the scart Antenna connection cable into the TO TV SCART jack Fit the AM loop aerial to its stand on the unit and other end to the corresponding in jack on your TV.
  • Page 9: Remote Control

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 9 Remote control PLAY (N): Starts playback. POWER : Switches the unit ON or OFF. - 1.5 speed playback MUTE : Press MUTE to mute your unit. For example, to The 1.5 speed allows you to watch the pictures and listen answer the telephone.
  • Page 10: Osd Initial Language Setting(Optional)

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 10 Adjust the setting OSD Initial language setting (Optional) ON REMOTE After factory setting ,this beginning menu language will only be displayed at DVD or USB mode if you turn on the power at the first time. 1.
  • Page 11 FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 11 TV Output Select (Optional) – Select an option according to the TV connection Adjust the others settings type. [YPbPr]: When your TV is connected with the COMPONENT/PROGRES- DivX (R) Registration - We provide you with the DivX® VOD (Video On SIVE SCAN jacks on the unit.
  • Page 12: Displaying Disc Information

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 12 Setting the Clock Displaying Disc Information ON REMOTE ON PLAYER ON REMOTE 1 1 STANDBY/ON 1. Turn the power on: 1 1 POWER 1. Press: DISPLAY CLOCK 2. Press for at least 2 seconds: 2.
  • Page 13: Setting The Sound Mode

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 13 Fall asleep while listening to your player VSM (VIRTUAL SOUND MATRIX ) : You can set the unit to turn off automatically at a specified time. Press VSM to set the virtual sound or to change sound mode repeatly. Each time you press SLEEP the setting changes in the following order.
  • Page 14: Playing A Disc

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 14 Selecting a subtitle language DivX Playing a Disc During playback, press S-TITLE ( ) repeatedly to select a desired subtitle lan- ON PLAYER ON REMOTE guage. 1. Insert a Disc: Fast forward or fast reverse 2.
  • Page 15: Playing A Divx Movie File

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 15 Playing a DivX movie file Last Scene Memory - more you can do This unit memorizes last scene from the last disc that is viewed. The last scene ® remains in memory even if you remove the disc from the player or switch off Changing the character set to display DivX subtitle correctly the unit.
  • Page 16: Viewing Photo Files

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 16 Listening to Audio CD, MP3 or WMA files - Viewing photo files more you can do ON PLAYER ON REMOTE Creating your own program 1. Insert a Disc: You can play the contents of a disc in the order you want by arranging the order 2.
  • Page 17: Listening To The Radio

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 17 JPEG disc compatibility with this player is limited as follows: Listening to the radio - more you can do • Depending upon the size and the number of JPEG files, it could take a long Look for radio stations automatically time for the this unit.
  • Page 18: Listening To Music From Your Portable Player

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 18 Connecting your portable Listening to music from your USB player portable player The advantage of connecting your portable USB player through the system’s USB port is that the portable device can be controlled from the system.
  • Page 19: Usb Direct Recording

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 19 NOTES : USB DIRECT RECORDING - When you start the USB direct recording ,you can check the Recording percentage rate for the USB record on the TV display during the record- ing. Record AUDIO CD source to USB - During the recording is no sound and not operate for volume .
  • Page 20: Language Codes

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 20 Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Language Code Language Code Afar 6565 Croatian 7282...
  • Page 21: Troubleshooting

    FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 21 Troubleshooting Symptom Cause Correction POWER No power The power cord is not plugged in. Plug in the power cord. RADIO No sound The function switch is not set to the Radio mode. Set the switch to the Radio mode. There are electronic devices near the player.
  • Page 22: Specifications

    Intermediate Frequency 450 kHz Amplifier OUTPUT POWER 100 W + 100 W (4Ω, THD 0.5%) : FBD203 50 W + 50 W (4Ω, THD 0.5%) : FBD103 Stereo Mode 100 W + 100 W (4Ω, THD 0.5%) : FBD203 50 W + 50 W (4Ω, THD 0.5%) : FBD103...
  • Page 23 FBD203_103-D0U_ENG_DG_6216 6/23/08 4:08 PM Page 23 P/NO : MFL42956216...
