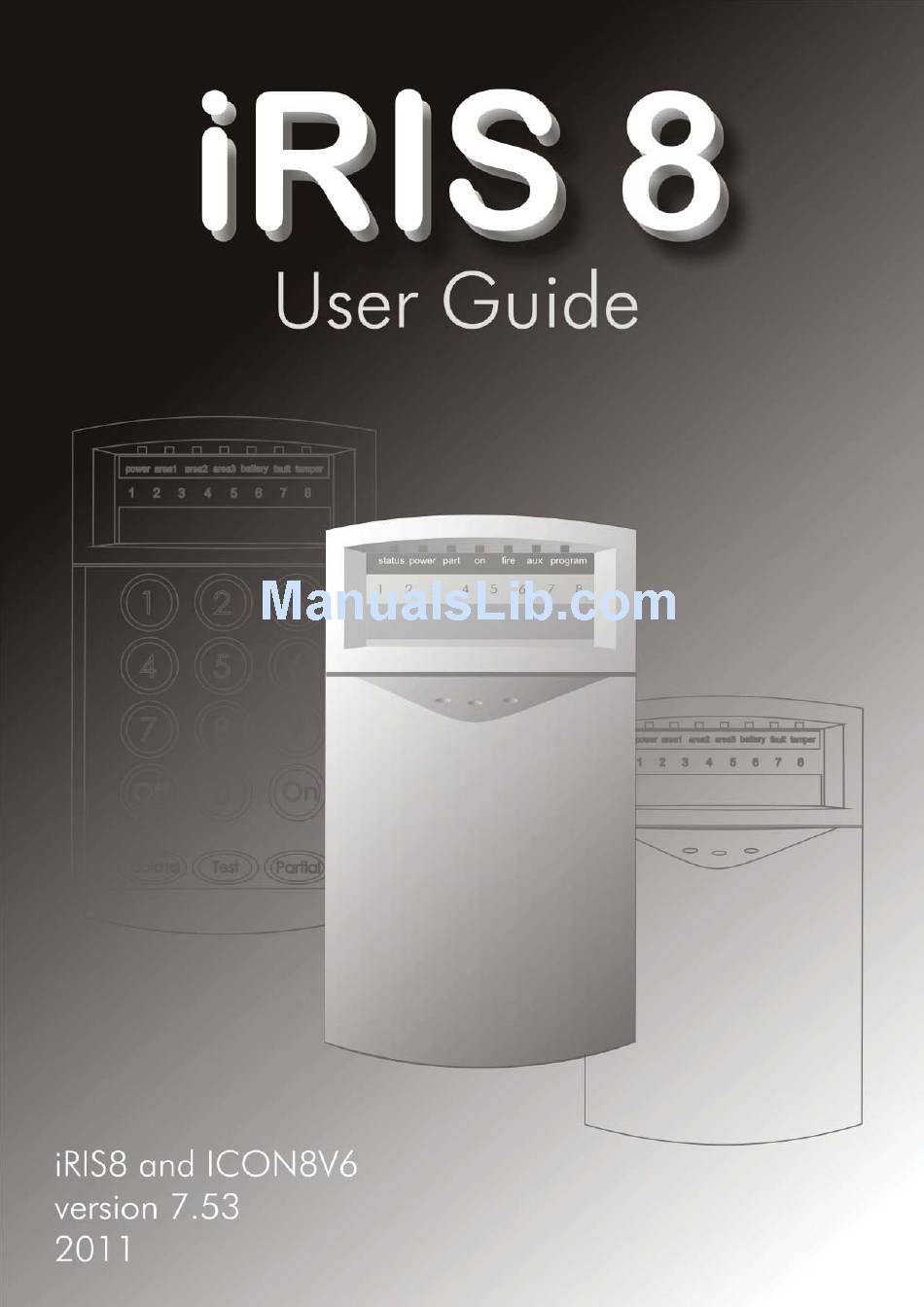

MCM Electronics iRIS 8 User Manual
  1. Manuals
  2. Brands
  3. MCM Electronics Manuals
  4. Control Panel
  5. iRIS 8
  6. User manual

MCM Electronics iRIS 8 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iRIS 8 and is the answer not in the manual?

Questions and answers

Related Manuals for MCM Electronics iRIS 8

Summary of Contents for MCM Electronics iRIS 8

  • Page 2: Table Of Contents

    Contents Contents Terms you may neeed to know Keypad Lights 3, 4 Keypad Buttons User Functions Fully Arming the System - ON Mode Partially Arming the System - Partial Mode Isolate a section from being Armed System OFF - Disarming the System User Code - Programming Master Code - Programming Other Features...
  • Page 3 Terms ..you may need to know Alarm The state of a security system when an armed sensor has been activated. Arming To place a section or panel ready to accept an alarm. Central A place where alarms are received and appropriate action Station taken in response to the Station alarm.

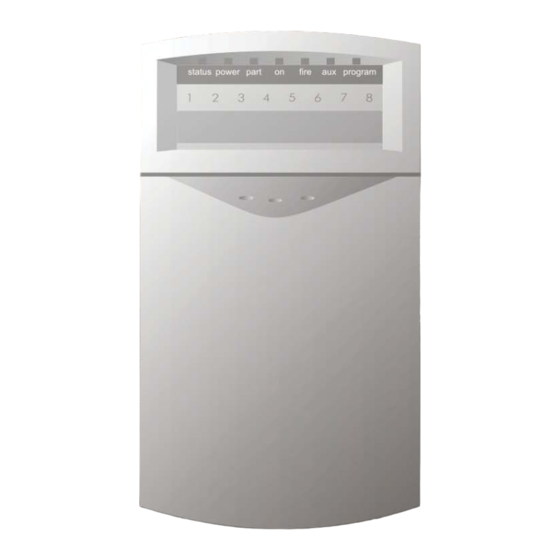

  • Page 4 Keypad Indicators Section Lights- There are 8 or 24 section lights on the command centre. When the system is in the OFF mode all non 24 hour sections are not armed and the Section Lights indicate the condition of the sensor..When the Section Light is On the sensor is activated (e.g.
  • Page 5 Keypad Indicators ..cont'd Partial Light ON when the Partial mode has been selected and only some of the sections are armed. Single fl ash when the system is Partially armed and Exit timer is running. Double fl ash when the system is armed and the Entry timer is running.
  • Page 6 Keypad Keys 0 - 9 Keys Used to enter numeric Codes or Function Numbers. Test Key Used when a valid User Code has been entered to enter Test mode. Isolate Key Used when a valid User Code has been entered to Isolate a section, usually before Arming the System.

  • Page 7: Fully Arming The System - On Mode

    Fully Arming the System - ON Mode Notes: The system will not change to ON mode unless all section lights are out or isolated. Power light should be ON and not fl ashing. Program, Fire and Auxillary lights,if fi tted, should be out. Exit Timer starts as soon as ON light starts fl...

  • Page 8: Isolate A Section From Being Armed

    Isolate a Section from being Armed Notes: When entering section numbers a two digit number eg 01 or a single 1 may be used. Single digit entry. i.e. the leading zero is ignored) Only valid section numbers may be entered. Sections are automatically de-isolated when the system is changed to OFF mode.
  • Page 9 Changing User Codes User 01 default is 1111. User codes are 4 digits long. (The Master Code is 6 digits long) User codes are used to change the status of the panel, isolate sections, test or acknowledge alarms. User codes cannot be the same or within one count of another User code including the fi...

  • Page 10: Other Features

    Changing the Master Code Notes: Master code default is 218572. Master code is 6 digits long. The Master code is only used to program the user codes. It cannot change the status of the system. (Arm or disarm the panel) The system must be in OFF mode to enter the master code.

  • Page 11: Test Functions

    Test Functions Test your system regularly and this will keep you familiar with the system and confi dent in the system operation. Maximum testing time is 10 minutes. The system must be in OFF mode before entering test mode. Test mode may not be entered until all alarm messages have been transmitted.
  • Page 12 Tests 7 & 8 contd..GSM Registration State - Test 8 No GSM network is found GSM is registered on its home network GSM is currently not registered on any network but is looking for a suitable one to register GSM has found some networks but it is not allowed to register on any of them, no roaming was allowed...

  • Page 13: Warranty

    Warranty Manufactured equipment is warranted to be free from defects in material and wokmanship for a period of 5 years (60) months from the date of manufacture as indicated by the date stamp and/or serial number on the product. Defective units returned by the buyer at his own expense during this period will be repaired (or replaced at the option of the manufacturer) with an equivalent piece of re-manufactured and tested equipment.

  • Page 14: Section List

    Section List page 12...

  • Page 15: Important Information

    Important Information Control Panel Type Security Company Monitoring Centre Installed by Date Installed *** Change System baterry every 3 years *** Check system regularly Emergency Numbers Local Police Fire Brigade Ambulance Doctor page 13...
