Summary of Contents for Thinklogical StudioPRO

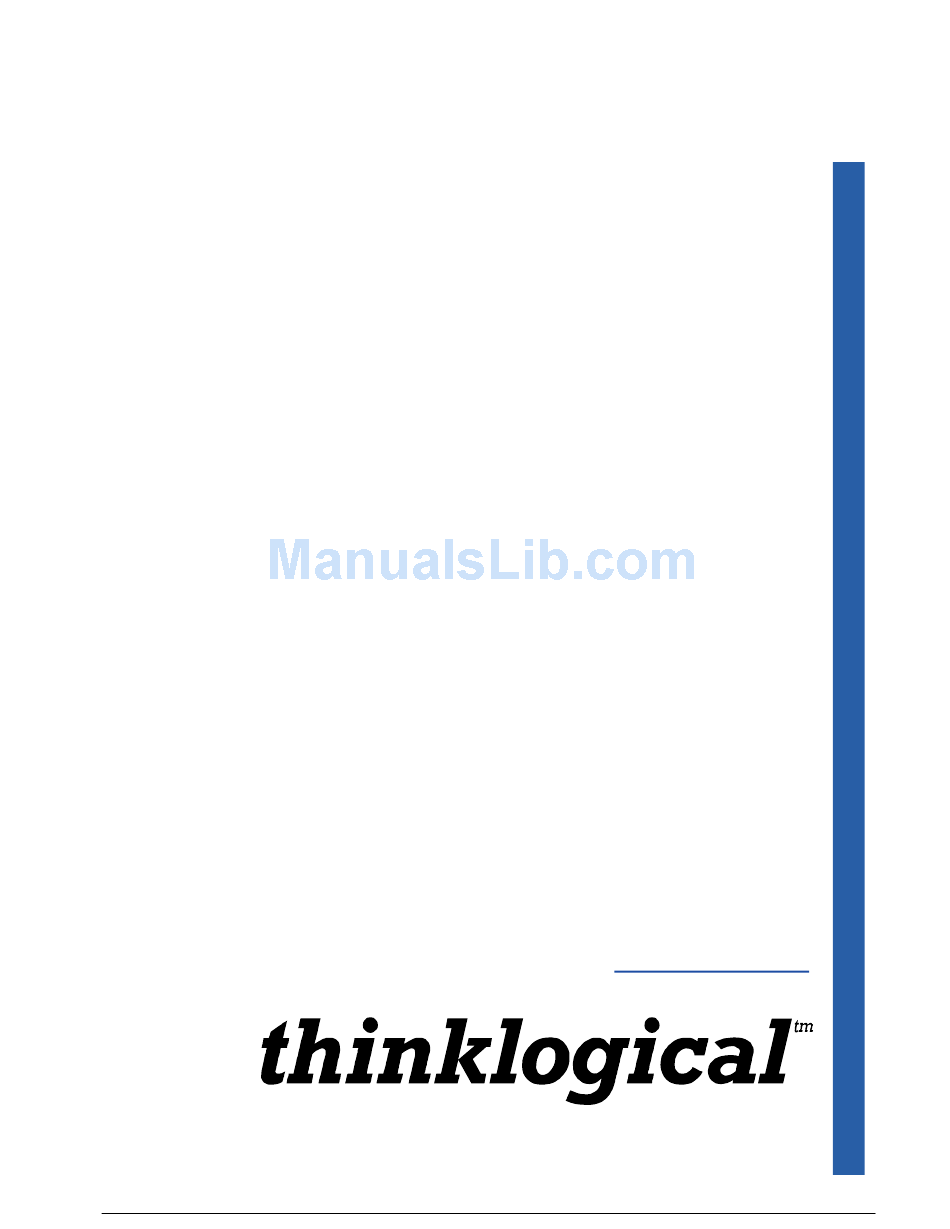

- Page 1 StudioPRO Extender Single-Link and Dual-Link Fiber Optic Digital Video Extension Systems PRODUCT MANUAL Thinklogical™ Inc. 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone 1-203-647-8700 Fax 1-203-783-9949 www.thinklogical.com...
- Page 2 Logical Solutions™, Inc. 100 Washington Street Milford, Connecticut, U.S.A. 06460 Telephone 1-203-647-8700 All trademarks and service marks are property of their respective owners. Powered by MRTS Technology Subject: DCS StudioPRO Extender Product Manual Revision: C, January 2010 JANUARY 2010 REVISION C...
-
Page 3: Table Of Contents
Table of Contents Introduction ......................1 1.1. Application ........................1 1.2. Increased Security and Efficiency .................. 1 1.3. Laser Information ......................1 System Features ....................3 2.1. General System Features ....................3 2.2. Hardware Features ......................3 2.2.1. Transmitter Front and Back Panels ................4 2.2.2. - Page 4 5.2. Product Support ......................18 5.2.1. Warranty ....................... 18 5.2.2. Our Address ......................18 Appendix A: StudioPRO Extender™ Models ................. 19 Appendix B: SPE Enclosure Dimensions ................20 Appendix C: SPE Quick Start Guides ..................21 JANUARY 2010 REVISION C...
-
Page 5: Introduction
Powered by Thinklogical’s™ cutting edge, patent-pending MRTS (Multi Rate Transmission System) Technology, our StudioPRO Extender (SPE) DVI Extension System transports every frame of a DVI video stream seamlessly with no compression or dropped frames. In addition, all high speed peripherals function with no latency. - Page 6 DVI TO Display DVI to Display DVI TO Display FIBER OPTIC CABLES (DDC) (DDC) (up to 1000 meters) POWER _ 5VDC DVI TO DVI TO DISPLAY USB 2.0 DISPLAY (DDC) USB Devices Figure 1: StudioPRO Extender, Single-Link application JANUARY 2010 REVISION C...
-
Page 7: System Features
2 System Features 2.1 General System Features The SPE systems are designed for high-resolution video and USB extension applications such as remote projection centers, theaters and assembly halls, and for secure computer installations. The ability to remotely locate the CPU away from the monitor and peripherals allow full control of your computer environment. -
Page 8: Transmitter Front And Back Panels
USB 2.0 DVI FROM CPU Powered by DISPLAY SELECT MRTS Technology StudioPRO EXTENDER DUAL-LINK, SINGLE_MODE TRANSMITTER Figure 2: Front and Back Views of the SPE Transmitter Models 2.2.2 Receiver Front and Back Panels StudioPRO The Future of Access and Control Extender... -
Page 9: Technical Specifications
2.3 Technical Specifications Each Thinklogical StudioPRO Extender System™ is designed to the following specifications: Electrical Cables USB Type A to USB Type B Cable, 6FT (1) (supplied with system) DVI-D Male to DVI-D Male Cable, 2M (Single Link Model Only) (1) - Page 10 Fiber is either multi-mode, 50 micron or 62.5 micron with ST-, SC- or LC- type connectors or single-mode with SC APC-type or LC-type connectors.* (Fiber cable is either customer-supplied or can be ordered from Thinklogical™.) Fiber Distances Up to 350 meters using type OM2 (5/125µm) Up to 650 meters using type OM3 enhanced (5/125µm)
-
Page 11: Connecting The Spe System
(DDC) Display Figure 4: SPE Connections by model 3.2 Contents When you receive your Thinklogical StudioPRO Extender System™, you should find the following items: StudioPRO Extender™ Transmitter StudioPRO Extender™ Receiver AC Power Supply (PWR-000022-R) – (2) USB Cable, 6 Feet DVI-D (M to M) Video Cable, 2 Meters StudioPRO Extender™... -
Page 12: Order Of Installation Events
3.3.1 Fiber Optic Cables Fiber Optic cables for the SPE system are not included but are available commercially or through Thinklogical™. Please contact your Thinklogical™ sales representative for a quotation on your required cable length or call us at 1-800-291-3211. -
Page 13: Digital Video Interface (Dvi-D) Output - Reveiver
3.3.3 Digital Video Interface (DVI-D) Output - Receiver The SPE Receiver unit connects to your DVI-D video monitor, projector, or other viewing device at the remote destination. Your device must have a DVI-D connector. 3.3.4 USB Type B – Transmitter Connect your PC’s USB-A port to the Transmitter’s USB-B port using the provided USB A to B Cable (CBL000015-006FR). -
Page 14: Status Leds
3.4 Status LEDs 3.4.1 Transmitter Indicator LEDs Status DDC MODE: Pass-Thru Local LED is GREEN & Remote LED is GREEN: Acts as a direct connection between CPU and display. No emulation is performed. Local LED is OFF & Remote LED is Green: EDID is read from the DDC MODE: Remote Dynamic... -
Page 15: Receiver
3.4.2 Receiver Indicator LEDs Status DDC MODE: Pass-Thru Local LED is GREEN & Remote LED is GREEN: Acts as a direct connection between CPU and display. No emulation is performed. Local LED is OFF & Remote LED is Green: EDID is read from the DDC MODE: Remote Dynamic remote display and is updated each time the remote display changes. -
Page 16: General Button Usage - Ddc Select
(missing monitor, hot-plugged or the DDC information does not match expected digital or analog parameters). Some video cards are more tolerant and will produce video output under many conditions. Due to the variability of video card DDC handling, Thinklogical™ products provide the DDC support modes detailed below. - Page 17 CPU and a connected monitor before the CPU can be booted. When a Thinklogical™ product is supplied to customers it typically comes with a default table that provides a maximum resolution of 1920x1200. If the customer elects to use the default DDC data in static mode, the video card will read that the TX (emulating a monitor) is capable of showing 1920x1200.
-
Page 18: Regulatory And Safety Requirements
Power connections are made with regionally appropriate power cords and approved methods. 4.2 Regulatory Compliance Thinklogical™ SPE products are designed and made in the U.S.A. SPE products have been tested by a nationally certified testing laboratory and found to be compliant with the following standards (both domestic USA and international locations). -
Page 19: North America
Thinklogical™ Inc. 100 Washington Street Milford, Connecticut 06460 USA Telephone 1-203-647-8700 Product Name: StudioPRO USB 2.0 and DVI Extender These products comply with the requirements of the Low Voltage Directive 72/23/EEC and the EMC Directive 89/336/EEC. 4.2.4 Product Standards Compliance Safety •... -
Page 20: Supplementary Information
Electromagnetic Immunity • EN55024: 1998 Information Technology Equipment-Immunity Characteristics • EN61000-4-2: 1995 Electro-Static Discharge Test • EN61000-4-3: 1996 Radiated Immunity Field Test • EN61000-4-4: 1995 Electrical Fast Transient Test • EN61000-4-5: 1995 Power Supply Surge Test • EN61000-4-6: 1996 Conducted Immunity Test •... -
Page 21: How To Contact Us
Thank you for choosing Thinklogical™ products for your application. We appreciate your business and are dedicated to helping you successfully use our products. Thinklogical™ is always here to help. To contact us please use the following telephone numbers and internet-based methods. -
Page 22: Fax
(ii) modifications to or repairs of the product that are made by any party other than Thinklogical or a party acting on Thinklogical’s behalf, or (iii) combination of the product with third party products that is not consented to by Thinklogical. -
Page 23: Our Address
3. Pack the product in all of its original packing, if possible, and write the RMA number on the box. 4. Return the product to: Thinklogical, LLC Attn: RMA# [Insert the RMA# issued to you, by Thinklogical, here.] 100 Washington Street Milford, CT 06460 USA 5.2.2 Our Address... -
Page 24: Appendix A: Studiopro Extender™ Models
Appendix A: StudioPRO Extender™ Models All models listed are available from Thinklogical™: Part Number Item Name VEL-SP0MDL-LCRX STUDIOPRO EXTENDER, DUAL LINK, 2.0, MULTIMODE, RX, LC VEL-SP0MDL-LCTX STUDIOPRO EXTENDER, DUAL LINK, 2.0, MULTIMODE, TX, LC VEL-SP0MDL-SCRX STUDIOPRO EXTENDER, DUAL LINK, 2.0, MULTIMODE, RX, SC VEL-SP0MDL-SCTX STUDIOPRO EXTENDER, DUAL LINK, 2.0, MULTIMODE, TX, SC... -
Page 25: Appendix B: Spe Enclosure Dimensions
Appendix B: SPE Enclosure Dimensions 6.625" 1.75" (168.27mm) (44.45mm) 5.75" .875" (146.05mm) (22.2mm) .5625" (14.29mm) FIGURE 10: SPE Chassis Dimensions NOTE: Drawing is not to scale. JANUARY 2010 REVISION C... -
Page 26: Appendix C: Spe Quick Start Guides
Appendix C: SPE Quick Start Guides FIGURE 11: StudioPRO Extender Single-Link DVI, USB 2.0 Quick Start Guide JANUARY 2010 REVISION C... - Page 27 FIGURE 12: StudioPRO Extender Dual-Link DVI, USB 2.0 Quick Start Guide JANUARY 2010 REVISION C...
- Page 28 FIGURE 13: StudioPRO Extender Single-Link DVI, USB 2.0 Single-Mode Video Quick Start Guide JANUARY 2010 REVISION C...
- Page 29 FIGURE 14: StudioPRO Extender Single-Link DVI, USB 2.0 Single-Mode LC Fiber Video Quick Start Guide JANUARY 2010 REVISION C...
