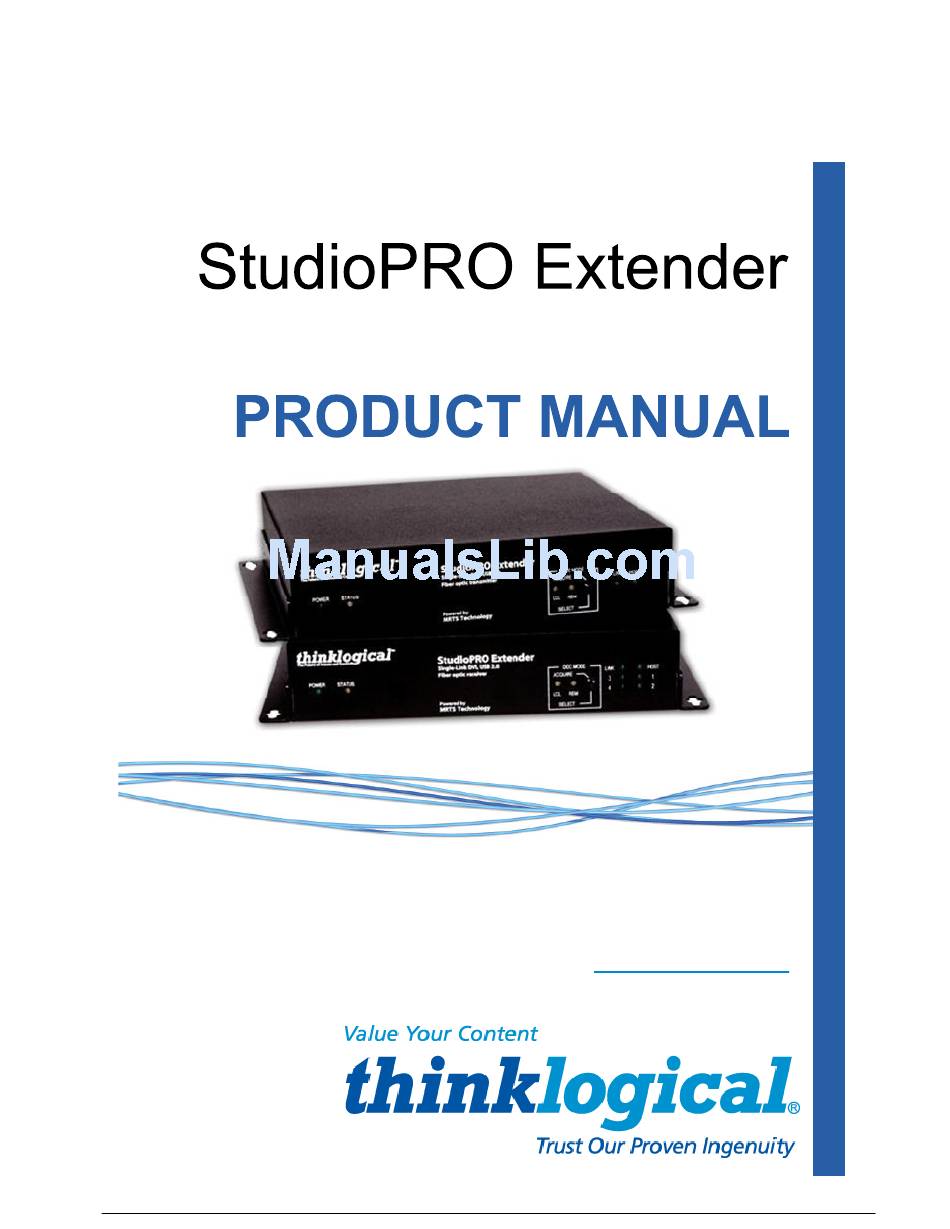

Thinklogical StudioPRO Product Manual

Single-link and dual-link fiber optic digital video extension systems
Hide thumbs Also See for StudioPRO:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Product Manual
Single-Link and Dual-Link Fiber Optic
Digital Video Extension Systems
Thinklogical, LLC
®
100 Washington Street
Milford, Connecticut 06460 U.S.A.
Telephone 1-203-647-8700
Fax 1-203-783-9949
www.thinklogical.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the StudioPRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thinklogical StudioPRO

Summary of Contents for Thinklogical StudioPRO

  • Page 1 Single-Link and Dual-Link Fiber Optic Digital Video Extension Systems Thinklogical, LLC ® 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone 1-203-647-8700 Fax 1-203-783-9949 www.thinklogical.com...
  • Page 2 Telephone 1-203-647-8700 All trademarks and service marks are property of their respective owners. Subject: StudioPRO Extender Product Manual Revision: D, October 2013 S t u d i o P R O E x t e n d e r P r o d u c t M a n u a l , R e v . D , O c t o b e r , 2 0 1 3...

  • Page 3: Table Of Contents

    5.2.1. Warranty ..............................20 5.2.2. Return Merchandise Authorization......................20 5.2.3. Our Address ............................20 Appendix A: StudioPRO Extender Models ......................21 Appendix B: SPE Stand-Alone Enclosure Dimensions ..................22 Appendix C: SPE Quick Start Guides ........................23 S t u d i o P R O E x t e n d e r P r o d u c t M a n u a l , R e v . D , O c t o b e r , 2 0 1 3...

  • Page 4: Introduction

    1.3 Laser Information All StudioPRO Extender models are designed and identified as Class 1 LASER products. S t u d i o P R O E x t e n d e r P r o d u c t M a n u a l , R e v . D , O c t o b e r , 2 0 1 3...
  • Page 5 ® StudioPRO Extender, Single-Link application S t u d i o P R O E x t e n d e r P r o d u c t M a n u a l , R e v . D , O c t o b e r , 2 0 1 3...

  • Page 6: System Features

    StudioPRO Rack-Mount Transmitter See Appendix A on page 21 for the complete list of StudioPRO Extender Model part numbers. S t u d i o P R O E x t e n d e r P r o d u c t M a n u a l , R e v . D , O c t o b e r , 2 0 1 3...

  • Page 7: Single-Link Dvi Front And Back Panels

    ® 2.2.1 Single-Link Front and Back Panels Front and Back Views of the SPE Single-Link Models 2.2.2 Dual-Link Front and Back Panels Front and Back Views of the SPE Dual-Link Models 2.2.3 Dual-Head, Single-Link Front and Back Panels Front and Back Views of the SPE Dual-Head, Single-Link Models S t u d i o P R O E x t e n d e r P r o d u c t M a n u a l , R e v .

  • Page 8: Rack-Mount, 3X Dual-Head, Single-Link Dvi Front And Back Panels

    2.2.4 Rack-Mount 3X Dual-Head, Single-Link Front and Back Panels Front and Back Views of the Rack-Mount SPE 3X Dual-Head, Single-Link Model 2.3 Technical Specifications Each Thinklogical StudioPRO Extender System® is designed to the following specifications: USB Type A to USB Type B Cable, 6FT, All models (1) Electrical...
  • Page 9 ® >6 dB multi-mode; >15 dB single-mode 40km optics; >8 dB single-mode Optical Budget 10km optics Transmitter and Receiver lasers meet Class 1 Laser specifications. Laser Output (Class 1 lasers do not require any special precautions under conditions of Specifications normal use.) Single-Link: L1: Data Tx to Rx and Video...

  • Page 10: Connecting The Spe System

    ® 3 Connecting the StudioPRO Extender System ® 3.1 Contents When you receive your Thinklogical StudioPRO Extender System , you should find the following items: ® StudioPRO Extender Transmitter • ® StudioPRO Extender Receiver • ® For stand-alone units, AC to DC Power Adapter (PWR-000022-R) – (2) •...

  • Page 11: Dual-Head, Single-Link

    ® Dual-Head, Single-Link SPE Dual-Head, Single-Link Connections Rack-Mount, 3X Dual-Head, Single-Link StudioPRO 3X DUAL-HEAD, SINGLE-LINK EXTENDER TRANSMITTERS VEL-SP6MSL-LCTX DVI 1 DVI 3 DVI 5 DVI 2 DVI 4 DVI 6 USB 2.0 USB 2.0 USB 2.0 Source CPU 1 Source CPU 2 Source CPU 3 L1: Video 1 &...

  • Page 12: Order Of Installation Events

    ® 3.6 Order of Installation Events Refer to the SPE Quick Start Guides included in Appendix C on pages 23-26 for detailed installation instructions. 3.6.1 Fiber Optic Cables Fiber Optic cables for the SPE system are not included but are available commercially or through Thinklogical .

  • Page 13: Usb Type A - Receiver

    ® 3.6.5 USB Type A – Receiver Using the cables on your USB devices, connect up to four devices to any of the USB- A ports located on the rear panel of the Receiver unit. USB Type A connector and port 3.6.6 AC to DC Power Adapter Two wall-mount AC to 5VDC power adapters (PWR-000022-R) are included.

  • Page 14: Status Leds

    ® 3.7 Status LEDs Extended Display Identification Data (EDID) is a data structure provided by a digital display to describe its identity (manufacturer’s name, product type, serial number, etc.) and capabilities (native timing, frequency range, video and audio formats, etc.) to a video source. EDID is what enables a personal computer to know what kind of monitor is connected.

  • Page 15: General Button Usage - Ddc Select

    ® 3.7.2 Receiver Indicator LEDs Status Local LED is GREEN & Remote LED is GREEN: Acts as a direct DDC MODE: Pass-Thru connection between CPU and display. No emulation is performed. DDC MODE: Remote Local LED is OFF & Remote LED is Green: EDID is read from the Dynamic remote display and is updated each time the remote display changes.

  • Page 16: Operation Of The Ddc Modes

    ® 3.8 General Button Usage – DDC Select The TX and RX units both have a button labeled DDC SELECT. When the data communications fibers L1 and L2 are connected, either unit will control the state of the DDC operation. Each press of the button will advance the DDC state from PASS THRU to DYNAMIC to STATIC and back to PASS THRU.

  • Page 17: Regulatory And Safety Requirements

    ® non-volatile memory that the video card can read. The TX then informs the video card that the DDC information has changed so that the video card can read the DDC and act accordingly. In this mode the CPU may be booted up with the TX turned off or disconnected from the RX since the TX non-volatile DDC memory can be read by the video card without TX power.

  • Page 18: Industry-Standard Connections To The Product

    ® 100 Washington Street Milford, Connecticut 06460 USA Telephone 1-203-647-8700 Product Name: StudioPRO USB 2.0 and DVI Extender These products comply with the requirements of the Low Voltage Directive 72/23/EEC and the EMC Directive 89/336/EEC. 4.2.4 Product Standards Compliance Safety •...

  • Page 19: Supplementary Information

    ® Electromagnetic Immunity • EN55024: 1998 Information Technology Equipment-Immunity Characteristics • EN61000-4-2: 1995 Electro-Static Discharge Test • EN61000-4-3: 1996 Radiated Immunity Field Test • EN61000-4-4: 1995 Electrical Fast Transient Test • EN61000-4-5: 1995 Power Supply Surge Test • EN61000-4-6: 1996 Conducted Immunity Test •...

  • Page 20: Website

    ® 5.1.1 Website Visit our website for more product information, current updates and the complete line of Thinklogical® products. Our internet website offers product information on all current systems, including technical specification sheets, Quick Start Guides, product diagrams and more. We are continually updating our website, so be sure to refresh your browser when visiting our website to see the most up-to-date information.

  • Page 21: Fax

    ® 5.1.4 Fax Our company facsimile number is 1-203-783-9949. Please indicate the nature of the fax on your cover sheet and provide return contact information. 5.2 Product Support Thinklogical’s® support personnel are available Monday through Friday from 8:30am to 5:30pm, Eastern Time Zone.

  • Page 22: Appendix A: Studiopro Extender Models

    STUDIOPRO EXTENDER, DUAL HEAD, SINGLE LINK, 2.0, SINGLEMODE, TX, LC RACK-MOUNT, 3x DUAL-HEAD, SINGLE-LINK, MULTI-MODE VEL-SP6MSL-LCTX STUDIOPRO EXTENDER, 3 DUAL HEAD SINGLE LINK, 2.0, MULTIMODE, TX, LC SINGLE-LINK, MULTI-MODE, REDUNDANT VEL-SPRMSL-LCTX STUDIOPRO EXTENDER, SINGLE LINK, 2.0, REDUNDANT OPTICS, MULTIMODE, TX, LC S t u d i o P R O E x t e n d e r P r o d u c t M a n u a l , R e v .

  • Page 23: Appendix B: Spe Stand-Alone Enclosure Dimensions

    ® Appendix B: SPE Stand-Alone Enclosure Dimensions 6.625" 1.75" (168.27mm) (44.45mm) 5.75" .875" (146.05mm) (22.2mm) .5625" (14.29mm) SPE Chassis Dimensions NOTE: Drawing is not to scale. S t u d i o P R O E x t e n d e r P r o d u c t M a n u a l , R e v . D , O c t o b e r , 2 0 1 3 Page 22...

  • Page 24: Appendix C: Spe Quick Start Guides

    StudioPRO Extender STEP 5: CONTENTS: Connect the supplied +5V power StudioPRO Single-link Extender Transmitter [1] supply (PWR-000022-R) to the transmitter StudioPRO Single-link Extender Receiver [1] and plug it into a standard AC source. Single-Link DVI, USB 2.0 Video Extension System...
  • Page 25 ® StudioPRO Extender Dual-Link DVI, USB 2.0 Quick Start Guide S t u d i o P R O E x t e n d e r P r o d u c t M a n u a l , R e v . D , O c t o b e r , 2 0 1 3...
  • Page 26 StudioPRO Extender CONTENTS: STEP 5: Connect the supplied +5V power StudioPRO Dual-Head Extender Transmitter [1] supply (PWR-000022-R) to the transmitter StudioPRO Dual-Head Extender Receiver [1] and plug it into a standard AC source. Dual-Head, Single-Link DVI, USB 2.0 Extension System...
  • Page 27 ® Rack-Mount StudioPRO Extender, 3X Dual-Head, Single-Link DVI, USB 2.0 Quick Start Guide S t u d i o P R O E x t e n d e r P r o d u c t M a n u a l , R e v . D , O c t o b e r , 2 0 1 3...
