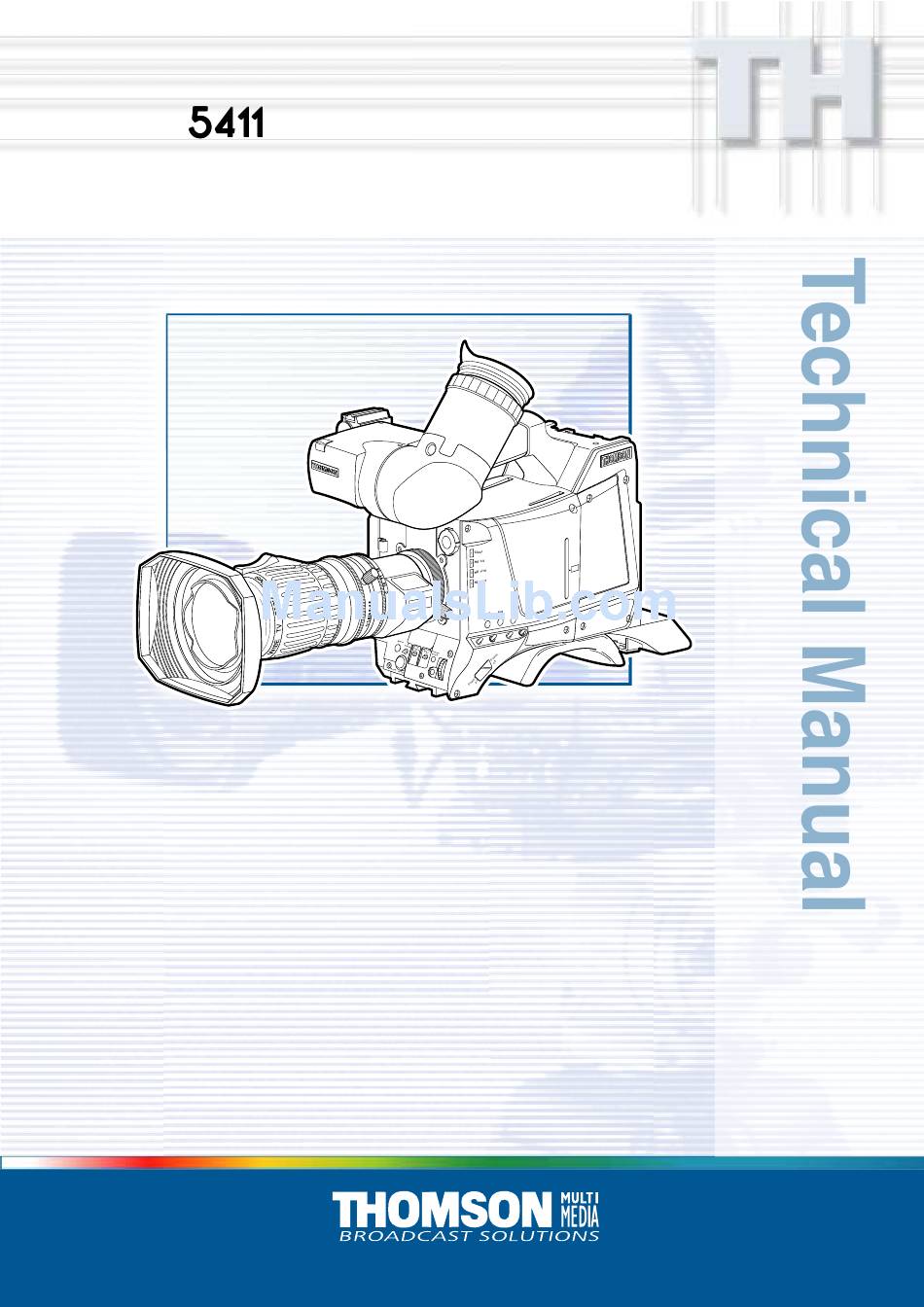

- Page 1 UOT2 UOT2 UOT2 UOT2 UOT2 Betacam Adapter for LDK 100 Series S m ar C ar d 3922 496 46821 St.00...
-
Page 2: Declaration Of Conformity
Declaration of Conformity We, Thomson Broadcast Solutions Nederland B.V., Kapittelweg 10, 4827 HG Breda, The Netherlands declare under our sole responsibility that this product is in compliance with the following standards: EN60065 : Safety EN55103-1 : EMC (Emission) EN55103-2 : EMC (Immunity) following the provisions of: a. -
Page 3: Table Of Contents
LDK 5411 Betacam SP Adapter Technical Manual Contents About This Manual ..........ii Safety Instructions ........... 1-1 Adjustments ............. 3-1 Safety Summary ..........1-2 Introduction ............3-2 Cautions and Warnings ........1-2 Test Equipment ..........3-3 Earthing ............. 1-3 Set-up Instructions ..........3-3 Encoder Board PAL ........... -
Page 4: About This Manual
The guiding principles of the Thomson Multimedia Broadcast Structure of this manual Solutions first line maintenance philosophy are speed The manual is divided into two sections: and cost effectiveness. - Page 5 Identification and Status Example of LDK number: To indicate the status of a drawing, a box with the LDK 4501/01 means 8926 450 10101 numbers 0 to 9 is shown in the bottom-right of the LDK 4500/00 means 8926 450 00001 drawing.
- Page 6 Technical Manual LDK 5411 - Betacam SP Adapter 02.36.2...
-
Page 7: Safety Instructions
Section 1 Safety Instructions This section outlines the precautions that must be taken into account when using the Betacam SP Adapter. Contents Safety Summary ............1-2 Earthing ..............1-3 Cautions and Warnings ..........1-2 Safety Instructions Technical Manual LDK 5411 - Betacam SP Adapter... -
Page 8: Safety Summary
Safety Summary Cautions and Warnings This informaton is intended as a guide for trained and When performing service, be sure to read and comply with qualified personnel who are aware of the dangers involved the warning and caution notices appearing in the manuals. in handling potentially hazardous electrical/electronic Warnings indicate danger that requires correct procedures equipment. -
Page 9: Earthing
Earthing The rear of a CPU has two separate screw terminals for Symbol Colour Explanation protective earth (PE) and video earth (VE). High voltage terminal at which a voltage, with respect to an other terminal, exists or may be Metal adjusted to 1000V or more. - Page 10 Technical Manual LDK 5411 - Betacam SP Adapter Safety Instructions...
-
Page 11: Installation
Section 2 Installation This section provides information which is relevant when the camera is to be used for the first time. Packing and unpacking instructions together with information on the integration of the camera into your system are provided. The procedures for the customization of certain hardware functions and connector information is also provided. -
Page 12: Packing/Unpacking
Packing/Unpacking Inspect the shipping container for evidence of damage If a unit is being returned to Thomson Multimedia immediately after receipt. If the shipping container or Broadcast Solutions for servicing, try to use the cushioning material is damaged, it should be kept until containers and materials of the original packaging. -
Page 13: Attaching An Adapter
Attaching an Adapter Detaching an Adapter The LDK 100 Camera is a multi-role camera that can To detach an adapter from the camera head follow the be used with various adapters. To attach an adapter to steps for attaching it in the reverse order. the camera head proceed as follow: Caution Caution... -
Page 14: Hardware Customization
Hardware Customization The adaptor is delivered in a ready-to-use state, Location of boards however, there are occasions when it might be necessary to re-adjust some functions after, for Unscrew the four screws on the left side panel and example, fitting a new board. swing down the cover. -
Page 15: Connectors
Connectors Docking connector adapter A row name B row name C row name D row name lon data lon data N + batt SDA_C SCL_C + batt INTN_C audio indication + batt AB batt sense batt sense + batt adpt id 0 adpt id 1 + batt adpt id 2... - Page 16 Docking Connector Recorder 1. n.c. 26. playback / camera switch control 2. n.c. 27. VTR start / stop 3. n.c. 28. n.c. 4. n.c. 29. R-Y 5. GND 30. R-Y ret 6. GND 31. audio ch-1 control 7. n.c. 32. VTR save 8.
-
Page 17: Specifications Ldk 100 With Betacam Sp Adapter Ldk 5411
Specifications LDK 100 with Betacam Sp adapter LDK 5411 General data Inputs Power requirements triax powered or 12V dc Front mic. 1 x XLR 3, balanced, +48V Power consumption 20 W (Head + VF) Mic. 1 x XLR 3, balanced, +48V Control input 9-pin, RS232 compatible Operating temperatures... - Page 18 Technical Manual LDK 5411 - Betacam SP Adapter Installation...
-
Page 19: Adjustments
Section 3 Adjustments This section contains the adjustment procedures to be followed to obtain the best performance from the camera. These procedures need only be used if, following a module replacement, the camera does not perform according to specifications. Contents Introduction ............ -
Page 20: Introduction
Under normal circumstances, the internal automatic out of range, please contact your local supplier or the calibration procedures do not need to be started and the nearest Thomson Multimedia Broadcast Solutions internal potentiometers do not need to be adjusted. Service Centre. -
Page 21: Test Equipment
Test Equipment Set-up Instructions The following is a list of equipment required to carry out Before carrying out any adjustments the following steps the adjustment procedure: are recommended: • Set of board extenders LDK 5820/01 • Attach the adapter to the camera. •... -
Page 22: Encoder Board Pal
Encoder Board PAL Encoder 3922 406 8715 ZR314 ZR529 ZR114 ZMP1 ZL513 ZMP700 ZR528 ZR717 ZR722 1234 ZL111 R542 ZMP100 ZMP300 ZMP502 ZL311 ZMP108 ZMP500 ZMP0 ZMP308 Encoder 3922 406 8440 R525 ZMP105 ZR124 ZR324 ZMP107 R171 ZMP106 ZL105 ZR326 ZR902 ZL801 ZL800... - Page 23 Encoder Board PAL Set-up 1. Switch off power. Place encoder board on service extender. Genlock camera with black burst signal. Switch on power. 2. Connect oscilloscope via a vectorscope terminated with 75 Ohm to the CVBS output. 3. Switch on colour bar. Black balance 4.
- Page 24 Encoder Board PAL Encoder 3922 406 8715 ZR314 ZR529 ZR114 ZMP1 ZL513 ZMP700 ZR528 ZR717 ZR722 1234 ZL111 R542 ZMP100 ZMP300 ZMP502 ZL311 ZMP108 ZMP500 ZMP0 ZMP308 Encoder 3922 406 8440 R525 ZMP105 ZR124 ZR324 ZMP107 R171 ZMP106 ZL105 ZR326 ZR902 ZL801 ZL800...
- Page 25 Encoder Board PAL B-Y amplitude 9. Adjust the B-Y gain potentiometer to obtain an output amplitude of 1050mV. Measure at: Adjust with: Required result: Correct: X21-11A ZR114 1050mV 0.2V 10µS VA+1050mV BURST ADJUSTMENTS Burst phase 10. Measure in second quadrant of vectorscope. Adjust the input sensitivity potentiometer of the vectorscope so the burst vectors just touch the circle graticule.
- Page 26 Encoder Board PAL Encoder 3922 406 8715 ZR314 ZR529 ZR114 ZMP1 ZL513 ZMP700 ZR528 ZR717 ZR722 1234 ZL111 R542 ZMP100 ZMP300 ZMP502 ZL311 ZMP108 ZMP500 ZMP0 ZMP308 Encoder 3922 406 8440 R525 ZMP105 ZR124 ZR324 ZMP107 R171 ZMP106 ZL105 ZR326 ZR902 ZL801 ZL800...
- Page 27 Encoder Board PAL Sync amplitude 15. Adjust the sync, amplitude potentiometer fto obtain a sync. ampliatude of 300mV. Measure at: Adjust with: Required result: Correct: CVBS out ZR525 300mV 0.1V 2µS VA+300mV Y offset 16. Adjust the Y offset potentiometer to place the black bar at the 0Vdc level. Measure at: Adjust with: Required result:...
-
Page 28: Encoder Board Ntsc
Encoder Board NTSC Encoder 3922 406 8716 ZR314 ZR529 ZR114 ZMP1 ZL513 ZMP700 ZR528 ZR717 ZR722 1234 ZL111 R542 ZMP100 ZMP300 ZMP502 ZL311 ZMP108 ZMP500 ZMP0 ZMP308 Encoder 3922 406 8441 R525 ZMP105 ZR124 ZR324 ZMP107 R171 ZMP106 ZL105 ZR326 ZR902 ZL801 ZL800... - Page 29 Encoder Board NTSC Set-up 1. Switch off power. Place encoder board on service extender. Genlock camera with black burst signal. Switch on power. 2. Connect oscilloscope via a vectorscope terminated with 75 Ohm to the CVBS output. 3. Switch on colour bar. Black balance 4.
- Page 30 Encoder Board NTSC Encoder 3922 406 8716 ZR314 ZR529 ZR114 ZMP1 ZL513 ZMP700 ZR528 ZR717 ZR722 1234 ZL111 R542 ZMP100 ZMP300 ZMP502 ZL311 ZMP108 ZMP500 ZMP0 ZMP308 Encoder 3922 406 8441 R525 ZMP105 ZR124 ZR324 ZMP107 R171 ZMP106 ZL105 ZR326 ZR902 ZL801 ZL800...
- Page 31 Encoder Board NTSC B-Y amplitude 9. Adjust the B-Y gain potentiometer to obtain an output amplitude of 1050mV. Measure at: Adjust with: Required result: Correct: X21-11A ZR114 1050mV 0.2V 10µS VA+1050mV BURST ADJUSTMENTS Burst amplitude 10. Adjust the burst amplitude potentiometer to obtain a burst amplitude of 286mV. Measure at: Adjust with: Required result:...
- Page 32 Encoder Board NTSC Encoder 3922 406 8716 ZR314 ZR529 ZR114 ZMP1 ZL513 ZMP700 ZR528 ZR717 ZR722 1234 ZL111 R542 ZMP100 ZMP300 ZMP502 ZL311 ZMP108 ZMP500 ZMP0 ZMP308 Encoder 3922 406 8441 R525 ZMP105 ZR124 ZR324 ZMP107 R171 ZMP106 ZL105 ZR326 ZR902 ZL801 ZL800...
- Page 33 Encoder Board NTSC Sync amplitude 13. Adjust the sync, amplitude potentiometer fto obtain a sync. ampliatude of 286mV. Measure at: Adjust with: Required result: Correct: CVBS out ZR525 286mV 0.1V 2µS VA+286mV Y offset 14. Adjust the Y offset potentiometer to place the black bar at the 50mVdc level. Measure at: Adjust with: Required result:...
- Page 34 3-16 Technical Manual LDK 5411 - Betacam SP Adapter Adjustments...
-
Page 35: Wiring Diagram
Section 4 Wiring Diagram Contents Betacam SP Adaptor ......... 4-2 Wiring Diagrams Technical Manual LDK 5411 - Betacam SP Adapter... - Page 36 Technical Manual LDK 5411 - Betacam SP Adapter Wiring Diagrams...
-
Page 37: Mechanical Exploded Views
Section 5 Mechanical Exploded Views Contents Betacam SP Adaptor Basic ....... 5-2 Hand grip Betacam SP Adaptor ......5-3 Mechanical Exploded Views Technical Manual LDK 5411 - Betacam SP Adapter... - Page 38 Technical Manual LDK 5411 - Betacam SP Adapter Mechanical Exploded Views...
- Page 39 Mechanical Exploded Views Technical Manual LDK 5411 - Betacam SP Adapter...
- Page 40 Technical Manual LDK 5411 - Betacam SP Adapter Mechanical Exploded Views...
-
Page 41: Parts Lists
Section 6 Parts Lists Parts Lists Technical Manual LDK 5411 - Betacam SP Adapter... - Page 42 Technical Manual LDK 5411 - Betacam SP Adapter Parts Lists...
