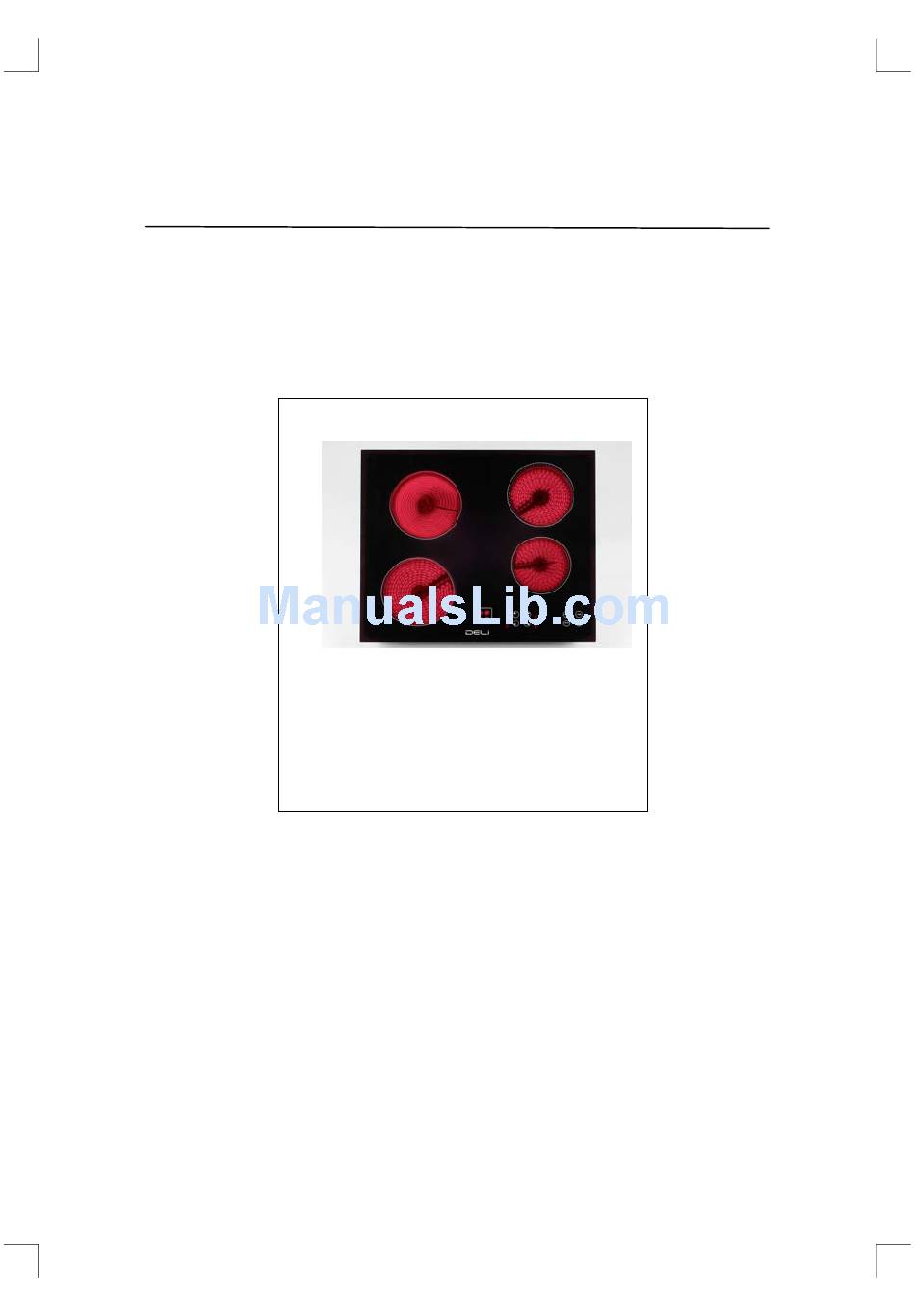

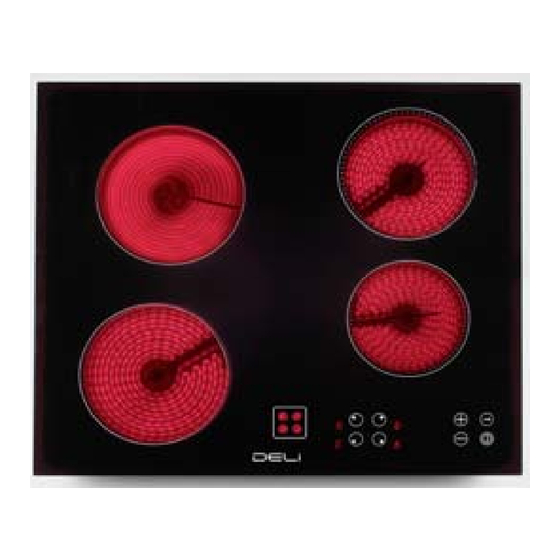

- Page 1 CERAMIC HOB USER MANUAL FOR VITROCERAMIC HOB Model:PF604VS...
-
Page 2: Table Of Contents
CERAMIC HOB CONTENT 1. IMPORTANT INFORMATION 2. INTRODUCTION TO RADIANT VITRO CERAMIC COOKING 3. OPERATING THE APPLIANCE 3.1 BASIC COOKING METHODS 3.2 OPERATING THE TOUCH CONTROL 4. TECHNICAL SPECIFICATIONS 5. SUITABLE COOKING VESSELS 6. INSTALLATION INSTRUCTIONS 7. SAFETY PRECAUTION 8. ENVIRONMENTAL PROTECTION 9. -
Page 3: Important Information
CERAMIC HOB 1. IMPORTANT INFORMATION ● Before plugging in the appliance, read the user manual carefully. Store the user manual in a safe place for future reference. ● Check that the specifications and electrical input voltage is suitable for operation in your area. ●... -
Page 4: Operating The Appliance
CERAMIC HOB 3. OPERATING THE APPLIANCE 3.1 BASIC COOKING METHODS Turn on the hob and adjust the heat supply by turning on the switch button or pressing the sensor touch button. The range of heat supply is indicated on the panel, and the temperature adjustment is direct and precise. -
Page 5: Operating The Touch Control
CERAMIC HOB 3.2 OPERATING THE TOUCH CONTROL Graphics for control panel of double-radiant-zone ring sensor touch temperature adjuster: Graphics for control panel of double-radiant-zone sensor touch temperature adjuster:... - Page 6 CERAMIC HOB Graphics for control panel of four-radiant-zone sensor touch temperature adjuster: 1. Switch button 4. Temperature up button 2. Cooking mode selection 5. Temperature down button 3. Display of cooking mode 6. Lock button and power level indicator...
- Page 7 CERAMIC HOB Power on and off the Hob ON: Press the switch button gently until a “tick” is heard and “0” is displayed on cooking mode indicator. OFF: Press the switch button gently until no display is shown on the cooking mode indicator.
- Page 8 CERAMIC HOB 5. Automatically power off the hob If you forget to turn off one or more cooking modes after cooking, the sensor touch switch will power off automatically. The sensor touch switch will automatically power off after some hours according to different power levels. The defaults are as follows: Power levels Power off time (hours)
- Page 9 CERAMIC HOB Germany-imported Hob wick: Adopt world’s patented electric burner wick technology with integration of high heating speed, high efficiency and average heating. Imported crystal glass panel: Temperature endurance of 750 degrees C, safe and fashionable, easy to clean. Touch switch temperature adjustment button: shiftless power adjustment to ensure power supply from heat preservation to 100% power output.
- Page 10 Suggestion: This item of Electric Vitroceramic-Induction Hob can be used as one of the main kitchen appliances in your new kitchen. Built-in Four-radiant Sensor Touch Electric Induction Hobs Model PF604VS Rated Voltage/ Frequency 240V/50HZ Rated Power 6500W...
- Page 11 CERAMIC HOB Germany-imported Hob wick: Adopt world’s patented electric burner wick technology with integration of high heating speed, high efficiency and average heating. Imported crystal glass panel: Temperature endurance of 750 degrees C, safe and fashionable, easy to clean Touch switch temperature adjustment button: shiftless power adjustment to ensure power supply from heat preservation to 100% power output Outside: Elegant and fashionable, crystal glass panel with smooth and even surface, no seam to hold dust and durable.
-
Page 12: Installation Instructions
CERAMIC HOB 6. INSTALLATION INSTRUCTIONS This product should be operated by adults only. Read the user manual before commencement. ● During the operation, the heating zone reaches a high temperature in a very short time. Do not touch the heating zones with body parts or allow the wire to come near the heating zone. - Page 13 CERAMIC HOB Dimension: 700x430mm Dimension: 596x510mm...
- Page 14 CERAMIC HOB Steps of Installation of the Hob: 1. Take the Hob out of the packaging. 2. Take out the screws which connect the installation board and Hob and take away the installation board. 3. Fix the installation board to the installation desktop with the screws provided in the packaging.
- Page 15 CERAMIC HOB 7.Precaution ● Since this radiant hob is a heat-efficient hob, only adults can use it . Read the Handbook carefully before use. ● Do not touch the heating area of the hob, as the surface temperature of this area keeps high during use.
-
Page 16: Environmental Protection
CERAMIC HOB 8. ENVIRONMENTAL PROTECTION ● The appliance is suitable for simmering, fry, stir fry, broach styles of cooking. It is not necessary to continuously move the food items, thus saving energy and cook time. ● Using radiant vitro ceramic cooking, it is possible to cook without adding water or oil.
