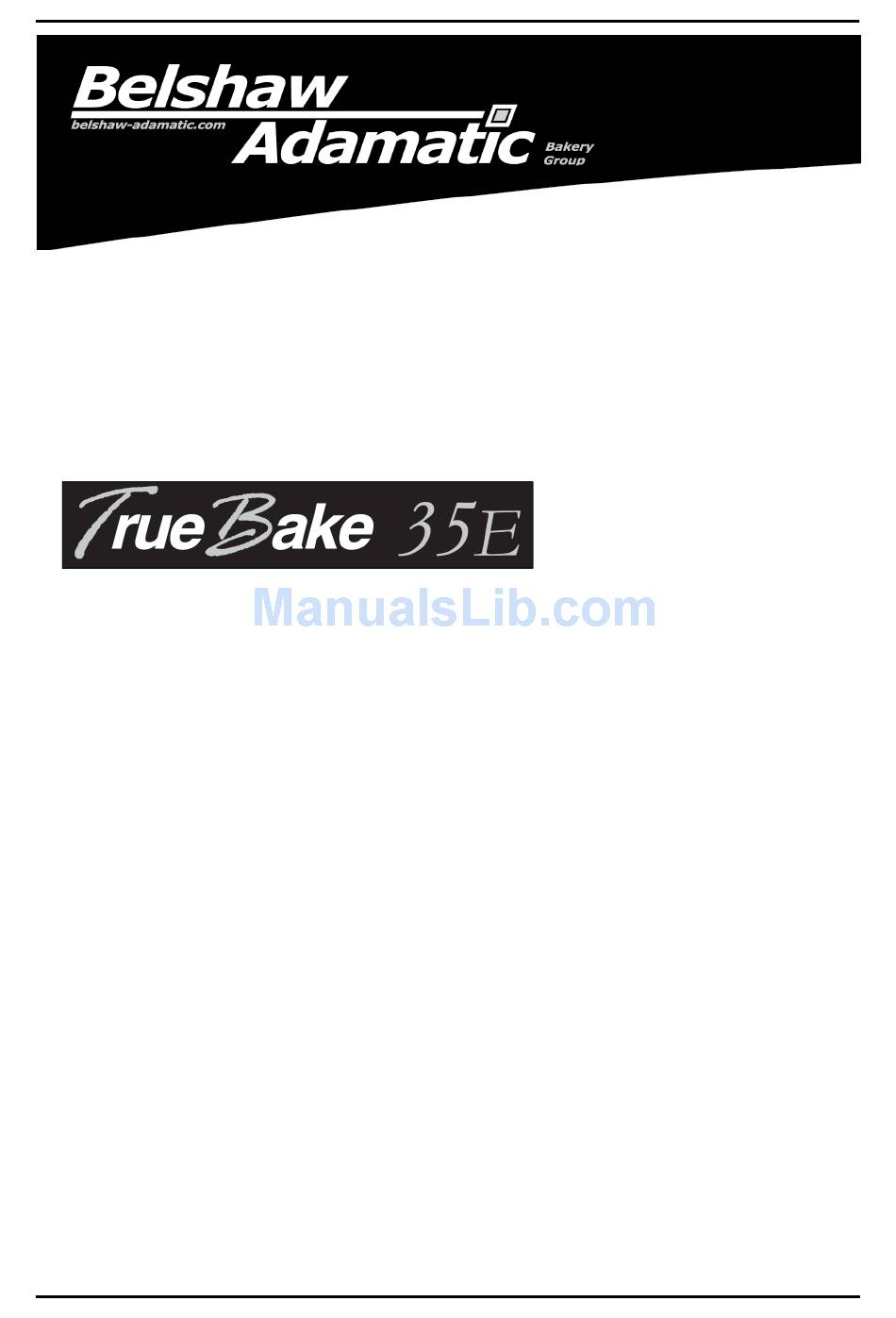

- Page 1 6-Pan Convection Oven, Electric Model Nbr: BACO35E Installation and Operation Manual 233228 - 1...
- Page 2 The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously in writing by the manufacturer. In line with policy to continually develop and improve its products, Belshaw Adamatic, reserves the right to change the specifications and design without prior notice.
- Page 3 US/Canada/Mexico Limited Warranty and Return Policy Belshaw Adamatic Bakery Group warrants parts of its manufacture and assembly of equipment to be free from defects in workmanship and material which would result in product failure under normal use and service. Belshaw Adamatic Bakery Group’s entire liability under this Warranty is limited to either repairing or replacing at its factory or;...
-
Page 4: Limited Warranty
Limited Warranty With respect to parts not manufactured by Belshaw Adamatic Bakery Group, warranty coverage shall be limited to the original part manufacturer’s warranty, or the Belshaw Adamatic Bakery Group limited warranty, whichever is the lesser coverage period. In no case will the warranty be in excess of 18 months after date of shipment of the equipment. -
Page 5: Table Of Contents
Contents BACO35E Convection Oven Introduction ................... 2 Specifications ..................3 Installation ..................... 4 Installation Requirements Before Connection to Power Supply Location Bench Mounting Floor Mounting Stand Mounting Electrical Connection Water Connection Before Use Operation ....................6 Description of Controls Baking Door Handle Oven Side Racks Removal of Side Racks... -
Page 6: Introduction
Introduction Truebake 35E Convection Oven We are confident that you will be delighted with your , and it will become a most valued appliance in your commercial kitchen. A new oven can seem very complex and confusing at first glance. To ensure you receive the utmost... -
Page 7: Specifications
Specifications BACO 35E Specifications 34 5 8 " 34 5 8 " 3 1 8 " 6 1 2 " ” WATER ENTRY 28 3 8 " 1 7 8 " 26 1 4 " ELECTRICAL ENTRY FRONT SIDE VENT Ø 76 O.D. PLAN Electrical Connection Refer to Section 'Before Connection to Power Supply' on Page 6. -
Page 8: Installation
Installation Installation Requirements It is most important that this oven is installed correctly and that operation is correct before use. Installation shall comply with local electrical, health and safety requirements. This equipment is to be installed to comply with the Federal, State or local plumbing codes having jurisdiction. -
Page 9: Bench Mounting
• For floor mounted applications the oven must be fitted with 150mm / 6” legs. NOTE: Four 100 mm / 4” adjustable or 150mm / 6” legs are available separately from your Truebake 35E dealer as an optional extra. Stand Mounting •... -
Page 10: Operation
Operation Description of Controls Vent Vent closed with switch in the vertical position. Vent open with switch in the horizontal position. °C Thermostat Temperature range 100 - 550°F (60-280°C). Indicator illuminates when the elements are cycling ON to maintain set temperature. Bake Timer 1 Hour bake timer. -
Page 11: Baking
Operation Baking 1. Turn Power 'On' The indicator light will illuminate whenever the switch is in the “I” (on) position (the oven lights will also illuminate). The oven fan will start when the door is closed. The oven fan will change rotation direction every 90 seconds. 2. -
Page 12: Door Handle
Operation 8. Time Up When the timer reaches 0 minutes the buzzer will sound, and the indicator illuminates. To cancel the buzzer turn the timer to the off position. 9. Unload Oven Open the door and unload the oven . The oven fan will stop when the door is opened. -
Page 13: Removal Of Side Racks
Operation Side Racks The side racks can be fitted in one of two positions, in order to take 16 or 18 inch 16 inch trays. tray locator To position racks for 16 inch trays, use the holes at the rear of the rack. Alternatively for 18 inch trays, use the holes nearest the centre of the oven. -
Page 14: Cleaning
Cleaning Cleaning Guidelines AUTIO N Always turn off the electrical supply at the mains supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. Exterior Clean with a good quality stainless steel cleaning compound. Harsh abrasive cleaners may damage the surface. -
Page 15: Faultfinding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 16: Wiring Schematic
Wiring Schematic BACO35E - Wiring Schematic, 208 - 240V, 3P+E... -
Page 17: Baco35E Wiring Diagram
Wiring Schematic BACO35E - Wiring Diagram, 208 - 240V, 3P+E... -
Page 18: Replacement Parts List
Replacement Parts List Replacement Parts List IMPORTANT: Only genuine authorized replacement parts should be used for the servicing and repair of this appliance. The instructions supplied with the parts should be followed when replacing components. For further information and servicing instructions, contact your nearest authorized service branch (contact details are as shown on the reverse of the front cover of this manual). - Page 19 Replacement Parts List Main Assembly Parts List (Cont’d) - BACO35E Part No. Description 020827 VENT OVER PRESSURE PLATE. 020819 OVER PRESSURE SPRING. 041425 SCREW - M4 x 6 PAN POZI. 016241 VENT HOOD. 020824 VENT GASKET. 020845 VENT WA. 231789 VENT SWITCH BRACKET.
- Page 20 Replacement Parts List Main Assembly - BACO35E...
- Page 21 Replacement Parts List Control Panel - BACO35E Part No. Description 020823 KNOB (Vent). 020848 COMPRESSION RING. 020849 NEON INDICATOR. 233242 CONTROL PANEL BELSHAW. 020976 POTENTIOMETER BRACKET. 020985 POTENTIOMETER. 011760 TIMER - (60 Minute). 020893 STEAM SWITCH ASSEMBLY. 020888 SELECTOR SW. (Fan Speed). 020822 SELECTOR SWITCH (Fan Speed &...
- Page 22 Replacement Parts List Gear Plate - BACO35E...
- Page 23 Replacement Parts List Gear Plate Parts List - BACO35E Part No Description 231510 GEAR PLATE. 020990 DIN RAIL. 231742 CONTACTOR 11BG0601A230. 231740 CONTACTOR 11BF3200A230 (3 phase 208-240 Volt Models). 020995 END ANCHOR. 231745 REVERSING STARTER KIT SMX9022. 232466 MOTOR WIRING LOOM. 231743 CONTACTOR INTERLOCK 11BGX5000.
- Page 24 Replacement Parts List Door Assembly - BACO35E Part No Description 230725 DOOR FRAME WA. 230745 HINGE BUSH. 230735 DOOR TRIM LH. 230736 DOOR TRIM RH. 231494 HANDLE / LOCK - SLAMSHUT. 231804 SINGLE STEP LOCKING DOG. 232134 DOOR OUTER GLASS ASSEMBLY. 232588 QUAD LATCH.
