Summary of Contents for Renkus-Heinz PF1-500

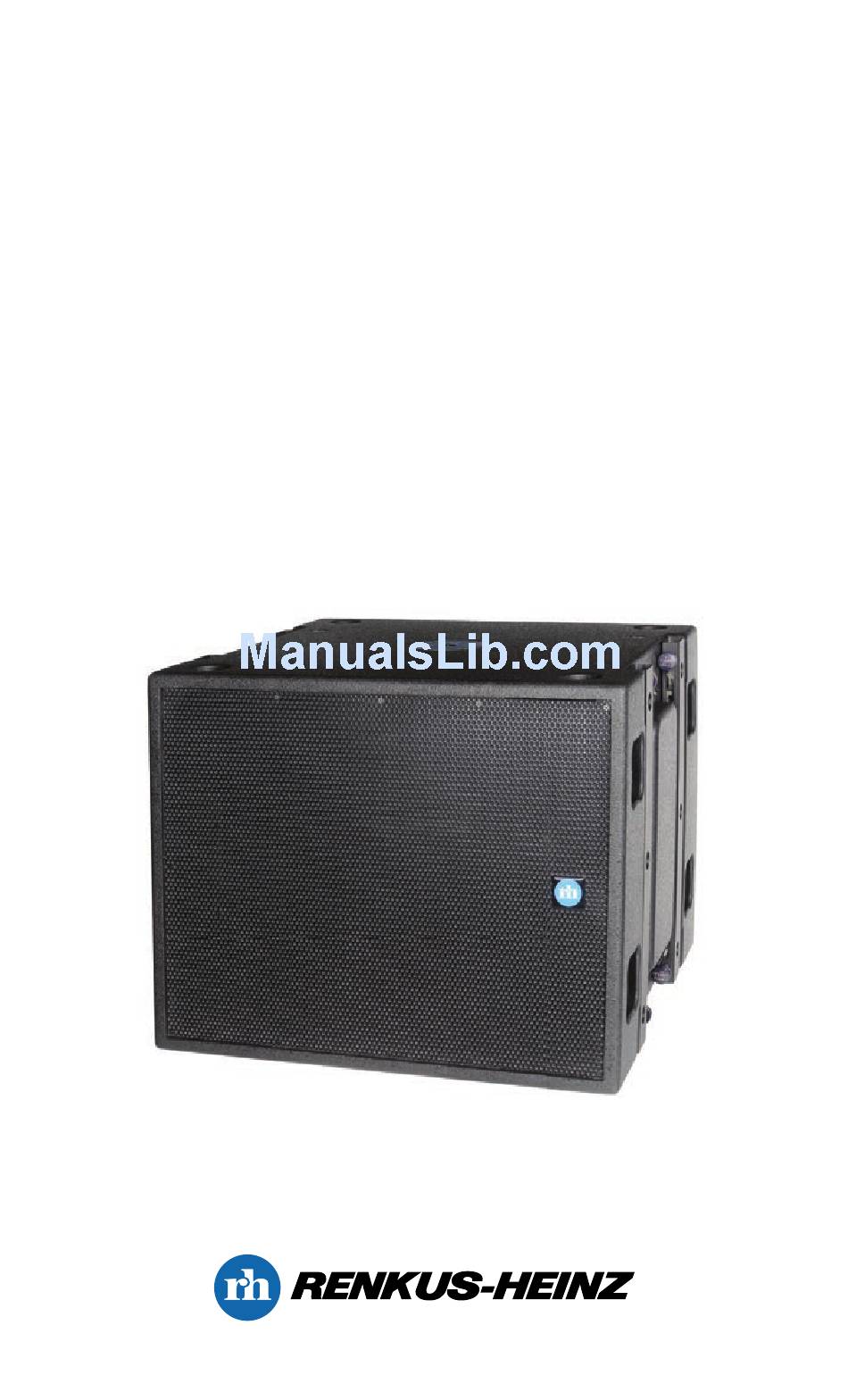

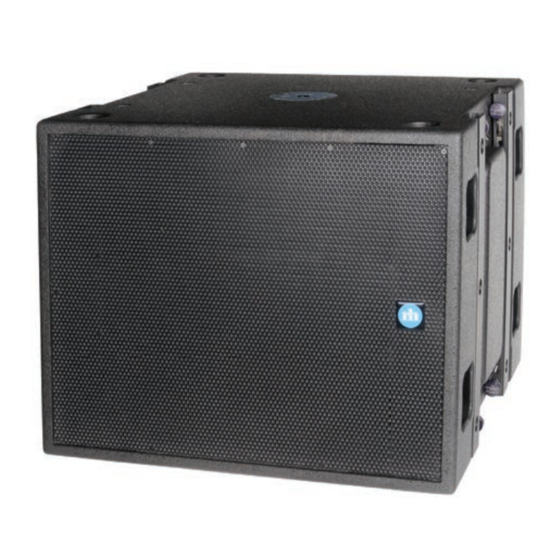

- Page 1 Instruction Manual Installing PF1-500 & PF1-500R Amplifi ers Into CFX Series Subwoofers...
- Page 2 Step 4 If you are installing a PF1-500, set the slide switch on the top of the amplifier case to “100 Hz Filter”. to activate the amplifier’s electronic crossover network...
- Page 3 CF/CFX15S Step 5. If you are installing a PF1-500R locate the Crossover Network and the white 4-pin con- nector that connects it to the woofer. You will find the crossover attached to the bottom of the cabinet. Step 6 Disconnect the white 4-pin connector from the Crossover Network by squeezing the sides of the connector and pulling.
- Page 4 19201 Cook Street, Foothill Ranch, CA USA Phone: +1 949 588 9997 • Fax: +1 949 588 9514 sales@renkus-heinz.com • www.renkus-heinz.com RH 734 August 2011...
