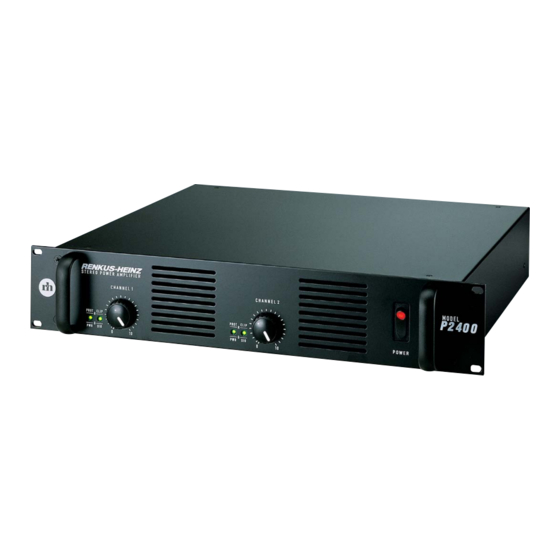

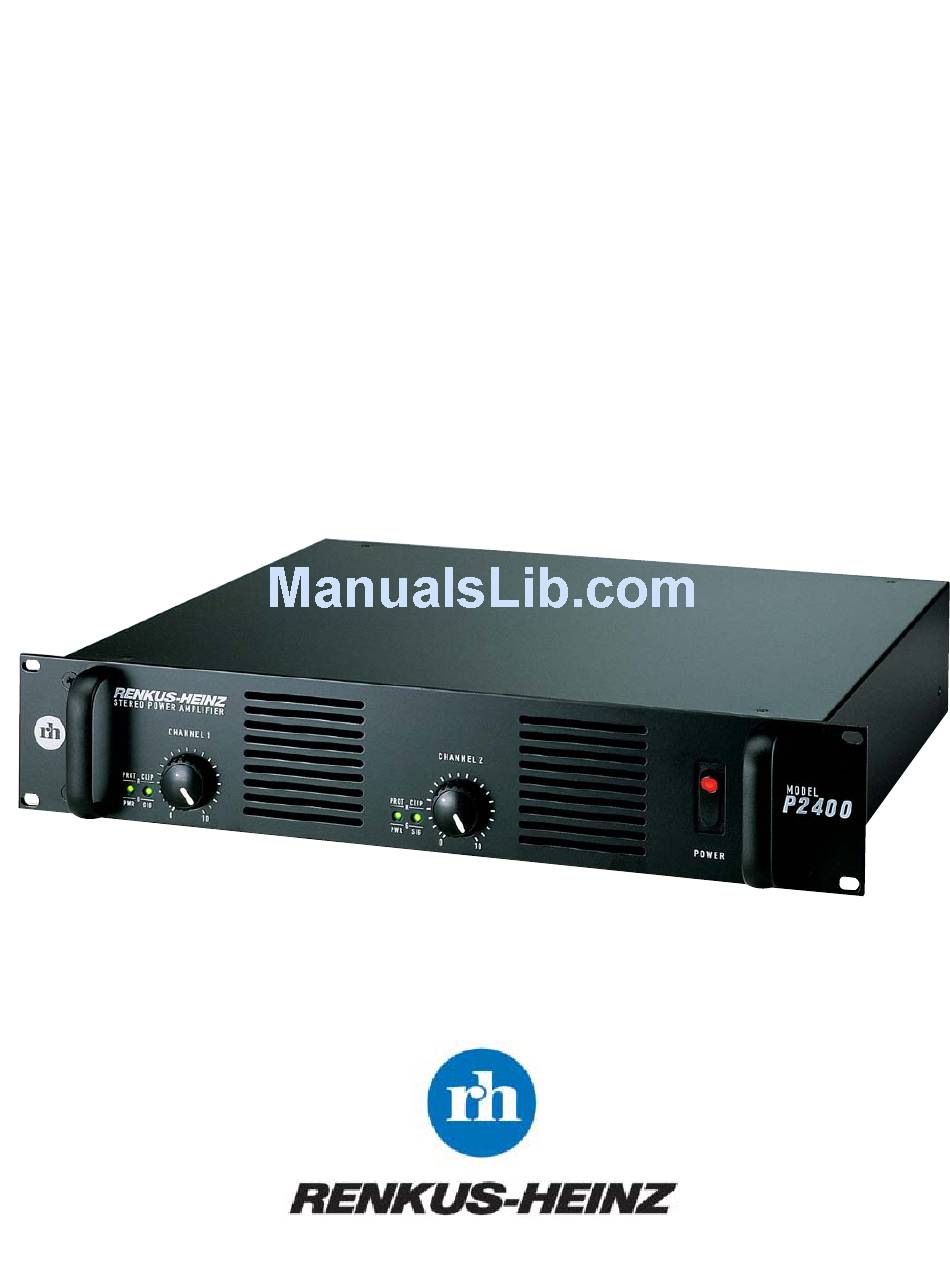

OPERATION MANUAL P2400 • P2700 Dual Channel Power Amplifiers C22 • L20 • Plug-In Controller Modules... -
Page 2: Warning Messages
P2400/P2700 OPERATION MANUAL Cautions Sicherheitsvorschriften CAUTION VORSICHT UM ELEKTRISCHEN SCHLAG ZU TO AVOID ELECTRIC SHOCK, DO NOT VERMEIDEN, KEINE FINGER ODER INSERT FINGERS OR OBJECTS INTO GEGENSTÄNDE IN ÖFFNUNNGEN DES ANY OPENINGS IN THE CABINET GEHÄUSES STECKENN WARNUNG: ZUR VERMEIDUNG VON FEUER... -
Page 3: Table Of Contents
P2400/P2700 OPERATION MANUAL Table of Contents Warning Messages Table of Contents ntroduction Technical Specifications Front Panel Features Status LED's Signal LED's Output Attenuators On/Off Switch Rear Panel Features AC Fuse Output Connections Standard Input Module Output Mode Selector Input Connections... -
Page 4: Introduction
P2400/P2700 OPERATION MANUAL Introduction Congratulations on your purchase of a Renkus-Heinz P2400 or P2700 dual-channel, professional, power amplifier. Your Renkus-Heinz amplifier has been designed to provide years of trouble-free, high performance operation. We hope you enjoy it. Your amplifier may include a C12 or C22 loudspeaker controller module or a L20 Limiter Module in place of the standard dual channel input module (see pages 8 to 13 for details). -
Page 5: Technical Specifications
-100 dB (referred to RPO @ 8 ohms, 20 Hz to 20 kHz CROSSTALK: > 60 dB @ 400 Hz INPUT SENSITIVITY: 1.4 V for RPO @ 8 ohms (P2400) 1.2 V for RPO @ 8 ohms (P2700) INPUT IMPEDANCE: 20 K ohms, balanced VOLTAGE GAIN:... -
Page 6: Front Panel Features
P2400/P2700 OPERATION MANUAL Front Panel Features STEREO POWER AMPLIFIER CHANNEL 1 PROT CLIP 1. Channel 1 Status (Prot/Pwr) LED Status LED's The Channel 1 Status LED glows green to indicate the amplifier is on and Channel 1 is operating normally. It glows red to indicate that one or more of the amplifier Channel 1 protective circuits has been activated. -
Page 7: On/Off Switch
P2400/P2700 OPERATION MANUAL Front Panel Features CHANNEL 2 MODEL P2400 PROT CLIP POWER 4. Channel 2 Status (Prot/Pwr) LED Status LED's The Channel 2 Status LED glows green to indicate the amplifier is on and Channel 2 is operating normally. It glows red to indicate that one or more of the amplifier's Channel 2 protective circuits has been activated. -
Page 8: Rear Panel Features
P2400/P2700 OPERATION MANUAL Rear Panel Features STEREO GROUND LIFT PARALLEL BRIDGE link ON OFF ON BRIDGE OUTPUTS STEREO 4 OHM MIN./CH. T 10 A 117 V ~ BRIDGED MONO 8 OHM MIN. 250 V AC Fuse 1. AC Power Cord & Fuse The fuse holder on the P-2400 accepts a T 10 A, 250 V Fuse;... -
Page 9: Input Connections
P2400/P2700 OPERATION MANUAL Rear Panel Features IRVINE, CA - U.S.A. MODEL P-2400 POWER CONSUMPTION : 920 W SERIAL N RISK OF ELECTRICAL SHOCK DO NOT OPEN T O REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE... -
Page 10: Loudspeaker Controller Modules
P2400/P2700 OPERATION MANUAL Loudspeaker Controller Modules MODEL RENKUS-HEINZ INPUT SUB/LF FR/HF PIN 1 = GND MADE IN USA PIN 2 = + PIN 3 = - C12 Controller Module The C12 loudspeaker controller module is a single input, dual output controller designed for use with active 2-way loudspeakers (or 3-way loudspeakers set up for bi-amp operation) in single channel (mono) systems. -
Page 11: Input Connections
P2400/P2700 OPERATION MANUAL Loudspeaker Controller Modules MODEL RENKUS-HEINZ PIN 1 = GND CH 1 OUTPUTS CH 2 OUTPUTS CH 2 INPUT CH 1 INPUT MADE IN USA PIN 2 = + PIN 3 = - G R O U N D... -
Page 12: C22 Setup Switches
P2400/P2700 OPERATION MANUAL Loudspeaker Controller Modules Looping/HPF Selector Switches Stereo/Bridged Jumper Plug Stereo Bridged The C22 Loudspeaker Controller Module has several selector switches and a Stereo/Bridging C22 Setup Jumper plug that are accessible by removing the module from the amplifier. The location of Switches these controls is shown in the above outline drawing. -
Page 13: Input Connectors
P2400/P2700 OPERATION MANUAL Loudspeaker Controller Modules MODEL RENKUS-HEINZ OUTPUT INPUT INPUT OUTPUT CH 2 CH 1 PIN 1 = GND MADE IN USA HP FILTER PIN 2 = + HP FILTER 100Hz 100Hz PIN 3 = - 60Hz 60Hz 30Hz... -
Page 14: Amplifier Setup And Operation
P2400/P2700 OPERATION MANUAL Amplifier Setup and Operation The P2400 and P2700 amplifiers are designed to be mounted in standard 19" racks. They have 4 Mounting front panel mounting screws. Because of their depth and weight it is imperative that the amplifier be supported at the rear in any portable application. -
Page 15: Without Controller Modules
P2400/P2700 OPERATION MANUAL Looping inputs to additional power amplifiers, Ch. 2 Input if additional power amplifiers are needed. Ch. 1 Input IRVINE, CA - U.S.A. MODEL P-2400 STEREO GROUND LIFT POWER CONSUMPTION : 920 W SERIAL N PARALLEL BRIDGE link... -
Page 16: With C12 Controller Module
250 V MANUFACTURED IN EEC Lows “Lows” and “Highs” to active 2-way loudspeakers, such as the Renkus-Heinz SR5A & TRC121A Highs to 3-way loudspeakers set up for bi-amping, such as the SR6, SR7,CE153 and TRAP40. Looping “processed” controller outputs to additional power Input amplifiers, if additional power amplifiers are needed.
