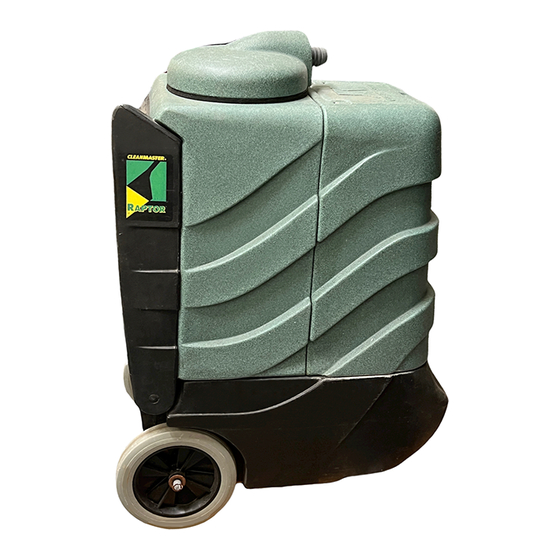

- Page 1 Raptor 130H Carpet And Upholstery Cleaner Model No.: Operator and Parts Manual 100-650-130 11 gal Extractor CLEANMASTER 11015 47 AVENUE WEST MUKILTEO WA 98275 U.S.A. FAX: 1-800-426-4225 MNL36408-E3H WEBSITE: www.cleanmaster.com CUSTOMER SERVICE: 1-425-775-7276 Rev. 00 (03-01)
-
Page 2: Table Of Contents
© Cleanmaster Printed in U.S.A. distributor or directly from Cleanmaster. Cleanmaster is a registered United States trademark This machine will provide excellent service. However, the best results will be obtained at minimum costs if: The machine is operated with reasonable care. -
Page 3: Safety Precautions
OPERATION 4. Before leaving or servicing machine: SAFETY PRECAUTIONS Turn off machine. – Unplug cord from wall outlet. – 5. When servicing machine: This machine is intended for commercial use. It is designed to wet clean carpet and upholstery in a –... -
Page 4: Machine Components
OPERATION MACHINE COMPONENTS Immersion Heater / Clean Switch Recovery Tank Power Cord Connector Solution Tank Empty-Out Nozzle Recovery Tank Lid Vacuum Hose Connector Solution Tank Lid Latches Vacuum Switch Recovery Tank Drain Pump Switch Solution Hose Connector Inline Heater Switch MACHINE SETUP Carefully check carton for signs of damage. -
Page 5: Machine Operation
OPERATION ATTENTION: If using powdered cleaning Take carpet cleaning wand in hand and squeeze chemicals, mix prior to adding. valve trigger while moving the tool in short forward and backward strokes. (Figure 6). NOTE: If desired, water alone achieves excellent cleaning results. -
Page 6: Draining Tanks
OPERATION 2. Operate accessory tool as normal (Figure 8). DRAINING SOLUTION TANK NOTE: Before cleaning upholstery, always check 1. Remove empty-out nozzle from its storage cleaning instructions sewn in furniture by bracket (Figure 10) and attach to end of solution manufacturer. -
Page 7: Machine Maintenance
OPERATION (Every 80 Hours of Operation) MACHINE MAINTENANCE 1. Lubricate wheels with water resistant oil. 2. Inspect machine for water leaks and loose To keep machine in good working condition, simply hardware. follow machine’s daily, weekly and monthly maintenance procedures. FOR SAFETY: When servicing machine, unplug QUARTERLY MAINTENANCE cord from wall outlet. -
Page 8: Trouble Shooting
OPERATION TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Machine does not operate. Faulty switches or wiring. Contact Service Center. Faulty power cord. Contact Service Center. Building circuit breaker tripped. Reset Breaker. Heater does not heat. Faulty switch or wiring. Contact service center. Solution pump does not operate. -
Page 9: Specifications
OPERATION SPECIFICATIONS Model 130H LENGTH 711 mm (28 in) WIDTH 450 mm (17.7 in) HEIGHT 1016 mm (40 in) WEIGHT 55 Kg (121.5lbs) SOLUTION TANK CAPACITY 41 L (11 gal) RECOVERY TANK CAPACITY 38L (10 gal) SOLUTION PUMP 120 V, 10.2 bar (150psi), 1.04 A VACUUM MOTOR –... -
Page 10: Electrical Diagram
ELECTRICAL DIAGRAM RAPTOR 130H 120 V WIRING DIAGRAM 36408-E3H-Raptor (03-01) -
Page 11: Parts List
PARTS LIST RAPTOR 130H TANK GROUP 36408-E3H-Raptor (03-01) - Page 12 PARTS LIST RAPTOR 130H TANK GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. B-17.2 8-32 X 1/2 PHXSS J-49GRNGRNT LID, ROTO GREEN GRANITE B-21 10-32 X 5/16 PHXSS J-57.5 SPACER,ROTO 3"OD X 2.4"ID B-23 10-32 X 1/2 PHXSS K-09.1 CORD,25' 12/3SJT UG W/LCK B-23.7...
- Page 13 PARTS LIST RAPTOR 130H BASE GROUP 36408-E3H-Raptor (03-01)
-
Page 14: Base Group
PARTS LIST RAPTOR 130H BASE GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. B-09.1 6-32 X 3/8 PHXSS F-09 Q/C 1/4" PLUG BR SHUT OFF B-10 6-32 X 1/2 PHXSS F-11 Q/C 1/4" SOC BR SHUT OFF B-14 NUT 6-32 HEX SS J-45.5BLK... - Page 15 PARTS LIST PUMP 150 PSI BREAKDOWN SL-23.7 SL-23.75 L-23.9 L-23.74 L-24.12 L-22.65 L-23.76 PART # DESCRIPTION QTY. • SL-23.7 PUMP SH FL 150 PSI 110V PUMP HEAD 150 PSI COMP ASM • L-23.76 SWITCH ASM, 150 PSI SH FL • L-22.65 CHECK VALVE ASM, 100 PSI SH FL L-24.12...
-
Page 16: Options
OPTIONS 20258 ECONO FLOOR TOOL PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. • B-24.1 10-32 X 3/4 PHXZINC Q/C 1/4" PLUG BR SHUT OFF F-09 B-26.57 10-32 X 1 3/8 PHX ZINC G-23 VALVE, KNGSTN STD S BND • B-28.03 NUT, 10-32 NYLOK ZINK JET, 11006 E VEE BRASS... - Page 17 OPTIONS LP/20208; HP/20216 FLOOR TOOL PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. B-24.1 10-32 X 3/4 PHXZINC G-23.5 VALVE,KNSTN HP "S" BEND B-26.57 10-32 X 1 3/8 PHX ZINC H-02.5 BODY, TEE JET 1/4 BRASS B-28.03 NUT, 10-32 NYLOK ZINK H-03 CAP NUT, TEE JET BRASS •...
-
Page 18: Hand Tool
OPTIONS 20078A HAND TOOL PART # Description QTY. PART # Description QTY. B-05.5 4-40 X 7/8 PHXZINC GR-2-006N70 O-RING,2-006 BUNA 70DR B-07.5 NUT, 4-40 HEX ZINC NYLOK GR-2-011N70 O-RING,2-011 BUNA 70DR B-11.5 6-32 X 1 PHXZINC GR-2-013N70 O-RING,2-013 BUNA 70DR B-14.6 NUT, 6-32 HEX ZINC NYLOK H-03.5... -
Page 19: Warranty Policy
Cleanmaster to obtain a Return Authorization, ship the part freight prepaid to Cleanmaster and, Cleanmaster will either repair or replace the part at no charge if it is determined that failure was a manufacturing defect. Cleanmaster will then ship the repaired or replaced part back to you freight collect. Our service department... - Page 20 Cleanmaster’s control. In no event shall Cleanmaster be liable for loss of use, incidental or consequential damages or any damages to persons or property.
- Page 21 Cleanmaster’s control. In no event shall Cleanmaster be liable for loss of use, incidental or consequential damages or any damages to persons or property.
