Turtle Beach EarForce Sierra User Manual
  1. Manuals
  2. Brands
  3. Turtle Beach Manuals
  4. Headsets
  5. EarForce Sierra
  6. User manual

Turtle Beach EarForce Sierra User Manual

For xbox 360 ps3 pc mac limited edition
Hide thumbs

Advertisement

Table of Contents

Watch Turtle Beach product training videos at:
youtube.com / TurtleBeachVideos
Copyright © 2012 Voyetra Turtle Beach, Inc. (VTB, Inc.) All rights reserved. No part of this package may be reproduced without permission.  Turtle Beach, the Turtle Beach Logo, Voyetra,
Ear Force, and Engineered for Gaming are either trademarks or registered trademarks of VTB, Inc. All other trademarks are properties of their respective companies and are hereby
acknowledged. PlayStation is registered trademark and PS3 is a trademark of Sony Computer Entertainment.  Xbox, Xbox 360, and Xbox LIVE are registered trademarks of Microsoft
Corporation. Mac is a registered trademark of Apple, Inc. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Made in China. © 2012 Activision Publishing, Inc. ACTIVISION, CALL OF DUTY, CALL OF DUTY BLACK OPS and stylized roman numeral II are trademarks of Activision Publishing, Inc.
This product is compliant with the Consumer Product Safety
Improvement Act of 2008, Public Law 110-314 (CPSIA)
XBOX 360
| PS3™ I PC I Mac
®
product support and warranty information:
TurtleBeach.com / support
FOR / POUR
N30375

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EarForce Sierra and is the answer not in the manual?

Questions and answers

Related Manuals for Turtle Beach EarForce Sierra

Summary of Contents for Turtle Beach EarForce Sierra

  • Page 1 TurtleBeach.com / support Copyright © 2012 Voyetra Turtle Beach, Inc. (VTB, Inc.) All rights reserved. No part of this package may be reproduced without permission.  Turtle Beach, the Turtle Beach Logo, Voyetra, Ear Force, and Engineered for Gaming are either trademarks or registered trademarks of VTB, Inc. All other trademarks are properties of their respective companies and are hereby acknowledged.
  • Page 2 L I M I T E D E D I T I O N User Guide User Guid...
  • Page 3 Congratulations on your purchase of the Call of Duty®: Black Ops II Sierra gaming headset from Turtle Beach. Well played (so far). This premium product is designed to bring unmatched realism and effects to your gaming experience, enhancing it in ways you haven’t known previ- ously.

  • Page 4: Table Of Contents

    Table of Contents Headset Overview Package Contents Feature/Function Map Control Unit Functions Using your Sierra Headset on XBOX 360 Using your Sierra Headset on PS3 Using your Sierra Headset on a PC Using your Sierra Headset on a Mac Using your Sierra Headset with Other Devices Speaker Mode Presets Specifications...

  • Page 5: Headset Overview

    Headset Overview Your Turtle Beach Call of Duty®: Black Ops II Sierra headset is compatible with XBOX, PS3 and PC or Mac gaming platforms. You can enjoy gaming at home or at tournaments and while on the go with portable game systems and mobile devices like smartphones and tablets.

  • Page 6: Package Contents

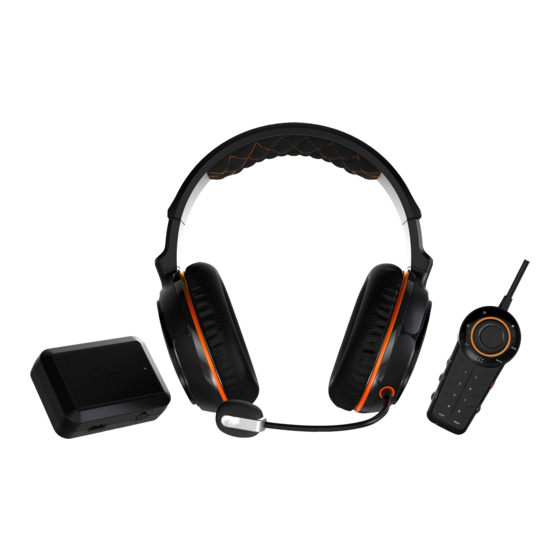

    Package Contents Sierra Headset Control Unit Console Interface Turtle Beach Sticker with Removable Mic Boom Console Interface USB Cable Digital Optical Cable XBOX 360 Talkback Cable Headset Breakaway Cable FOR / POUR XBOX 360 ® | PS3™ | PC | MAC ®...

  • Page 7: Feature/Function Map

    Feature / Function Map (Location of controls / inputs) Console Interface 1. Auxiliary Input 2. USB Input 3. Digital Input 4. Digital Pass Thru 5. USB In / Out 6. 9-PIN DIN...
  • Page 8 Feature / Function Map (Location of controls / inputs) Control Unit Refer to page 6 for a description of button functions. 1.Game Volume Wheel (Multifunction) / Mute 2. External Speaker Jack (located on side of controller) 3. Speaker Angles (Capacitive Touch)* 4.

  • Page 9: Control Unit Functions

    Control Unit Functions Game play with Turtle Beach Sierra headset is performed using the functions of the Control Unit. The Control Unit has the following functions: 1. Game Volume Wheel: This controls the master game volume as well as the individual 5.1 speaker volumes. Press the wheel to mute game audio and again to unmute.
  • Page 10 Control Unit Functions 13. Main Preset Button: Toggle between default flat preset and the last active preset. In Chat Presets mode, toggles between default flat Chat preset and the last active Chat preset. 14. Chat Volume Control Dial: Sets the chat volume level. 15.

  • Page 11: Using Your Sierra Headset On Xbox 360

    ® Using your Sierra Headset on XBOX 360 1. Connect the Console Interface to the Xbox 360 game console using the Digital Optical Cable and Console Interface USB cable as shown below. Connect the Digital Optical Cable to the Console Interface's DIGITAL IN jack. Note: Older Xbox 360 models will also require an Xbox 360 Audio Adapter Cable (sold separately).
  • Page 12 ® Using your Sierra Headset on XBOX 360 XBOX 360 Audio Configuration Voice Digital Output Voice Volume Current Setting Digital Stereo Dolby Digital Game Volume Dolby Digital 5.1 Choose the digital output type for your system. Dolby Digital 5.1 with WMA Pro This setting only applies Mute Kinect to optical digital and HDMI...

  • Page 13: Using Your Sierra Headset On Ps3

    Using your Sierra Headset on PS3 1. Connect the Console Interface to the PS3 game console using the Digital Optical Cable and Console Interface USB cable as shown below. Connect the Digital Optical Cable to the Console Interface's DIGITAL IN jack. 2.
  • Page 14 Using your Sierra Headset on PS3 PS3 Audio Configuration Audio Device Settings Microphone Level Input Device TURTLE BEACH SIERRA Output Device TURTLE BEACH SIERRA Back X Enter 1. Go to “Settings” - Choose “Accessory Settings - Choose “Audio Device Settings”...
  • Page 15 Using your Sierra Headset on a PC / Mac 3.5mm Stereo Cable (not included) 3.5mm Stereo Cable (4-pole for mic function) Cable not included Headset Breakaway Cable Computers and Smartphone not included...

  • Page 16: Using Your Sierra Headset On A Pc

    OFF, then power ON again. 3. Using your mouse, right click the speaker icon on the task bar and select “Playback Devices. ” 4. Then right click on “Turtle Beach Sierra Game” and select “Set as Default Device. ”...
  • Page 17 Using your Sierra Headset on a PC 5. Right click on “Turtle Beach Sierra Chat, ” and select “Set as Default Communication Device. ” 6. Left click “Turtle Beach Sierra Game, ” and click, “Configure, ” to confirm 5.1 channel audio.

  • Page 18: Using Your Sierra Headset On A Mac

    Chat program screens may differ depending on the operating system. ·Using Skype (download from www.skype.com), open your preferences. Go to Audio / Video and select, “Turtle Beach Sierra Chat, ” for microphone, ringing and speakers. NOTE: Not all chat programs default to the Turtle Beach chat path. Some programs may require manual setup to output chat via the Turtle Beach Sierra Chat interface.

  • Page 19: Using Your Sierra Headset With Other Devices

    Using your Sierra Headset with Other Devices The 4-pole, 3.5mm jack in your Sierra Headset’s Breakaway Cable allows you to enjoy great audio wherever you go by plugging into your mobile phone, portable game system, tablet, MP3 player and more. Utilize the attached mic boom for chat or remove it and add a Mobile Adapter Cable (sold separately) for a more streamlined inline mic and call controls.

  • Page 20: Speaker Mode

    Speaker Mode Turtle Beach Sierra Control Unit may be connected to a stereo speaker system. Note, the Headphone Jack is deactivated when in Speaker Mode. 1. Connect the Control Unit to a digital music player using a 3.5mm cable (not included) as shown.

  • Page 21: Presets

    Presets Your Sierra headset features several built-in presets on the Control Unit for enhanced gaming, voice and speaker effects. Simply tap the numbered preset on the Control Unit to switch Game Presets. Press the Chat Presets Button once to enable Chat Presets for buttons 1 –...

  • Page 22: Specifications

    Presets / Specifications Speaker Presets Main: Incorporates Dolby® Surround Sound processing for an immersive audio experience. 1. Flat: Hear stereo game sound without effects processing or Dolby Surround Sound. 2. Bass Boost: Hear and feel the rumble of deeper bass sound effects. 3.
  • Page 23 Models and violate FCC regulations. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Please contact Turtle Beach for a list of approved 2.4 GHz and 5.0 GHz antennas.
  • Page 24 Regulatory Compliance Canadian ICES Statements IC: 3879A- TB2290 & 3879A- TB2291 This device complies with ICES-003 and RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. Ce dispositif est conforme aux normes NMB003 et CNR-210 d’Industrie Canada.

  • Page 25: Compliance / Conformity

    Declaration of Conformity European Union and European Fair Trade Association Regulatory Compliance This equipment may be operated in the countries that comprise the member countries of the European Union and the European Fair Trade Association. These countries, listed below, are referred to as The European Community throughout this document: AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE,, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY, SWITZERLAND...
  • Page 26 European Community Declaration of Conformity Bulgaria / български: С това, nortel обявява, че този модел на радио на Product A, е със съгласие с съществените изисквания и други важни условия на директива 1999/5 на европейски съюз Czech Republic I Èesky: Norteltímto prohlašuje, že tento Product A, je ve shodì se základními požadavky a dalšími pøíslušnými ustanoveními smìrnice 1999/5/ES. Denmark I Dansk: Undertegnede Nortelerklærer herved, at følgende udstyr Product A, overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

  • Page 27: Warranty

    LIMITED ONE YEAR WARRANTY FOR TURTLE BEACH PRODUCTS: Voyetra Turtle Beach, Inc. ("VTB") warrants to the original end-user purchaser ("Purchaser") that the retail Turtle Beach hardware product herein ("Product") will be free of defects in materials and workmanship for a period of one year from the date of purchase by the Purchaser ("Warranty Period").
