Forward View Displays FPM-320 User Manual

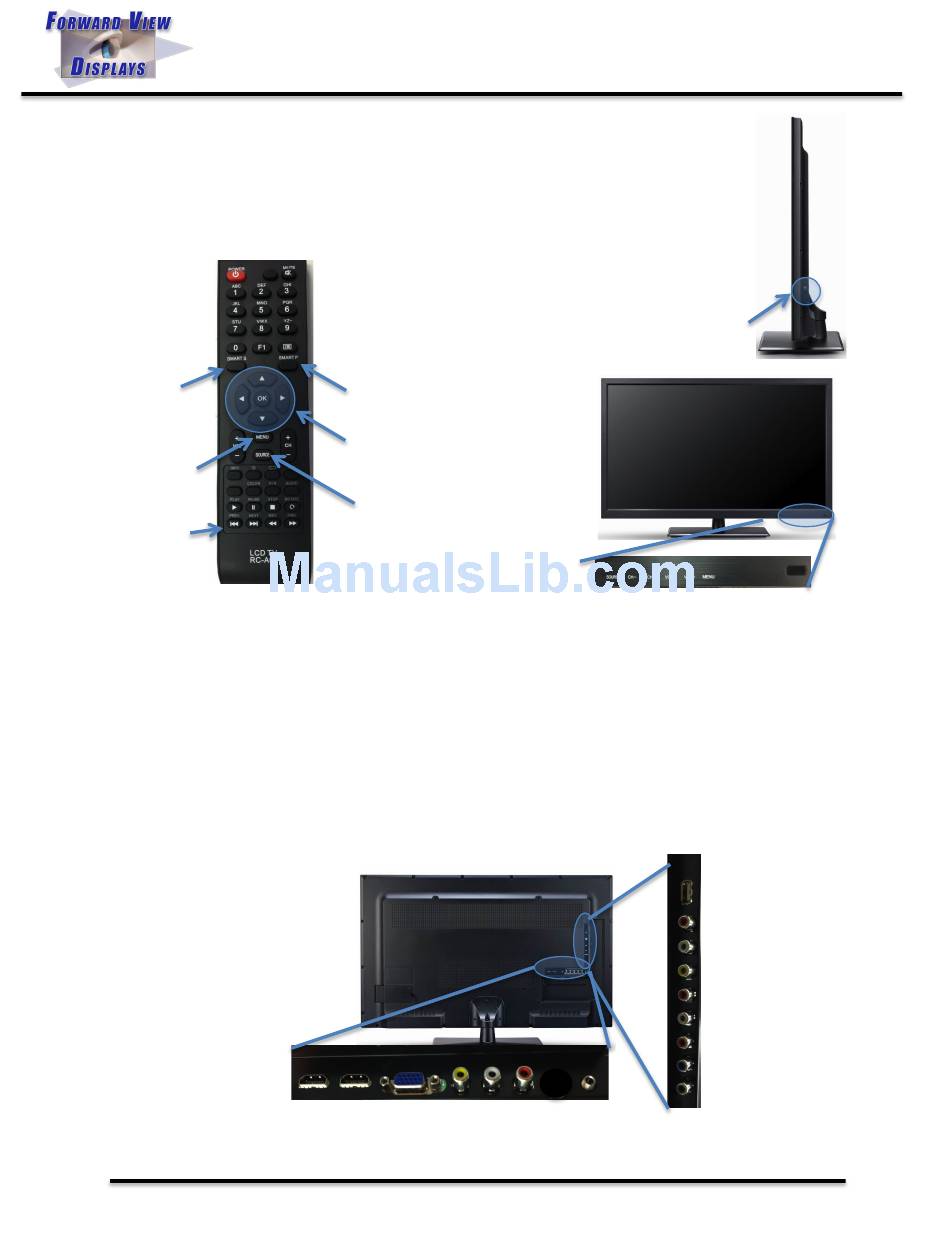

Getting Familiar with the FPM-320 Monitor Controls
1. AC On/Off- located on right side of monitor (from front)
2. Remote Control Unit- provides access to user controls.
3. Local Switch control- buttons to provide the same functions as remote.
4. Input Panel- location for all video source inputs
Set Sound
style
Turn on OSD
View input
source
#2 Remote Control Unit
Operating the Monitor
1. Plug the monitor into a suitable AC source.
2. Turn the On/Off switch (#1) to On and note the green LED indicator in the Remote Control Receiving window.
3. With Remote Control Unit: Point the Remote Control Unit at the Remote Control Receiving Window and press
the On/Off button on the remote. Note that the green LED goes out and within 10-15 seconds the display lights
up.
4. With Local Switch Controls: Press either the CH – or CH + switch. Note that the green LED goes out and within
10-15 seconds the display lights up.
5. Connect all inputs to the correct locations at the Input Panel (#4).
6. Use the Source button on the Remote Control Unit and select the input which matches what was connected in
step 4.
7. Refer to the screen shots on the following page to decide the optimum setup for your monitor.
Copyright 2011
Set Video style
User control Navigation keys
while in OSD mode
Select input source
Change aspect ratio
Rear of cabinet
HDMI 1 HDMI 2 PC CVBS Left
(VGA) (Video)
Inputs
Forward View Displays
http://www.fvdnow.com
Users Manual
FPM-320 Monitor
#1 AC On/Off
Local
Switch Control #3
Right PC
Audio
Arlington Heights, IL 60004
Remote control
receiving window
USB Flash drive (photos, etc)
Right Audio Out
Right Audio Out
CVBS (Video) Out
Right Audio In
Left Audio In
Y Pb Pr (Component) In
3311 N Kennicott Ave.
+1.866.688.4035
