Forward View Displays FPM-201 User Manual

Getting Familiar with the FPM-201 Monitor

1. User Controls
2. Input/Output Area.
3. OSD (on screen display) explanation.
4. Touch screen use and calibration (on touch screen models)

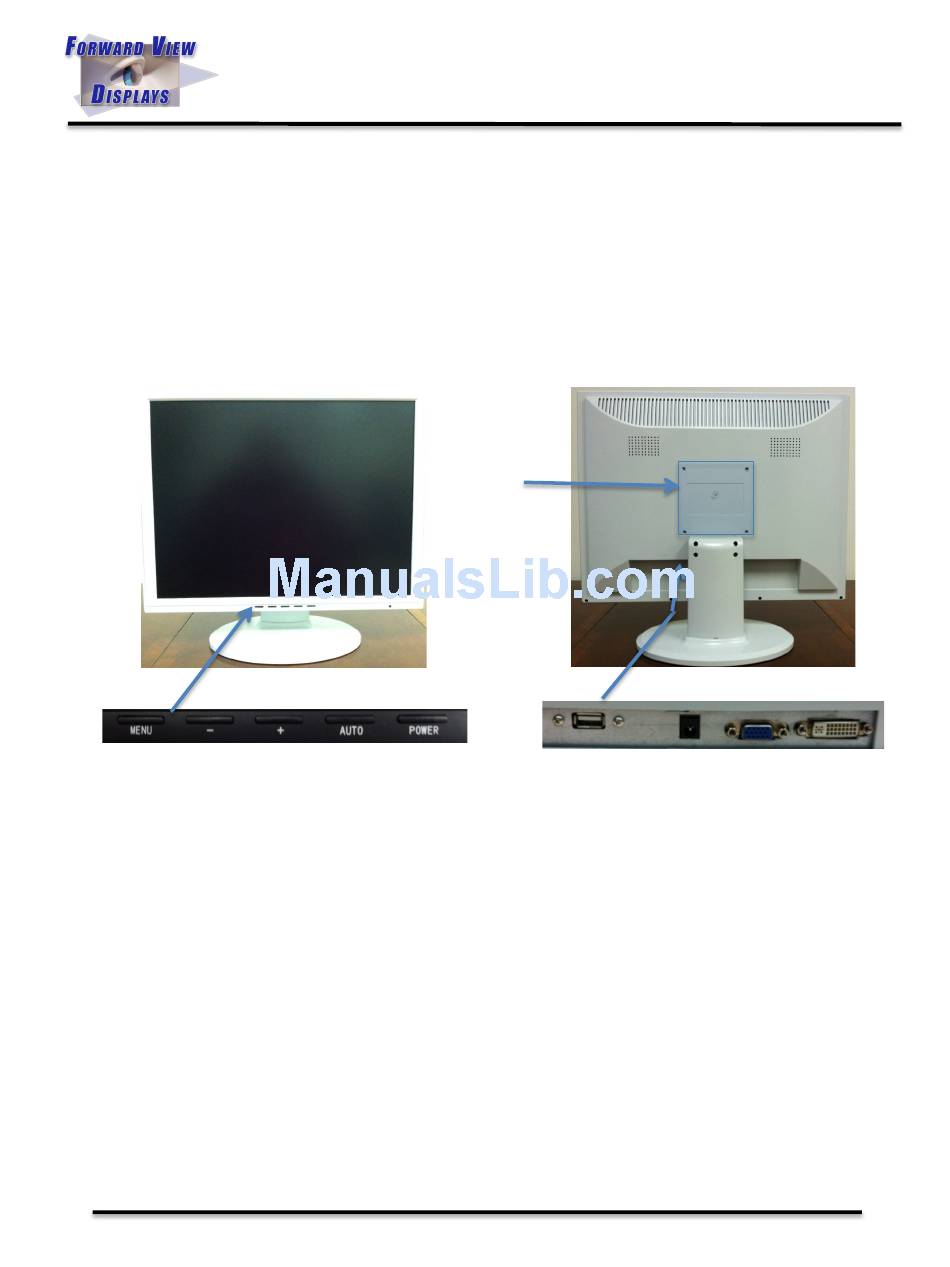

Monitor Front
User control Navigation keys
while in OSD mode
1. Plug the AC adapter into a suitable, grounded source. Connect the AC adapter to the
Power connector in the Input/Output area accessed at the bottom rear of the monitor.
2. Press the Power button and note the green LED indicator located inside the Power button
itself. If no signal source is connected to either VGA or DVI connector, the LCD backlight
will turn off and the unit will go into Standby, with the Power indicator slowly flashing red.
3. Connect either end of the USB Type A-Type A cable into the USB port of the monitor and
plug the other end into the associated PC. (applicable only for touch versions of the
monitor)
4. Connect either VGA or DVI connectors to the monitor in the Input/Output area and tighten
thejackscrews for the connector. The other end should be connected to a PC with the
capability of providing UXGA (1600 X 1200) resolution for best results.
5. Note that the display is now showing PC content.
6. Proceed to the OSD menu description in the following section.
Copyright 2011
VESA
Mount
100 x 100 mm
USB
Forward View Displays
http://www.fvdnow.com

Users Manual

FPM-201 Monitor
Monitor Rear
Power VGA
Input/Output Area
3311 N Kennicott Ave.
Arlington Heights, IL 60004
+1.866.688.4035
DVI
