Telecom FM 3G PHONE User Manual

3g phone fixed wireless phone
Hide thumbs Also See for 3G PHONE:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installer and User Manual
UK SALES : 0800 298 8011
Westlake Communications Ltd

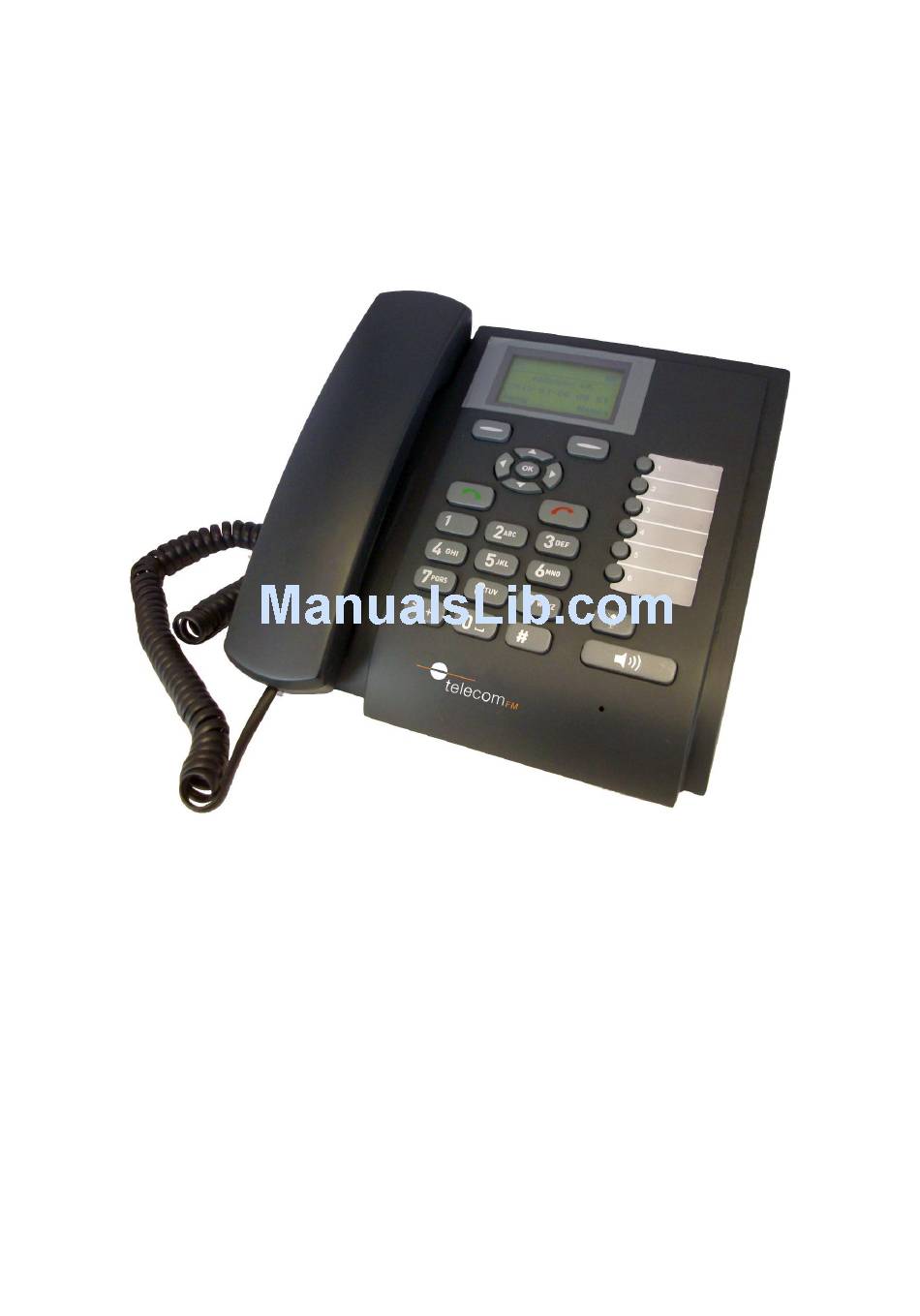

3G PHONE
Fixed Wireless Phone
PC Connectivity
Version 01 – October 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3G PHONE and is the answer not in the manual?

Questions and answers

Related Manuals for Telecom FM 3G PHONE

Summary of Contents for Telecom FM 3G PHONE

  • Page 1 UK SALES : 0800 298 8011 Westlake Communications Ltd 3G PHONE Fixed Wireless Phone PC Connectivity Version 01 – October 2012...

  • Page 2: Table Of Contents

    3G Phone PC Connectivity 1. Contents Contents ..................... 2 Installation ....................3 2.1. Windows 7 / Vista ..................3 2.2. Windows XP ....................7 Connect to the Internet ................11 3.1. Windows 7 / Vista ..................11 3.2. Windows XP .....................17 Outlook Contact Synchronisation ..............24 4.1.

  • Page 3: Installation

    3G Phone PC Connectivity Installation The 3GPhone drivers should be installed BEFORE connecting the phone to the The latest 3GPhone drivers can be downloaded from: www.telecomfm.co.uk/support/3gphone.htm 2.1. Windows 7 / Vista 1. Browse to the folder containing the drivers and double-click the 3GPhone_Driver.exe file.
  • Page 4 3G Phone PC Connectivity 3. Click Next to install the drivers. The driver files will then be copied to the PC...
  • Page 5 3G Phone PC Connectivity 4. If the Windows Security Warning is displayed click Install this driver software anyway to continue (this warning will be displayed three times since the phone driver package consists of three different drivers) 5. The Installation Complete screen will be shown when all of the drivers have been installed 6.
  • Page 6 3G Phone PC Connectivity 7. Using the supplied USB cable connect the Micro-USB plug to the USB socket on the rear of the 3GPhone: 8. Connect the other end of the supplied USB cable to an available USB port on the 9.

  • Page 7: Windows Xp

    3G Phone PC Connectivity 2.2. Windows XP 1. Browse to the folder containing the drivers and double-click the 3GPhone_Driver.exe file. The Installer Welcome Screen will be displayed 2. Click Next to install the drivers. The driver files will then be copied to the PC...
  • Page 8 3G Phone PC Connectivity 3. If the Software Installation Warning is displayed click Continue Anyway to continue (this warning will be displayed three times since the phone driver package consists of three different drivers) 4. The Installation Complete screen will be shown when all of the drivers have been installed 5.
  • Page 9 3G Phone PC Connectivity 6. Using the supplied USB cable connect the Micro-USB plug to the USB socket on the rear of the 3GPhone: 7. Connect the other end of the supplied USB cable to an available USB port on the 8.
  • Page 10 3G Phone PC Connectivity 9. Select Install the software automatically and click Next 10. The Hardware Installation warning is displayed: Click Continue Anyway. The Completing the Wizard page is displayed: 11. Click Finish to close the wizard. 12. Repeat steps 8 – 11 for each device that is found (there are 5 devices). Once complete the following message will be displayed: 13.

  • Page 11: Connect To The Internet

    3G Phone PC Connectivity Connect to the Internet Before beginning ensure that the 3GPhone has a data enabled SIM inserted, is powered up and has been connected to the PC and installed by following the instructions in section The Access Point Name (APN) for the mobile network is required. If this is not known, request this information from your mobile network provider.
  • Page 12 3G Phone PC Connectivity 3. Click on Device Manager 4. Expand the Modems category and double-click on TelecomFM HS-USB Modem 9000 5. Click on the Advanced tab...
  • Page 13 3G Phone PC Connectivity Under Extra initialisation commands enter the following text exactly as it appears here: at+cgatt=1;+cgdcont=1,”IP”,”apn” where apn is the access point name provided by the Network operator (for example, the apn for the O2 UK network is mobile.o2.co.uk and the apn for the Orange UK network...
  • Page 14 3G Phone PC Connectivity 7. Click Set up a new connection or network:...
  • Page 15 3G Phone PC Connectivity 8. Select “Connect to the Internet” and click Next: 9. Click Dial-up: 10. In the phone number box enter the following: *99***1# If your network provider requires a username and password enter them. Enter a “connection name” of “3GPhone” to identify the connection:...
  • Page 16 3G Phone PC Connectivity 11. Click Connect – you should then see the connection dialling, your computer being registered, the internet connection testing and finally the Connected dialog: 12. Click Close. Installation is now complete.

  • Page 17: Windows Xp

    1. Click on the Start menu, Control Panel. Double-click the “Phone and Modem Options”: Note: If the screen displayed differs to that shown here click Switch to Classic View 2. Click on the “Modems” tab. Select the “TelecomFM HS-USB Modem” and click the Properties button:...
  • Page 18 3G Phone PC Connectivity 3. Click on the “Advanced” tab. Under Extra initialisation commands enter the following text exactly as it appears here: at+cgatt=1;+cgdcont=1,”IP”,”apn” where apn is the access point name provided by the Network operator (for example, the apn for the O2 UK network is mobile.o2.co.uk and the apn for the Orange UK network...
  • Page 19 3G Phone PC Connectivity 5. Click Create a new Connection. The New Connection Wizard will be displayed, click Next to continue: 6. Select “Connect to the Internet” and click Next: 7. Select “Set up my connection manually” and click Next:...
  • Page 20 3G Phone PC Connectivity 8. Select “Connect using a dial-up modem” and click Next:...
  • Page 21 3G Phone PC Connectivity 9. Enter a name to identify the connection and click Next: 10. Enter the following in the Phone number box and click Next: *99***1#...
  • Page 22 3G Phone PC Connectivity 11. Select whether this connection should be available to all users of the computer and click Next: 12. If your network provider requires a username and password enter them. Click Next:...
  • Page 23 3G Phone PC Connectivity 13. Tick the box to add a shortcut to the connection on the desktop and click Finish: Installation is now complete.

  • Page 24: Outlook Contact Synchronisation

    3G Phone PC Connectivity Outlook Contact Synchronisation It is possible to transfer contacts between the 3GPhone phonebook and Microsoft Outlook. The Outlook Sync application is required which can be downloaded from: www.telecomfm.co.uk/support/3gphone.htm 4.1. Installation 1. Double-click the Outlook Sync Setup installer. If the “User Account Control”...
  • Page 25 3G Phone PC Connectivity 3. Select the folder to install the application to and click Next 4. Click Next to begin the installation. The application will be installed to the PC and shortcuts created in the Start menu and on the Desktop.
  • Page 26 3G Phone PC Connectivity 5. Click the Finish button to close the installer.

  • Page 27: Copy Contacts From Outlook To The Phone

    3G Phone PC Connectivity 4.2. Copy Contacts from Outlook to the Phone Before use ensure that the phone drivers have been installed and then connect the 3GPhone to the PC using the USB cable. Start the Outlook Sync application from the shortcut on the desktop or in the Start Menu.

  • Page 28: Copy Contacts From The Phone To Outlook

    3G Phone PC Connectivity 4.3. Copy Contacts from the Phone to Outlook Before use ensure that the phone drivers have been installed and then connect the 3GPhone to the PC using the USB cable. Start the Outlook Sync application from the shortcut on the desktop or in the Start Menu.

  • Page 29: Outlook Dial

    3G Phone PC Connectivity Outlook Dial Before use ensure that the phone drivers have been installed and then connect the 3GPhone to the PC using the USB cable. It is possible to dial Outlook contacts directly from within Microsoft Outlook using the 3GPhone.
  • Page 30 3G Phone PC Connectivity 3. Click on the Dialing Options button and under “Connect using line” select TelecomFM HS-USB Modem Click OK to return to the New Call dialog. 4. Click the Start Call button to dial the call. The call can then be carried out normally using either the phone’s handset, handsfree function or by using an...
