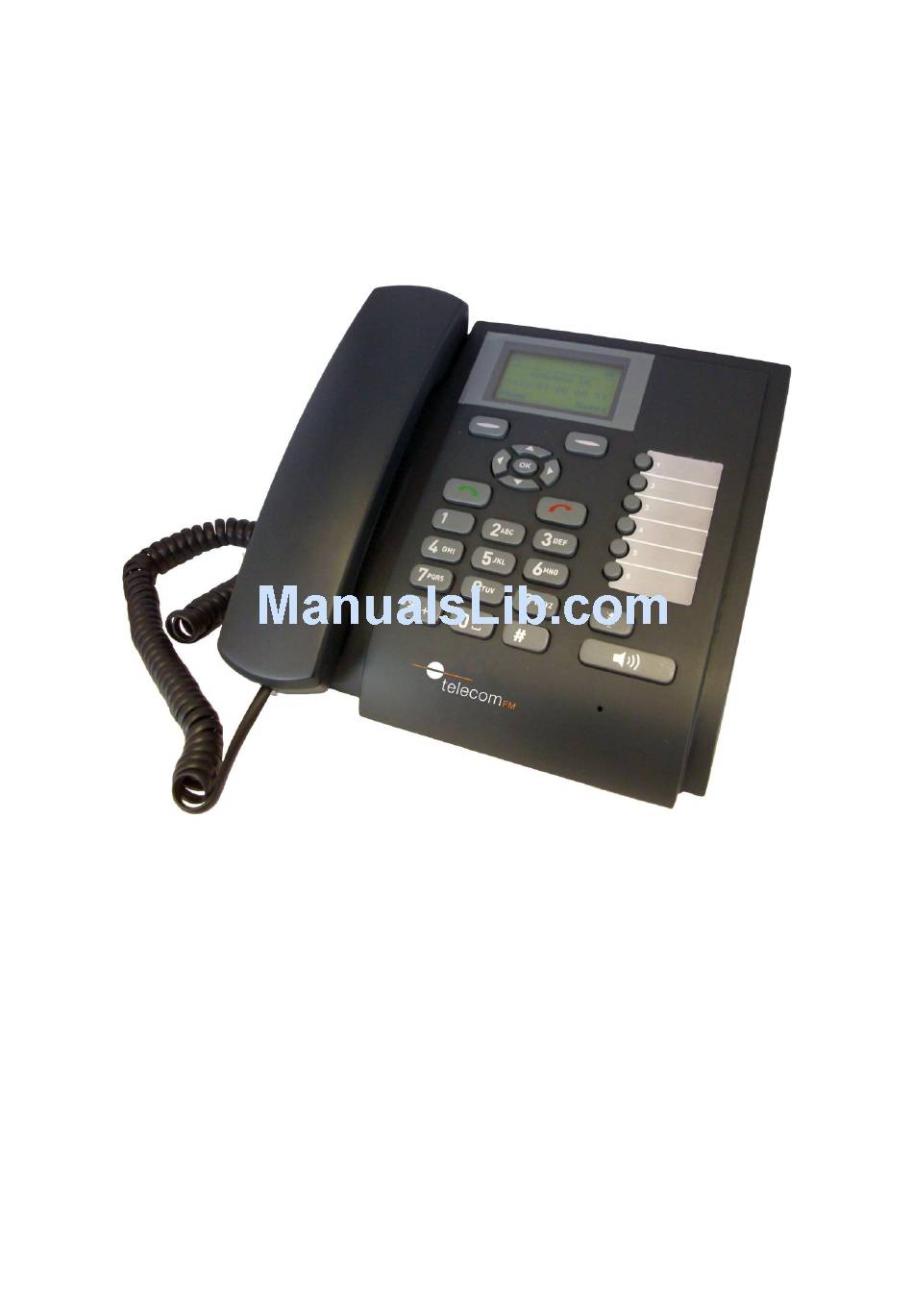

- Page 1 3G PHONE Fixed Wireless Phone Installation & User Guide Version 01 – August 2012 3G Desk Phone www.gsmdeskphone.co.uk 0800 928 8011...
-
Page 2: Table Of Contents
3G Phone User Manual 1. Contents Contents ..................... 2 Notices ....................... 3 Recommendations ..................3 Regulatory Information ................. 4 Introduction....................5 Getting Started .................... 7 6.1. Setting Up the Phone ................. 7 6.2. Powering Up the 3G Phone for the First Time ..........9 6.3. -
Page 3: Notices
3G Phone User Manual Document Control Date Change Version August 2012 release of document Notices Emergency Calls This 3G phone operates using wireless signalling which cannot guarantee connection in all conditions. Therefore, you should never rely solely on the terminal equipment for essential communications such as medical or emergency services. -
Page 4: Regulatory Information
3G Phone User Manual Regulatory Information Declaration of Conformity Applicant: TelecomFM Ltd. Address: 895 Plymouth Road, Slough, Berkshire, SL1 4LP, U.K. Product: 3G Phone This equipment complies with the European R&TTE Directive no. 1999/5/EC on radio and telecommunication terminal equipment. TelecomFM June 2012 3G Desk Phone... -
Page 5: Introduction
3G Phone User Manual Introduction Thank you for purchasing the 3G phone. The 3G Phone can be used to make and receive phone calls, send and receive SMS messages and connect to the internet at locations where a fixed telephone line is not available. - Page 6 3G Phone User Manual Side View: Microphone Connection Headphone Connection Bottom View: Feet Battery Cover Battery connector SIM Card slot 3G Desk Phone www.gsmdeskphone.co.uk 0800 928 8011...
-
Page 7: Getting Started
3G Phone User Manual Getting Started Remove the 3G Phone from the packaging, and proceed as follows: Warning! To avoid damage do not connect power until you have inserted the SIM and battery pack 6.1. Setting Up the Phone Install the SIM card and battery pack Unscrew the battery cover screw and remove the battery cover. - Page 8 3G Phone User Manual (Optional) Attach the 2 feet to the underside of the phone Attach the Handset Plug one end of the handset cord into the bottom of the handset and the other end to the RJ11 connector found on the side of the 3G Phone Connecting the power Supply Connect the power supply unit to the mains AC outlet and to the power supply connector on the phone (marked DC 5v)
-
Page 9: Powering Up The 3G Phone For The First Time
3G Phone User Manual 6.2. Powering Up the 3G Phone for the First Time Press the power button on the back of the unit and wait for the display to light up and for the 3G phone to initialise. The 3G Phone will now carry out an auto test and log onto your chosen network. If successful the following will be displayed on the LCD screen: Mains Power indicator 2G/3G indicator... -
Page 10: Calling
3G Phone User Manual Calling 7.1. Starting a phone call Either lift the handset or press the Handsfree key . After hearing dial tone, dial the required number followed by either the Green Dial key or the OK key . The call will then be connected. 7.2. -
Page 11: Menu
3G Phone User Manual Menu The phones menu system can be accessed by pressing the Left function key whenever “Menu” is displayed on the screen: There are 4 menus available – use the Left and Right arrow keys to select the required menu and then press the OK key. -
Page 12: Phone Book Menu
3G Phone User Manual 8.1. Phone Book Menu The phone book allows the storage of names and numbers for commonly used contacts. Up to 1000 contacts can be stored on the telephone. Additional contacts can be stored on the SIM card. 8.1.1. -
Page 13: Search
3G Phone User Manual 8.1.2. Search Search for a contact in the phone book. Enter the first character(s) of the contacts name and then press the OK key to view a list of contacts which match. Use the Up and Down arrow keys to move through the list of matched contacts. Press the OK key to select a contact and display a new menu of options: New Message Voice Call... -
Page 14: Copy All
3G Phone User Manual 8.1.5. Copy All Copy all of the contacts from the phone memory to the SIM card or from the SIM card to the phone memory. Choose whether contacts should be copied from “SIM to Phone” or from “Phone to SIM” and press OK to begin the copy. -
Page 15: Message Menu
3G Phone User Manual 8.2. Message Menu The Message menu allow access to text message (SMS) and Voicemail services. 8.2.1. SMS Access the SMS menu which has the following options: 1. Write MSG Send an SMS message. Use the phone keypad to type the message. The following keys have special functions: insert a space insert a symbol switch between uppercase letters, lowercase letters and numbers... - Page 16 3G Phone User Manual 2. Inbox Display a list of received SMS messages. Select a message and press the OK key to display the following menu: 1 Preview 2 Reply 3 Forward 4 Voice Call 5 Save Number 6 Deleted 7 Delete All 8 Exit Preview:...
- Page 17 3G Phone User Manual Preview: Display the content of the SMS message Send Again: Send this SMS message again. The message and/or recipients can be edited before sending the message. Delete: Delete the SMS message. Press OK to confirm or the “Cancel” (Right) function key to return to the menu.
-
Page 18: Voice Mail
3G Phone User Manual Edit: Edit the selected template. After editing the template press the OK key to save and return to the list of templates. Add: Add a new template. Enter the template and press the OK key to save. Delete: Delete the template. -
Page 19: Call Log Menu
3G Phone User Manual 8.3. Call Log Menu Review Missed calls, Dialled calls and Received calls. Call Log Sub-Menus 1 Missed Calls 2 Received Calls 3 Dialled Calls 4 Delete Records 8.3.1. Missed Calls View a list of recent unanswered calls. Select an entry on the list and press the OK key to view details including the name (if available), the phone number and the time/date of the call. -
Page 20: Dialled Calls
3G Phone User Manual Preview View call details including the name (if available), the phone number and the time/date of the call Add to Blacklist Add the number to a blacklist to stop inbound calls being received from that number Save Number Create a new contact in the phonebook for the selected the number Delete... -
Page 21: Settings Menu
3G Phone User Manual 8.4. Settings Menu Make changes to the way the 3G Phone works. The following settings are available: 1. Quick Dial 2. Phone Setup 3. Display 4. Call Setting 5. Tone Setting 6. Network Setup 7. Security Setup 8. -
Page 22: Phone Setup
3G Phone User Manual 8.4.2. Phone Setup Provides the following options: Language Choose between “English” and “Spanish” to select the language used for the phone’s menu Date and Time Set the current date/time and adjust it’s format: Time Setting – enter the current date and time then press the OK key to save. Format Setting –... -
Page 23: Tone Setting
3G Phone User Manual Call Barring Prevent calls from being either dialled from or received on the inserted SIM. Select “Bar In” to stop calls from being received or “Bar Out” to stop calls from being dialled. Select “Activate” to turn the service on, “Deactivate” to turn the service off or “Query Status” to check whether the service is currently on or off. -
Page 24: Network Setup
3G Phone User Manual 8.4.6. Network Setup Adjust settings for the network provider. The following settings are available: Mode Switch: UMTS – only connect to UMTS (3G) networks GSM – only connect to GSM (2G) networks Automatic – connect to GSM and UMTS networks Select Network: Automatic –... -
Page 25: Tools
3G Phone User Manual 8.4.8. Tools The following tools are available: Alarm: Use the phone as an alarm clock. On – Off – Turn the Alarm clock on or off Time – set the time that the alarm should sound Repeat –... -
Page 26: Troubleshooting
3G Phone User Manual Troubleshooting If you encounter any problems while using the 3G Phone they may be easily resolved by checking the list below, or by contacting your service provider No Power: Check mains supply is connected Will not operate on Battery back up: ... -
Page 27: Hardware Specification
3G Phone User Manual Hardware Specification Bands UMTS 900 / 2100 MHz GSM 850 / 900 / 1800 / 1900 MHz Max. Data Rates HSDPA 3.6Mbps UMTS 384kbps EDGE 237kbps GPRS 85.6kbps Antenna Internal Battery NiMH Rechargeable Data Port USB Micro-B Socket Headset Port Twin 3.5mm Jack Sockets for microphone and headphone connection...
