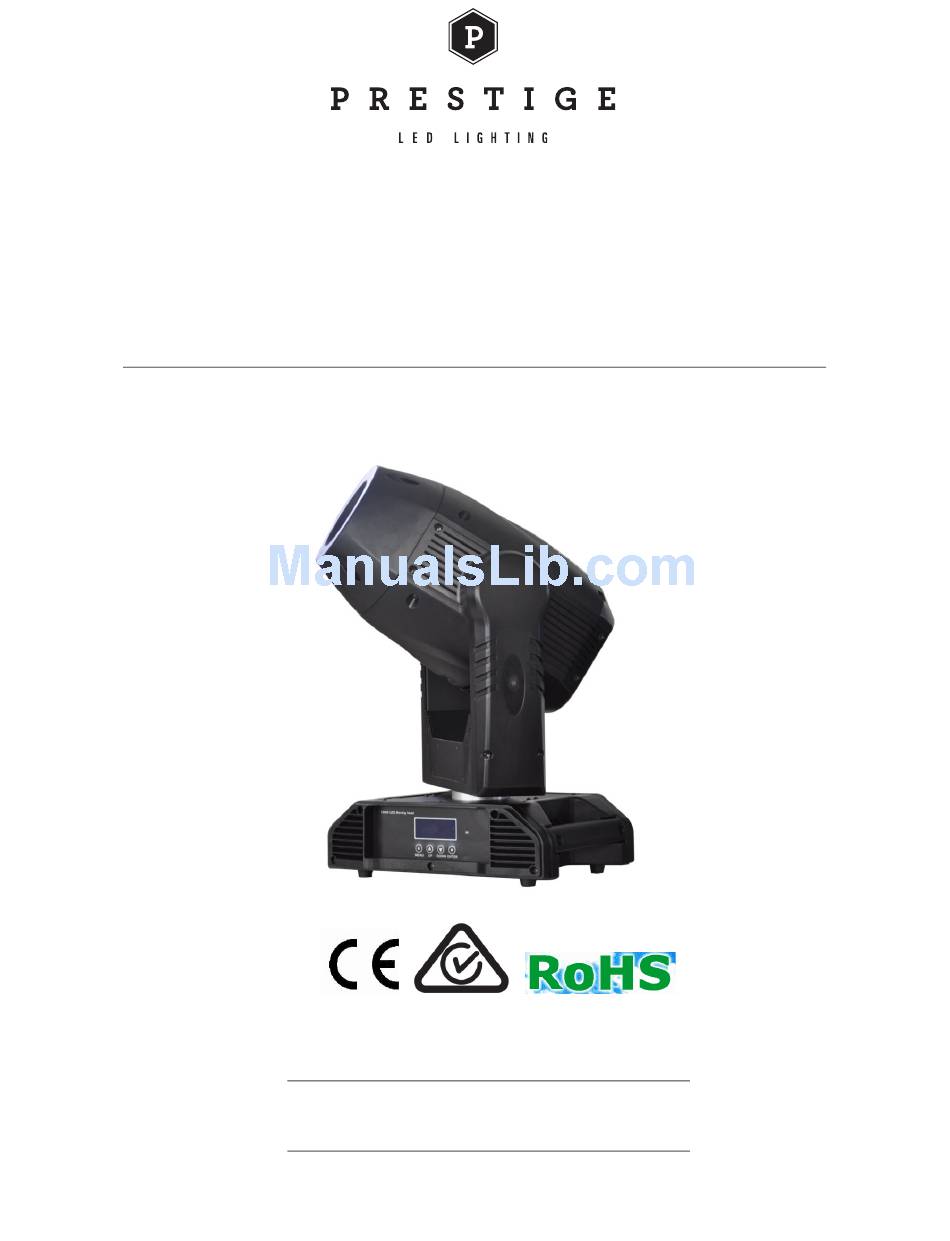

- Page 1 Vivid S150W Moving Spot USER MANUAL...
-
Page 2: Table Of Contents
19 8. XLR cable connecting 20 XRL cable 20 9. Wiring Diagram 21 10. Trouble Shooting 23 11. Technical Specifications 24 12. Maintenance 24 2 Vivid S150W Moving Spot – User Manual... -
Page 3: Product Introduction
1. SUMMARY Thank you for purchasing our Vivid S150W Moving Spot. Please read these instructions carefully before operating the system to avoid any possible damage or misuse. PRODUCT INTRODUCTION The Vivid Moving Spot is lightweight, energy-saving and uses a 150W LED light source. -
Page 4: Safety Instructions
The yellow/green cables are for earthling safety. These should not flicker when fixture is in use. Do not connect the fixture or power cords with any other dimming devices or power cords. 3. PRODUCT DIAGRAMS Dimensions: 4 Vivid S150W Moving Spot – User Manual... - Page 5 Installation Instructions 5 Vivid S150W Moving Spot – User Manual...
-
Page 6: Features
Master-slave mode: no need to set slave manually; the slave will receive data from master automatically o The fixture parameter is available for downloaded o When the fan is not working, the LED won’t light up 6 Vivid S150W Moving Spot – User Manual... -
Page 7: Dmx Control
CW flow effect slowàfast 191~230 CCW flow effect slowàfast 231~240 sound running 241~255 Reserved Gobo rotation 0~20 No rotation 21~80 CW slowàfast 81~140 CCW slowàfast 141~220 CWàCCW cycle slowàfast 221~255 Reserved CH10 Gobo 2 7 Vivid S150W Moving Spot – User Manual... - Page 8 121~130 Color 5 green 131~140 Color 6 pink 141~150 Color 7 light yellow 151~180 CW flow effect slowàfast 181~190 Color wheel stop 191~220 CCW flow effect slowàfast 221~230 sound running 231~255 8 Vivid S150W Moving Spot – User Manual...
- Page 9 No prism 11~20 prism active CH14 CH16 21~100 CW slowàfast 101~180 CCW slowàfast 181~255 CWàCCW cycle slowàfast 0~50 No atomization CH15 CH17 51~255 Atomization Blackout while P/T moving CH16 CH18 0~50 Disable 9 Vivid S150W Moving Spot – User Manual...
- Page 10 Dimmer modes set by menu 11~20 Dimmer off 21~30 Dimmer 1 CH17 CH19 31~40 Dimmer 2 41~50 Dimmer 3 51~60 Dimmer 4 61~254 Dimmer modes set by menu Reset (at least keep 5S) 10 Vivid S150W Moving Spot – User Manual...
-
Page 11: Display Operation Instructions
MENU: Return to the main menu or a previous menu option ENTER: Select the current menu option or save the option UP: Increase the menu selection DOWN: Decrease the menu selection 11 Vivid S150W Moving Spot – User Manual... -
Page 12: Menu Instructions
CH5:TILT 0-255 CH6:TILT FINE 0-255 CH7:P/T SPEED 0-255 CH8:GOBO1 0-255 CH9:GOBO1 0-255 ROTATE CH10:GOBO2 0-255 CH11:COLOR1 0-255 CH12:COLOR2 0-255 CH13:IRIS 0-255 CH14:ZOOM 0-255 CH15:FOCUS 0-255 CH16:PRISM 0-255 CH17:ATOMIZATI 0-255 CH18:MOVING 0-255 12 Vivid S150W Moving Spot – User Manual... -
Page 13: Dmx Address Code Setting
Choose DMX ADDRESS from menu and press ENTER to set DMX address code u Press UP/DOWN to select address code 1~512 u Press ENTER to exit and save your option 13 Vivid S150W Moving Spot – User Manual... -
Page 14: Option Setting
Press【ENTER】to exit and save the option Note: After pressing【ENTER】to confirm, PAN/TILT will reset automatically 7 . 3 . 5 Dimmer Modes Setting Choose【DIMMER MODE】from menu, press【ENTER】to select dimmer modes Press【UP/DOWN】to choose【OFF】，【DIM1】，【DIM2】，【DIM3 】or【DIM4】 14 Vivid S150W Moving Spot – User Manual... -
Page 15: Display Setting
Choose【CHANNEL MODE】from menu, press【ENTER】to select DMX channel Press【UP/DOWN】to choose【17CH】or【19CH】 Press【ENTER】to exit and save the option 7 . 4 DISPLAY SETTING MENU DISPLAY DISPLAY INTENSITY 01-32 PERMANENTLY ON/2 DISPLAY SLEEP MINUTES/5 MINUTES/10 MINUTES 15 Vivid S150W Moving Spot – User Manual... -
Page 16: Manual Control Setting
CH14:ZOOM 0-255 CH15:FOCUS 0-255 CH16:PRISM 0-255 CH17:ATOMIZATION 0-255 CH18:MOVING 0-255 BLACKOUT CH19:CONTROL Choose【MANUAL CONTROL】from menu, press【ENTER】to set manual control of DMX value of【CH1】~【CH19】 Press【UP/DOWN】to choose【0~255】 Press【ENTER】to exit and save the option 16 Vivid S150W Moving Spot – User Manual... -
Page 17: Gobo And Color Wheel Position Calibration Setting
Note: The calibration part has been adjusted to the best position at factory. Please do not change if not necessary. 7 . 7 TEST OPERATION SETTING TEST MENU SOUND CONTROL RUNNING… OPERATION AUTO RUNNING… 17 Vivid S150W Moving Spot – User Manual... -
Page 18: 7、8 Recover Factory Default Setting
Choose【SETTING LOAD】from menu, press【ENTER】to recover the factory default of setting parameter Press【UP/DOWN】to choose【YES】 Press【ENTER】to exit and save the option Note: After pressing【ENTER】to confirm, PAN/TILT will reset automatically once 7 . 9 FIXTURE RESET FIXTURE MENU YES/NO RESET 18 Vivid S150W Moving Spot – User Manual... -
Page 19: Send Setting Parameters To Other Fixtures
The setting of【DMX ADDRESS】 and 【CALIBRATION】of gobo, color wheel , prism and atomization are invalid and won’t be sent. The other fixtures will reset automatically once after receiving data correctly. 19 Vivid S150W Moving Spot – User Manual... -
Page 20: Xlr Cable Connecting
120 （1/4W）at the end of the DMX connection as shown below: The conversion between 3 pin and 5 pin XLR. If the output cable of the DMX512 controller is a 5PIN, a 5PIN to 3PIN cable is necessary. 20 Vivid S150W Moving Spot – User Manual... -
Page 21: Wiring Diagram
9. WIRING DIAGRAM 21 Vivid S150W Moving Spot – User Manual... - Page 22 22 Vivid S150W Moving Spot – User Manual...
-
Page 23: Trouble Shooting
(150W) Check is the optical lens is damaged Clean the dust and grease on the lens The beam lacks reliability Note: Seek advice from a professional prior to authoring any repairs 23 Vivid S150W Moving Spot – User Manual... -
Page 24: Technical Specifications
Control modes：stand-alone, Master/slave, sound control o DMX channel：17CH、19CH o Display: LCD Display o communication signals: DMX512、wireless DMX512、DMX Ethernet（ multi-network in one） （ordered separately） o Weight: 20Kg o Size: L400*W280*607mm 12. MAINTENANCE 24 Vivid S150W Moving Spot – User Manual... - Page 25 We suggest cleaning the exterior optical system every 20 days and cleaning the interior optical system every 30-60 days. Do not use any organic colvent, such as ethyl alcohol, to clean the housing of the fixture to avoid damage 25 Vivid S150W Moving Spot – User Manual...
