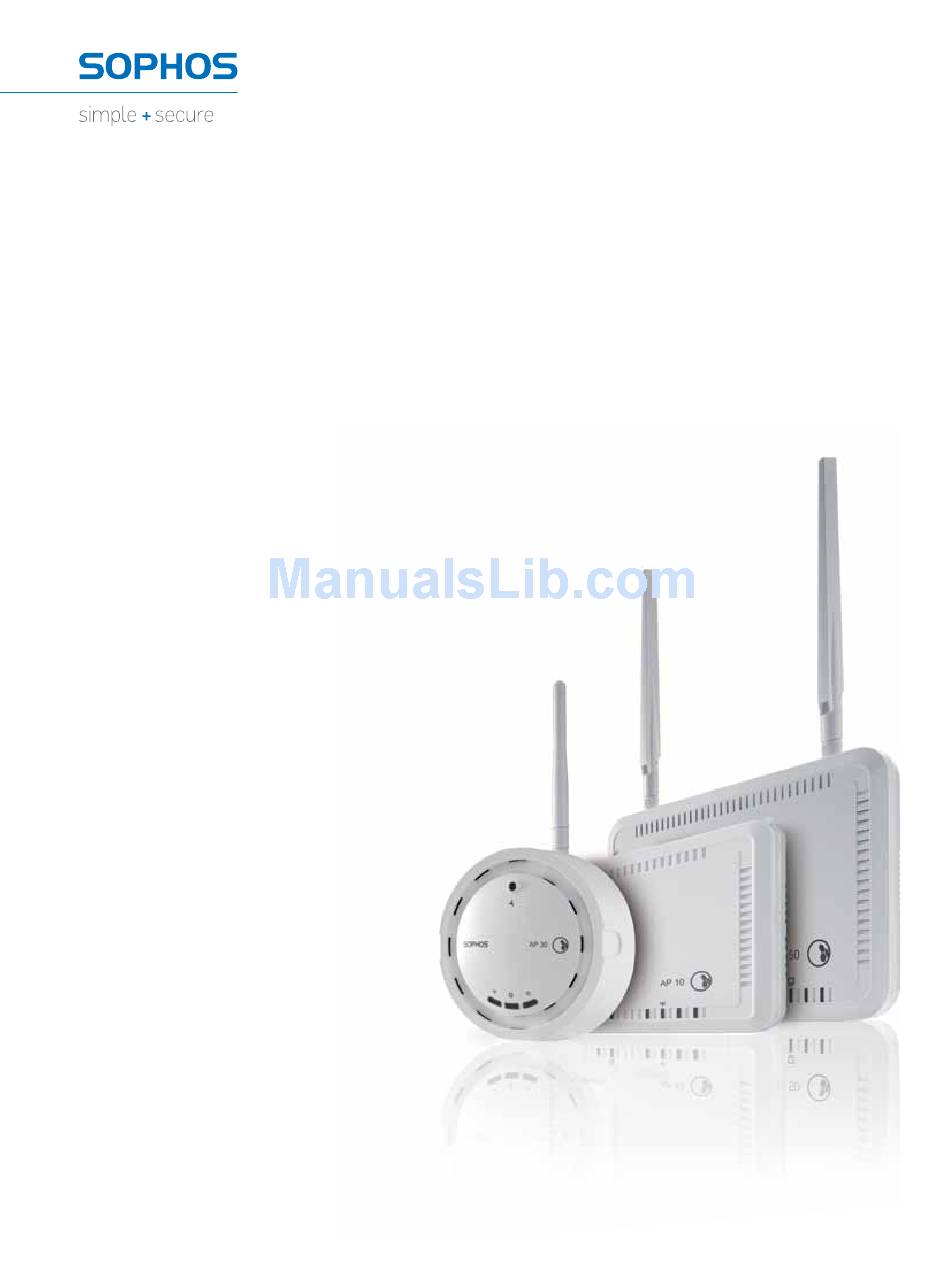

- Page 1 Operating Instructions Sophos Access Points...
-
Page 2: Table Of Contents
Content Sophos AP10 Introduction Controls Placing into operation Sophos AP10 mounting instructions Technical specifications Sophos AP30 Introduction Controls Placing into operation Sophos AP30 mounting instructions Power-over-Ethernet injector (optionally included with AP30) Installing the PoE injector Technical specifications Sophos AP50 Introduction... -

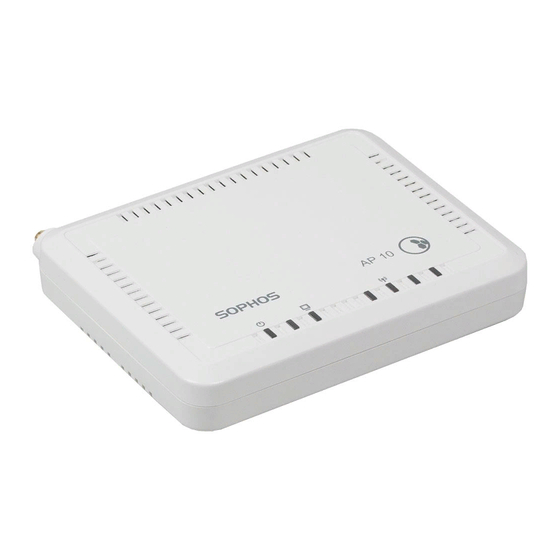

Page 3: Sophos Ap10
Operating Instructions Sophos AP10... -
Page 4: Introduction
Introduction We are pleased to welcome you as new Sophos Access Point customer. To install and configure the access, point may refer to the following documents: Ì Sophos Access Points Security Notes & Regulatory Compliance: Notes on access point security Ì... -
Page 5: Placing Into Operation
Allow the power supply modules to cool before touching them. Sophos AP10 mounting instructions The Sophos AP10 can be mounted on the wall. Screws are not included in delivery. Use only screws whose dimensions correspond with the mounting holes on the back side. -
Page 6: Technical Specifications
Technical specifications Sophos AP10 LAN interfaces 1 x 10/100 Base-TX Wireless interfaces 802.11 b/g/n 2.4 GHz Antennas 1 x detachable dipole antenna Power supply 100-240 VAC, 50/60 Hz, max. 0.3 A Weight 130 g / 0.287 lbs Dimensions W x H x D... -
Page 7: Sophos Ap30
Operating Instructions Sophos AP30... -
Page 8: Introduction
Introduction We are pleased to welcome you as new Sophos Access Point customer. To install and configure the access, point may refer to the following documents: Ì Sophos Access Points Security Notes & Regulatory Compliance: Notes on access point security Ì... -
Page 9: Placing Into Operation
Mounting instructions All access points can be put on a stable horizontal surface or can be mounted on the wall. The Sophos AP30 can also be mounted on the ceiling. Please take note of the following security hints: Warnings and precautions The access point can be operated safely if you observe the following notes and the notes on the device itself. -
Page 10: Installing The Poe Injector
Connect the AC power cord from the scope of supply to the PD-3501/AC. Connect the AC power cable to an AC outlet (100 – 240 VAC). Technical specifications Sophos AP30 LAN interfaces 1 x 10/100 Base-TX Wireless interfaces 802.11 b/g/n 2.4 GHz... - Page 11 53 x 33 x 140 mm Chassis Plastic housing Mounting Desktop / wall Temperature 0°C to 40°C (operating) -20°C to 70°C (storage) 10% to 90% relative humidity non-considering Certifications CE, FCC, VCCI, UL, GS, RoHS, WEEE Sophos AP30 Operating Instructions...
-
Page 12: Sophos Ap50
Operating Instructions Sophos AP50... -
Page 13: Introduction
Introduction We are pleased to welcome you as new Sophos Access Point customer. To install and configure the access, point may refer to the following documents: Ì Sophos Access Points Security Notes & Regulatory Compliance: Notes on access point security Ì... -
Page 14: Placing Into Operation
Sophos AP50 mounting instructions The Sophos AP50 can be mounted at the wall. Screws are not included in delivery. Use only screws whose dimensions correspond with the mounting holes on the back side. -
Page 15: Installing The Poe Injector
Connect the other end of this Ethernet cable to your network switch. Connect the AC power cord from the scope of supply to the PD-9001GR/AC. Connect the AC power cable to an AC outlet (100 – 240 VAC). Sophos AP50 Operating Instructions... -
Page 16: Technical Specifications
North American Sales: Tel: +44 (0)8447 671131 Toll Free: 1-866-866-2802 Email: sales@sophos.com Email: nasales@sophos.com Boston, USA | Oxford, UK © Copyright 2011. Sophos Ltd. All rights reserved. All trademarks are the property of their respective owners. Sophos Operating Instructions 12.11v1.dNA...
