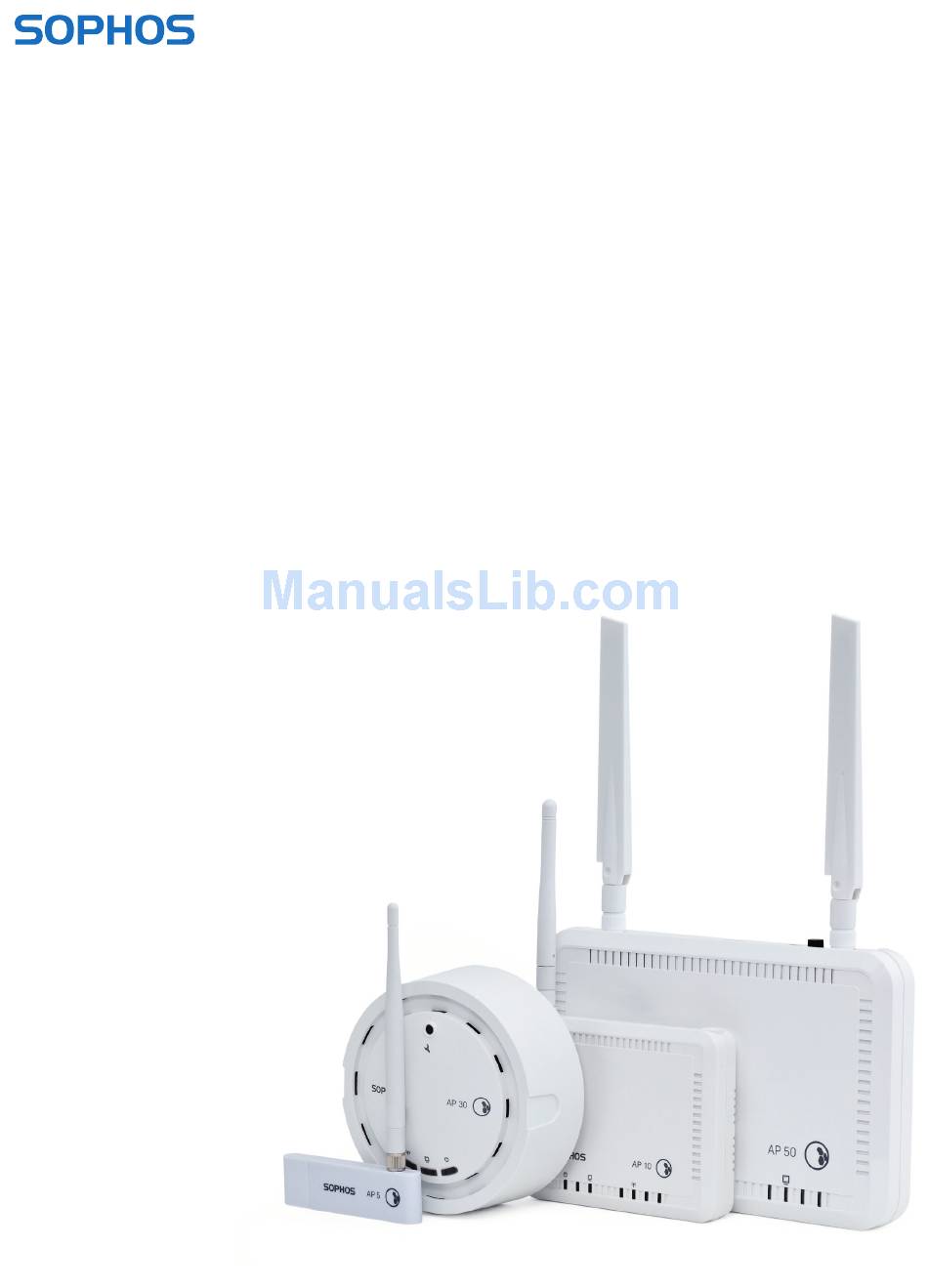

- Page 1 Operating Instructions Sophos Access Points...
-
Page 2: Installation
Foreword We are pleased to welcome you as a new Sophos Access Point customer. These operating instructions will help you install and configure the access point and provide technical specifications of all Sophos access point models. In addition, please also see the... - Page 3 Power-over-Ethernet-injector. Note that it is also possible to power them by a PoE-compliant switch. For more information on PoE-injectors, see below. Connect the AP10 to the power supply. Please use the power supply from the scope of supply. Start the communication between the access point and...
- Page 4 Accepting the access point The UTM appliance will start to communicate with the access point and they will show up as “Pending” on the Wireless Protection > Access Points tab in WebAdmin. The ID of the Access Points, shown in square brackets, is also printed on the bottom of the device.
-
Page 5: Mounting Instructions
The AP5 is an accessory of the Sophos RED device, adding wireless networking capabilities to it. To install the AP5, simply plug it into a Sophos RED device. The AP5 is powered directly through the USB interface of the RED device. - Page 6 Technical specifications Sophos AP5 Chassis Plastic shell (ABS PC), white Maximum throughput 150 Mbit/s Supported WLAN standards IEEE 802.11 b/g/n 2.4 GHz Antenna 1 x detachable omnidirectional antenna (4dBi) Connector type: RP-SMA Frequencies / channels 2.412~2.462 GHz Channels 1-11 Power supply Power consumption 0.85 W (idle) to 1.50 W (max.)
- Page 7 Power supply Detachable dipole antenna Ethernet cable Mounting instructions The Sophos AP10 can be mounted on the wall. Screws are not included in delivery. Only use screws whose dimensions correspond with the mounting holes on the back side. Controls Power (LED display)
- Page 8 Technical specifications Sophos AP10 Chassis Plastic housing, white Maximum throughput 150 Mbit/s LAN interfaces 1 x 10/100 Base-TX Supported WLAN standards 802.11 b/g/n 2.4 GHz Antennas 1 x detachable dipole antenna (2 dBi) Connector type: RP-SMA Frequencies / channels 2.412~2.462 GHz...
- Page 9 AP10 Mounting template Do not shrink to fit when printing 8,85 cm (3,48 in)
- Page 10 Ethernet cable injector + power cord Mounting instructions The Sophos AP30 can be mounted on the ceiling. Screws are included in delivery. Use the screws from the scope of supply or screws whose dimensions correspond with the mounting holes in the bracket.
-
Page 11: Technical Specifications
Technical specifications Sophos AP30 Chassis Plastic housing, white (smoke detector design) Maximum throughput 300 Mbit/s LAN interfaces 1 x 10/100 Base-TX Supported WLAN standards 802.11 b/g/n 2.4 GHz Antennas 3 x directional internal antennas (4 dBi) Frequencies / channels 2.412~2.462 GHz... - Page 12 2 detachable antennas Ethernet cable injector + power cord Mounting instructions The Sophos AP50 can be mounted on the wall. Screws are not included in delivery. Use only screws whose dimensions correspond with the mounting holes on the back side. Controls...
- Page 13 Technical specifications Sophos AP50 Chassis Plastic housing, white Maximum theoretical 300 Mbit/s throughput LAN interfaces 1 x 10/100/1000 Base-TX Supported WLAN standards 802.11 a/b/g/n 2.4 GHz / 5 GHz Antennas 2 x 2.4G/5G (3dBi/5dBi) dual-band antenna Frequencies / channels Radio I: 11b/g/n: 2.412-2.472 GHz (ETSI) Channels 1-13 (ETSI) 2.412-2.462 (FCC)
- Page 14 AP50 Mounting template Do not shrink to fit when printing...
- Page 15 (DC), which is then provided over the Ethernet cable 1. Connect an Ethernet cable to the Data & Power Out to power the Sophos Access Points AP30 and AP50. interface. 2. Connect the other end of this Ethernet cable to the Installation Ethernet interface of the access point.
- Page 16 Sales DACH (Deutschland, Österreich, Schweiz) Tel: +49 (0) 611 5858-0 +49 (0)721 255 16-0 E-mail: sales@sophos.de Boston, USA | Oxford, UK © Copyright 2012. Sophos Ltd. Alle Rechte vorbehalten. Alle Marken sind Eigentum ihres jeweiligen Inhabers. Sophos Operating Instructions 5.12v1.dNA...
